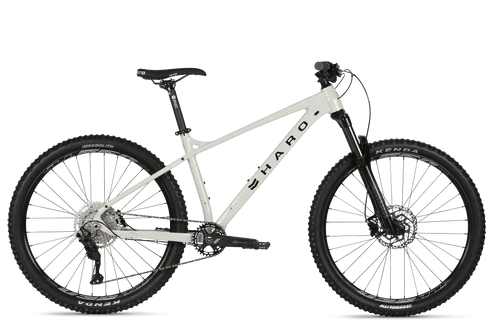

Haro Double Peak 27.5 Comp Hardtail Mountain Bike - Concrete
Haro Double Peak 27.5 Comp Hardtail Mountain Bike - Concrete
Regular price
$ 899.99 USD
Regular price
$ 1,399.99 USD
Sale price
$ 899.99 USD
Unit price
per
Shipping calculated at checkout.
In stock
Couldn't load pickup availability
SKU:11283
Key Features:
- Haro DP Comp 27.5" Trail geometry frame for aggressive riding
- RockShox Judy Silver 27.5" Boost fork with 120mm travel
- Aluminum 1x Boost 32T crankset for smooth pedaling
- Shimano Deore M5120 10-speed rear derailleur and M4100 10-speed 11-46T cassette
- WTB WeirWolf grips and Volt Sport saddle for comfort
- KENDA Regolith 27.5"x2.4" tires for exceptional grip
- Weinmann U-32TL Disc DW rims, 32H for durability
- Shimano MT-201 hydraulic disc brakeset for reliable stopping power
- Shimano MT-400 Boost hubs with thru-axles for enhanced stability
Discover the excitement of trail riding with the 2023 Haro Double Peak 27.5 Comp Hardtail Mountain Bike - Concrete. Don't miss out on this perfect blend of style, performance, and durability for your next adventure.
| FRAMESET | |
|---|---|
| Frame | Haro Double Peak Comp 27.5" X6 Aluminum series | New Trail geometry | Tapered head tube | Boost Rear | Smooth welding | Internal housing routing | chainstay disc brake mount | 73mm threaded BSA | Rear Thru-Axle 12xP1.75x167mm |

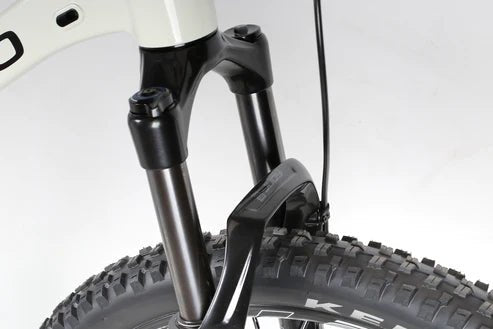

| Fork | Rockshox Judy Silver TK | 27.5" | Tapered | Boost | 15x110mm axle | Solo Air 120mm Travel |
| Colors | Concrete |
| DRIVETRAIN | |
| Cranks | Samox aluminum Boost 2-pc | 32T |
| Pedals | FPD Nylon body | Chromoly axles | Platform |
| Chain | KMC X10-1 MTB 10-spd |
| Bottom Bracket | Samox outboard | sealed cartridge |
| Front Derailleur | N/A |

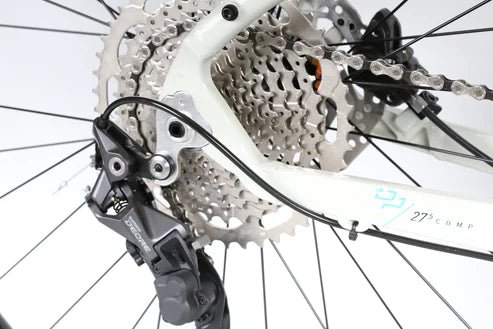

| Rear Derailleur | Shimano Deore RD-M5120 | 10-spd | Shadow Plus |

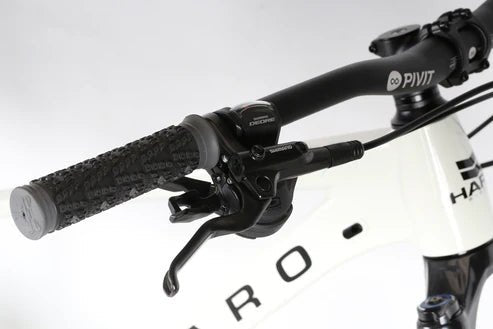

| Derailleur Shifter | New Shimano Deore SL-M4100-R 10-spd |
| Freewheel/Cassette | Shimano Deore CS-M4100 | 10-spd | 11-46T |
| WHEELS | |
| Tires | KENDA Regolith | 27.5"x2.4"| Wire beads |
| Wheels/Rims | Weinmann U-32TL Disc Aluminum double wall | 32h | Tubeless Ready |
| Hubs | Shimano MT-400 Boost | Center Lock Disc | cassette 32h |
| BRAKING SYSTEM | |
| Brakes | Shimano BR-MT200 hydraulic | 180/160mm Center Lock Rotors |
| Brake Levers | Shimano BL-MT201 |
| OTHER COMPONENTS | |
| Grips/Tape | WTB Weirwolf |
| Handlebar | Pivit Aluminum | 20mm riser bar 31.8mm | 760mm width |
| Stem | Pivit 3D forged stem | 31.8x45mm |
| Headset | FPD DOZER-1160B-2 | Tapered 1-1/8"-1.5" Threadless for 50/62mm OD headtube | 8mm top cover |

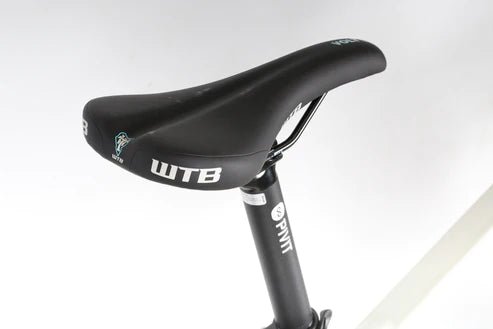

| Saddle | WTB Volt Sport w/ color accents |
| Seat Post | Pivit Aluminum micro adjust 2-Bolt | 31.6x350/400mm |
| Seat Clamp | Pivit alloy 34.9mm | quick release |
| Extras | Boost Thru-Axle Rear 12xP1.75x167mm |
GEOMETRY
| SIZE | XS | S | M | L |
|---|---|---|---|---|
| A. Seat Tube (C-T) | 356mm (14") | 381mm (15") | 432mm (17") | 583mm (19") |
| B. Top Tube (Effective) | 562mm (22.1") | 587mm (23.1") | 615mm (24.2") | 643mm (25.3") |
| C. Head Tube Angle | 67° | 67° | 67° | 67° |
| D. Seat Tube Angle | 75° | 75° | 75° | 75° |
| E. Chainstay Length | 435mm (17.1") | 435mm (17.1") | 435mm (17.1") | 435mm (17.1") |
| F. BB Drop | 45mm (1.8") | 45mm (1.8") | 45mm (1.8") | 45mm (1.8") |
| G. Wheelbase | 1111mm (43.7") | 1136mm (44.7") | 1165mm (45.9") | 1194mm (47") |
| H. Head Tube Length | 100mm (3.9") | 100mm (3.9") | 110mm (4.3") | 120mm (4.7") |
| I. Standover | 719mm (28.3") | 706mm (27.8") | 729mm (28.7") | 744mm (29.3") |
| J. Stack Height | 593mm (23.3") | 593mm (23.3") | 602mm (23.7") | 611mm (24.1") |
| K. Reach | 400mm (15.7") | 425mm (16.7") | 450mm (17.7") | 475mm (18.7") |
| L. Fork Height | 510mm (20.1") | 510mm (20.1") | 510mm (20.1") | 510mm (20.1") |
| M. Fork Offset | 42mm (1.7") | 42mm (1.7") | 42mm (1.7") | 42mm (1.7") |
| N. Stem Length | 45mm | 45mm | 45mm | 45mm |
| O. Bar Width | 760mm | 760mm | 760mm | 760mm |
| P. Crank Length | 170mm | 170mm | 175mm | 175mm |
