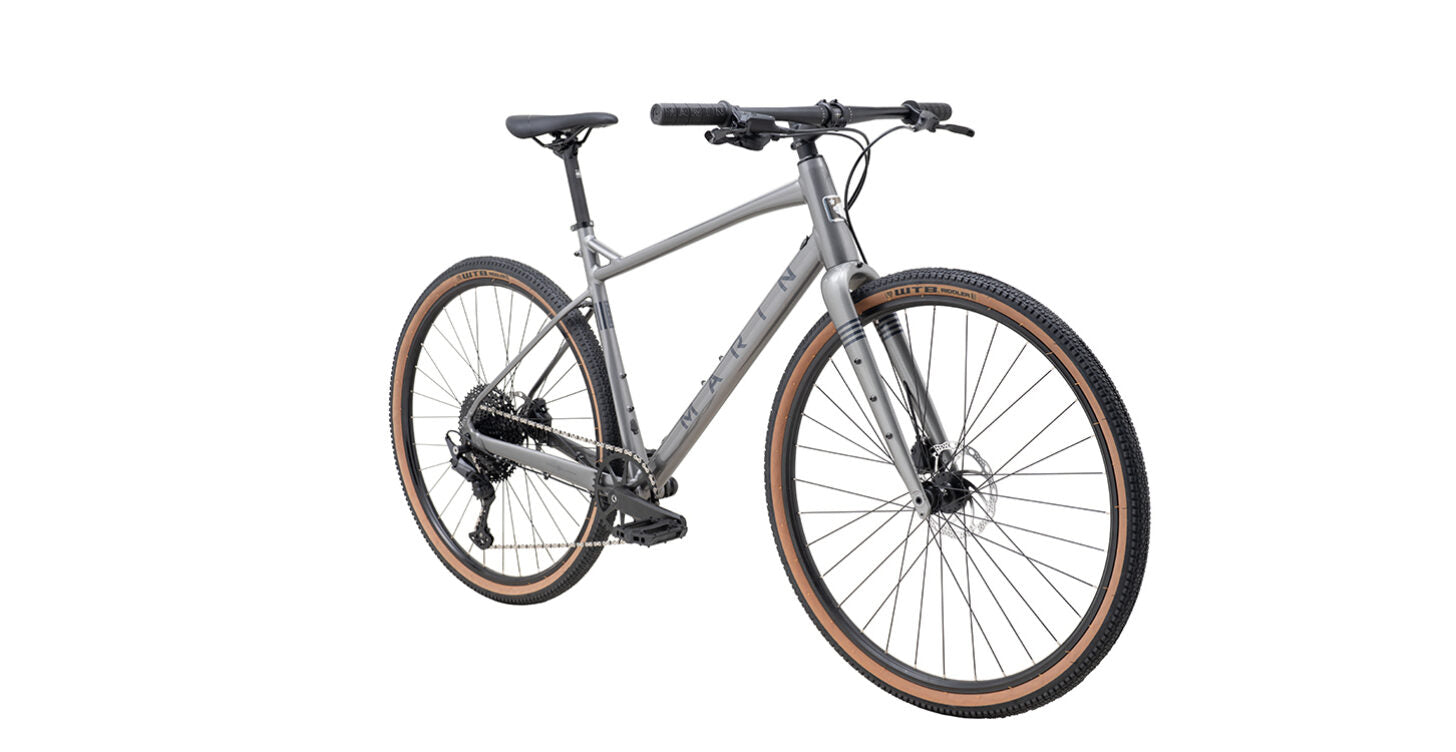

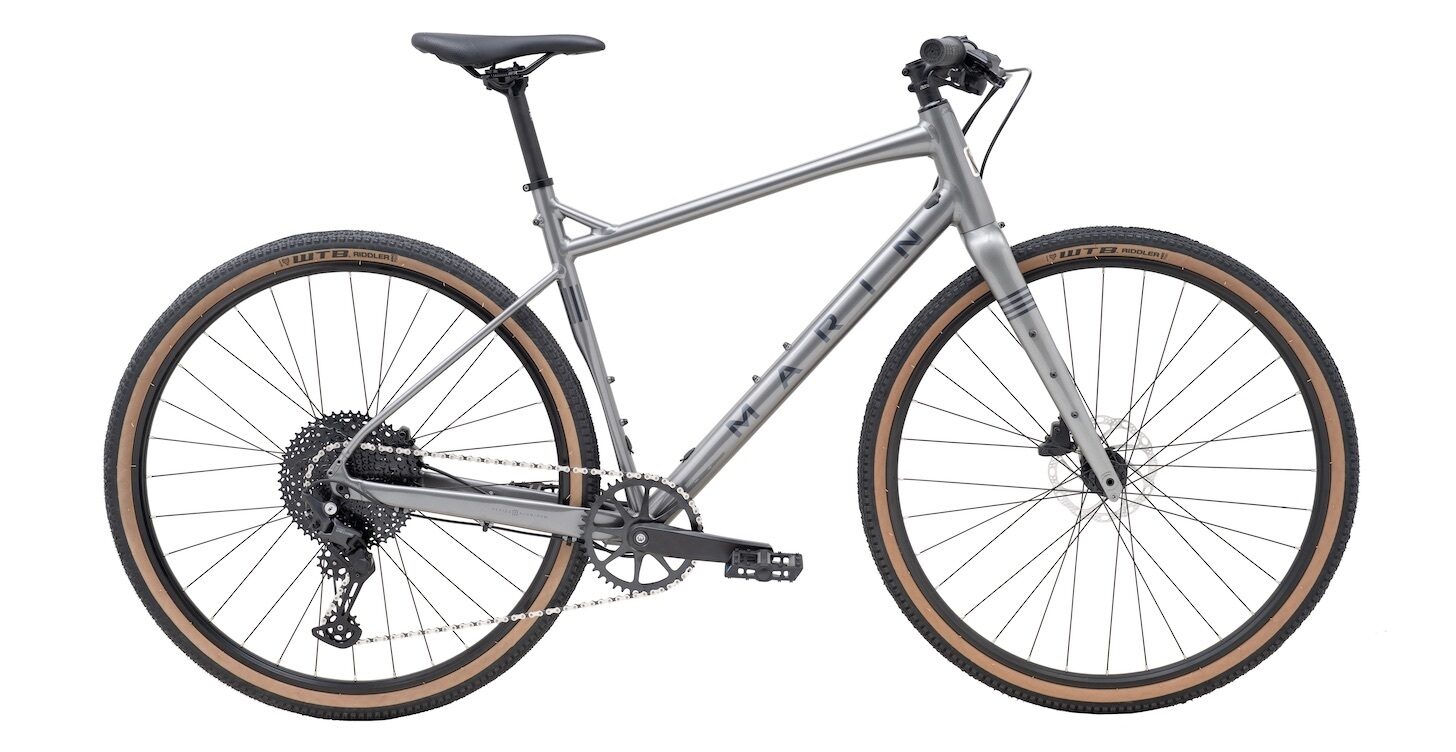

2025 Marin DSX 1 Gravel Bike

LONG-DISTANCE MIXED-SURFACE COMMUTING • GRAVEL RIDING • ADVENTURE ON AND OFF-ROAD

The Marin DSX 1 steps up to a higher-spec Series 3 aluminum frame, adding bolt-thru axles for increased stiffness and a carbon fork for reduced weight and extra mounting points—perfect for bikepacking. With an 11-speed Shimano Deore drivetrain, WTB Riddler tires, Tektro hydraulic disc brakes, and plenty of Marin’s reliable components, the DSX 1 is ready to tackle anything from daily commutes to adventurous gravel escapades.

Specifications

Frame

• Series 3 DSX, 6061 aluminum
• Tapered head tube, relieved BB
• Internal cable routing
• Mudguard & rack mounts
• Flat-mount disc, 142x12mm thru-axle

Fork

• Marin full carbon, tapered steerer
• 12mm thru-axle
• Flat-mount disc
• Fender eyelets

Rims

• Marin aluminum double wall
• 21mm inner width, disc specific

Hubs

• Rear: Forged aluminum alloy, 142x12mm, disc, 32H
• Front: Forged aluminum, 100x12mm, disc, 32H

Spokes

• 14g black stainless steel

Tires

• WTB Riddler, 700x45mm

Drivetrain

• Rear Derailleur: Shimano Deore RDM5100, 11-speed
• Shifter: Shimano Deore SLM5100, 11-speed
• Crankset: Forged aluminum, 42T steel narrow-wide chainring
• Bottom Bracket: Sealed cartridge
• Chain: KMC X11
• Cassette: Shimano CSM5100, 11-speed, 11-51T

Brakes

• Front: Tektro HD-R280 flat-mount hydraulic disc, 160mm rotor
• Rear: Tektro HD-R280 flat-mount hydraulic disc, 160mm rotor
• Levers: Tektro hydraulic

Cockpit

• Handlebar: Marin MiniRiser
• Stem: Marin 3D-forged alloy
• Grips: Marin MTB
• Headset: FSA No.42 ACB, sealed cartridge bearings, 1 1/8” x 1 1/2”

Seatpost

• Marin alloy

Saddle

• Marin DSX

Pedals

• Nylon platform

Extras

• Bolt-on thru-axles (front and rear)

Specifications, pricing, and availability are subject to change without notice.
