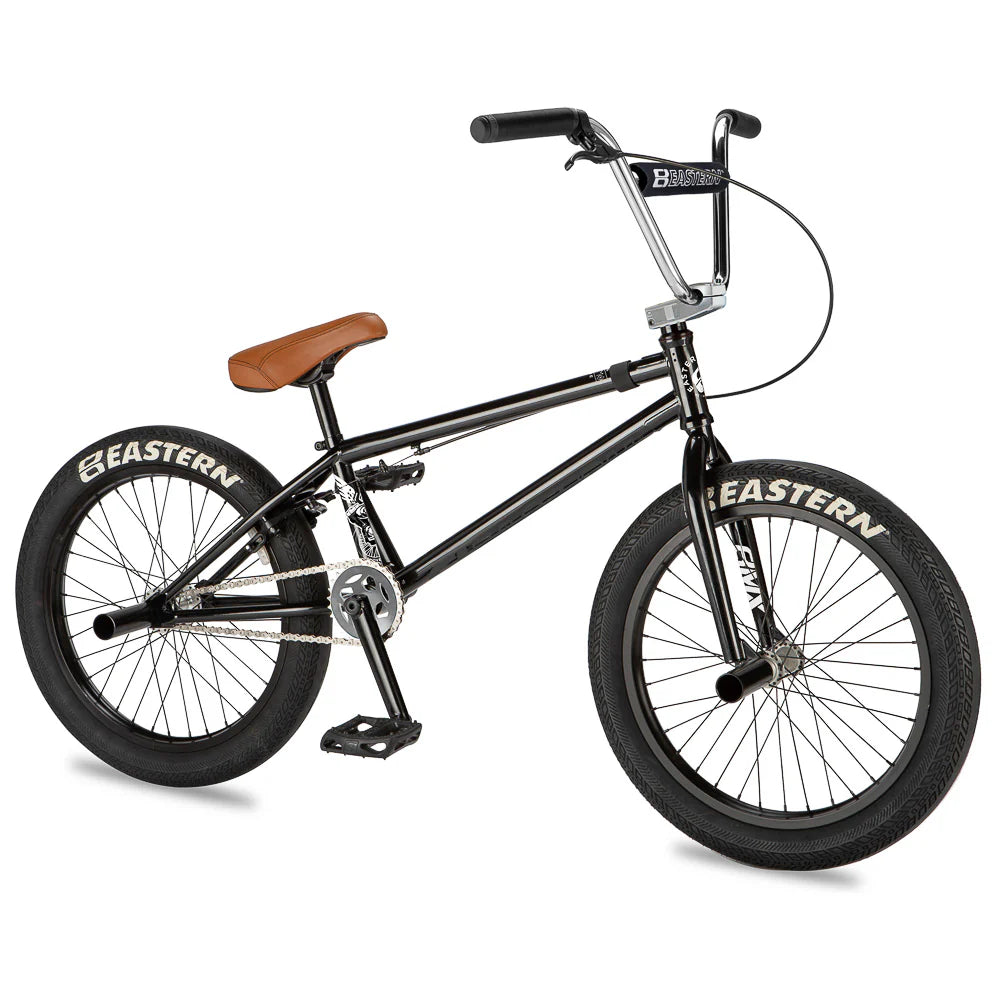

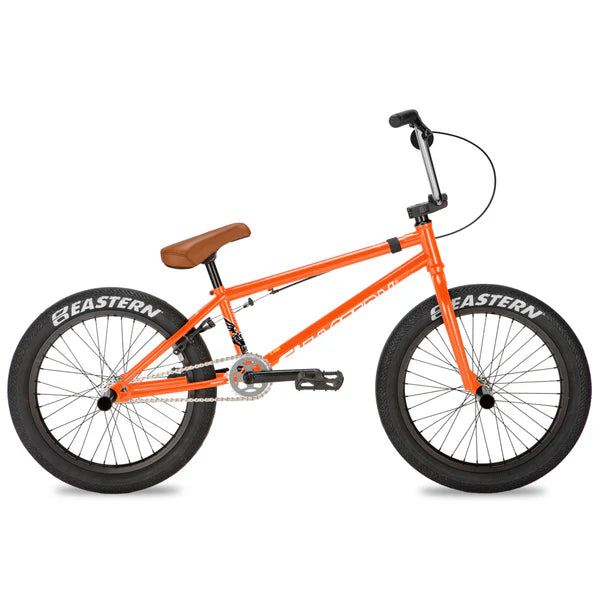

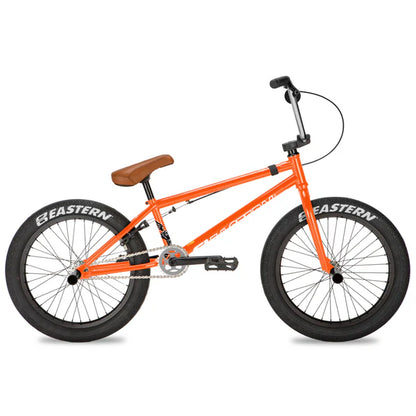

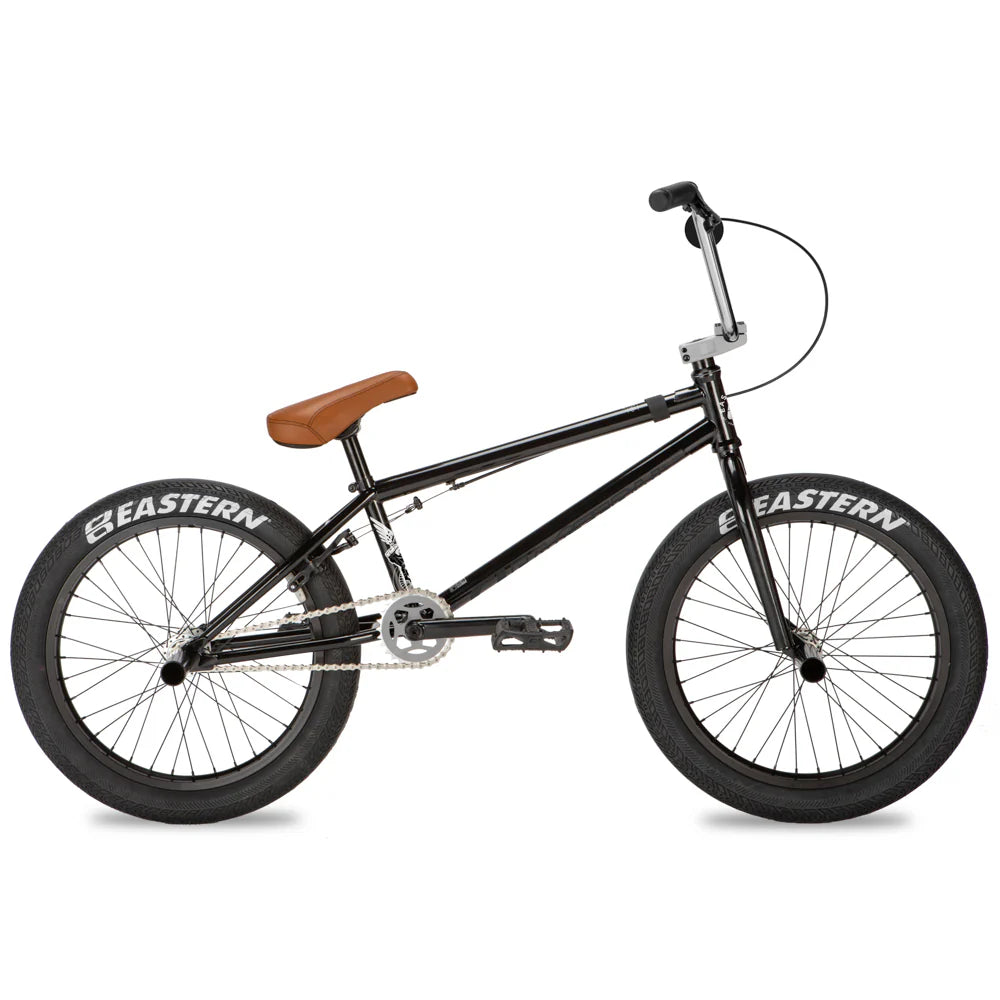

Eastern Shovelhead 20" BMX Bicycle

Aggressive geometry, top-quality components, and Eastern’s signature attention to detail make this a serious ride for serious riders.

Key Features

• Full Chromoly Frame & Fork: Lightweight, responsive, and strong enough for heavy park or street use.

• Pro-Level Geometry: 21" top tube, short 13.38" chainstay, and integrated seat clamp for a clean, sleek look.

• Heat-Treated Cranks: 3-piece Chromoly with 48-spline spindle for unbeatable durability and stiffness.

• Pivotal Seat System: Medium-width pivotal saddle and post for a custom fit and reduced weight.

• Eastern Squealer 100 PSI Tires: Fast-rolling, high-pressure tires for precise grip and control.

• Sealed Bearings Throughout: Smooth performance and long-lasting reliability across all key components.

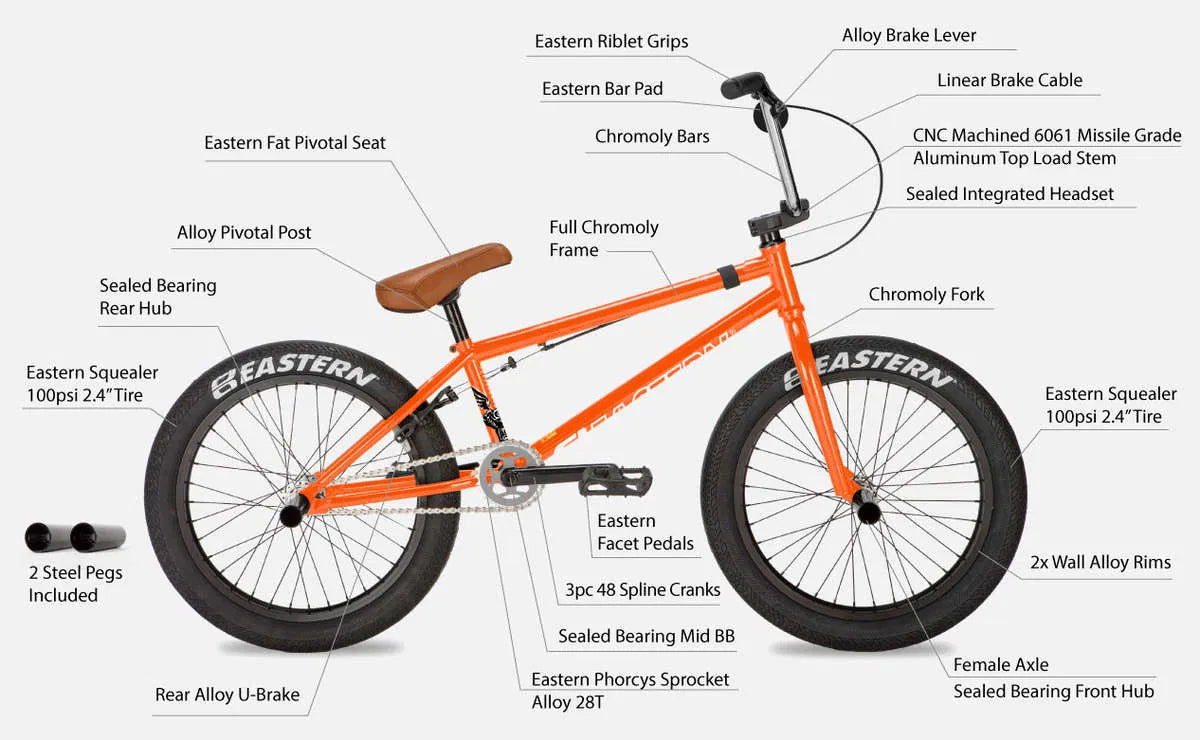

Full Specifications

Frameset
Frame: Full Chromoly Shovelhead 20", Removable Brake Mounts, Integrated Clamp
Top Tube: 21.0"
Bottom Bracket: Mid
Head Tube: Integrated
Chainstay Length: 13.38"

Fork: Full Chromoly, Tapered Legs, 3/8" Dropouts, 28 mm Rake

Cockpit
Handlebar: Full Chromoly, 9.0", 12° Backsweep / 1° Upsweep

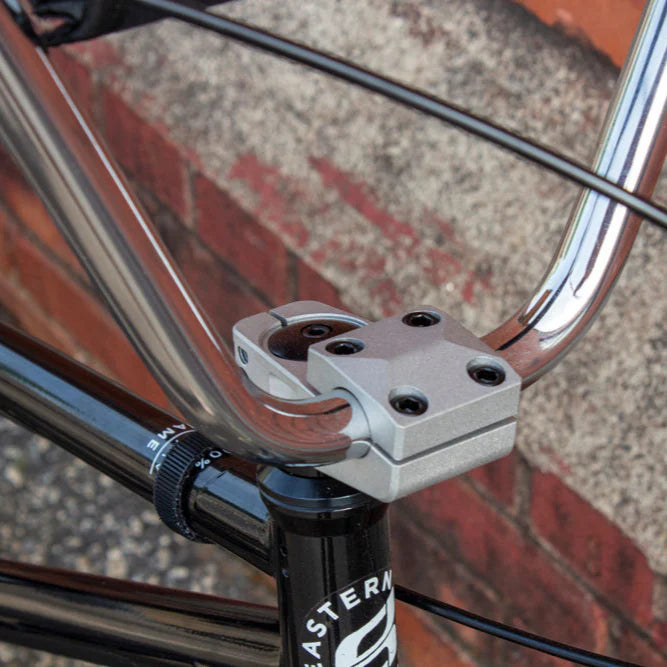

Stem: CNC-Machined 6061 Aluminum Top-Load Stem
Grips: Eastern Riblet Grips
Headset: Integrated 45°×45° Sealed Cartridge Bearing

Drivetrain
Crankset: 3-Piece Tubular Heat-Treated Chromoly, 48-Spline Spindle, 170 mm Arm Length
Bottom Bracket: Sealed Bearing Mid
Chainwheel: Eastern Phorcys Alloy, 28 T
Chain: KMC Z510, 1/2" × 1/8"

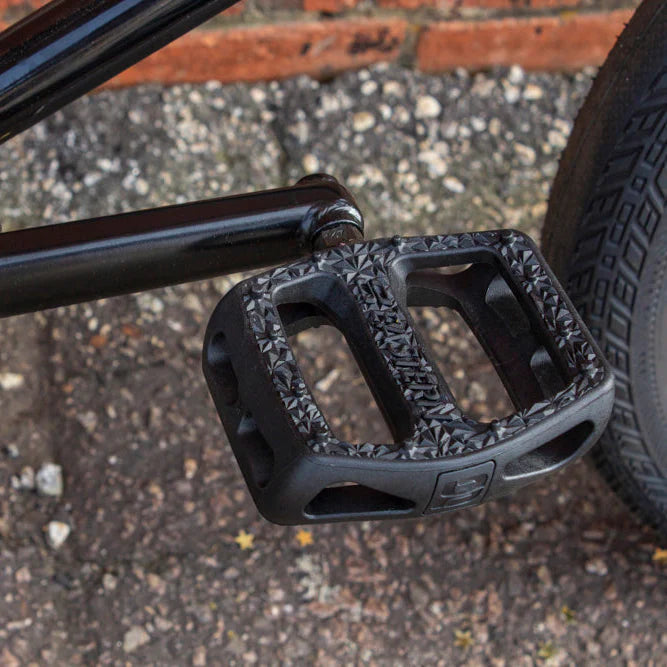

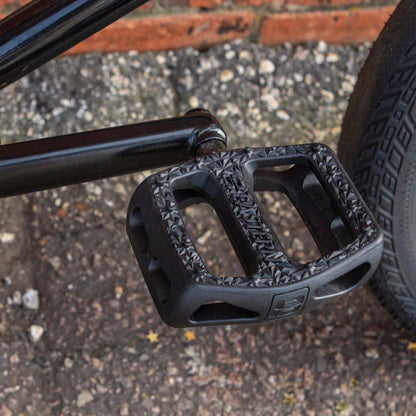

Pedals: Eastern Facet Pedals, 9/16" Chromoly Axle

Brakes
Front Brake: N/A
Rear Brake: Forged Alloy U-Brake, Wide Body, Grey Pads
Rear Lever: Forged Alloy Lever
Cable: [S] Linear

Seating

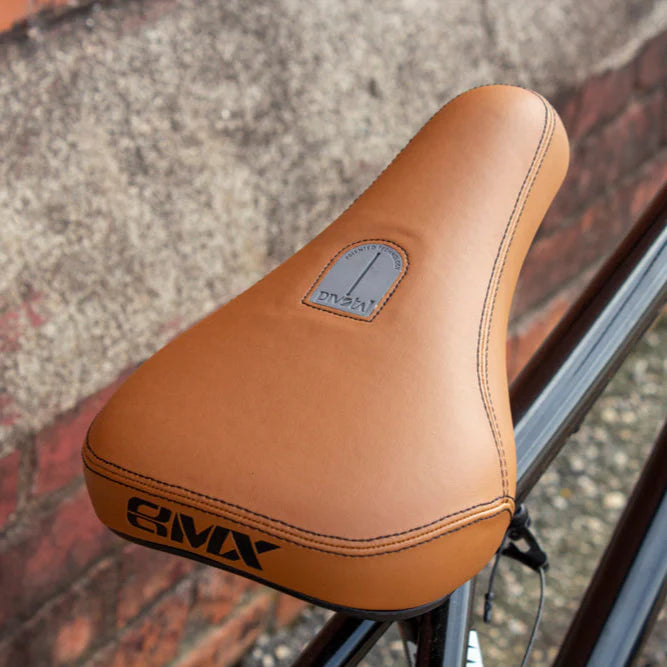

Seat: Medium-Width Pivotal Seat
Seatpost: Forged Alloy Pivotal Post, 200 mm

Wheels

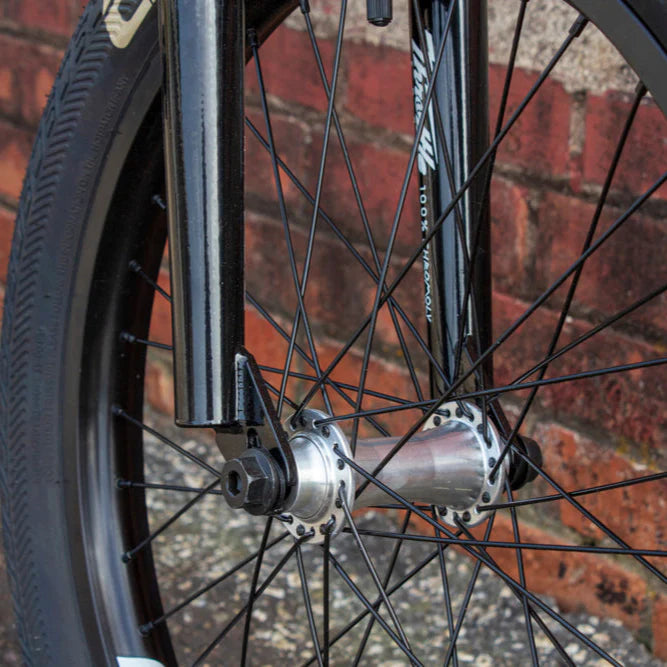

Front Hub: Sealed Bearing, Forged Alloy Shell, 36 H, Female Axle System w/ 3/8" Allen Bolts

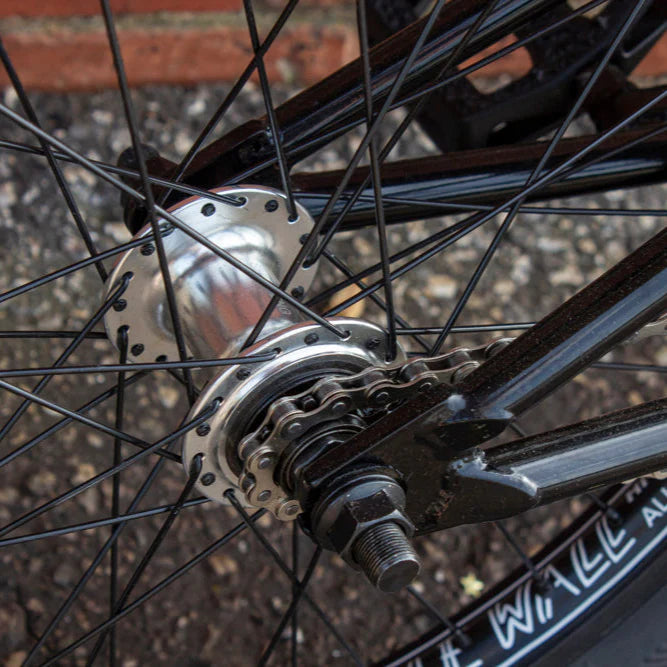

Rear Hub: Sealed Bearing, Forged Alloy Shell, 36 H, 14 mm Chromoly Axle, 9 T Driver
Rims: Alloy Double Wall, 36 H (Front & Rear), 20"
Spokes: 14 Gauge w/ Brass Nipples
Tires: Eastern Squealer 20×2.40", 100 PSI (Front & Rear)

Extras
Pegs: Cold Steel Pegs (2 pcs)

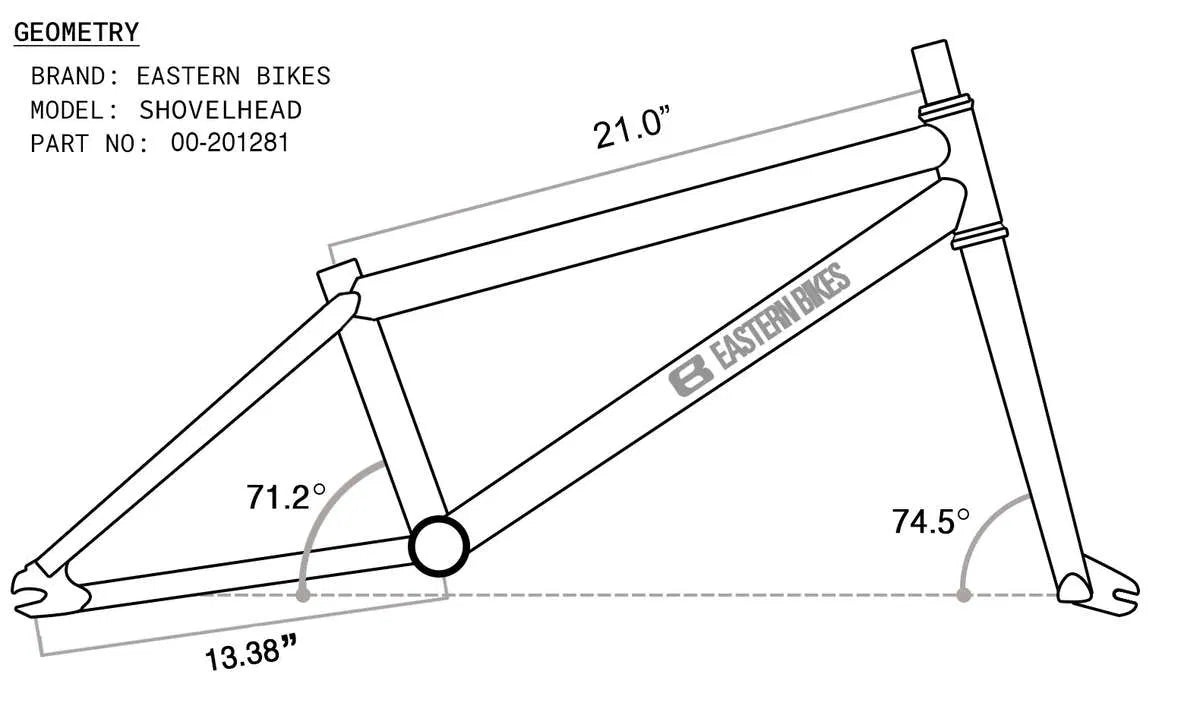

Geometry
