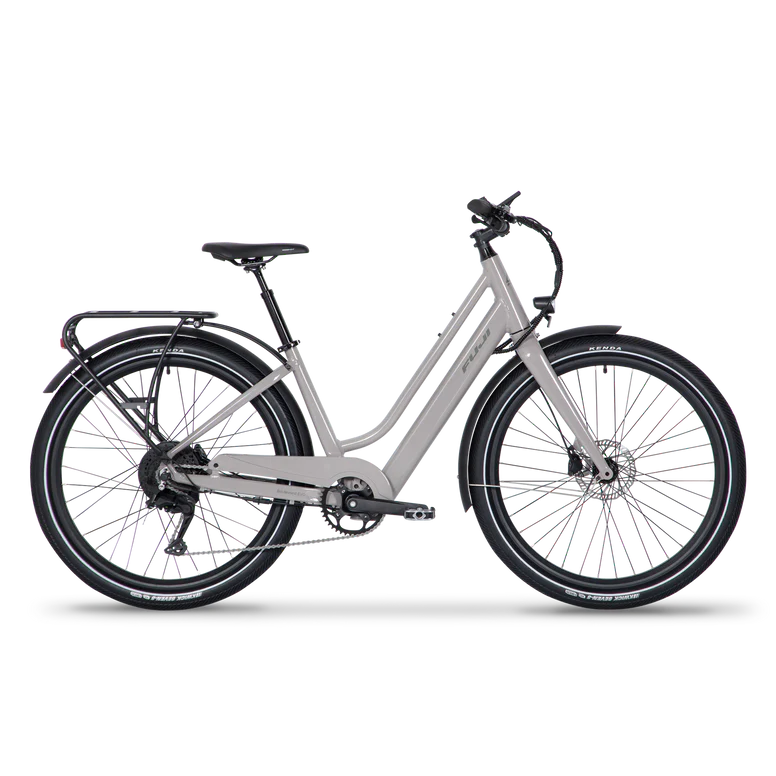

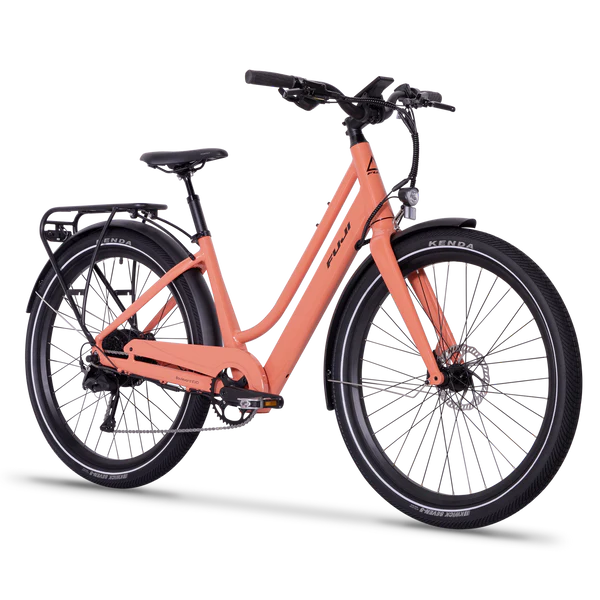

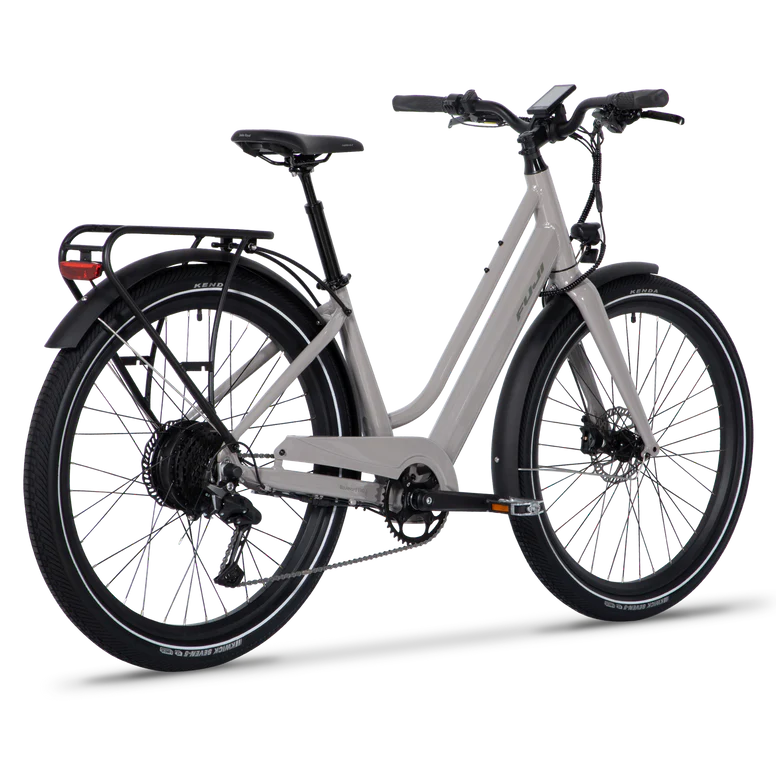

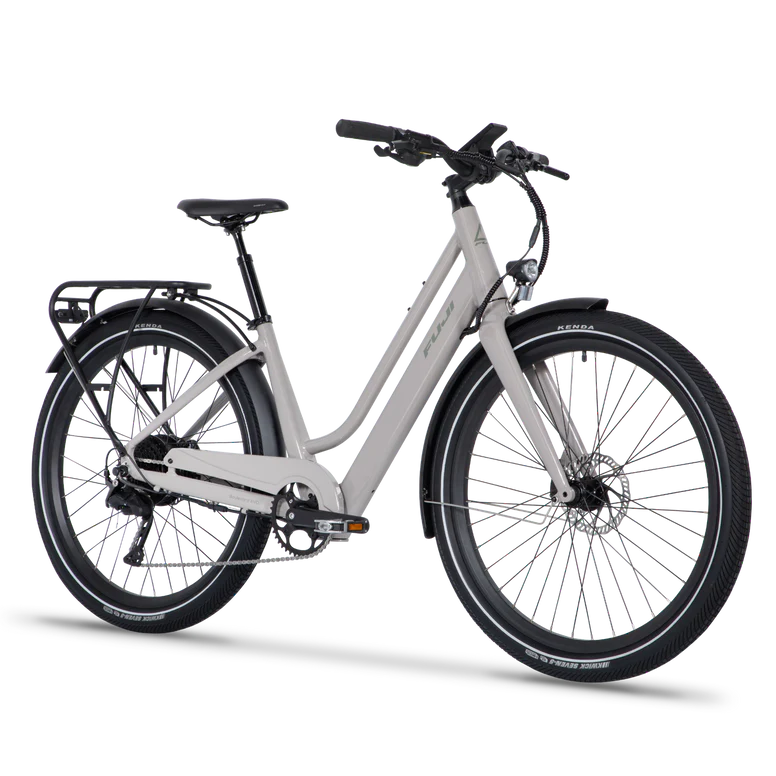

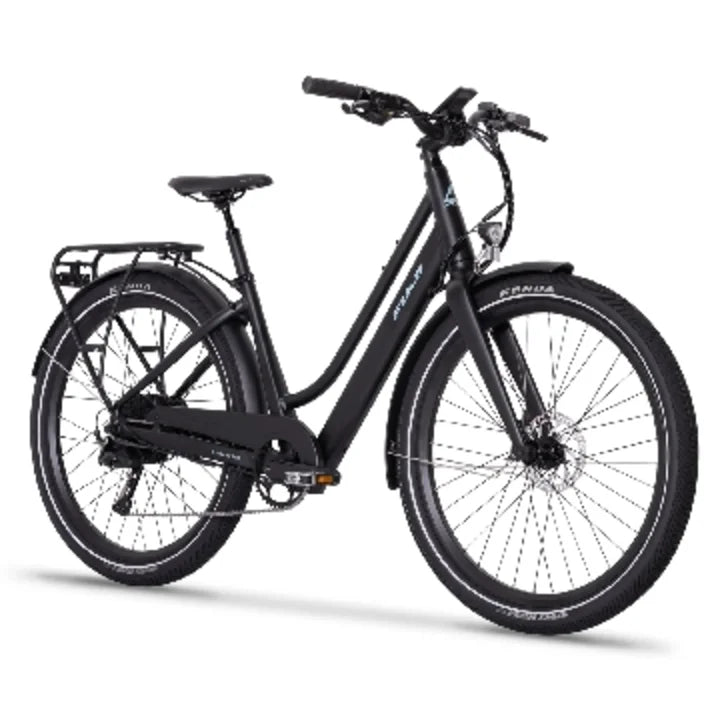

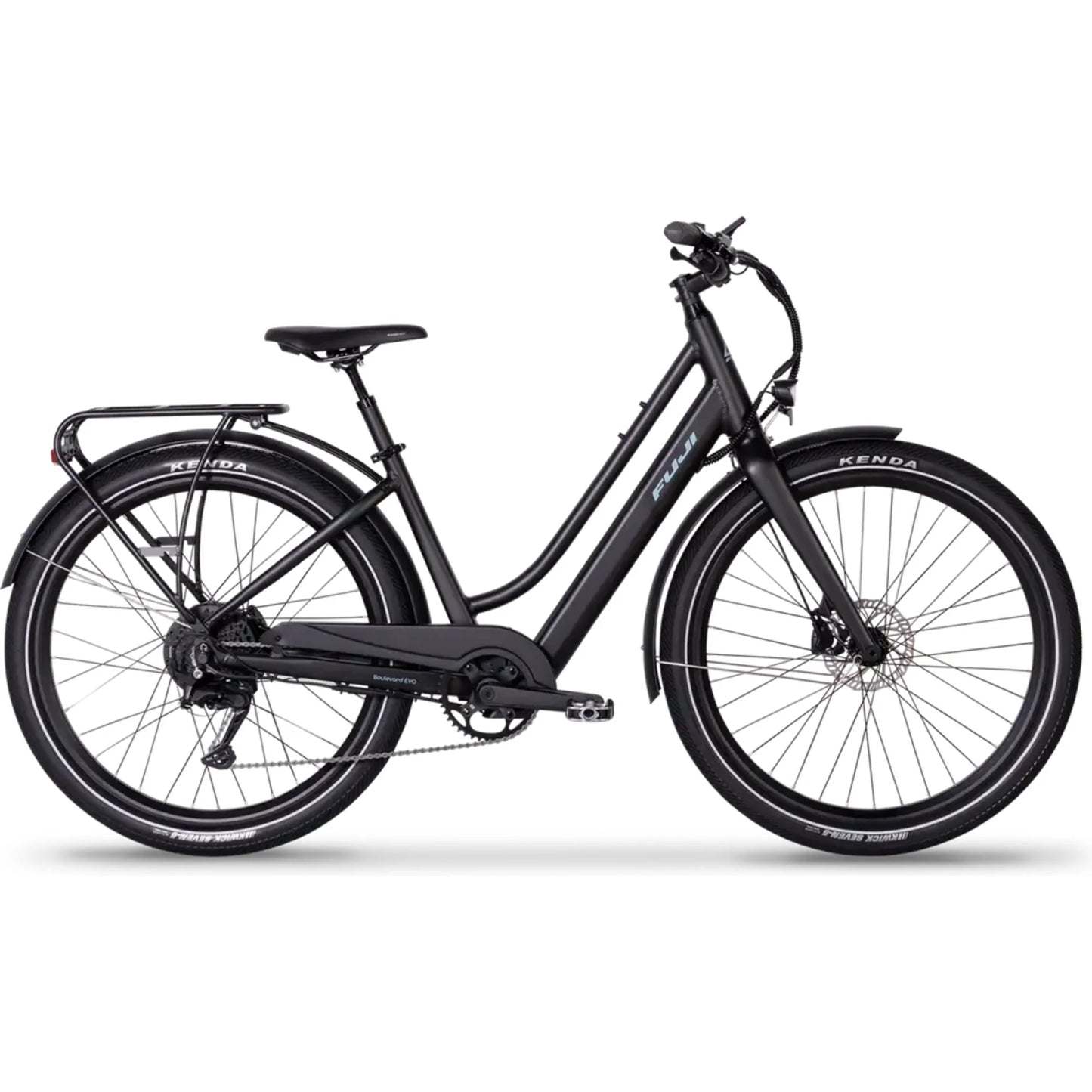

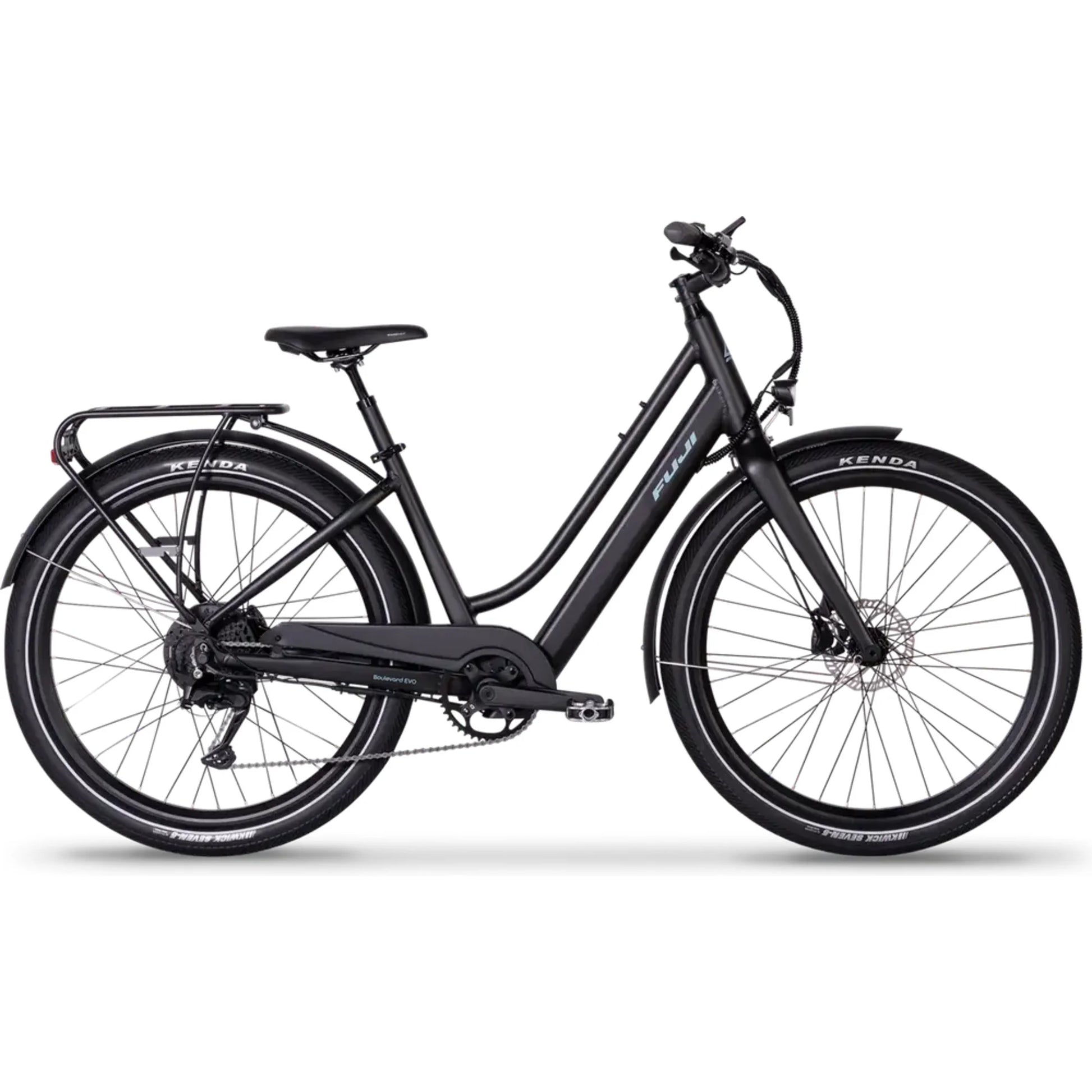

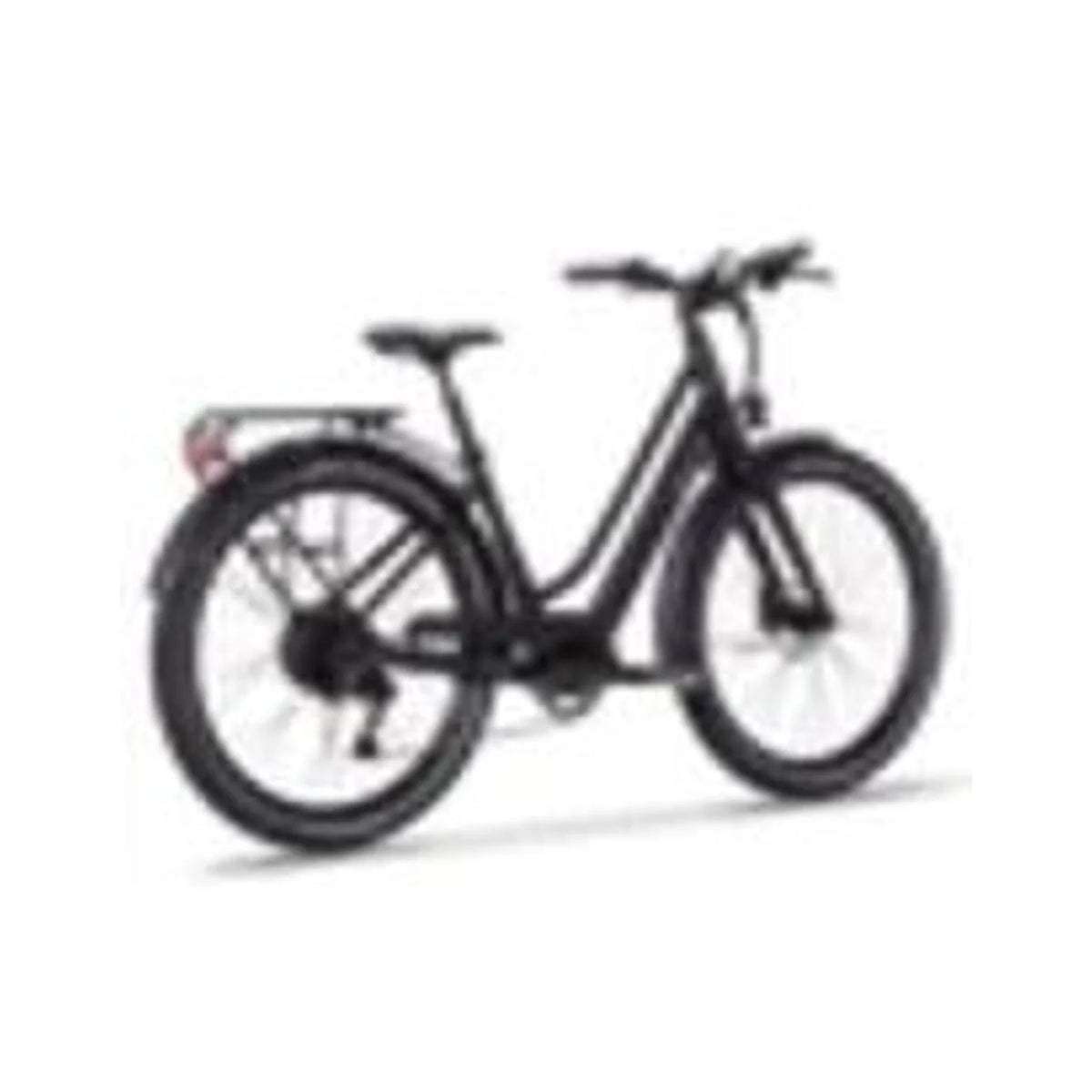

Fuji Boulevard EVO LS Step Thru E-Bike

The Fuji Boulevard EVO LS is a low-step electric commuter built for smooth, confident everyday riding, with a Bafang 250W rear hub motor, 360Wh internal battery, Shimano CUES 1x9 drivetrain, hydraulic disc brakes, and a full utility package including fenders, rack, lights, and kickstand.

Specifications

Frame: Fuji A1 alloy, low-step, tapered head tube

Fork: Fuji A1 alloy rigid, 100x12mm thru-axle

Headset: Neco H-383AEH, 1-1/8"–1.5", sealed cartridge bearings

Electric System

Motor: Bafang H400B rear hub, 250W, 20mph max assist

Battery: Bafang 360Wh, 36V, internal

Display: Bafang LCD, 5 assist modes, walk assist, light control

Throttle: Bafang TR B01

Charger: Bafang 42V–2A, 100–240V

Charge Time: 4.5 hours

Range: Up to 40 miles

Certification: Class 2 E-Bike, UL2849 compliant

Drivetrain

Shifter: Shimano CUES U4000, 1x9-speed

Rear Derailleur: Shimano CUES U3020

Crankset: Samox alloy, 42T with chain guard

Bottom Bracket: Bafang sealed cartridge with cadence and torque sensors

Cassette: Shimano CUES LG300, 11–36T

Chain: Shimano LG500

Pedals: Aluminum body, boron axle

Brakes

Brakeset: Rush BH-M286E hydraulic disc, power cutoff, 160mm rotors

Brake Levers: Rush BH-M286E, 4-finger, rubber grip, power cutoff

Components

Handlebar: Fuji 6061 alloy riser, 86mm rise, 15° sweep, 700mm width

Stem: Fuji forged alloy, +/-6°

Grips: Fuji Comfort lock-on

Saddle: Selle Royal Essenza Plus

Seatpost: Fuji alloy suspension, 30.9mm

Utility

Headlight: CDI DH002, 50 Lux

Taillight: CDI DR001

Fenders: Front and rear with stainless hardware

Rear Rack: Alloy, MIK Click Go compatible

Kickstand: Alloy adjustable

Bell: Included

Wheels

Rims: Fuji aluminum double-wall, 36H

Front Hub: Formula RX-512

Rear Hub: Bafang H400B hub motor

Spokes: Stainless steel

Tires: Kenda Kwick Seven.5, 27.5"x2.40", E-50 rated, reflective stripe

Weight & Capacity

Weight: 23.30 kg / 51.26 lbs

Max System Weight: 136 kg / 300 lbs (bike, rider, cargo)
