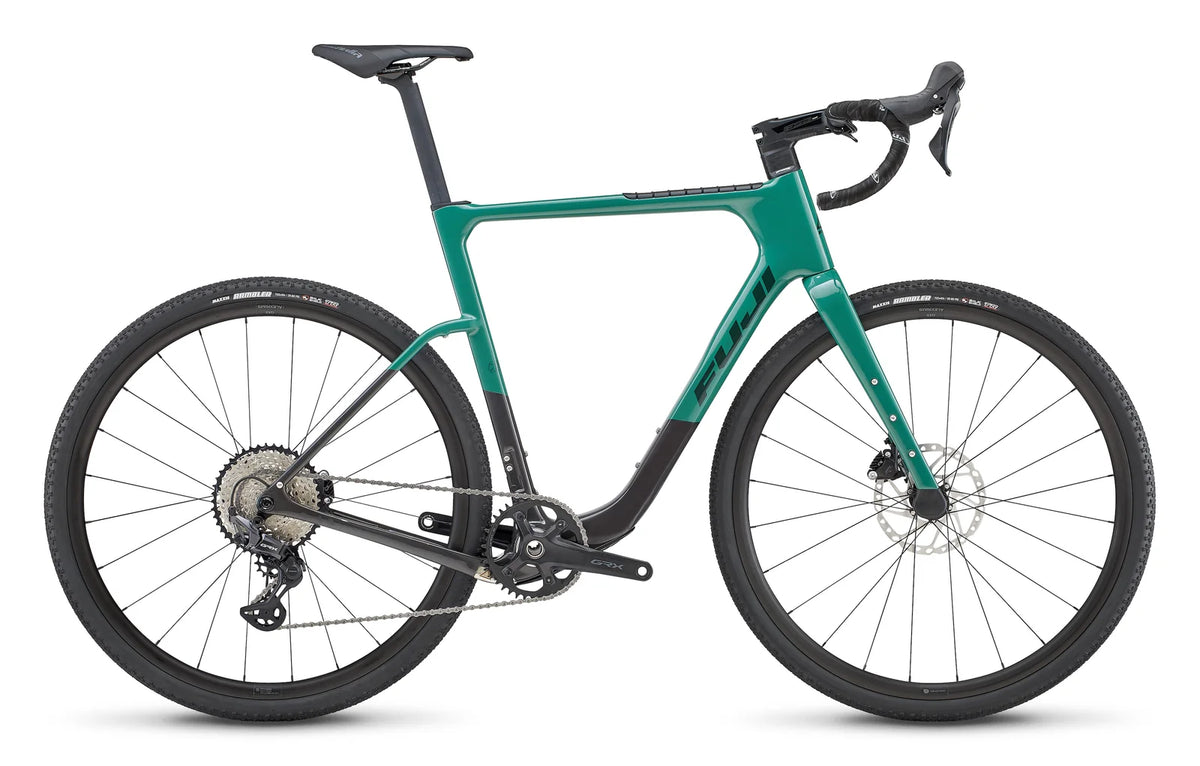

• Fuji Jari Carbon 1.3 gravel bike – This green and dark grey gravel bike is shown from the side against a white background, featuring drop handlebars, disc brakes, and knobby off-road tires.

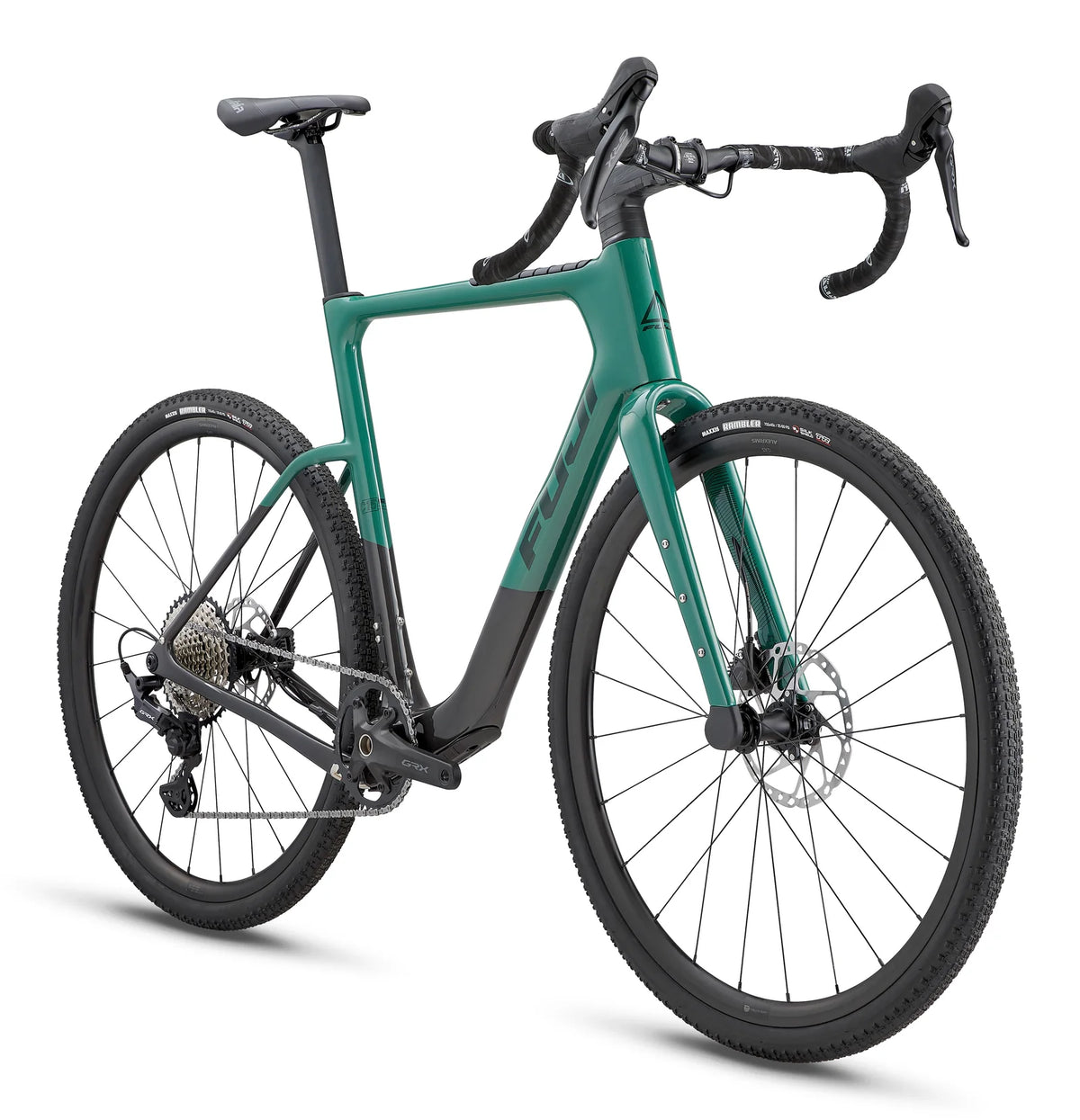

  • Fuji Jari Carbon gravel adventure bike – This green and matte black gravel bike features flared drop handlebars, disc brakes, and knobby Maxxis all-terrain tires, shown against a plain white background.

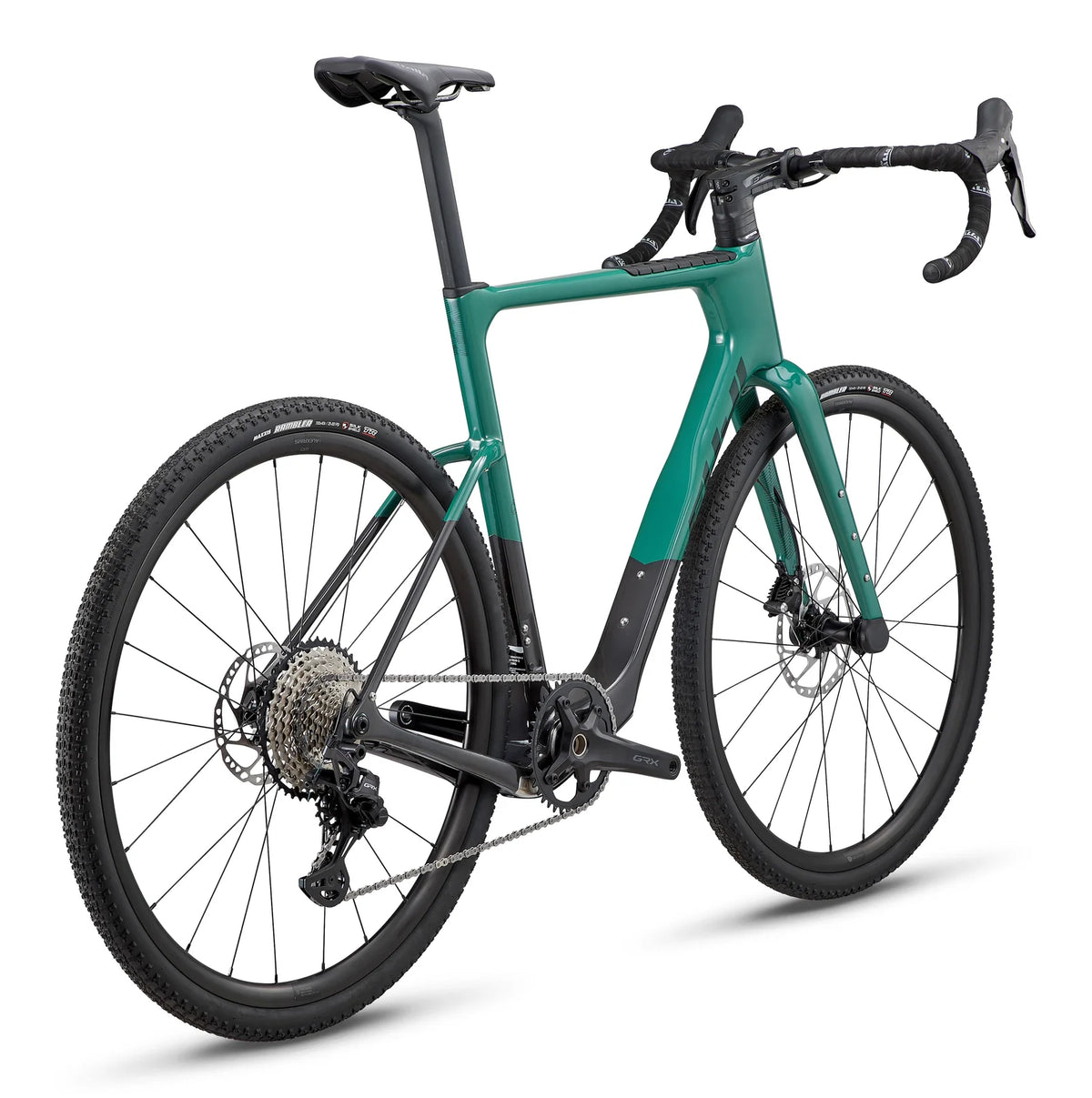

  • Fuji Jari Carbon teal gravel bike – Teal and matte black carbon gravel bicycle shown from a rear three-quarter angle on a white background, featuring drop handlebars, knobby tires, and disc brakes.
1 3

Fuji Jari Carbon 1.3 Gravel Adventure Bike

Fuji Jari Carbon 1.3 Gravel Adventure Bike

$ 1,899.99
$ 1,899.99
Sale Sold out
Shipping calculated at checkout.
Size

In stock

The Fuji Jari Carbon is a lightweight, aero-inspired gravel bike built for fast mixed-surface riding, bikepacking, and all-day adventures. Its C15 carbon frame, Shimano GRX drivetrain, hydraulic disc brakes, and integrated storage systems make it equally capable on pavement, gravel, dirt roads, and light singletrack.

Specs

Frameset

  • Frame: Fuji C15 Ultra High Modulus Carbon

  • Rear Axle: 12x142mm Thru-Axle

  • Bottom Bracket: T47 Threaded

  • Fork: C15 Ultra High Modulus Carbon

  • Front Axle: 12x100mm Thru-Axle

  • Fork Offset: Adjustable 45mm / 55mm

Drivetrain

  • Shifters: Shimano GRX RX600, 1x11-Speed

  • Rear Derailleur: Shimano GRX RX812

  • Crankset: FSA Omega, 40T

  • Bottom Bracket: FSA T47 85.5 Threaded

  • Cassette: Shimano Deore, 11–42T

  • Chain: KMC X11-1

Brakes

  • Brakes: Shimano GRX RX400 Hydraulic Disc

  • Brake Levers: Shimano GRX RX600

  • Front Rotor: 180mm

  • Rear Rotor: 160mm

Wheels & Tires

  • Wheelset: Alex Rims GX5, 24H

  • Wheel Size: 700c

  • Tires: Maxxis Rambler 700 x 40c

  • Casing: SilkShield

  • TPI: 60

  • Tubeless Ready: Yes

  • Bead: Folding

Components

  • Handlebar: FSA A-Wing Pro AGX 6066-T6 Alloy

  • Handlebar Clamp: 31.8mm

  • Drop: 121mm

  • Reach: 88mm

  • Flare: 15°

  • Rise: 2.5mm

  • Stem: FSA NS SMR, -6°

  • Headset: FSA ACR NO.55R, 1.5"

  • Saddle: Selle Italia X3

  • Seatpost: Fuji D-Shape Carbon, 27.2mm Compatible

Integrated Storage

  • SnackBar: Integrated top-tube storage for nutrition and small essentials

  • Stowaway Box: Under-bottom-bracket storage for tools and ride essentials

  • Frame Bag Friendly: Lower bottle positioning creates additional room inside the main triangle

  • Rear Fender Mount: Included

Weight

  • 22.11 lbs (10.03 kg)

Geometry

Geometry XS / 48cm S / 50cm M / 53cm L / 56cm XL / 59cm
Seat Tube 480mm 500mm 530mm 560mm 590mm
Effective Top Tube 509mm 524mm 541mm 557mm 574mm
Head Tube Length 100mm 115mm 140mm 165mm 190mm
Seat Tube Angle 74° 74° 74° 74° 74°
Head Tube Angle 70° 71° 71° 71° 71°
Chainstay Length 425mm 425mm 425mm 425mm 425mm
Wheelbase 997mm 1004mm 1022mm 1040mm 1058mm
Bottom Bracket Drop 72mm 72mm 72mm 72mm 72mm
Fork Offset 45/55mm 45/55mm 45/55mm 45/55mm 45/55mm
Stack 525.5mm 543mm 567mm 591mm 614mm
Reach 365mm 375mm 385mm 395mm 405mm
Standover 771mm 790mm 817mm 844mm 871mm
Stem Length 80mm 80mm 90mm 110mm 110mm
Handlebar Width 420mm 440mm 440mm 460mm 460mm
Crank Length 165mm 170mm 172.5mm 172.5mm 175mm
Wheel Size 700c 700c 700c 700c 700c
