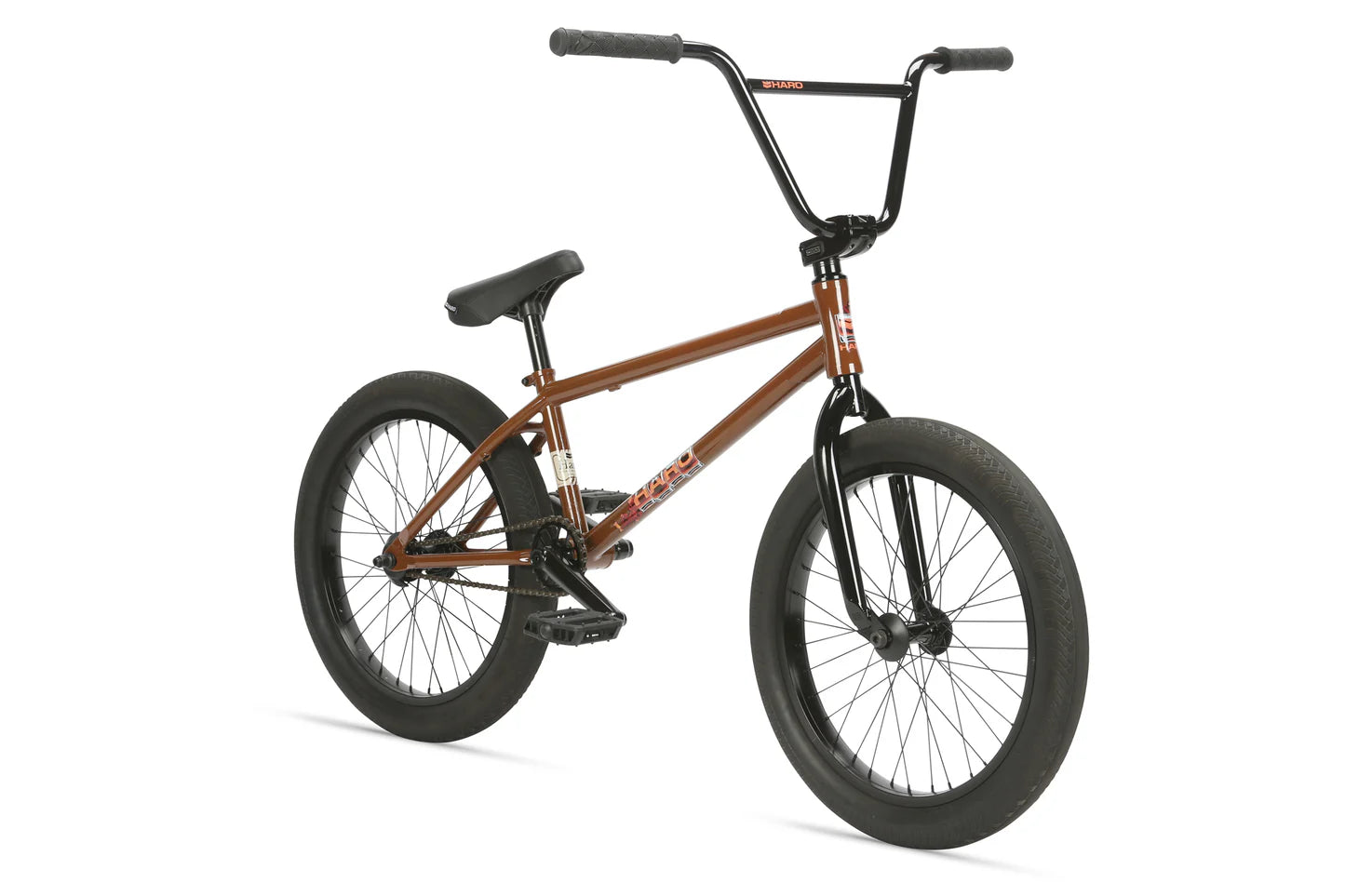

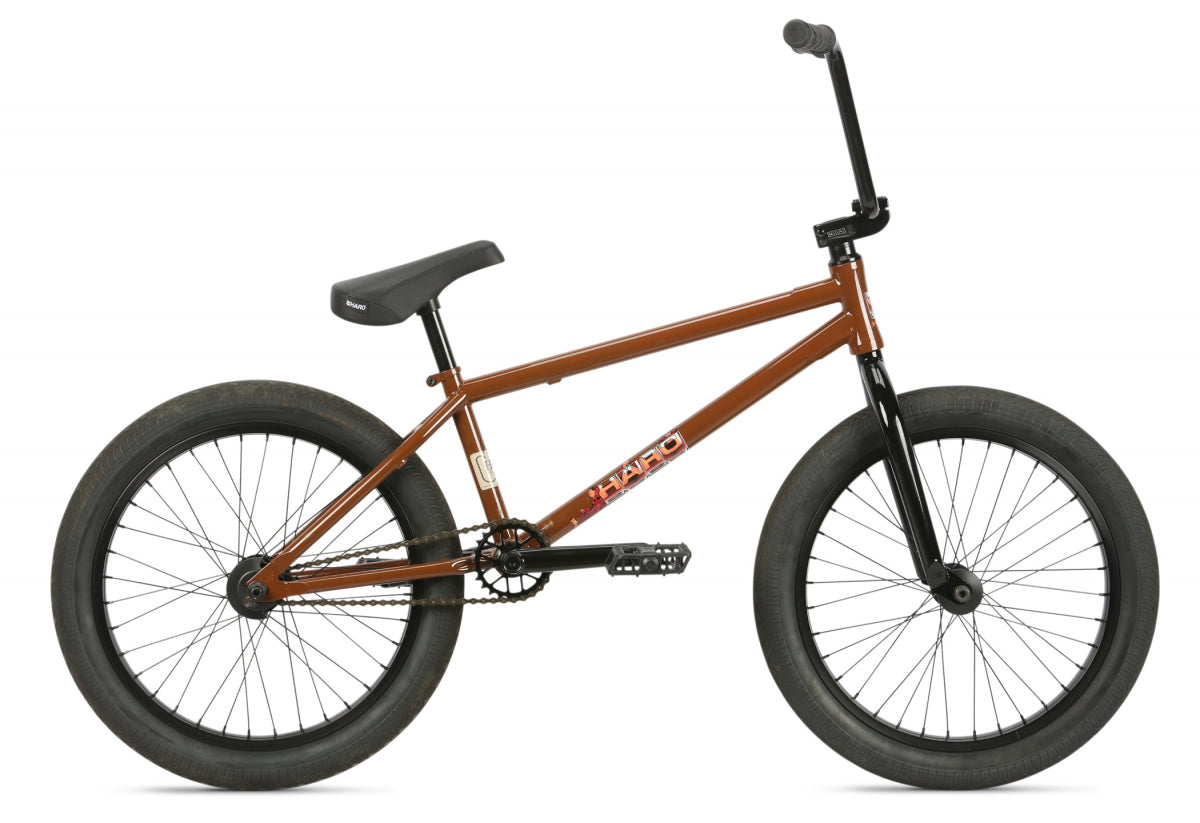

Haro CK AM BMX Bicycle
Haro CK AM BMX Bicycle
Regular price
$ 799.99 USD
Regular price
Sale price
$ 799.99 USD
Unit price
per
Shipping calculated at checkout.
Low stock
Couldn't load pickup availability
SKU:23467

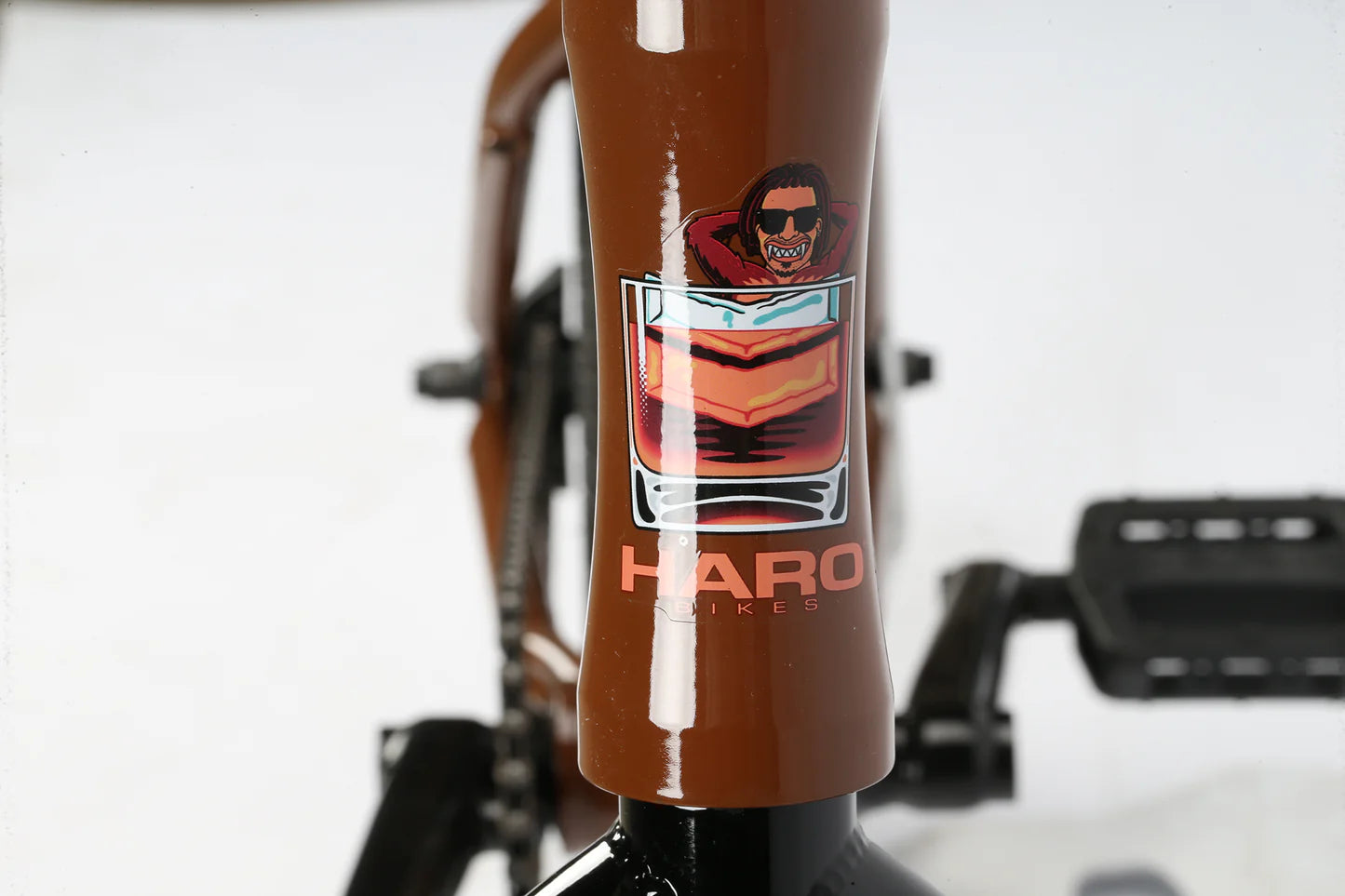

Hit the streets like Chad Kerley on his new signature Haro complete. A bike designed to encompass Chad's riding style and lifestyle, custom-tuned with his specific geometry and vibe. Chad's got the swag to pull this signature bike off and you won't find another frame with these characteristics. Keeping it clean yet fun with custom decals highlighting Chad's personality.
- Full chromoly frame with 1-1/8" steerer tube and mid BB shell; 20.75" top tube
- Full chromoly 1-1/8" threadless w/internally threaded steerer tube & tapered legs. 25mm offset

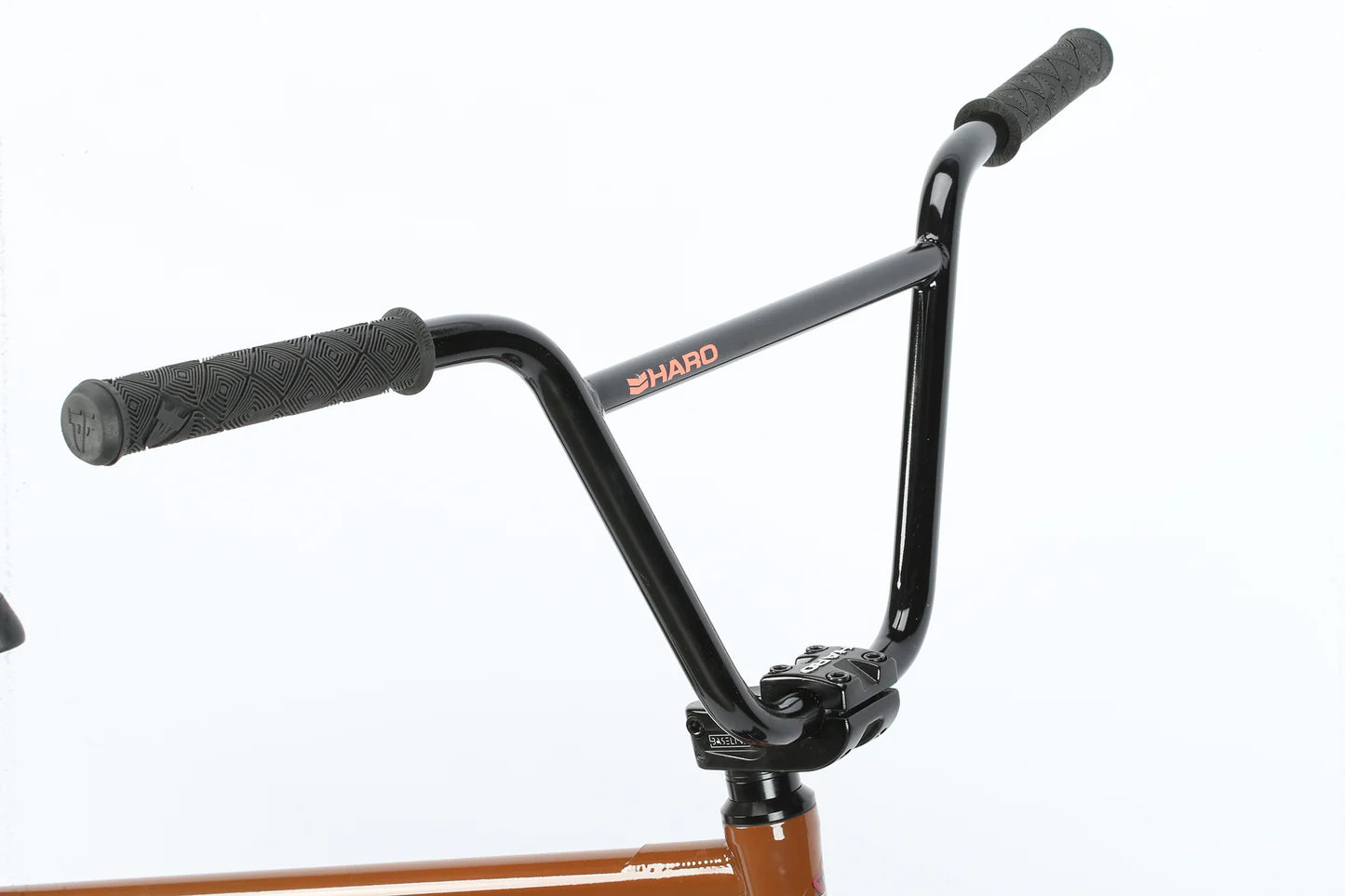

- Haro chromoly 9" rise 2-piece bars
- Haro Baseline stem
- Premium CK grips
- Haro Baseline chromoly 48 spline 19mm cranks; 165mm length
- Sealed front hub and sealed rear freescoaster hub, laced to 36H double wall rims
- 25/9 gear ratio
- Haro Base line half link chain
- Premium CK 2.4" Tires
| Frame | Full chromoly frame w/ 1-1/8" integrated head tube, mid BB shell, removable brake mounts & 14mm dropouts. 13"CS, 75.5° HT |
|---|---|
| Fork | Full chromoly 1-1/8" threadless w/internally threaded, CNC-machined steerer tube & tapered legs. 32mm offset |

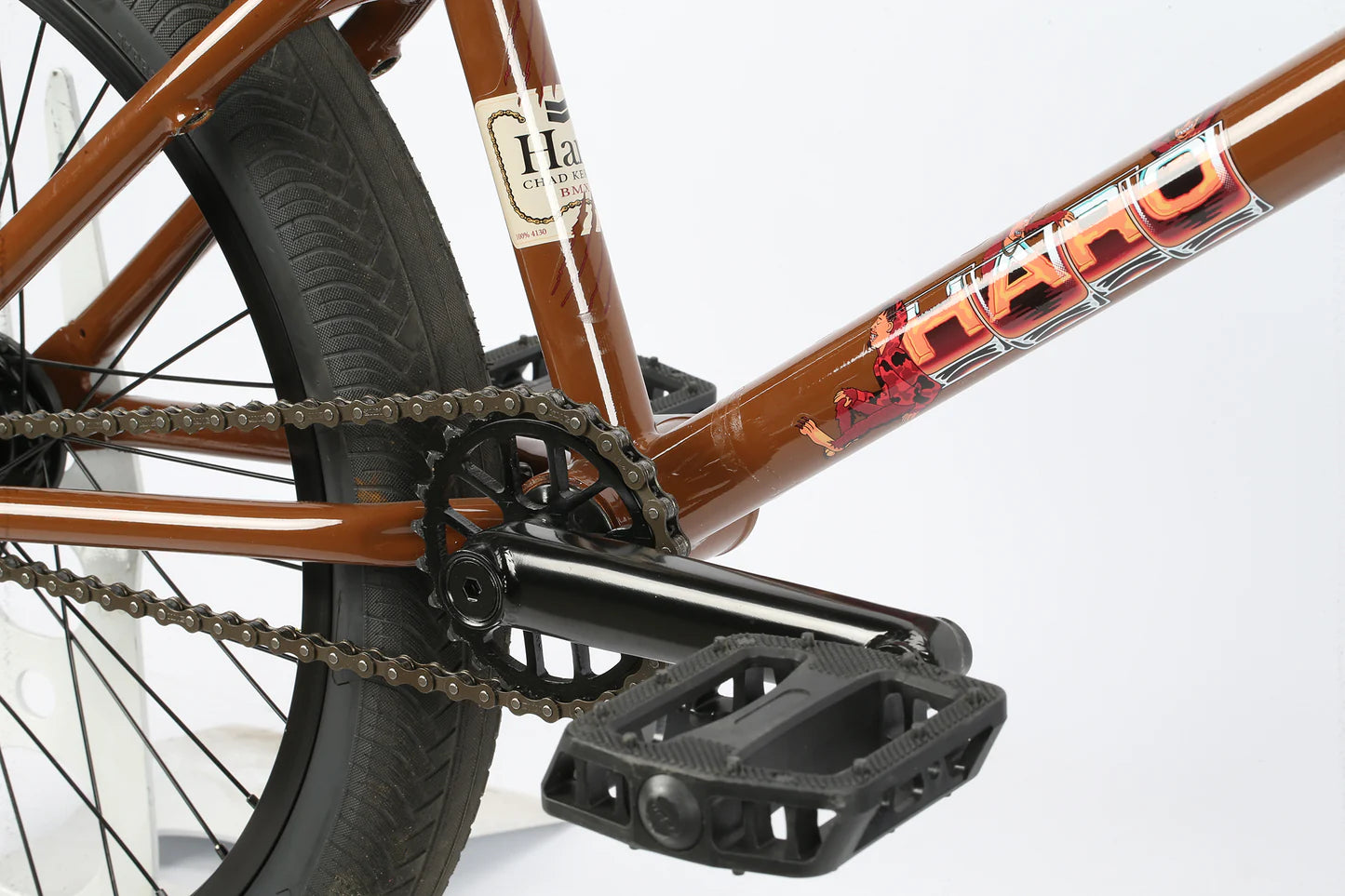

| Crankset | 3-PC tubular chromoly 165mm arms. 48T 19MM splined chromoly spindle; 31.8MM Square tapered arm |
| Pedals | Poly platform, chromoly 9/16" Axle |
| Chain | Baseline chain |
| Bottom Bracket | Mid. Sealed bearing. |
| Freewheel | Cassette | 9t driver |
| Tires | Haro La Mesa 20 x 2.4" |
| Wheels | Rims | 20" Haro Sata alloy double wall, 36 hole |
| Brakes | Radius alloy U-Brake |
| Brake Lever(s) | Haro Baseline two-finger |
| Grips | Tape | Haro Baseline 163mm flangeless |
| Handle Bar | Haro chromoly bar, 9.5" rise, 2-piece |

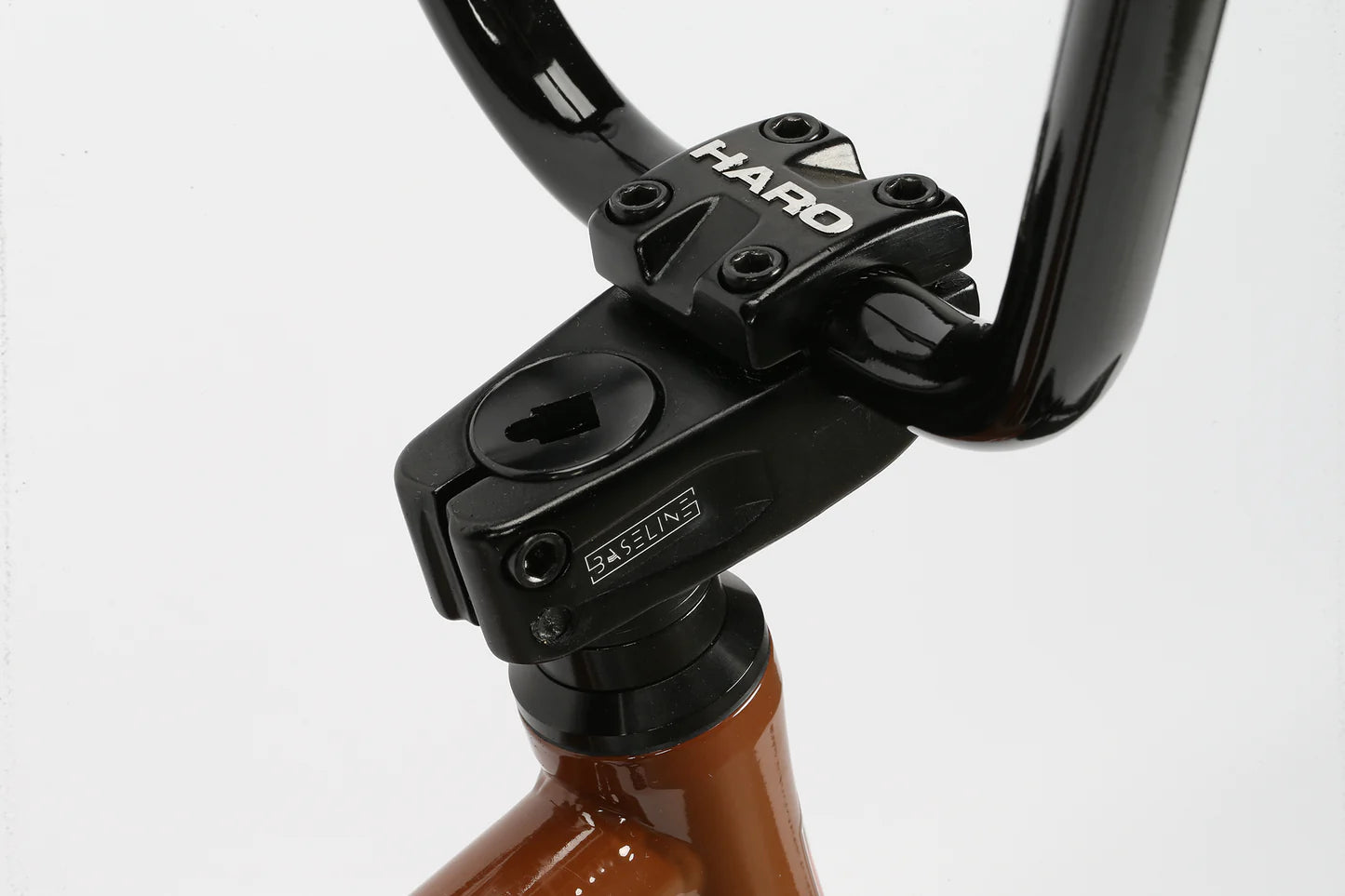

| Stem | Haro Baseline CNC top-load, 48mm reach |
| Headset | Integrated 1-1/8" threadless with sealed bearings. |

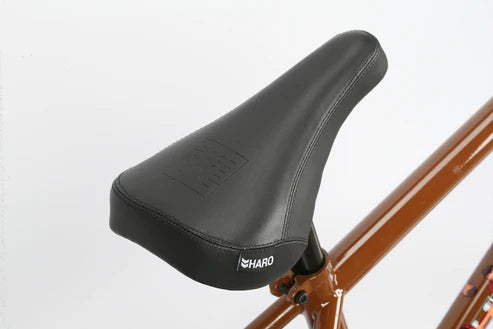

| Saddle | Baseline 5° seat/post combo |
| Seat Post | Aluminium 25.4mm |
| Seat Post Clamp | Integrated |

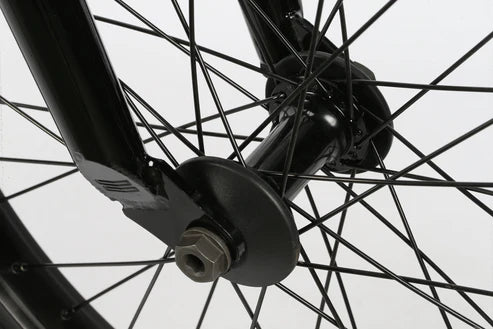

| Front Hub | 36h alloy, sealed bearings, female 3/8" axle, hub guards (both sides) |

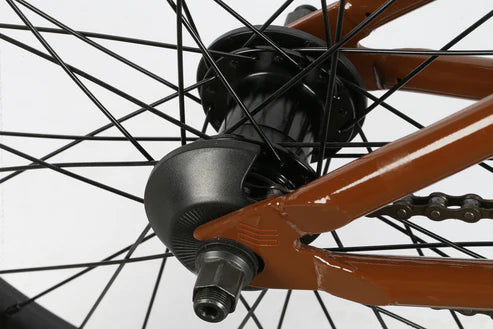

| Rear Hub | Alloy 9t Sealed freecoaster rear with hub guard. 14mm male axle. |
| Sprocket | Baseline 25T aluminum sprocket |
| Pegs | 2 Sets |
| Gearing | 25/9 |
