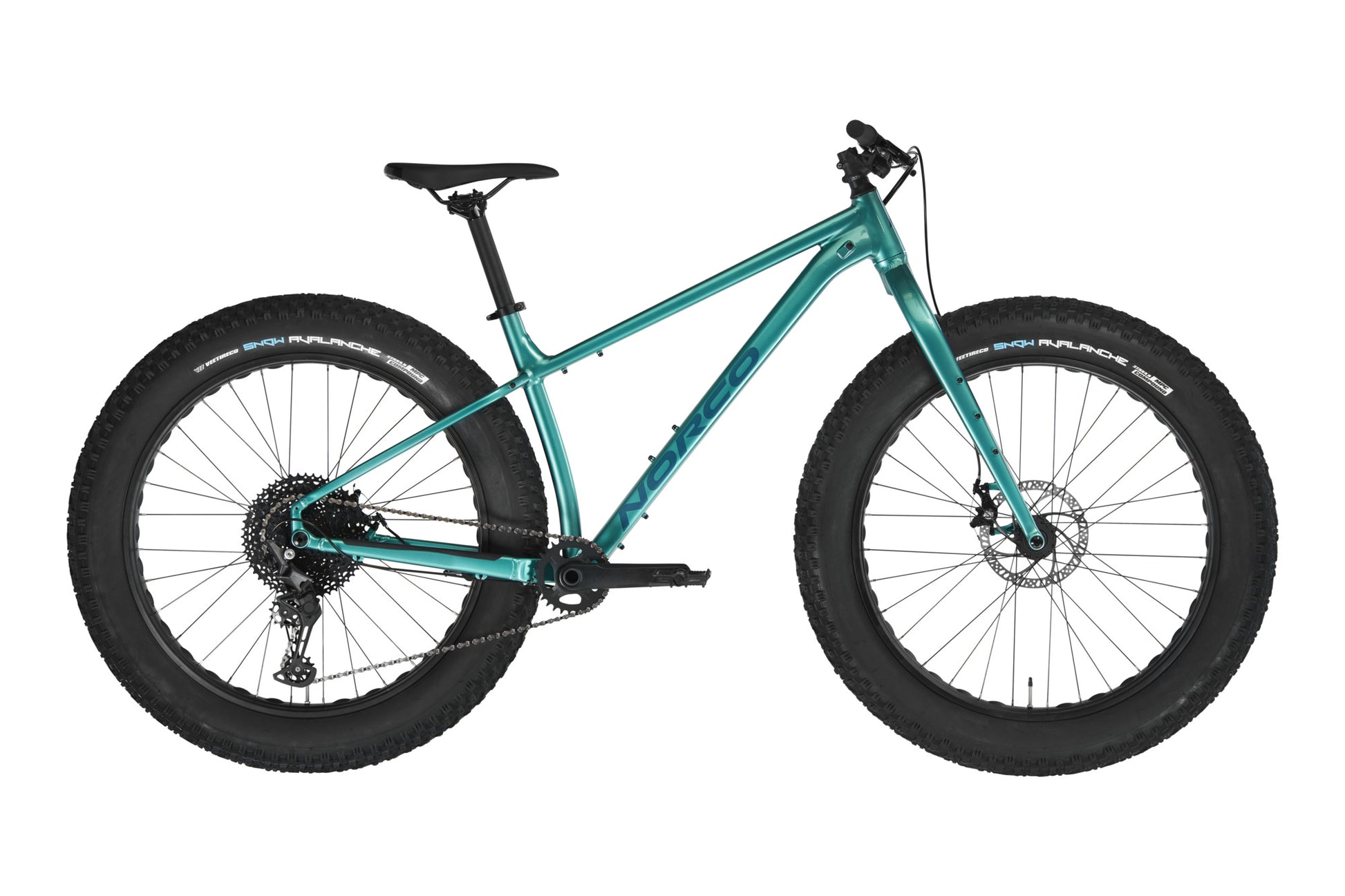

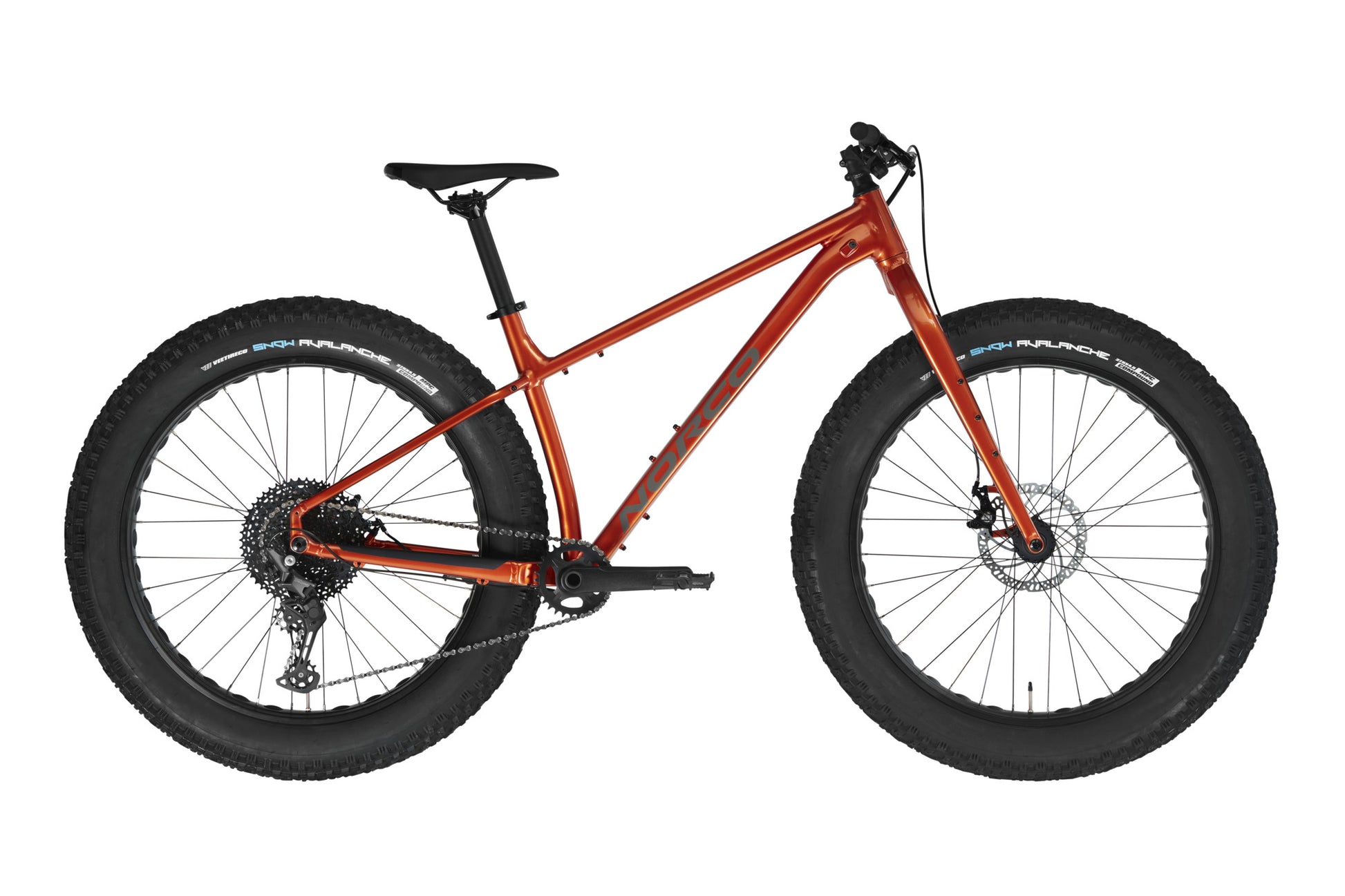

Norco Bigfoot 3 – 27.5" Fat Bike, Alloy Frame, 1x11 Drivetrain

Norco Bigfoot 3 – All-Season Fun, Fat-Tire Confidence

Meet the newly redesigned Bigfoot 3—a fat bike engineered to make every ride a blast, no matter the season or terrain. With bold, responsive geometry and massive 4.5" tires, the Bigfoot 3 gives you total control on descents, traction in the snow, and confidence on rugged singletrack.

Its simplified 1x drivetrain ensures smooth, glove-friendly shifting even in the harshest conditions, while mechanical disc brakes provide reliable stopping power when you need it most. From snowy backcountry adventures to year-round trail riding, the Bigfoot 3 delivers pure fun, control, and capability.

Key Features:

• Progressive fat bike geometry for balance and control

• 4.5” studdable tires for traction in snow, mud, and loose terrain

• 1x11 Shimano Deore drivetrain for reliable, simple shifting

• Mechanical disc brakes with oversized rotors for all-weather stopping

• Lightweight aluminum frame and fork built to handle the cold and the trail

Specifications

Frameset

• Frame: Butted X6 Aluminum

• Fork: 6061 Aluminum

Drivetrain

• Shifter: Shimano Deore SL-M5100, 11-speed

• Rear Derailleur: Shimano Deore RD-M5100

• Crankset: Samox Alloy, 30T

  • 170mm (S), 175mm (M, L, XL)

• Bottom Bracket: External, BSA Threaded

• Cassette: Sunrace CMX8, 11–51T

• Chain: KMC X11

Brakes

• Brakes: Tektro MD-280 Mechanical Disc, Organic Pads

• Rotors: 180mm front / 160mm rear

• Levers: Tektro Alloy

Cockpit

• Handlebar: Butted 6061 Alloy, 760mm width, 15mm rise

• Stem: Alloy, 50mm length, 31.8mm clamp

• Grips: VP Lock-On

• Seatpost: Norco Alloy, 31.6mm

• Saddle: Norco XC

• Headset: Sealed Bearing, Tapered

• Headset Spacers: 2 × 10mm

• Seatpost Clamp: Alloy Quick Release

• Pedals: VP Nylon Flat

Wheels

• Rims: Alloy TR, 27.5", 32H

• Front Hub: Sealed Bearing, 15x150mm, 6-bolt

• Rear Hub: Sealed Bearing, 12x197mm, HG, 6-bolt

• Tires:

  • Front: Vee Snow Avalanche TLR, 4.5", studdable

  • Rear: Vee Snow Avalanche TLR, 4.5", studdable

• Axles:

  • Front: 150x15mm Thru-Axle

  • Rear: 197x12mm Thru-Axle

• Spokes/Nipples: Stainless Steel 14g, Black
