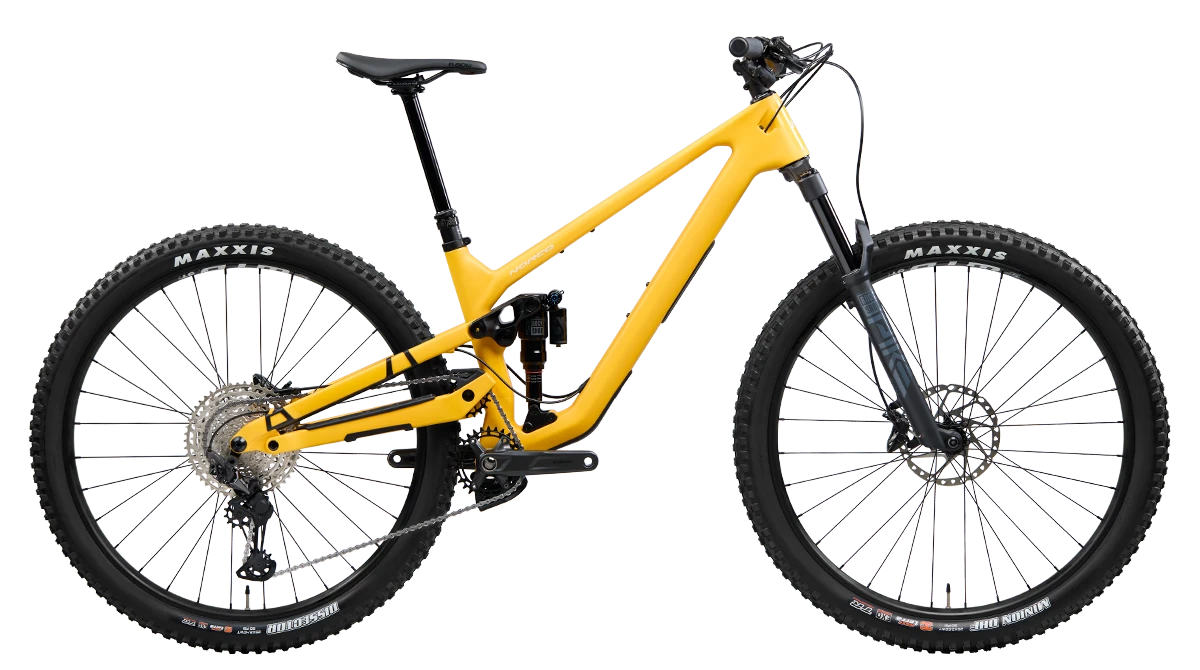

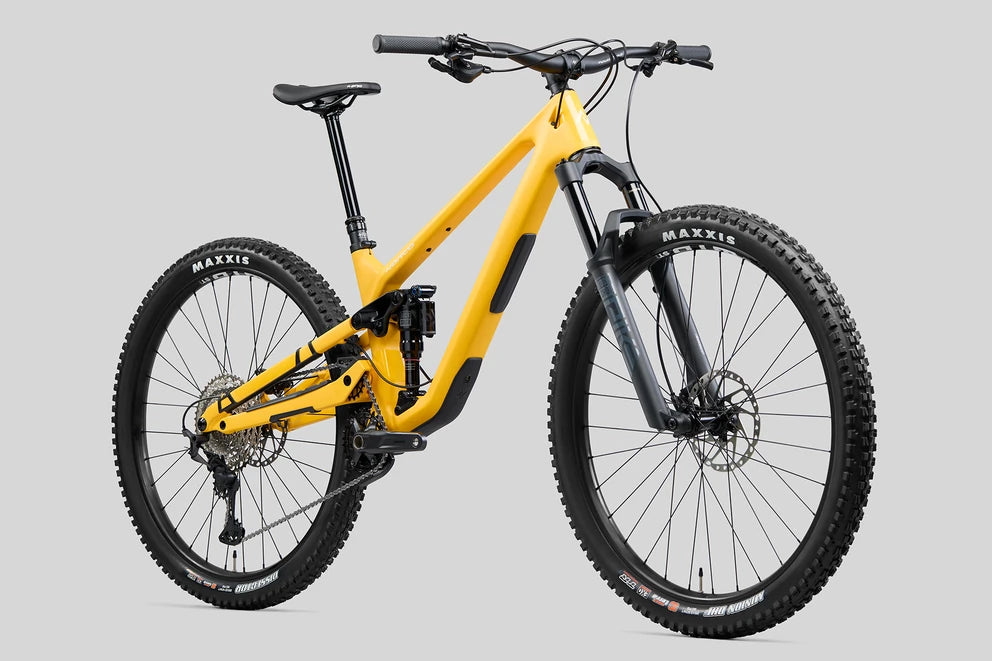

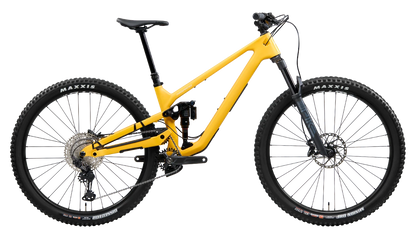

Norco Optic C3 Carbon Dual Suspension Mountain Bike

Whether you’re ripping fast flowy singletrack, putting the power down on punchy climbs, or tearing the tires off in the corners, the Optic continues to push the boundaries of what’s possible on a short travel trail bike. With increased rearward axle path, idler, and the innovative VPSHP suspension layout, this new design gives the Optic next-level confidence and capability, up or down the trail.

All Optic models now include the One Up EDC lite tool to have you covered on the trail.

VPSHP Suspension Platform

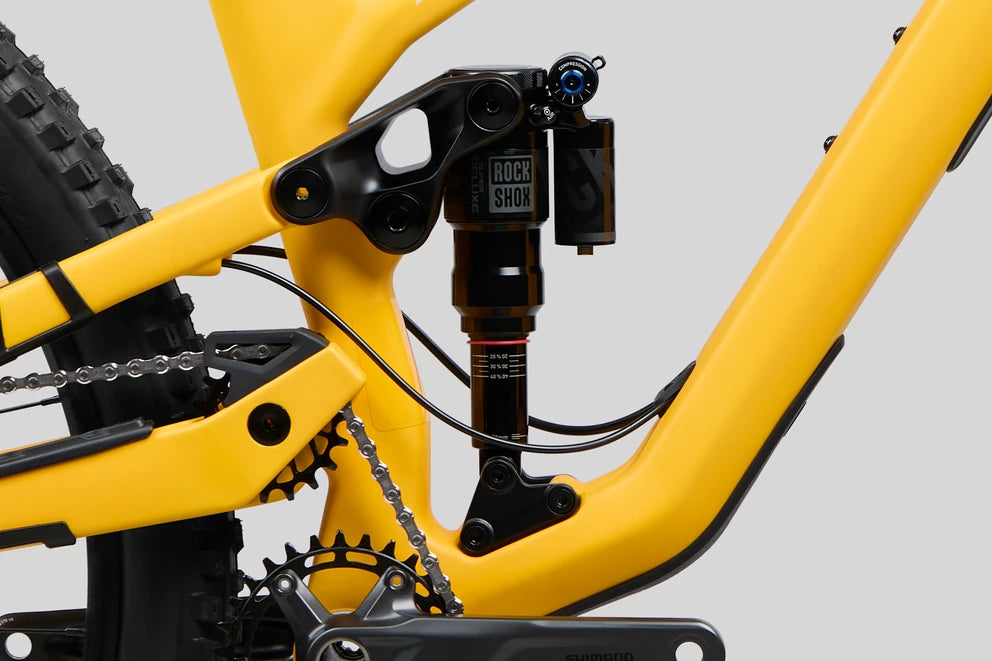

Designed around Norco’s VPSHP (Virtual Pivot Suspension | High Pivot) layout, this system increases the rearward axle path to improve suspension performance in technical terrain, while retaining the dynamic experience riders expect from a short travel trail bike.

With 140mm of front and 125mm of rear travel, the Optic condenses technology from long travel bikes into a lightweight package that’s as ready to tear up climbs as it is tackling challenging descents. The idler pulley manages chain growth and pedal-kickback, keeping the Optic’s playful roots while punching above its weight when the trails get rough. With our “Missing Link Kit” (sold separately), you can swap between 29” and 27.5” rear wheels to pick the setup that suits you best.

Key Features

• Evolved VPSHP Suspension: A high pivot layout on a short travel trail bike for unparalleled capability in rough terrain.

• Rider-Tuned Versatility: Swap between a full 29" or a mixed 29"/27.5" wheel setup to suit your style.

• Premium Frame Options: Available in both full carbon and aluminum frames.

• Ride Aligned™ Design System: Ensures a perfect fit, dialed handling, and a personalized setup in minutes.

• Trail-Ready Drivetrain: A reliable 12-speed Shimano drivetrain provides the perfect gear for any situation.

• Lifetime Warranty: Includes the No Other Way Limited Lifetime Warranty.

Specifications

Frameset

• Frame: Carbon Frame, 125mm Travel, UDH, Eagle Transmission Compatible, Ride Aligned™

• Fork: RockShox Pike Select, 140mm Travel, 44mm Offset, Fender Included

• Rear Shock: RockShox Super Deluxe Select+, 185x50mm Trunnion

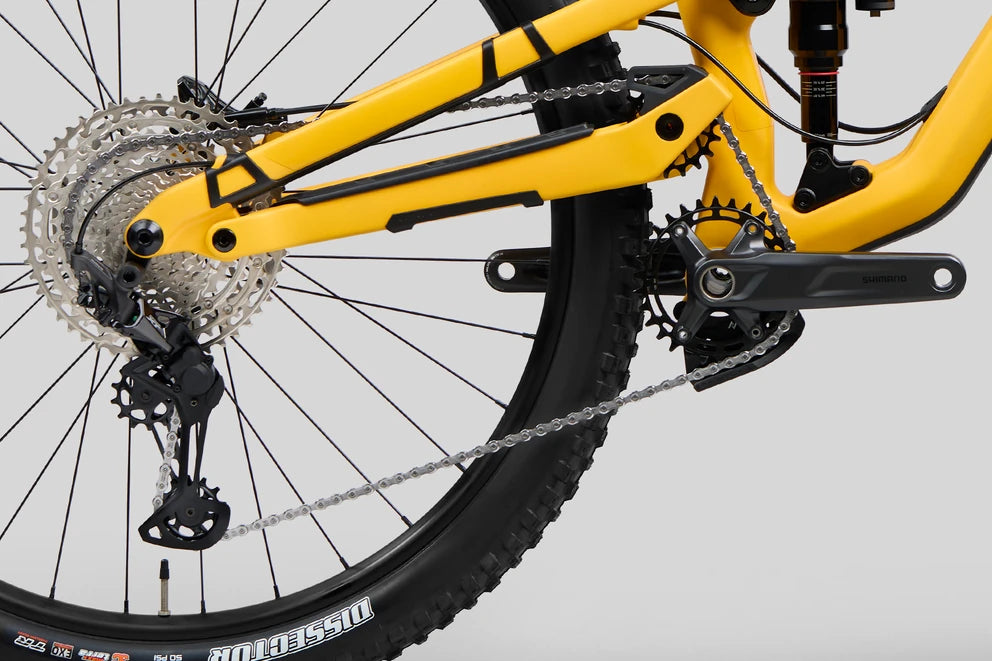

Drivetrain

• Rear Shifter: Shimano Deore SL-M6100, 12-Speed

• Rear Derailleur: Shimano XT RD-M8100, 12-Speed

• Crankset: Shimano Deore FC-MT512, 30T, 55mm Chainline

  • 165mm (S1, S2)

  • 170mm (S3, S4, S5)

• Bottom Bracket: Shimano Sealed Bearing, BSA 73mm

• Cassette: Shimano Deore CS-M6100, 10-51T, 12-Speed

• Chain: Shimano Deore CN-M6100, 12-Speed

• Chain Guide: Norco Idler Guide and Lower Guide

Brakes

• Front Brake: Shimano Deore BR-MT520, 4-Piston Hydraulic, Metallic Pads

• Front Rotor: Shimano SM-RT64, 180mm, Center Lock

• Rear Brake: Shimano Deore BR-MT520, 4-Piston Hydraulic, Metallic Pads

• Rear Rotor: Shimano SM-RT64, 180mm, Center Lock

• Brake Levers: Shimano Deore BL-M520

Components

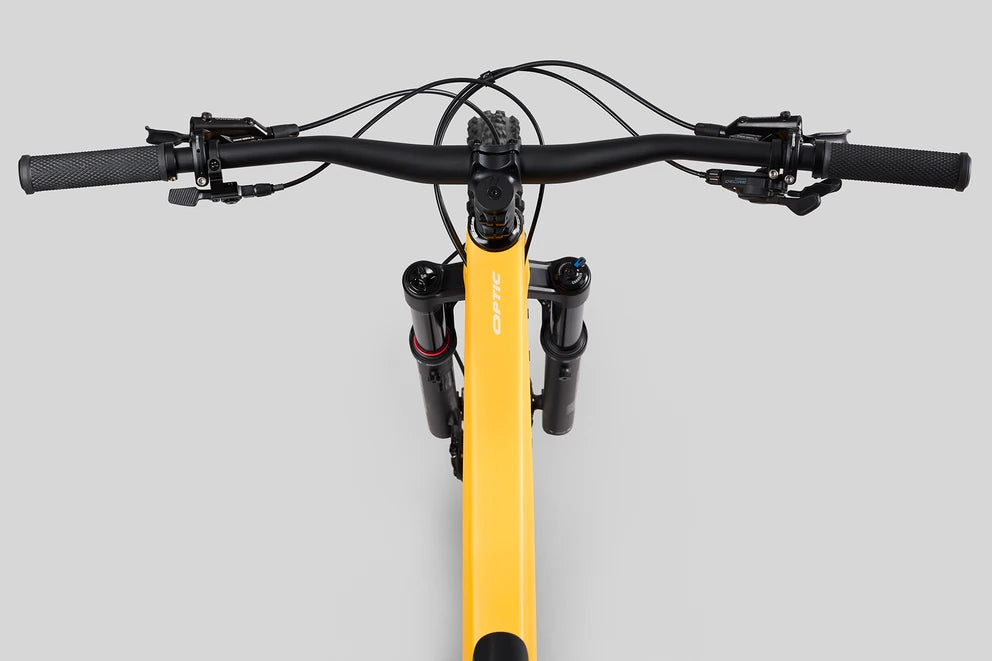

• Handlebar: 6061 Alloy, 800mm Wide, 25mm Rise

• Stem: Norco Alloy, 40mm Length, 35mm Clamp

• Seatpost: TranzX YS105 Dropper Post, 34.9mm

  • 150mm (S1)

  • 170mm (S2)

  • 200mm (S3, S4)

  • 230mm (S5)

• Headset: FSA No. 57 ZS, Sealed Bearing, Tapered

• Saddle: SDG Bel Air V3

• Grips: Propalm Lock-On, 130mm Length

• Seatpost Clamp: Norco Alloy Nutted Clamp, 38.5mm ID

• Tool: OneUp EDC Lite Tool

Wheels

• Front Hub: Shimano HB-MT410, 15x110mm Boost, 32h, Center Lock

• Rear Hub: Shimano FH-MT510, 12x148mm Boost, 32h, Micro Spline, Center Lock

• Rims: WTB ST i30, 32h, 29", 30mm Inner Width, Tubeless Ready

• Front Tire: Maxxis Minion DHF, 29x2.5", 3C MaxxTerra, EXO, Folding

• Rear Tire: Maxxis Dissector, 29x2.4", 3C MaxxTerra, EXO, Folding

• Spokes: Stainless Steel

• Valves & Sealant: Stan's 35mm Tubeless Valves & Sealant

Weight

• Weight: 15.6 kg (34.2 lbs)

• Measured Size: S3

Geometry

29" Wheel Setup
