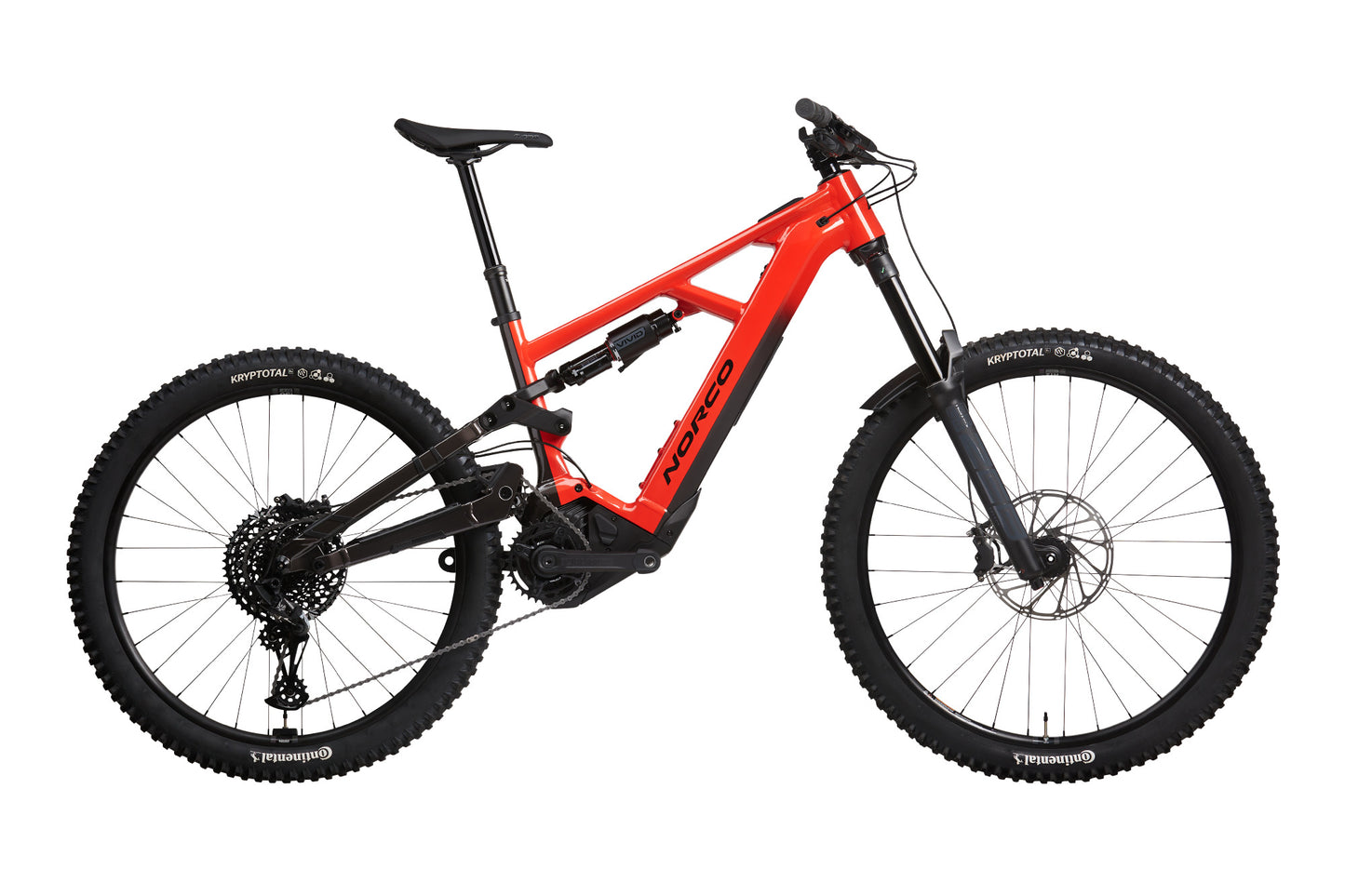

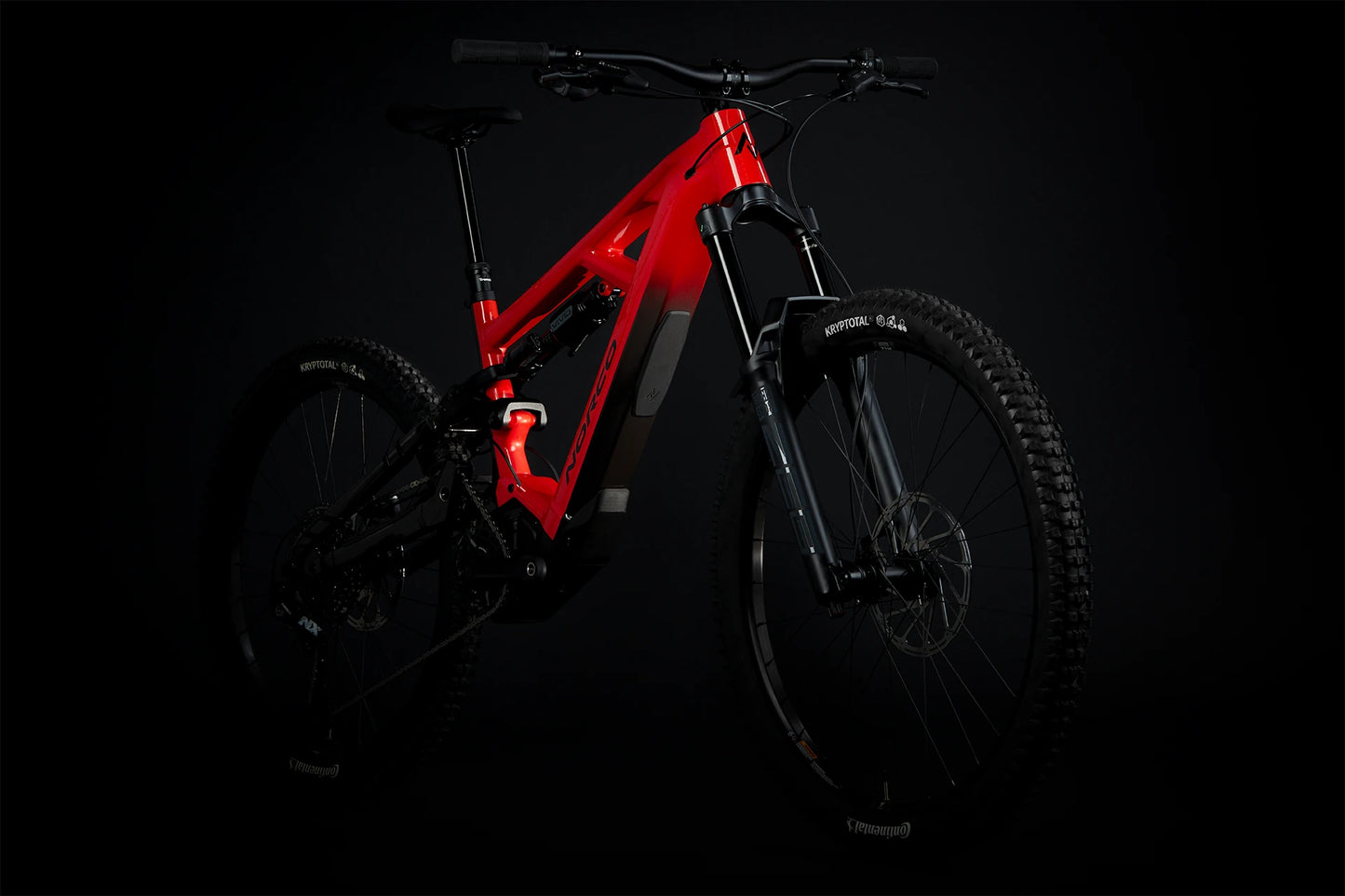

Norco Range VLT A1 - MX Red Electric Assist Mountain Bike

Meet the Range VLT A1: Conquer Every Trail in Beast Mode

The Range VLT A1, with 180/170 mm of travel, is designed for riders who love tackling challenging terrain and pushing their limits. With an all-day battery, you can ride multiple trails without compromise.

Key Features

• Unmatched Performance: With 170/180mm of custom-tuned suspension travel and Norco’s e-Enduro geometry on a fourth-generation VLT platform, this bike is built to handle the toughest trails.
• Superior Pedaling: The chainstay-mounted, dynamic idler positioning provides an Enduro-tuned anti-squat curve, superior traction on technical climbs, and efficient pedaling with minimal kickback under heavy impacts.
• Bosch Power: The fully integrated Bosch Performance Line CX system offers 85Nm of torque and up to 340% rider assist for Big Mountain and Enduro excursions.
• Battery: Includes Bosch PowerTube 750Wh battery for extended rides.


Specifications

Frameset

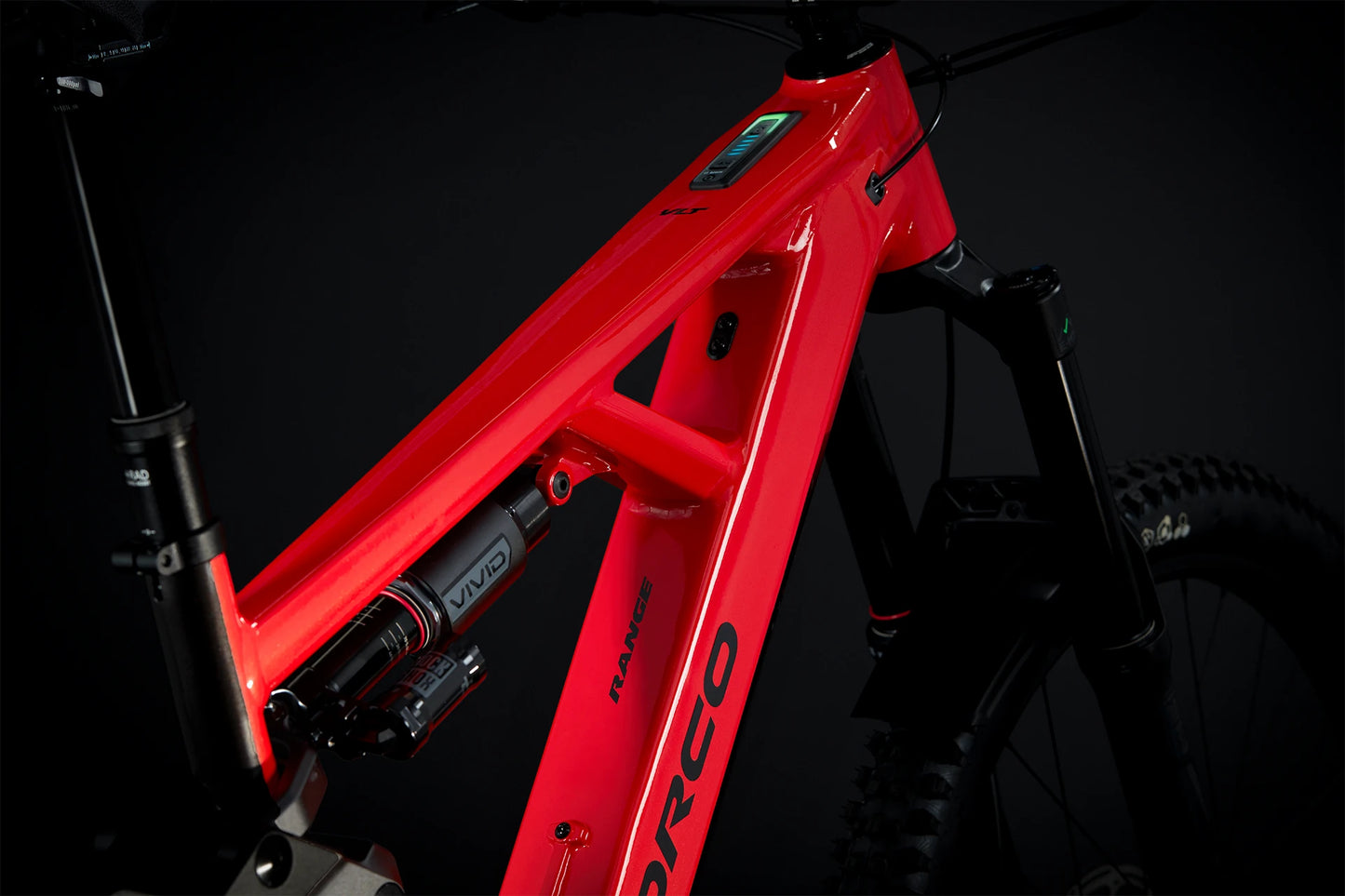

• Frame: Butted Aluminum, High Pivot Horst Suspension, 170mm Travel, UDH, Hangerless Interface Compatible, Ride Aligned™
• Fork: RockShox Zeb Select, 180mm Travel, E-MTB Rated, Fender Included
• Rear Shock: RockShox Vivid Base, 230x65mm

Drivetrain

• Rear Shifter: SRAM NX Eagle MMX
• Rear Derailleur: SRAM NX Eagle
• Crankset: eThirteen ePlus 165mm
• Bottom Bracket: Bosch BES3 DU
• Cassette: SRAM PG1210 Eagle, 11-50T
• Chain: SRAM SX Eagle

Brakes

• Front Brake: SRAM DB8, 4 Piston, Sintered Pads
• Front Brake Rotor: SRAM Centerline, 220mm
• Rear Brake: SRAM DB8, 4 Piston, Sintered Pads
• Rear Brake Rotor: SRAM Centerline, 200mm
• Brake Levers: SRAM DB8

Components

• Handlebar: Butted 6061 Alloy, 800mm, 25mm Rise
• Stem: 6061 Alloy, 40mm Length, 35mm Clamp
• Seatpost: TranzX YS134 Dropper, 34.9mm, 150mm (S1), 170mm (S2, S3), 200mm (S4, S5)
• Headset: FSA No. 55 Sealed Bearing, 1 1/8" - 1.8" Tapered
• Headset Spacer: 2 x 10mm, 1x 5mm
• Saddle: SDG Bel Air V3 Lux Alloy
• Grips: WTB Wavelength
• Seatpost Clamp: Norco Alloy Nutted Clamp, 38.5mm

Wheels

• Front Hub: Bear Pawls BMB-013, 15x110mm Boost, 6 Bolt
• Rear Hub: Bear Pawls BMB-008, 12x148mm Boost, HG, 6 Bolt
• Rims: WTB HTZ Trail 32H, 27.5"/29"
• Front Tire: Continental Kryptotal-F Enduro 29" x 2.4", Foldable
• Rear Tire: Continental Kryptotal Enduro 27.5" x 2.4", Foldable
• Rear Hub Skewer: Axle Assembly, L174, TL13 M12x1.0
• Front Hub Skewer: RockShox Maxle Stealth 110x15
• Spokes/Nipples: Sapim Sprint Butted Stainless Black

Electric Components

• Drive Unit: Bosch Performance Line CX, 85Nm
• Battery: Bosch PowerTube 750Wh

Geometry
