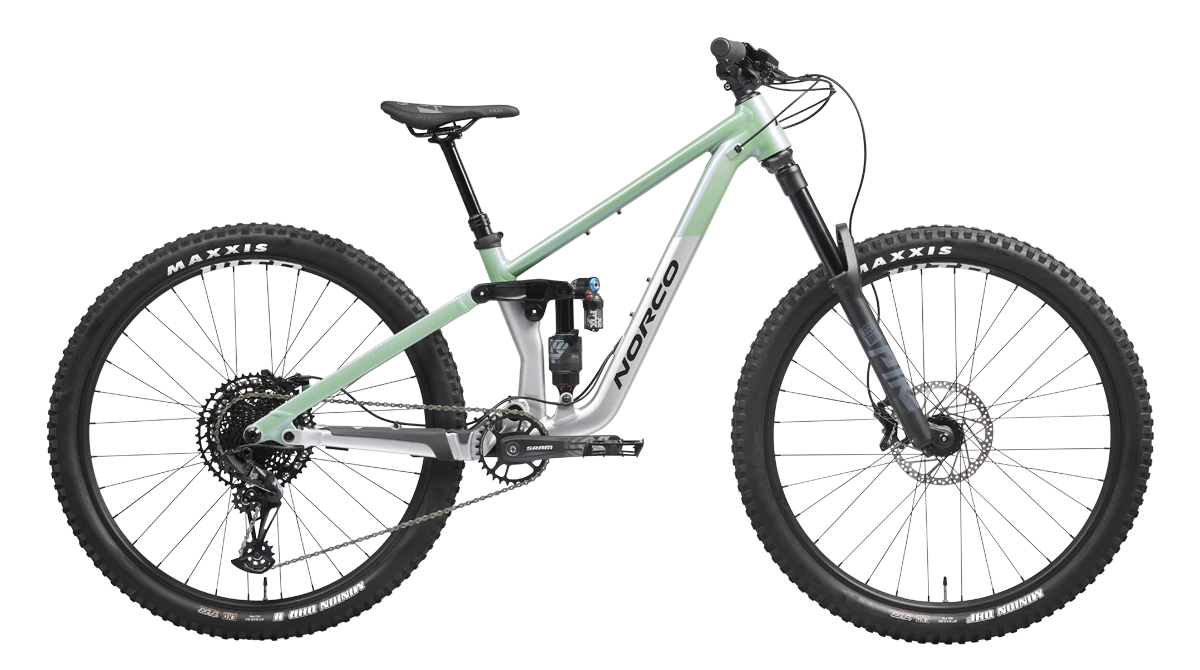

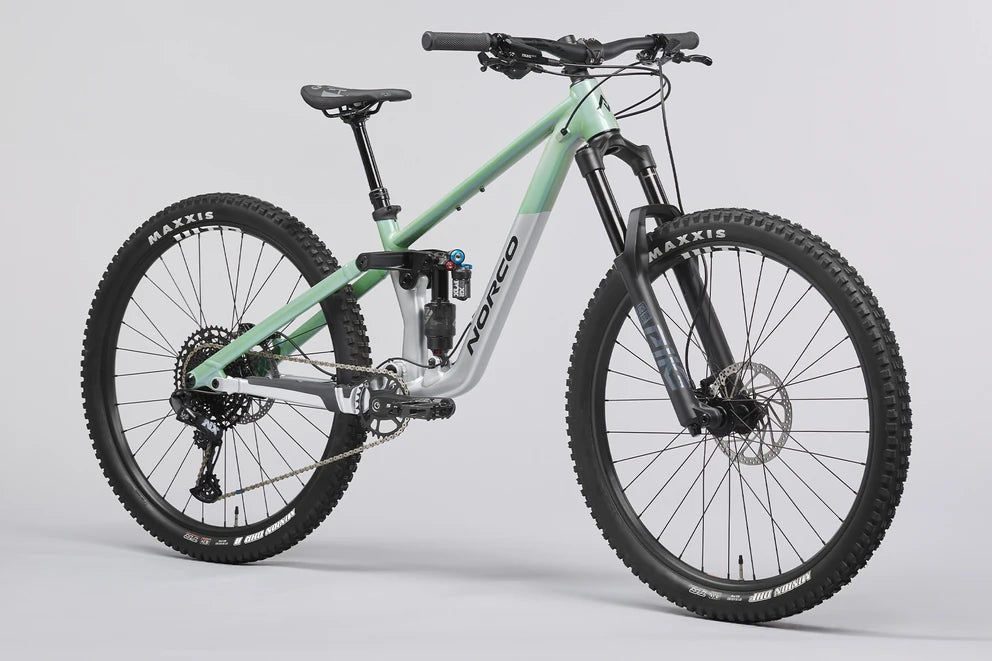

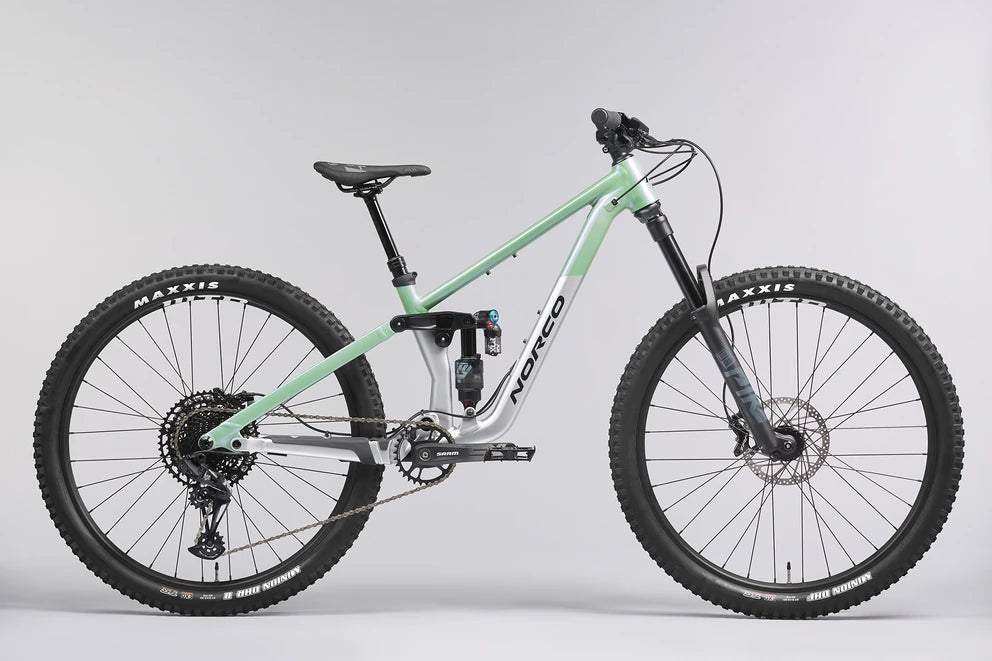

Norco Sight A 27.5 Dual Suspension Mountain Bike - XS

It’s hard to step things up when you can’t find a bike that fits right - so we built the Sight 27.5". Now featuring a Fox Float X2 Performance Elite rear shock with custom light tune.

The Sight Youth 27.5" is burly enough to take whatever you shell out.

With 150mm of rear travel and 150mm up front, the suspension is custom-tuned to meet the needs of lighter riders who go big but still have some growing to do.

Specs:

Frameset

• Frame: Aluminum Youth All-Mountain, 150mm Travel, Ride Aligned™

• Fork: RockShox Pike/Lyrik RC, Charger Damper, 150mm, 37mm Offset

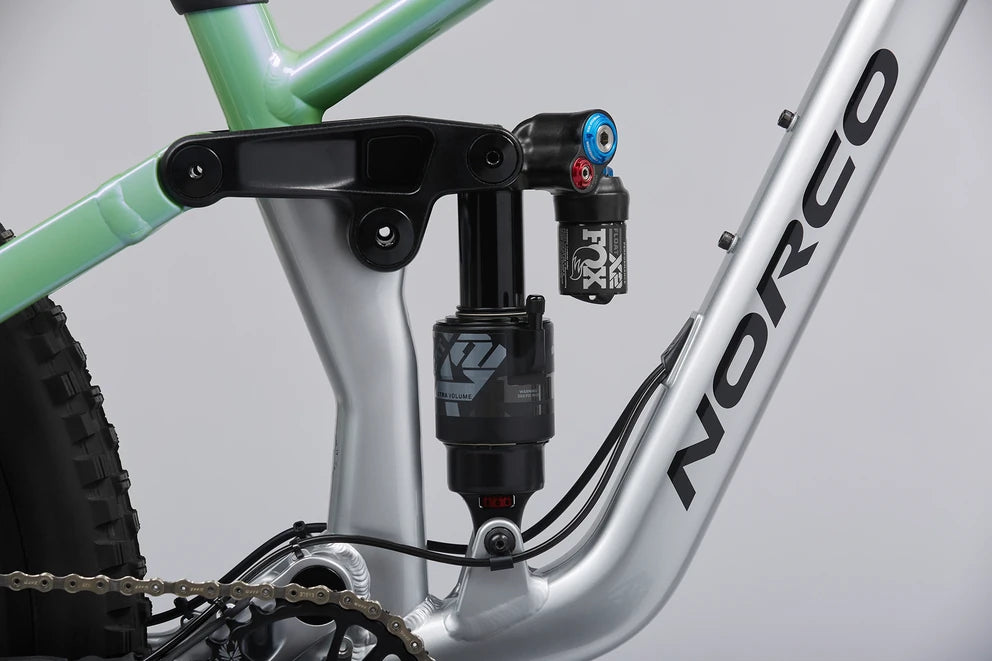

• Rear Shock: Fox FLOAT X2 Performance Elite, 2 Pos, Light Tune 185x50mm Trunnion

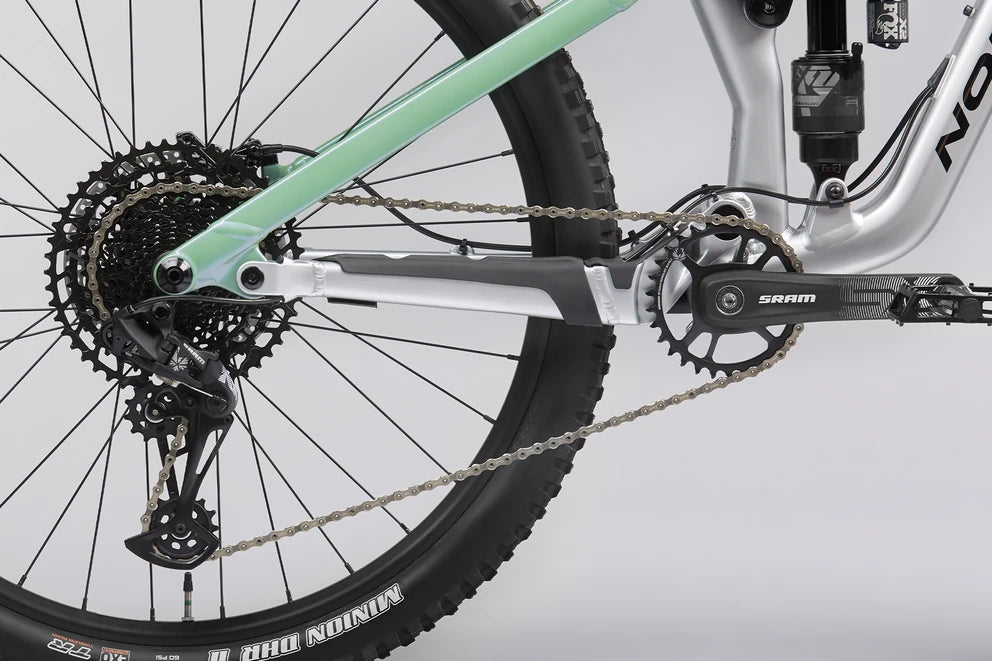

Drivetrain

• Rear Shifter: SRAM SX Eagle

• Rear Derailleur: SRAM SX Eagle

• Crankset: SRAM SX Eagle, 30T, 165mm

• Bottom Bracket: SRAM Power Spline, BSA Threaded

• Cassette: SRAM Eagle 11-50T

• Chain: SRAM Eagle

Brakes

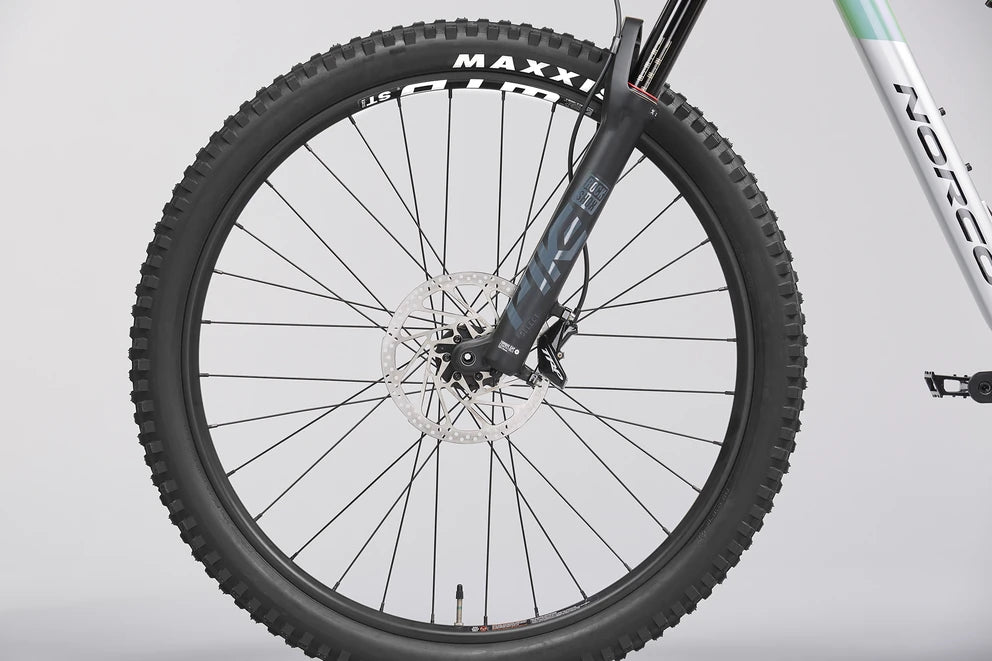

• Front Brake: TRP Slate EVO

• Front Brake Rotor: TRP 180mm

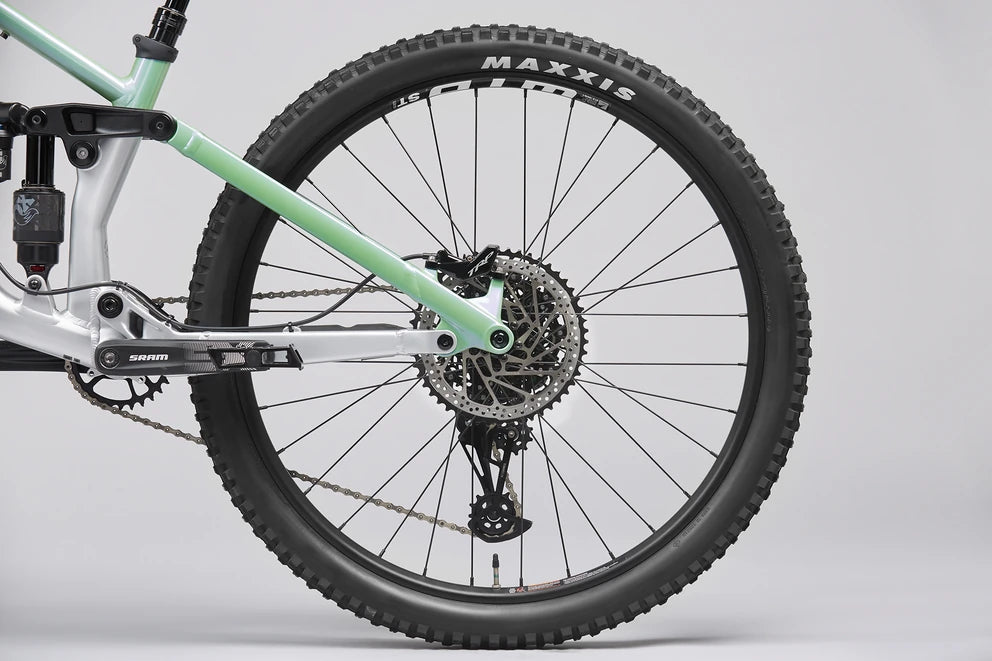

• Rear Brake: TRP Slate EVO

• Rear Brake Rotor: TRP 180mm

• Brake Levers: TRP Slate EVO

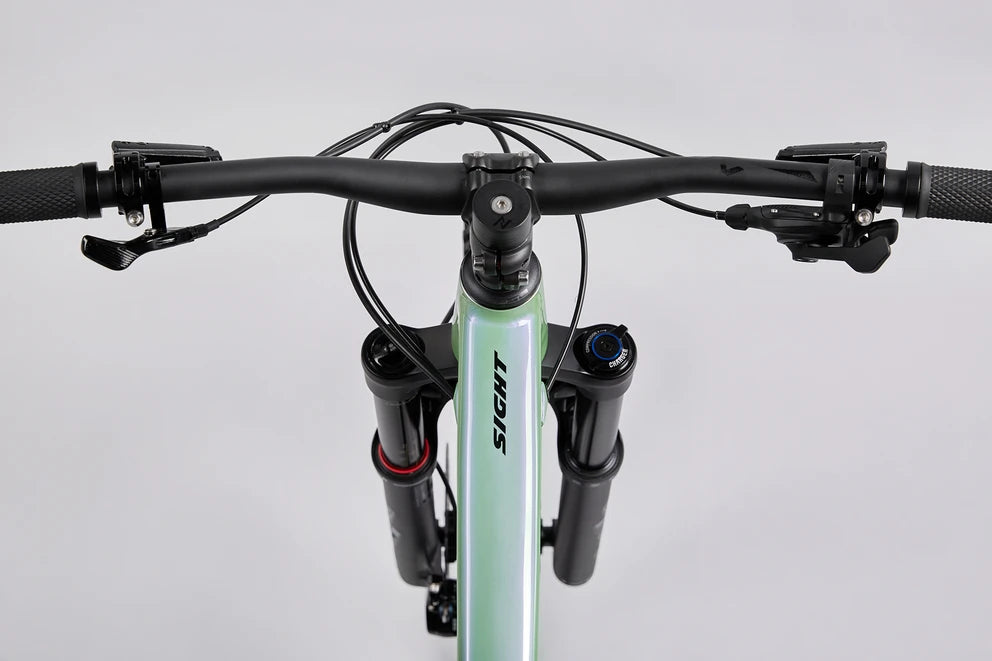

Components

• Handlebar: Alloy, 720mm, 15mm Rise

• Stem: Alloy, 35mm Length, 31.8mm Clamp

• Seatpost: JD TranzX Light Action Dropper, 31.6mm, 120mm

• Headset: FSA #57 E Sealed Bearing, Tapered

• Saddle: SDG Fly Jr.

• Grips: SDG Slater Lock-On

• Pedals: SDG Composite Jr.

• Seatpost Clamp: Norco design 38.5mm Alloy Nutted Clamp

Wheels

• Front Hub: Bear Pawl 15x110mm Boost, 6-Bolt

• Rear Hub: SRAM 746, 12x148mm Boost, HG, 6-Bolt

• Rims: WTB STP I25, Tubeless Ready

• Front Tire: Maxxis Minion DHF 2.3" EXO/TR, Folding

• Rear Tire: Maxxis Minion DHR II 2.4" EXO/TR, Folding

• Spokes/Nipples: Stainless, Black

Geometry (27.5")

• Travel: Front: 150mm / Rear: 140mm

• Reach: 395mm

• Stack: 576mm

• Head Tube Angle: 63.5°

• Fork Offset: 37mm

• Seat Tube Length: 350mm

• Effective Seat Tube Angle: 76.7°

• Rear Centre Length: 425mm

• Bottom Bracket Rise: 15mm

• Bottom Bracket Height: 342mm

• Horizontal Top Tube: 531mm

• Wheelbase: 1141mm

• Standover: 650mm

• Head Tube Length: 100mm

• Trail: 137mm

• Recommended Seatpost Drop: 125mm

• Maximum Post Insertion: 180mm

• Stem Length: 35mm

• Crank Length: 165mm

• Tire Size Compatibility: 2.35" – 2.6"

• Water Bottle Compatibility: 1 x 620 mL
