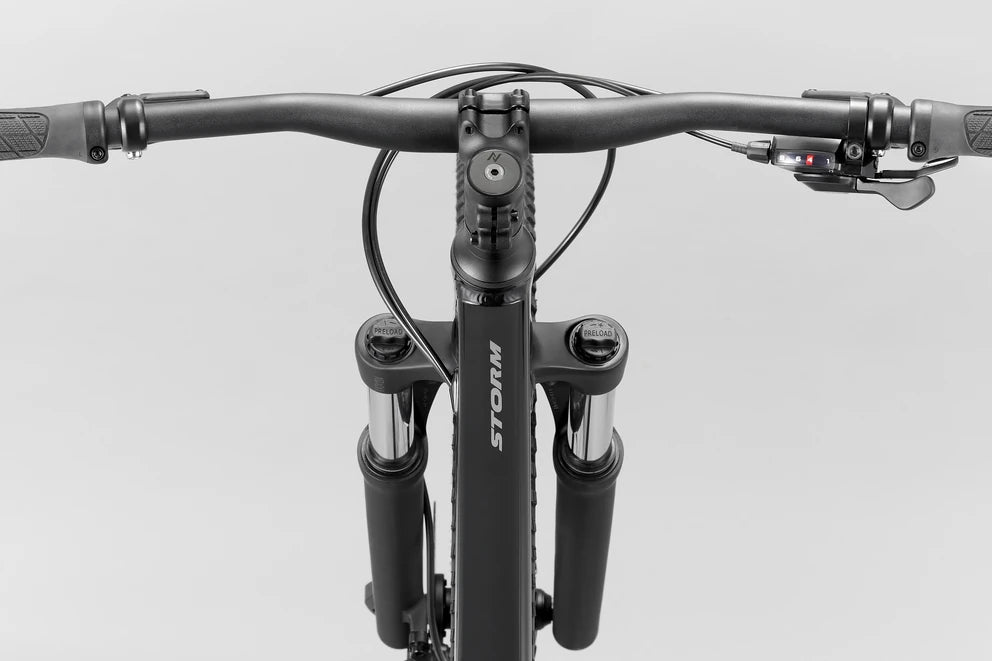

Norco Storm 27.5 Hardtail Mountain Bike

The Norco Storm 27.5 is a lightweight, durable hardtail with 100mm of suspension and reliable components designed to help young riders build confidence and skill on every trail.

Specifications

Frameset

Frame: Aluminum, TIG welded, 10x135mm QR, tapered head tube
Fork: SR Suntour XCT-30 DS coil, 100mm travel, 46mm offset, 9x100mm QR

Drivetrain

Shifter: Shimano CUES SL-U4000, 9-speed
Rear Derailleur: Shimano CUES RD-U4000, 9-speed, GS
Crankset: Prowheel alloy, 30T, 155mm
Bottom Bracket: Cartridge, 73mm shell, 113mm axle
Cassette: Shimano CUES CS-LG300-9, 11–46T
Chain: KMC Z9

Brakes

Front: Tektro HD-M276 hydraulic disc, resin pads, 160mm rotor
Rear: Tektro HD-M276 hydraulic disc, resin pads, 160mm rotor
Levers: Tektro HD-M276 with junior lever

Components

Handlebar: 6061 alloy double-butted, 720mm width, 30mm rise
Stem: Alloy, 50mm length, 31.8mm clamp
Seatpost: Alloy, 31.6mm, 300mm
Headset: Zero stack, 1-1/8" (ZS44/28.6 | ZS44/30)
Headset Spacers: 3 x 10mm
Saddle: Norco Jr XC, steel rails
Grips: DDK lock-on, 139mm
Pedals: Nylon flat
Seatpost Clamp: Norco alloy quick release, 34.9mm

Wheels

Front Hub: Formula DC-1420, 9x100mm QR, 32H, 6-bolt
Rear Hub: Formula DC-1422, 10x135mm QR, HG, 32H, 6-bolt
Rims: DP 27, 27mm inner width, 32H
Tires: Maxxis Forekaster 27.5x2.25", wire bead (front and rear)
Spokes/Nipples: Stainless steel, 14g
