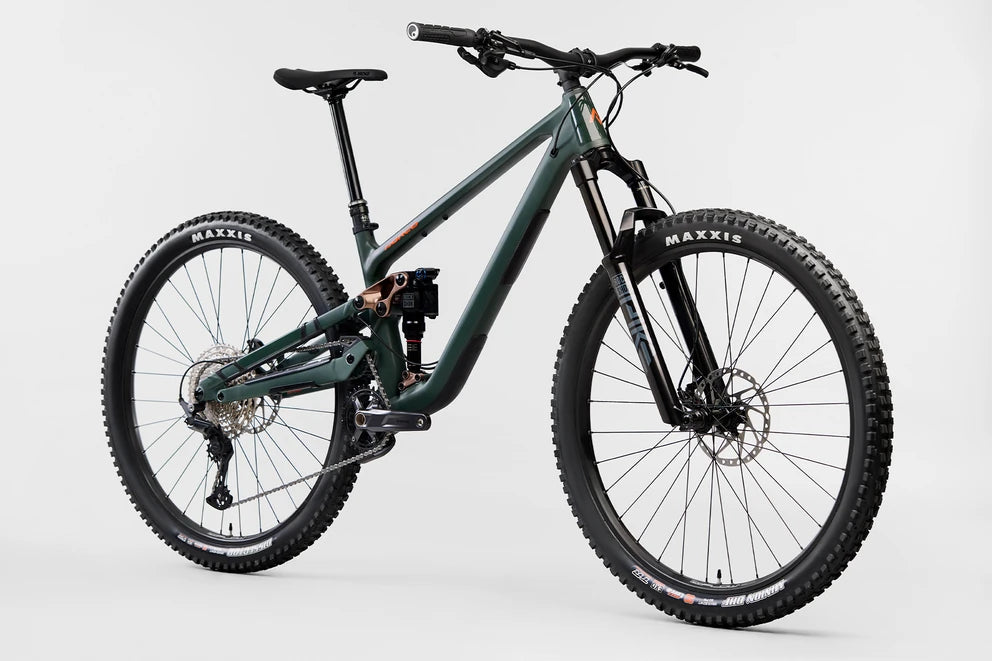

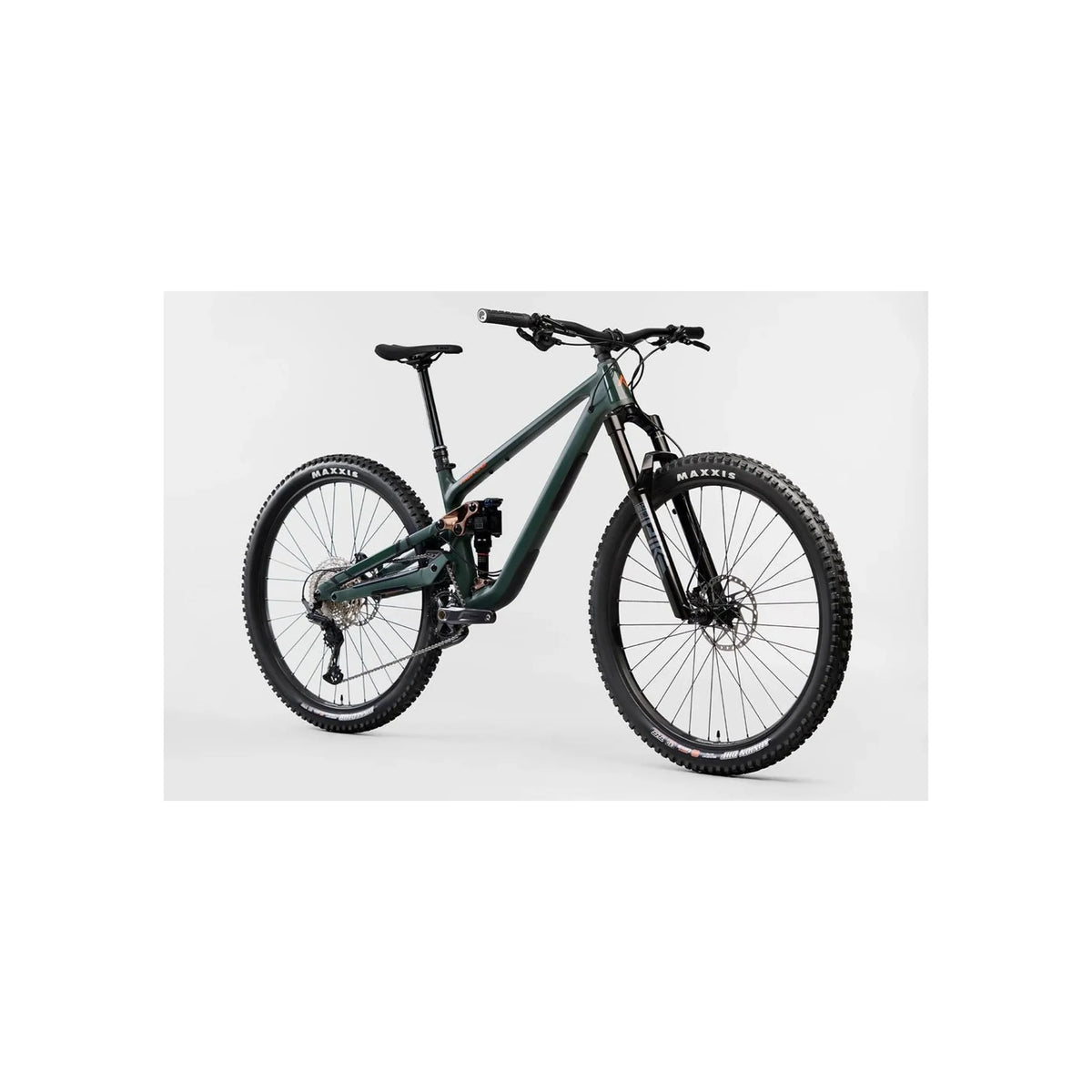

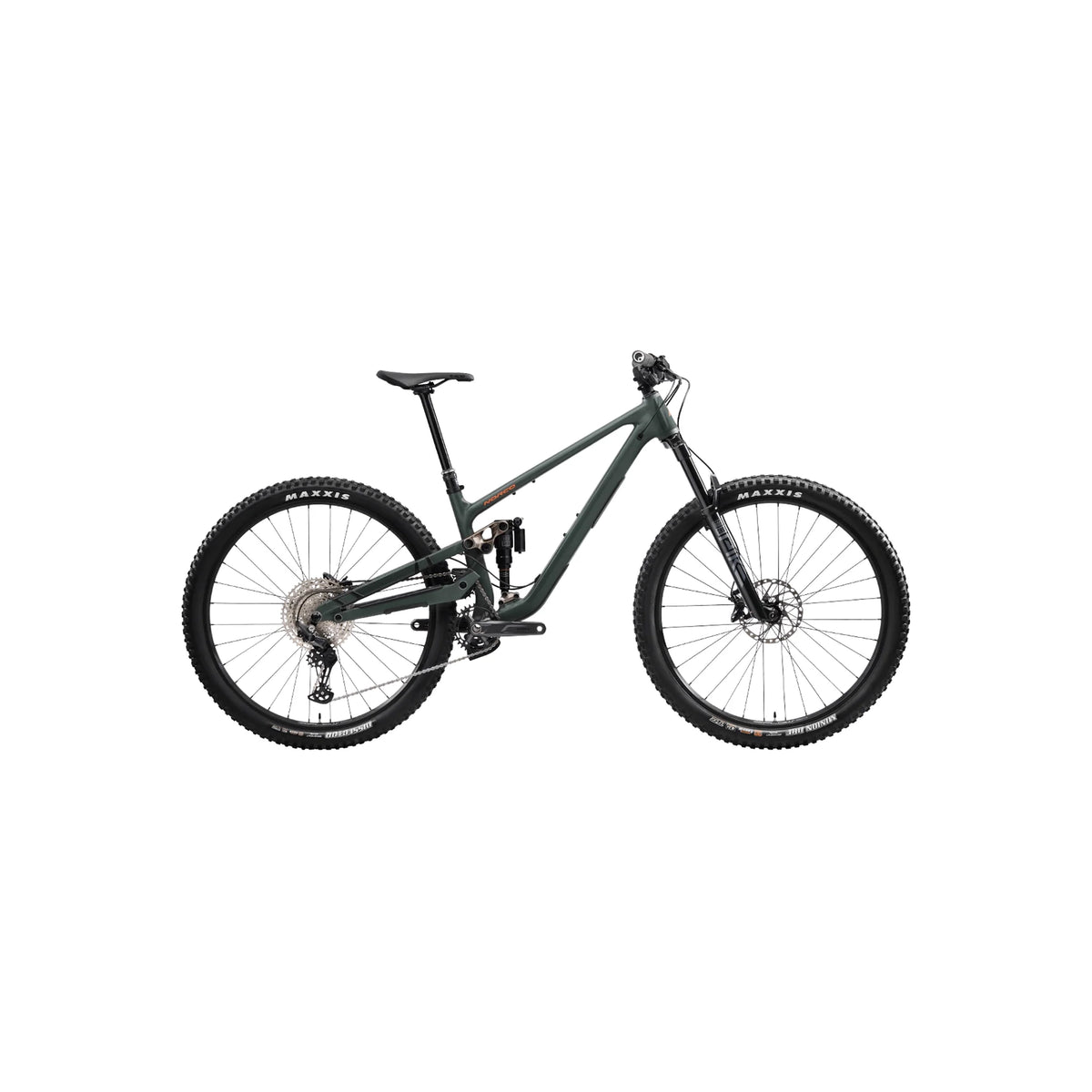

2025 Norco Optic A2 29er Dual Suspension Mountain Bike

Whether you’re ripping fast, flowy singletrack, powering up punchy climbs, or railing corners, the all-new Optic A2 elevates short-travel trail riding to the next level. Its high-pivot design, increased rearward axle path, and idler-driven VPSHP suspension layout provide remarkable confidence and capability—both uphill and down.

Plus, every Optic now includes a OneUp EDC Lite tool conveniently stashed in the steerer tube, so you’ll never be caught off-guard on the trail.

Frameset

• Frame: Aluminum, 125 mm travel, UDH, Eagle Transmission Compatible, Ride Aligned™
• Fork: RockShox Pike Base, 140 mm travel, 44 mm offset (includes fender)

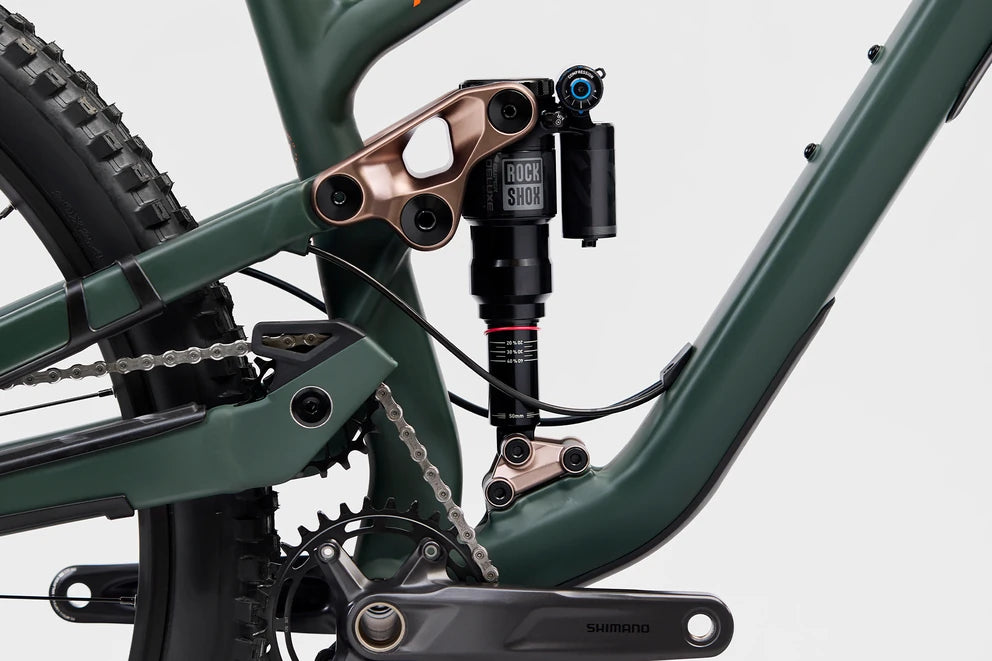

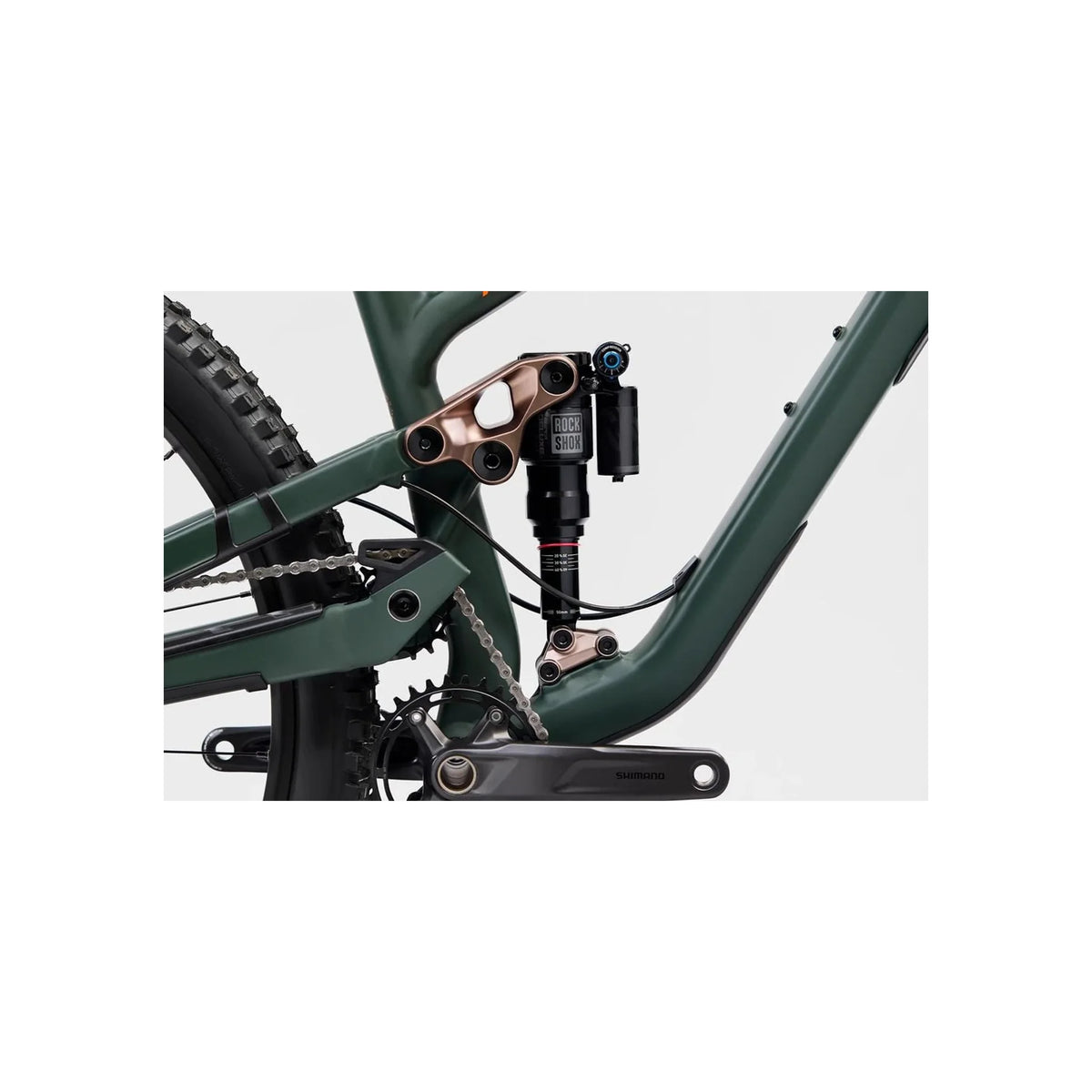

• Rear Shock: RockShox Super Deluxe Select+, 185 × 50 mm (Trunnion)

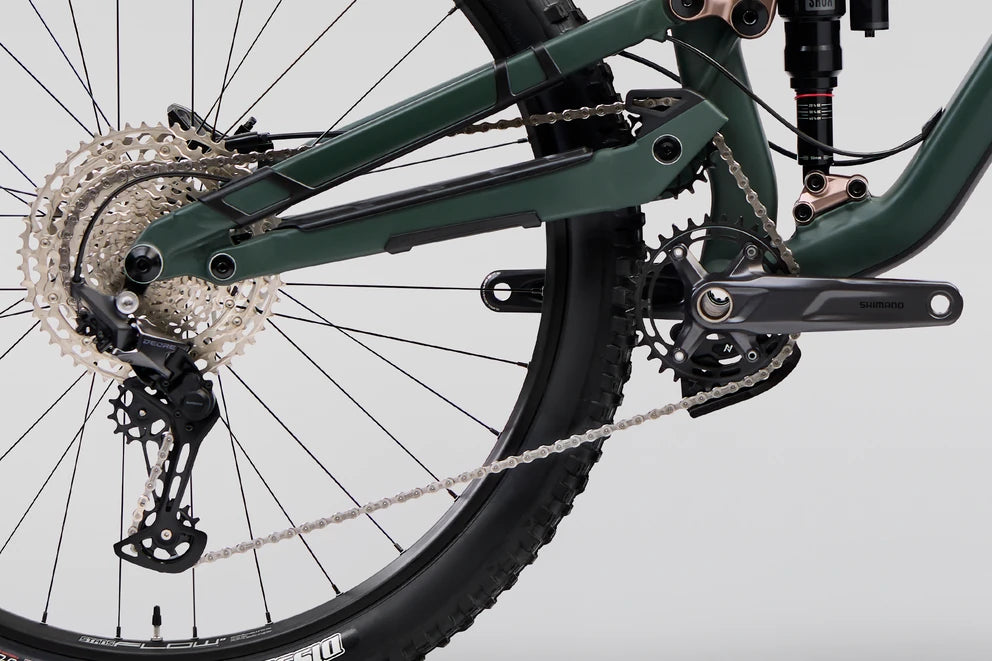

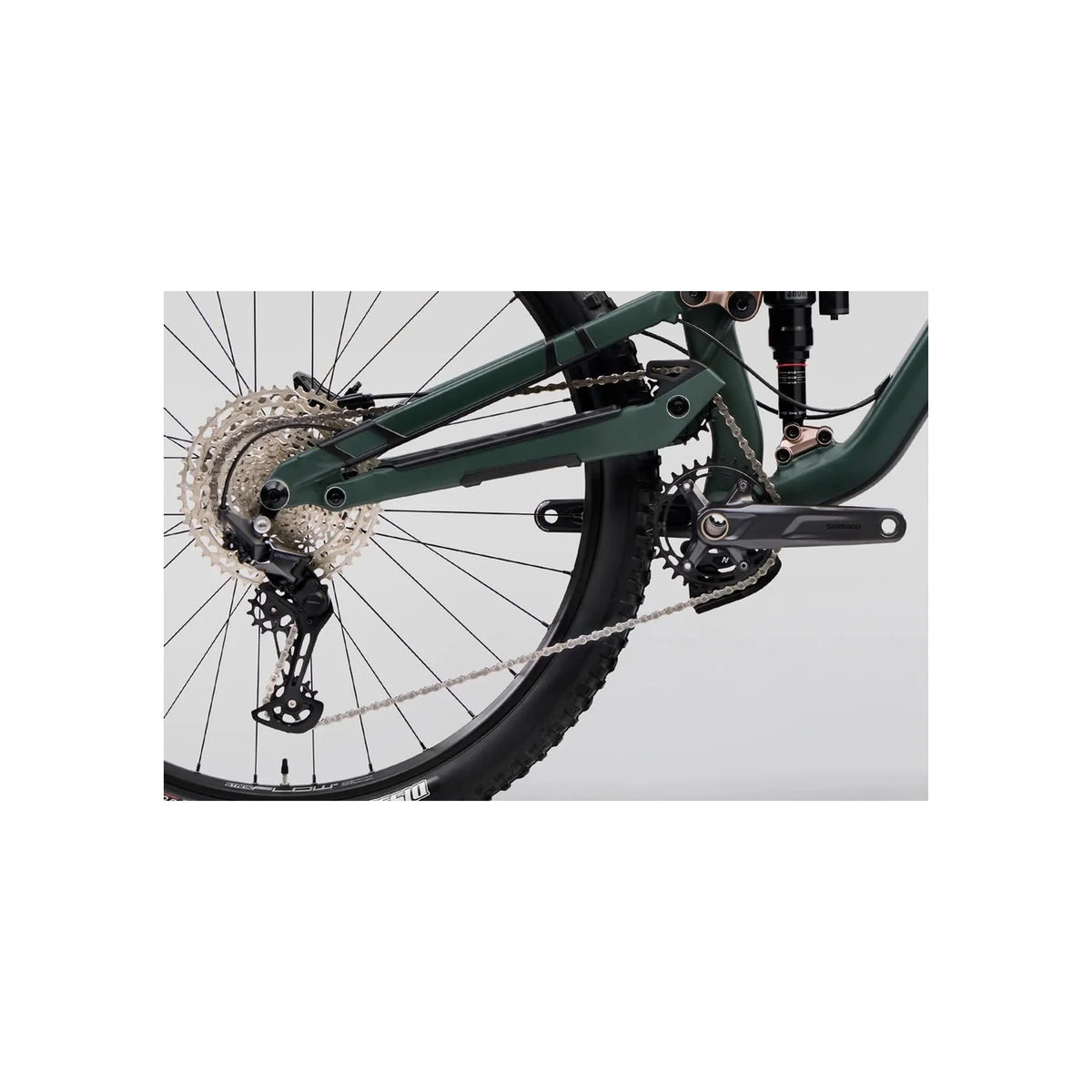

Drivetrain

• Rear Shifter: Shimano Deore SL-M6100, 12-speed
• Rear Derailleur: Shimano Deore RD-M6100, 12-speed
• Crankset: Shimano Deore FC-MT512, 30T, CL55
  • 165 mm (S1, S2)
  • 170 mm (S3, S4, S5)
• Bottom Bracket: Shimano Sealed Bearing, BSA 73 mm
• Cassette: Shimano Deore CS-M6100-12, 10–51T (12-speed)
• Chain: Shimano Deore CN-M6100, 12-speed
• Chain Guides: Norco Idler Guide & Lower Guide

Brakes

• Front Brake: Shimano Deore MT520, 4-piston caliper, metallic pads, 180 mm Shimano RT-64 rotor (Center Lock)
• Rear Brake: Shimano Deore MT520, 4-piston caliper, metallic pads, 180 mm Shimano RT-64 rotor (Center Lock)
• Brake Levers: Shimano Deore MT520

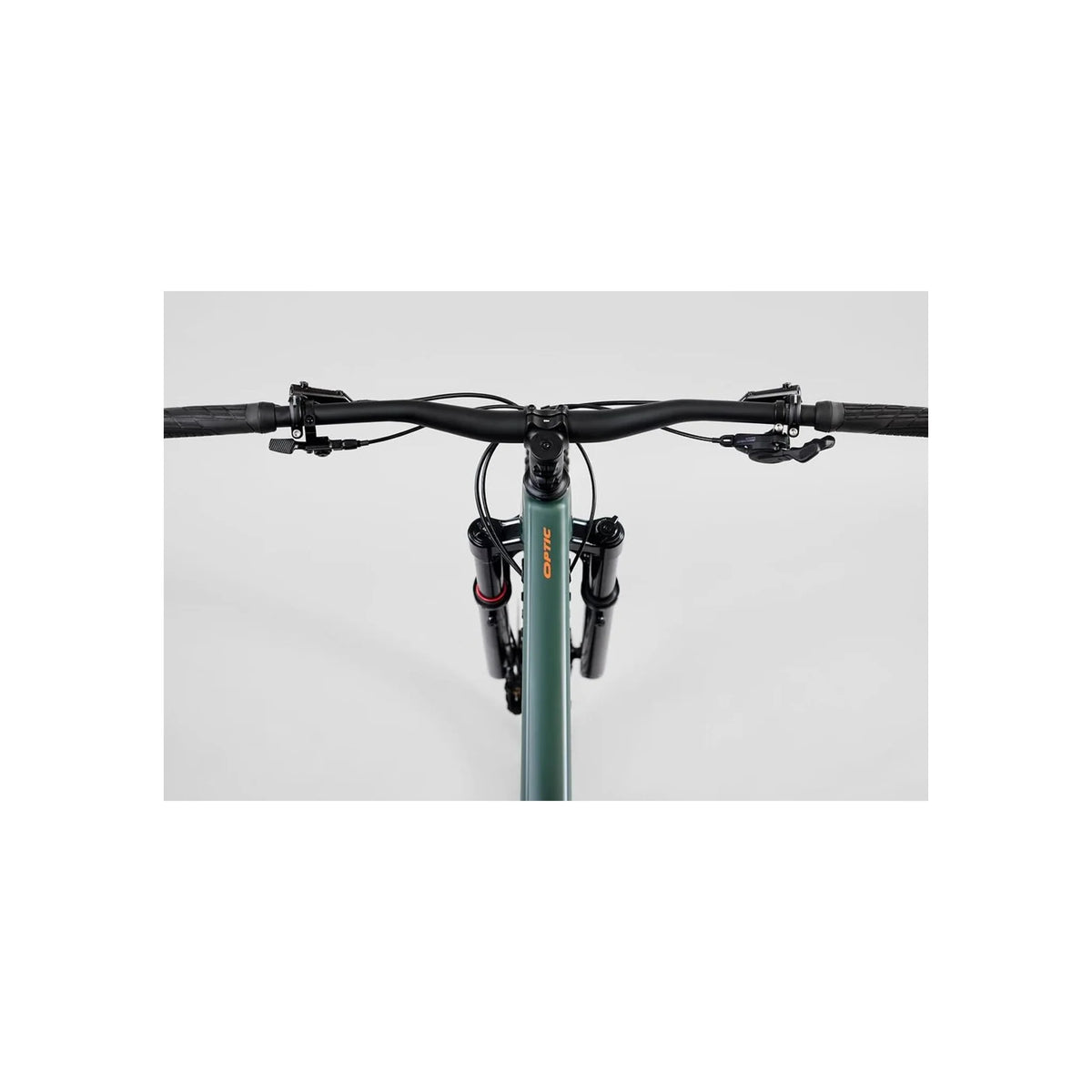

Components

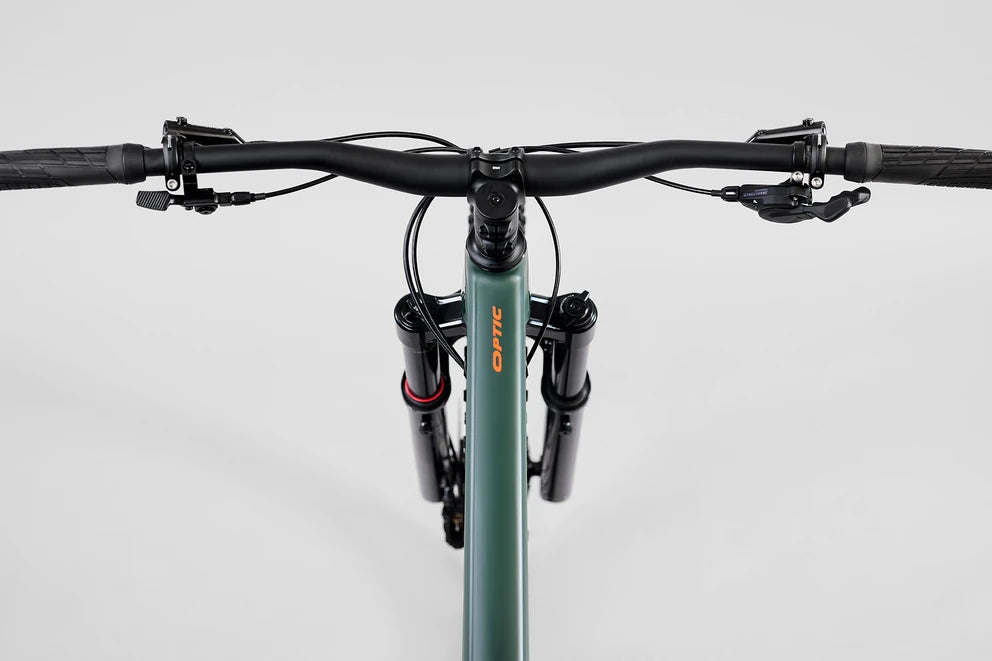

• Handlebar: 6061 alloy, 800 mm width, 25 mm rise
• Stem: Norco alloy, 40 mm length, 35 mm clamp
• Seatpost: TranzX YS105, 34.9 mm
  • 150 mm drop (S1)
  • 170 mm drop (S2)
  • 200 mm drop (S3, S4)
  • 230 mm drop (S5)
• Headset: FSA No.57 ZS, sealed bearing, tapered (ZS44/28.6 | ZS56/40)
• Saddle: SDG Bel Air V3
• Grips: Ergon GE1
  • Slim (S1, S2)
  • Standard (S3, S4, S5)
• Seatpost Clamp: Norco Alloy Nutted Clamp, 38.5 mm ID
• On-Bike Tool: OneUp EDC Lite

Wheels

• Front Wheel:
  • Hub: Shimano HB-TC500, 15×110 mm Boost, 32H, Center Lock
  • Rim: WTB ST i30, 29 ", 32H, 30 mm ID
  • Tire: Maxxis Minion DHF, 3C MaxxTerra EXO, 29 × 2.5", folding
• Rear Wheel:
  • Hub: Shimano FH-MT500, 12×148 mm Boost, Micro Spline, 32H, Center Lock
  • Rim: WTB ST i30, 29 ", 32H, 30 mm ID
  • Tire: Maxxis Dissector, 3C MaxxTerra EXO, 29 × 2.4", folding
  • Skewer: 148 mm × 12 mm TA, L174, TL13, M12×1.0
• Spokes/Nipples: Stainless steel
• Valves: Stan’s Tubeless Valves
• Sealant: Stan’s Sealant

Weight

• Complete Bike: 17.2 kg (37.9 lbs)
• Measured Size: S3
