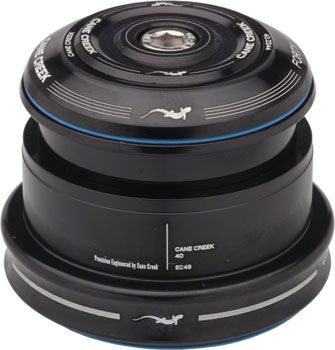

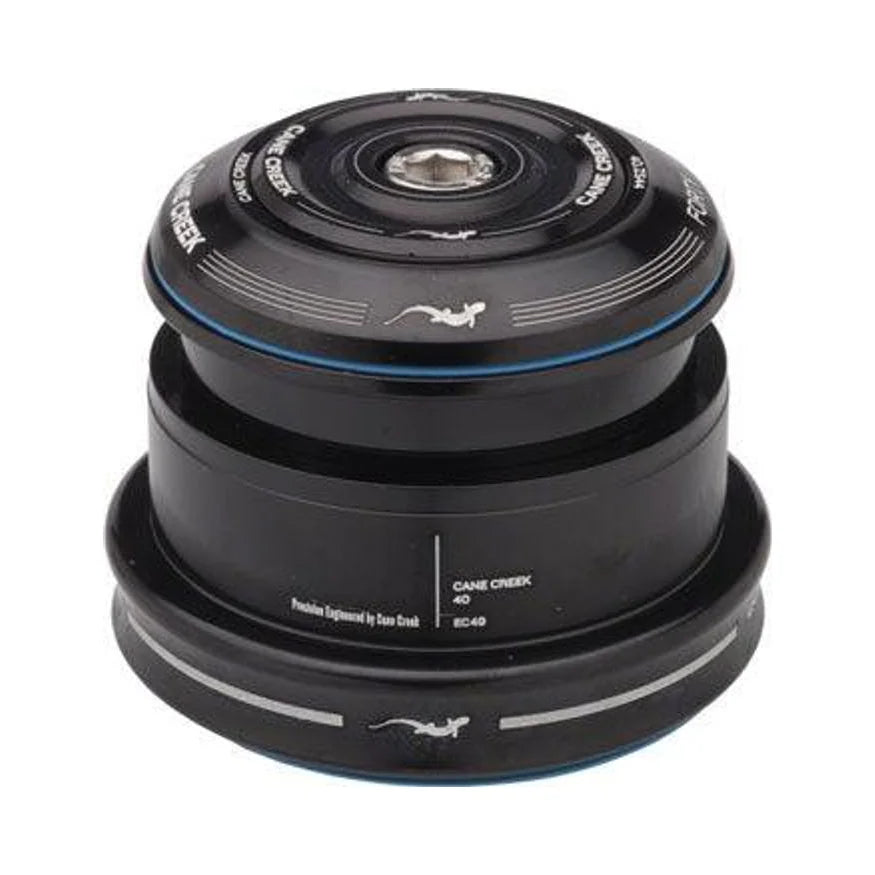

Cane Creek 40 ZS44/28.6 / EC49/40 Tapered Headset, Tapered Steerer Black
Cane Creek 40 ZS44/28.6 / EC49/40 Tapered Headset, Tapered Steerer Black
Low stock: 4 left
Couldn't load pickup availability
SKU:BAA0445K
The 40-Series is the workhorse of Cane Creek's headset line-up. Representing the balance of performance, durability and value, the series incorporates all the features necessary for a robust, lightweight, long-lasting headset. Zero stack uppers press into head tube with very little stack height. Lowers are either zero stack or external cup.
- Sealed black oxide bearings
- Carbon-friendy compression ring captured in top cover, keeping shims in place
- Steel crown race with integrated seals
- Interlok spacer compatible
- Compatible with tapered 1-1/8" to 1-1/2" steerer tubes, or straight 1-1/8" steerers with a conversion crown race (sold separately)
- Color: Black
- Crown Race: 40
- S.H.I.S. Stem Clamp Diameter: 28.6 Threadless
- Bearing Type: Cartridge
- S.H.I.S Lower: EC49
- S.H.I.S Upper: ZS44
- Defined Color: Black
- Lower Stack Height: 12
- Weight: 155
- Upper Stack Height: 8
What Size?
Finding the right size bicycle is important for a comfortable and enjoyable ride. There are various frame sizes available that are designed to fit riders of different heights, as well as different wheel sizes and frame styles. To choose the best fit, you can look at the sizing and geometry chart provided by the manufacturer. This will show you the seat tube length and top tube length, which can affect the stand-over clearance and comfort of the bike. You want to aim for a comfortable position that isn't too cramped or stretched out. If you have any questions about finding the right size bike for you, our team of experts is always happy to help.
| Child height (Inch) |
Child height (cm) |
Wheel size |
|
2’9”-3’1″ |
85-90 cm cm | 10/12 inches |
| 3’1”-3’3″ | 90-100 cm | 12/14 inches |
| 3’3”-3’7″ | 100-110 cm | 14/16 inches |
| 3'7"-3'8" | 110-115 cm | 16/18 inches |
| 3’8”-4’0″ | 115-120 cm | 18/20 inches |
| 4'0”-4’5″ | 120-135 cm | 20/24 inches |
| 4'5"-4'9" | 135-145 cm | 24/26 inches |
| 5 inches+ | 145 cm + | 26 inches |
|
Adult height (Inch) |
Frame Size (Inches) | Frame size |
| 4'10-5'2" | 13 - 14" | X-Small |
| 5'2-5'6" | 15 - 16" | Small |
| 5'6-5'10" | 17 - 18" | Medium |
| 5'10-6'1" | 19 - 20" | Large |
| 6'1-6'4" | 21 - 22" | X-Large |
| 6'4-6'6" | 22 - 24" | XX-Large |
|
Adult height (Inch) |
Frame Size (Inches) | Frame size |
| 4'10-5'2" | 47-48 cm | XX-Small |
| 5'2-5'6" | 49 - 50 cm | X-Small |
| 5'3-5'6" | 51 - 53 cm | Small |
| 5'6-5'9" | 54 - 55 cm | Medium |
| 5'9-6'0" | 56 - 58 cm | Large |
| 6'0-6'3" | 58 - 60 cm | X-Large |
| 6'3-6'6" | 61 - 63 cm | XX-Large |
