DVO Diamond D1 Suspension Fork - 29", 160mm Travel, 51mm Offset, 15 x 110mm, Black
DVO Diamond D1 Suspension Fork - 29", 160mm Travel, 51mm Offset, 15 x 110mm, Black
Low stock: 1 left
Couldn't load pickup availability
SKU:1629100-X2

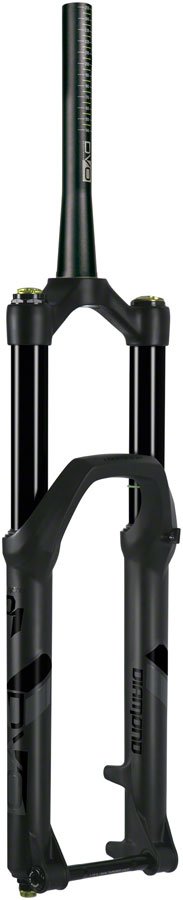

The DVO Diamond D1 suspension fork is a top-of-the-line option for enduro and trail biking. With 29" wheels, a 160mm travel, and 51mm offset, it's built to handle the toughest terrain. The fork is highly adjustable, featuring quick, dynamic tunability of the negative air spring and high/low speed compression without the need to remove the fork from the bike. The travel can be adjusted between 130 - 160mm, and Boost options are available for 140 - 160mm (29er) or 150 - 170mm (27.5"). The fork also features 35mm tapered alloy stanchions, a fender that snaps in place with one bolt, and a Top Loader Compression circuit that can be removed and reconfigured without removing the fork from the bike or the wheel from the fork. Additionally, the fork has externally adjustable rebound, high speed and low speed damping, and a compressed, closed damping cartridge bladder for small bump sensitivity. With a black color and a weight of 2150g, this fork is built to take on any challenge.
- Positive Spring: Air
- Wheel Size: 29"
- Brake Type: Post Mount 160
- Crown Race: 40
- External Adjustments: High Speed Compression Damping , Low Speed Compression Damping , Rebound Damping
- Negative Spring: Air
- Stanchion Diameter: 35
- Steerer Type: Tapered
- Offset: 51
- Color: Black
- Steerer Tube Length (mm): 255
- Front Axle: 15mm Thru x 110mm
- S.H.I.S. Stem Clamp Diameter: 28.6
- Travel (mm): 160
- Axle to Crown Length: 572
- Lockout Switch: Crown
- Defined Color: Black
- Weight: 2150
What Size?
Finding the right size bicycle is important for a comfortable and enjoyable ride. There are various frame sizes available that are designed to fit riders of different heights, as well as different wheel sizes and frame styles. To choose the best fit, you can look at the sizing and geometry chart provided by the manufacturer. This will show you the seat tube length and top tube length, which can affect the stand-over clearance and comfort of the bike. You want to aim for a comfortable position that isn't too cramped or stretched out. If you have any questions about finding the right size bike for you, our team of experts is always happy to help.
| Child height (Inch) |
Child height (cm) |
Wheel size |
|
2’9”-3’1″ |
85-90 cm cm | 10/12 inches |
| 3’1”-3’3″ | 90-100 cm | 12/14 inches |
| 3’3”-3’7″ | 100-110 cm | 14/16 inches |
| 3'7"-3'8" | 110-115 cm | 16/18 inches |
| 3’8”-4’0″ | 115-120 cm | 18/20 inches |
| 4'0”-4’5″ | 120-135 cm | 20/24 inches |
| 4'5"-4'9" | 135-145 cm | 24/26 inches |
| 5 inches+ | 145 cm + | 26 inches |
|
Adult height (Inch) |
Frame Size (Inches) | Frame size |
| 4'10-5'2" | 13 - 14" | X-Small |
| 5'2-5'6" | 15 - 16" | Small |
| 5'6-5'10" | 17 - 18" | Medium |
| 5'10-6'1" | 19 - 20" | Large |
| 6'1-6'4" | 21 - 22" | X-Large |
| 6'4-6'6" | 22 - 24" | XX-Large |
|
Adult height (Inch) |
Frame Size (Inches) | Frame size |
| 4'10-5'2" | 47-48 cm | XX-Small |
| 5'2-5'6" | 49 - 50 cm | X-Small |
| 5'3-5'6" | 51 - 53 cm | Small |
| 5'6-5'9" | 54 - 55 cm | Medium |
| 5'9-6'0" | 56 - 58 cm | Large |
| 6'0-6'3" | 58 - 60 cm | X-Large |
| 6'3-6'6" | 61 - 63 cm | XX-Large |
