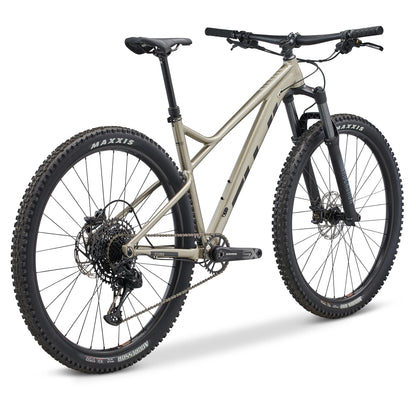

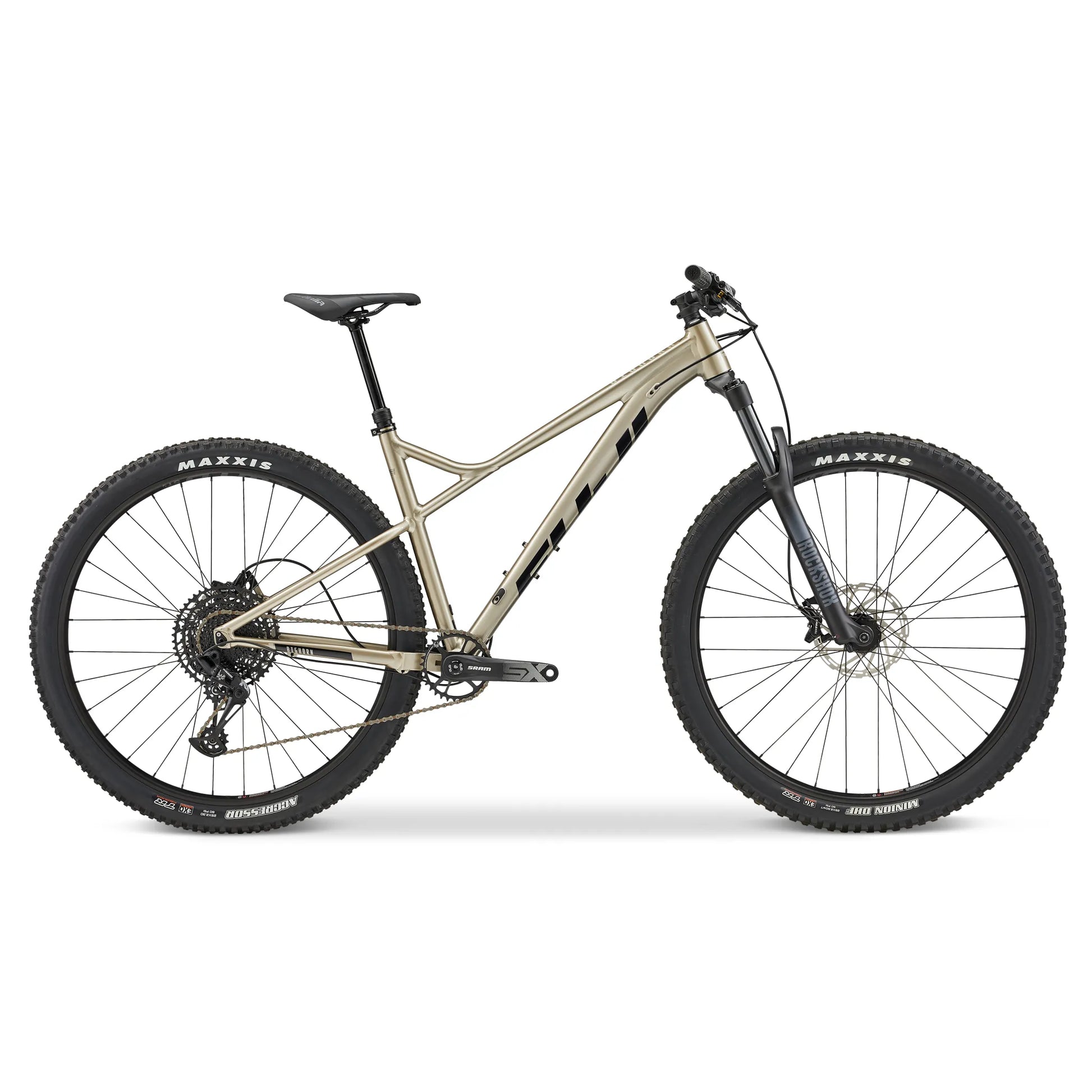

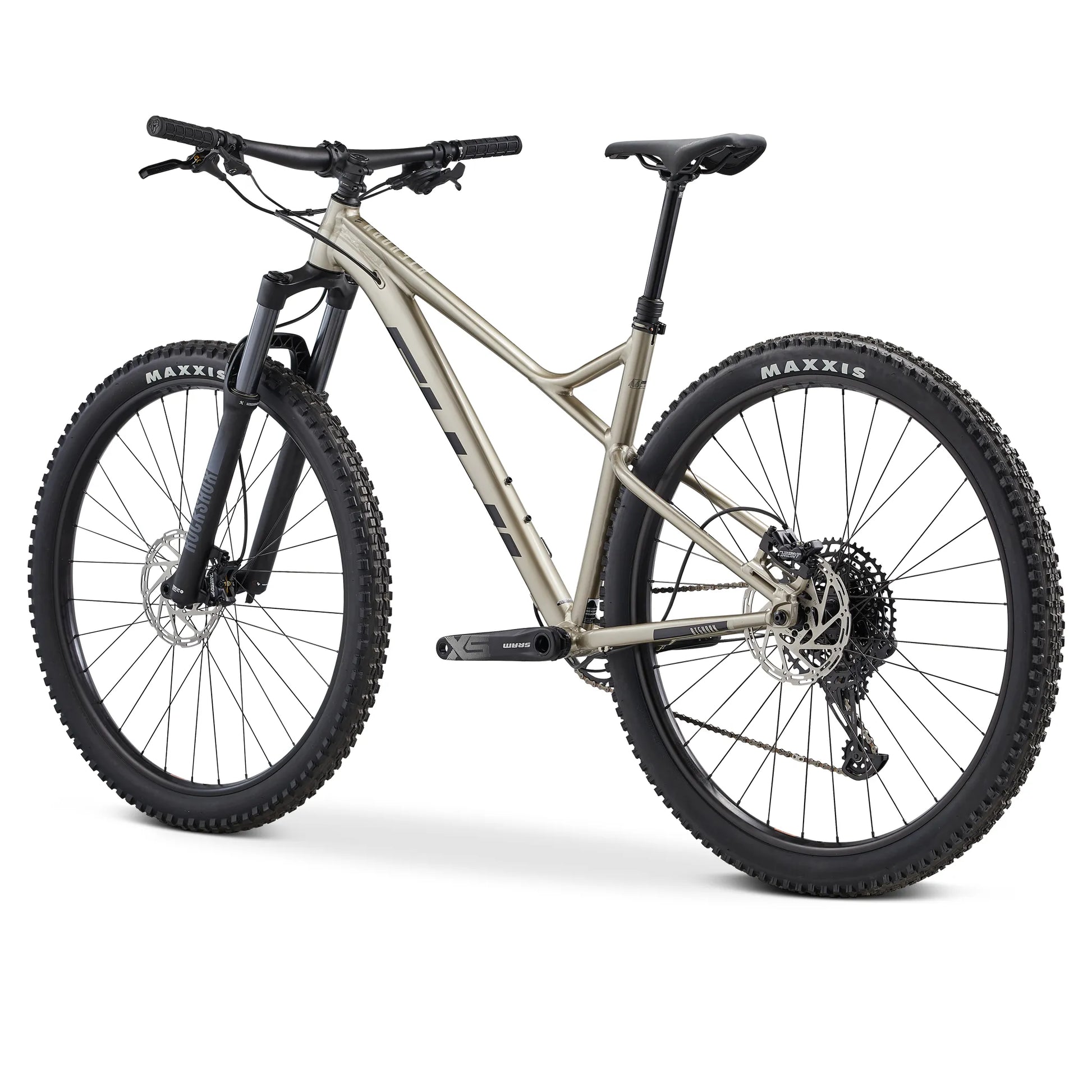

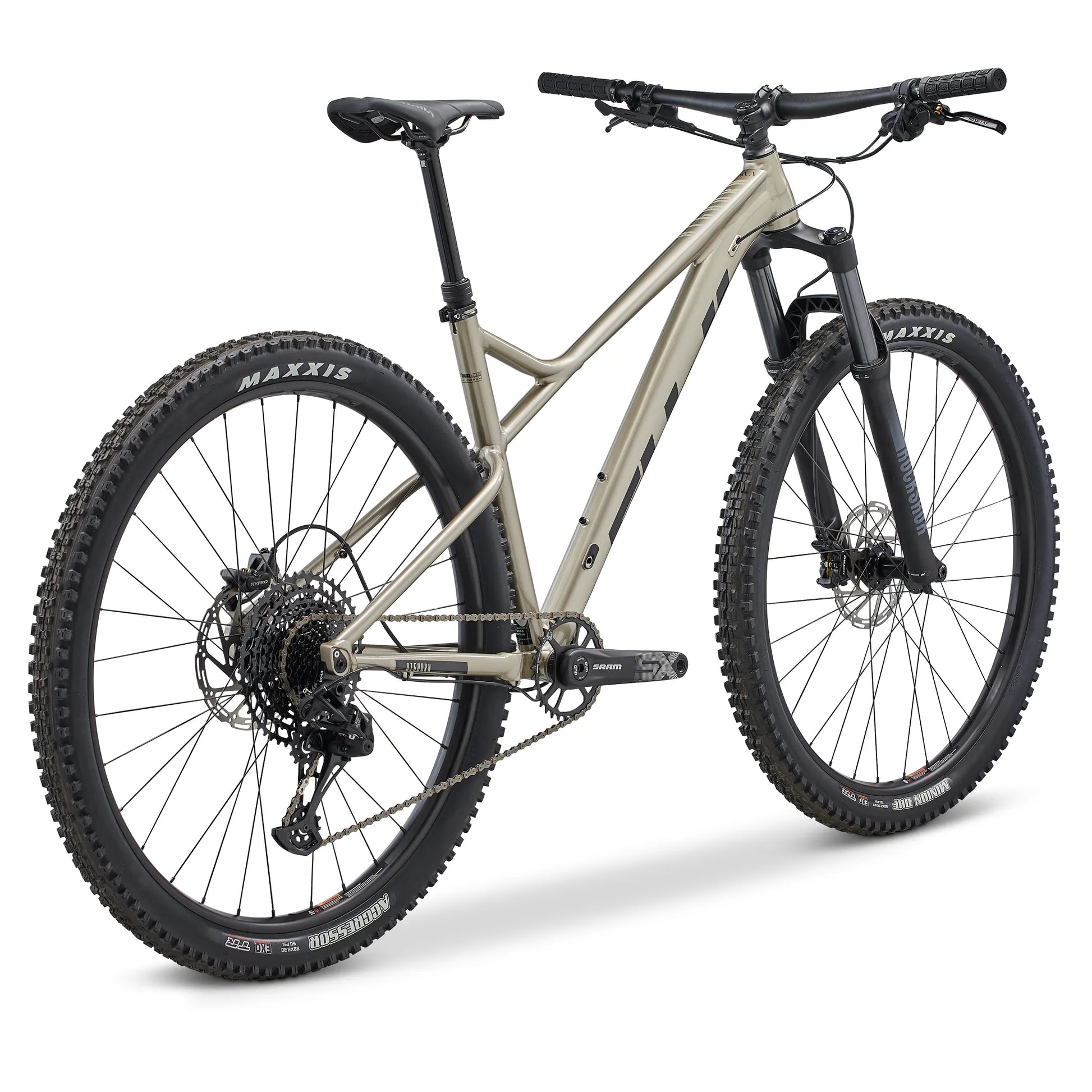

Fuji Bighorn 29 1.3 29er Hardtail Mountain Bike
Fuji Bighorn 29 1.3 29er Hardtail Mountain Bike
3 in stock
Couldn't load pickup availability
SKU:19222080915
Redesigned with 29" wheels, the Bighorn rolls smoothly over roots, rocks, and ruts, while 130 mm of front suspension and hydraulic disc brakes give you the control and confidence to tackle any terrain. From backcountry adventures to everyday trail rides — the Bighorn delivers.
Key Features
-
Lightweight A6-SL Alloy Frame: Super-butted aluminum construction with Boost 148×12 mm spacing for stiffness and precise handling.
-
RockShox 35 Silver TK Fork: 130 mm of plush, air-sprung travel for technical climbs and confident descents.
-
29" Wheels for All-Terrain Speed: Roll faster and smoother through obstacles with enhanced stability.
-
SRAM SX/NX Eagle 12-Speed Drivetrain: Wide 11–50 T range for climbing power and smooth shifting.
-
Tubeless-Ready Wheelset: WTB ST i30 rims paired with Maxxis Minion DHF and Aggressor tires for grip and reliability.
-
Hydraulic Disc Brakes: Tektro HD-M745 brakes with 180 mm rotors ensure consistent stopping power.
-
Dropper Post Equipped: TranzX dropper seatpost with remote lever provides on-the-fly saddle adjustment.
Full Specifications
Frameset
Frame: Fuji A6-SL Super-Butted Alloy, Smooth Welds, Boost 148×12 mm
Fork: RockShox 35 Silver TK 29 Solo Air, Tapered Alloy Steerer, Boost 110×15 mm, 130 mm Travel
Drivetrain
Crankset: SRAM SX Eagle, 32 T
Bottom Bracket: SRAM DUB, Threaded
Rear Derailleur: SRAM NX Eagle, 12-Speed
Shifter: SRAM SX Eagle, 1×12-Speed
Cassette: SRAM PG-1210, 11–50 T, 12-Speed
Chain: SRAM SX Eagle
Brakes
Front & Rear: Tektro HD-M745 Hydraulic Disc, 180 mm Rotors
Levers: Tektro HD-M745
Components
Headset: FSA Sealed Bearings, 1⅛"–1.5" Tapered

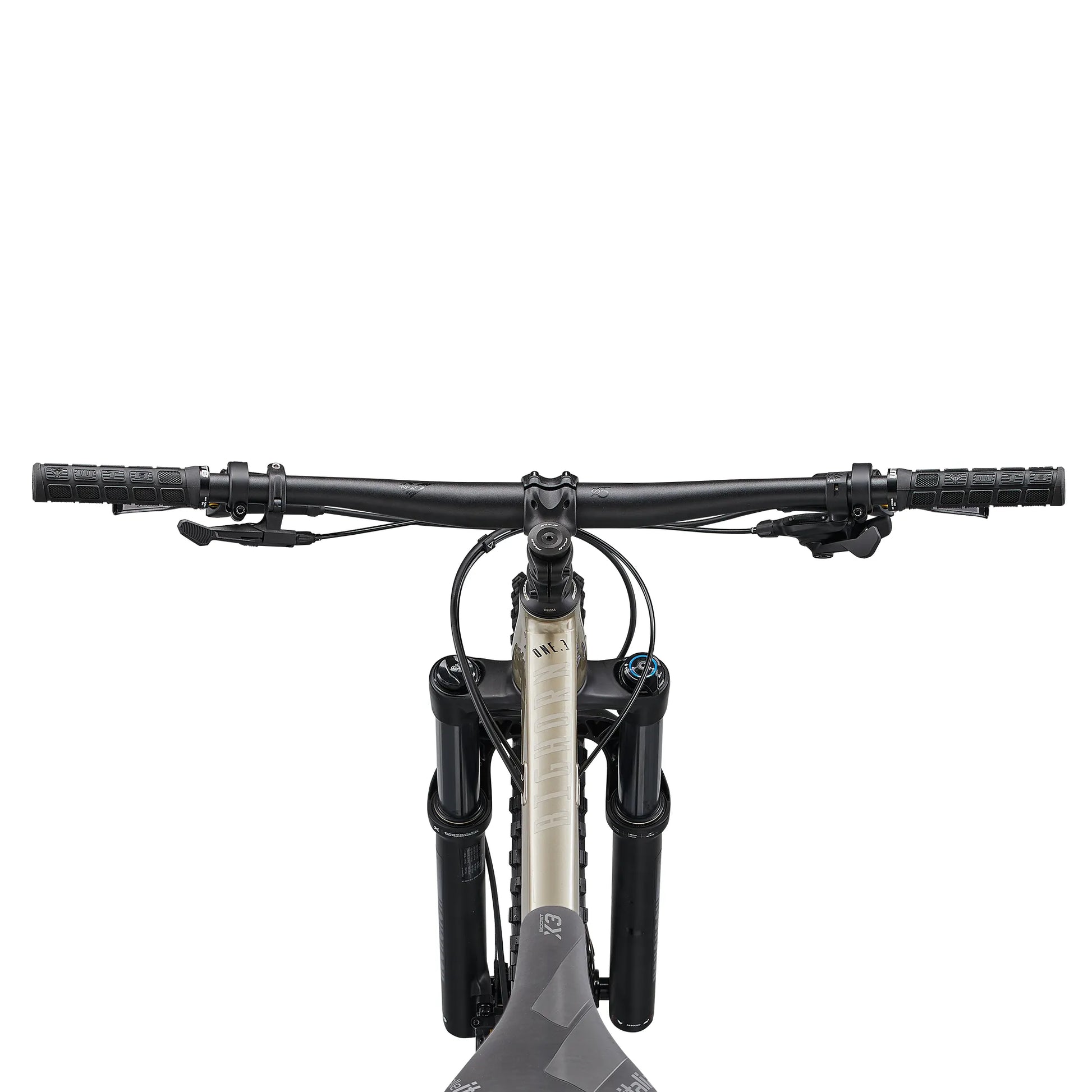

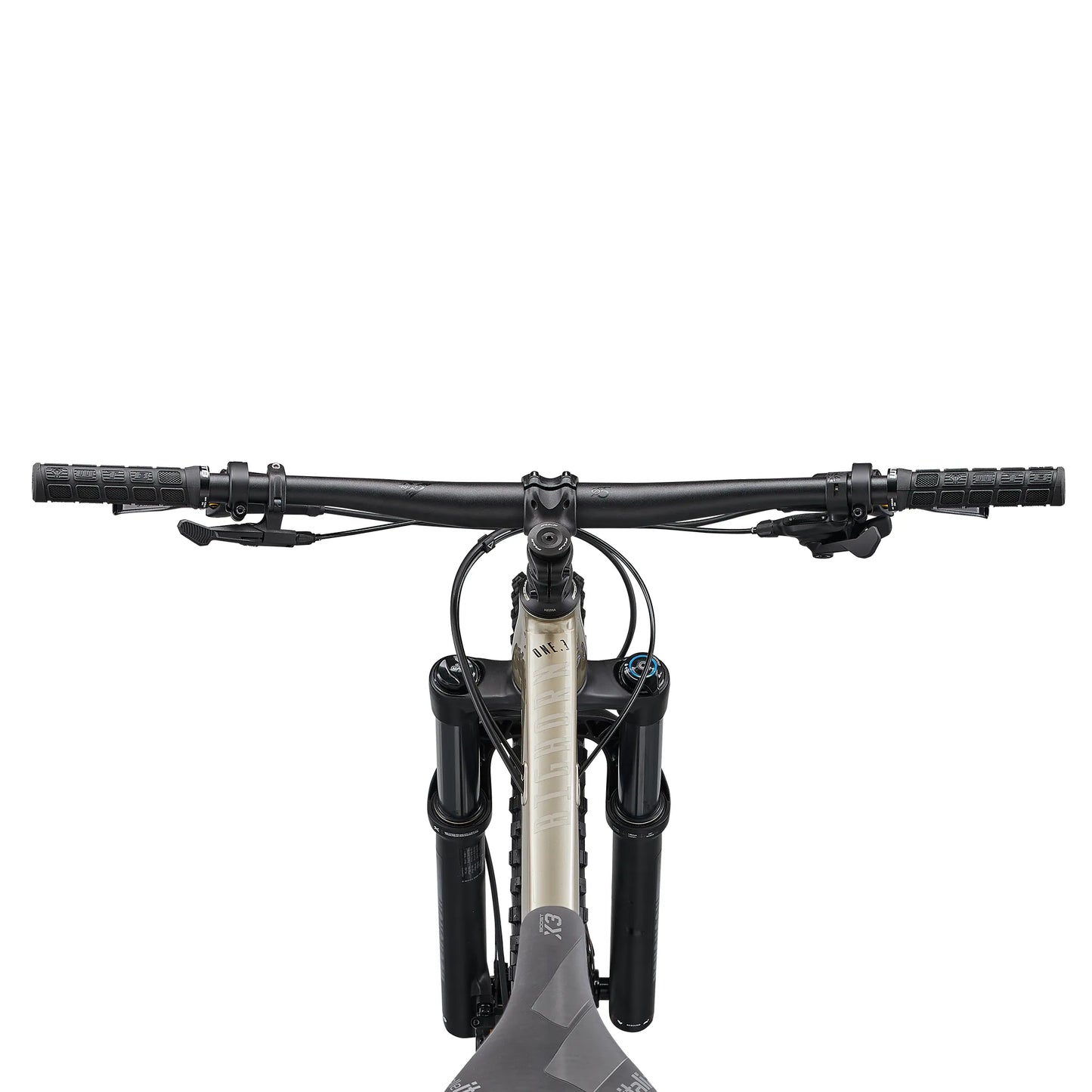

Handlebar: Race Face Ride Alloy Riser Bar, 10 mm Rise, 760 mm Width
Stem: Race Face Ride Alloy, +6° Rise
Grips: WTB Waffel Lock-On
Saddle: Selle Italia X3 Boost
Seatpost: TranzX JD-YSP18P, 30.9 mm — 130 mm Travel (15"), 150 mm Travel (17–21") w/ PLQ Lever
Wheels
Wheelset: WTB ST i30 TCS 2.0, 32 H, Formula DC-711 Front / DC-3248 Rear Hubs, DT Swiss Industry Spokes
Tires: Front – Maxxis Minion DHF 29×2.50" WT, EXO, TR | Rear – Maxxis Aggressor 29×2.30", EXO, TR
Color
Pearl Sand
Sizes
S, M, L, XL, XXL
Geometry & Sizing
| Size | S (15″) | M (17″) | L (19″) | XL (21″) | XXL (23″) |
|---|---|---|---|---|---|
| Seat Tube (C–T) (mm) | 381 | 432 | 465 | 513 | 543 |
| Top Tube (Effective) (mm) | 585 | 610 | 635 | 660 | 680 |
| Head Tube Length (mm) | 90 | 100 | 100 | 110 | 120 |
| Seat Tube Angle (°) | 74 | 74 | 74 | 74 | 74 |
| Head Tube Angle (°) | 67.5 | 67.5 | 67.5 | 67.5 | 67.5 |
| Chainstay Length (mm) | 434 | 434 | 434 | 434 | 434 |
| Wheelbase (mm) | 1125.9 | 1152.1 | 1177.1 | 1203.3 | 1233.5 |
| Bottom Bracket Drop (mm) | 55 | 55 | 55 | 55 | 55 |
| Fork Offset (mm) | 51 | 51 | 51 | 51 | 51 |
| Stack (mm) | 612 | 621.2 | 621.2 | 630.5 | 639.7 |
| Reach (mm) | 409.5 | 431.9 | 456.9 | 479.2 | 496.6 |
| Standover (mm) | 633.4 | 669 | 685.4 | 687.1 | 709.3 |
| Stem (mm) | 50 | 50 | 50 | 50 | 60 |
| Handlebar Width (mm) | 760 | 760 | 760 | 760 | 760 |
| Crank Length (mm) | 170 | 175 | 175 | 175 | 175 |
| Wheel Size (″) | 29 | 29 | 29 | 29 | 29 |
| Seatpost Diameter (mm) | 30.9 | 30.9 | 30.9 | 30.9 | 30.9 |
Recommended Sizing
| Rider Height | Suggested Frame Size |
|---|---|
| 5′2″ – 5′6″ (157 – 168 cm) | Small (15″) |
| 5′6″ – 5′10″ (168 – 178 cm) | Medium (17″) |
| 5′10″ – 6′0″ (178 – 183 cm) | Large (19″) |
| 6′0″ – 6′3″ (183 – 190 cm) | X-Large (21″) |
| 6′3″ – 6′6″ (190 – 198 cm+) | XX-Large (23″) |
