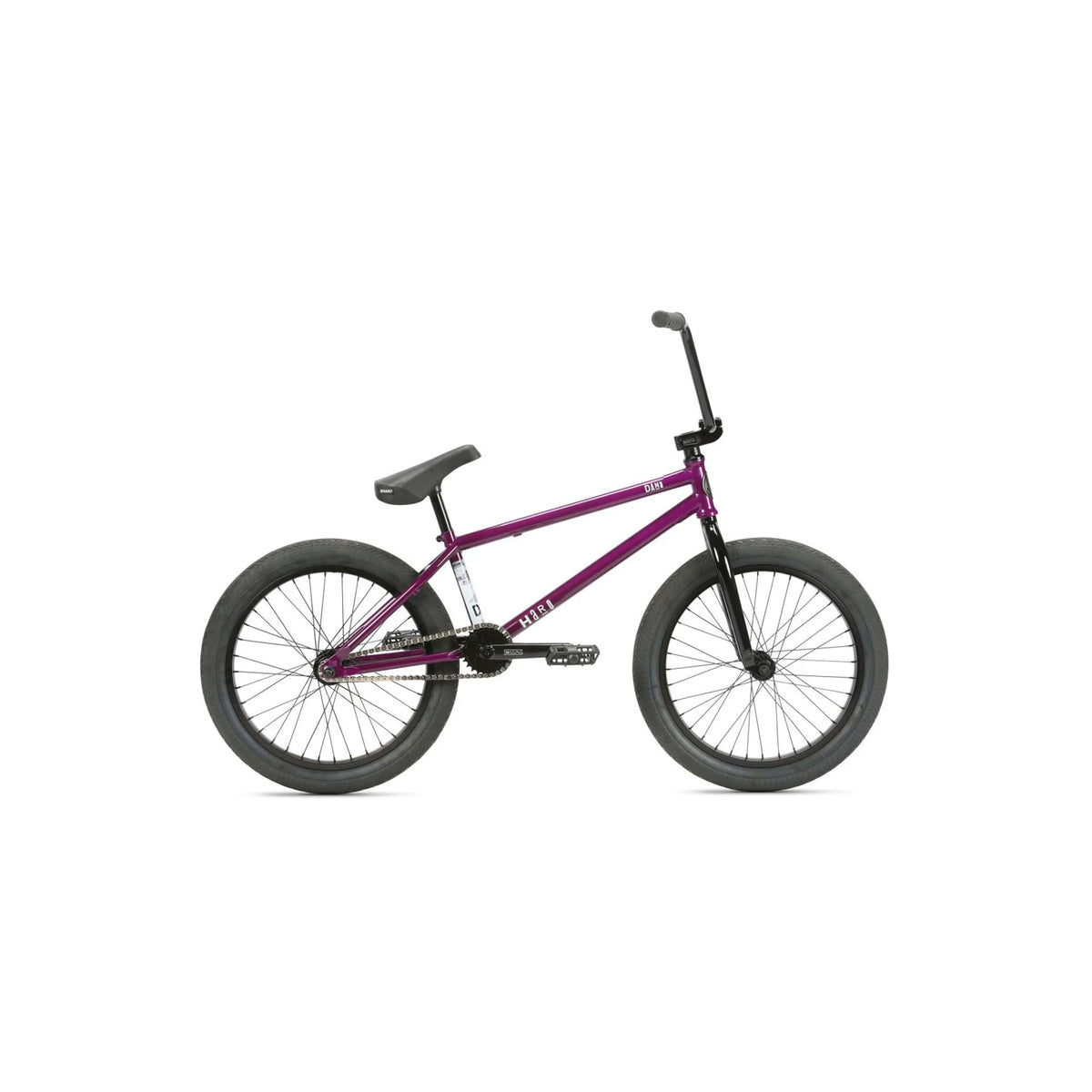

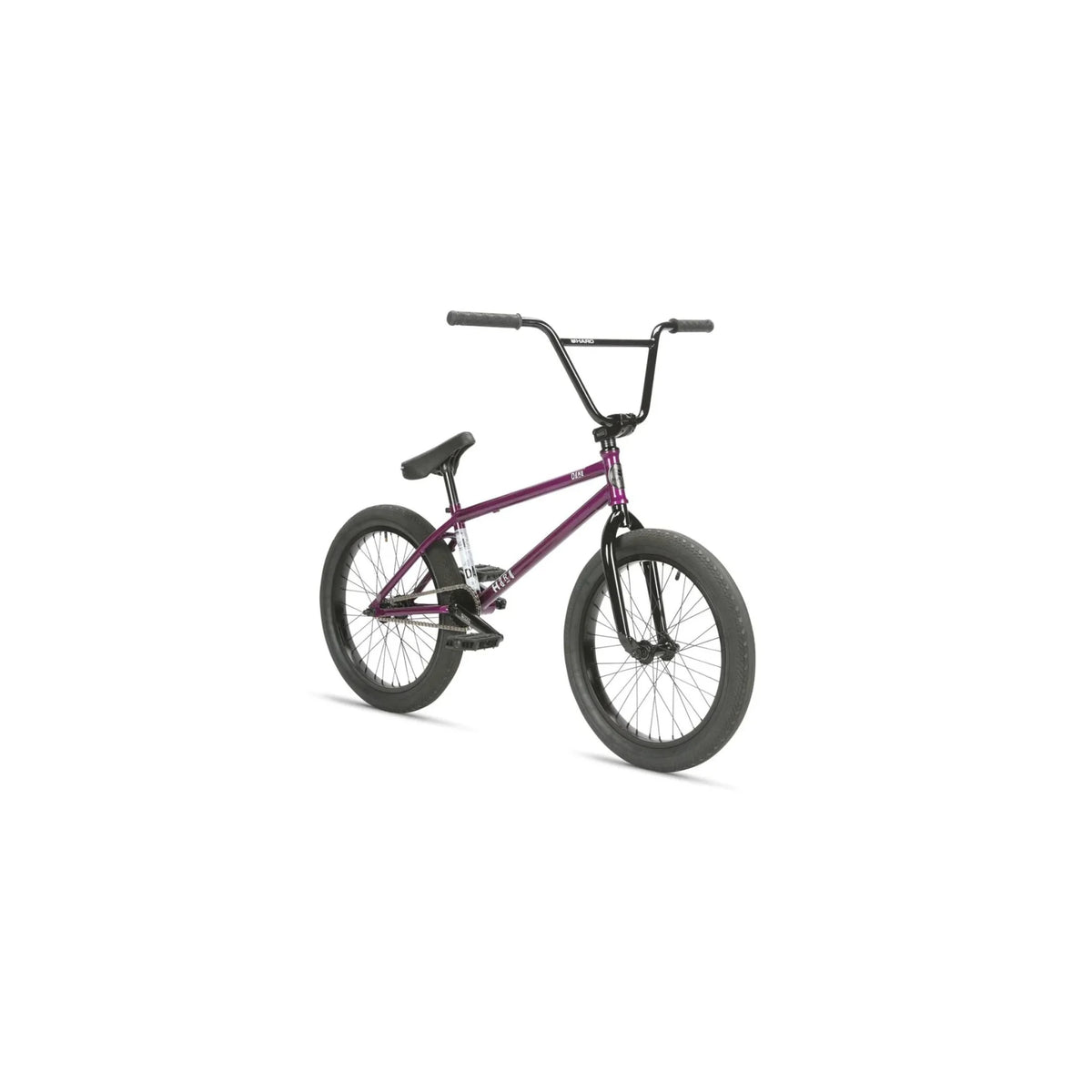

Haro Dana BMX Bicycle

The Haro Dana is a street-ready BMX built for the mid-sized crew, with a full chromoly frame and fork, 9" rise bars, sealed hubs, and pegs included — dialed for grinds, manuals, and putting in work on every ledge and rail.

Specifications

Frame: Full chromoly, 1-1/8" integrated head tube, mid BB shell, removable 990 brake mounts, 14mm axle dropouts, 12.75" chainstay, 75.5° head tube angle, 20.5" top tube

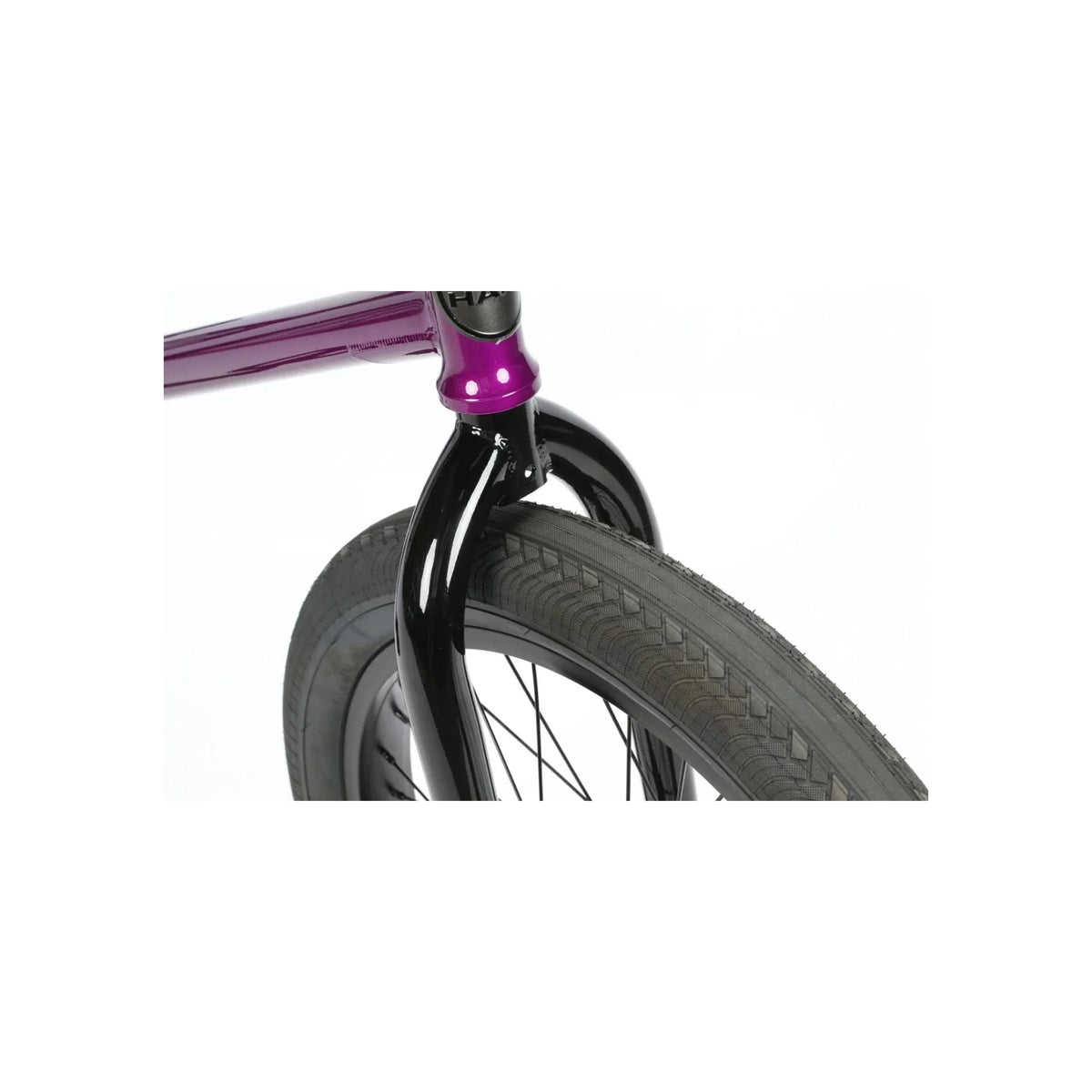

Fork: Full chromoly, 1-1/8" threadless, internally threaded steerer, tapered legs, 25mm offset

Drivetrain

Crankset: Haro Baseline 3-piece chromoly, 8-spline, 165mm, 25T steel chainring

Bottom Bracket: Sealed bearing mid

Driver: 9T cassette

Gearing: 25/9

Chain: Haro Baseline half-link chain

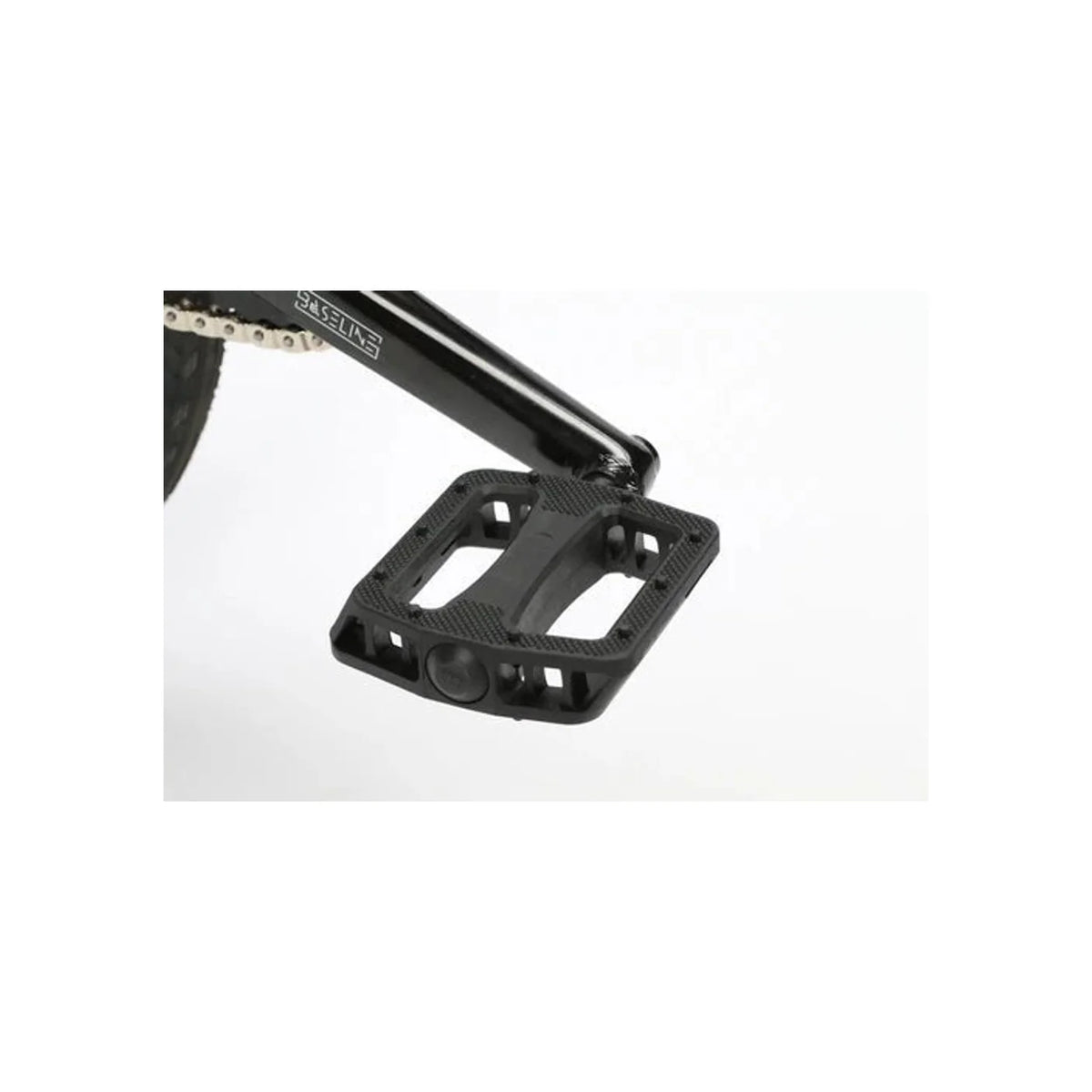

Pedals: Poly platform, chromoly 9/16" axle

Brakes

Brake: Radius alloy 990 U-brake

Brake Lever: Haro Baseline two-finger

Components

Handlebar: Haro chromoly, 9" rise

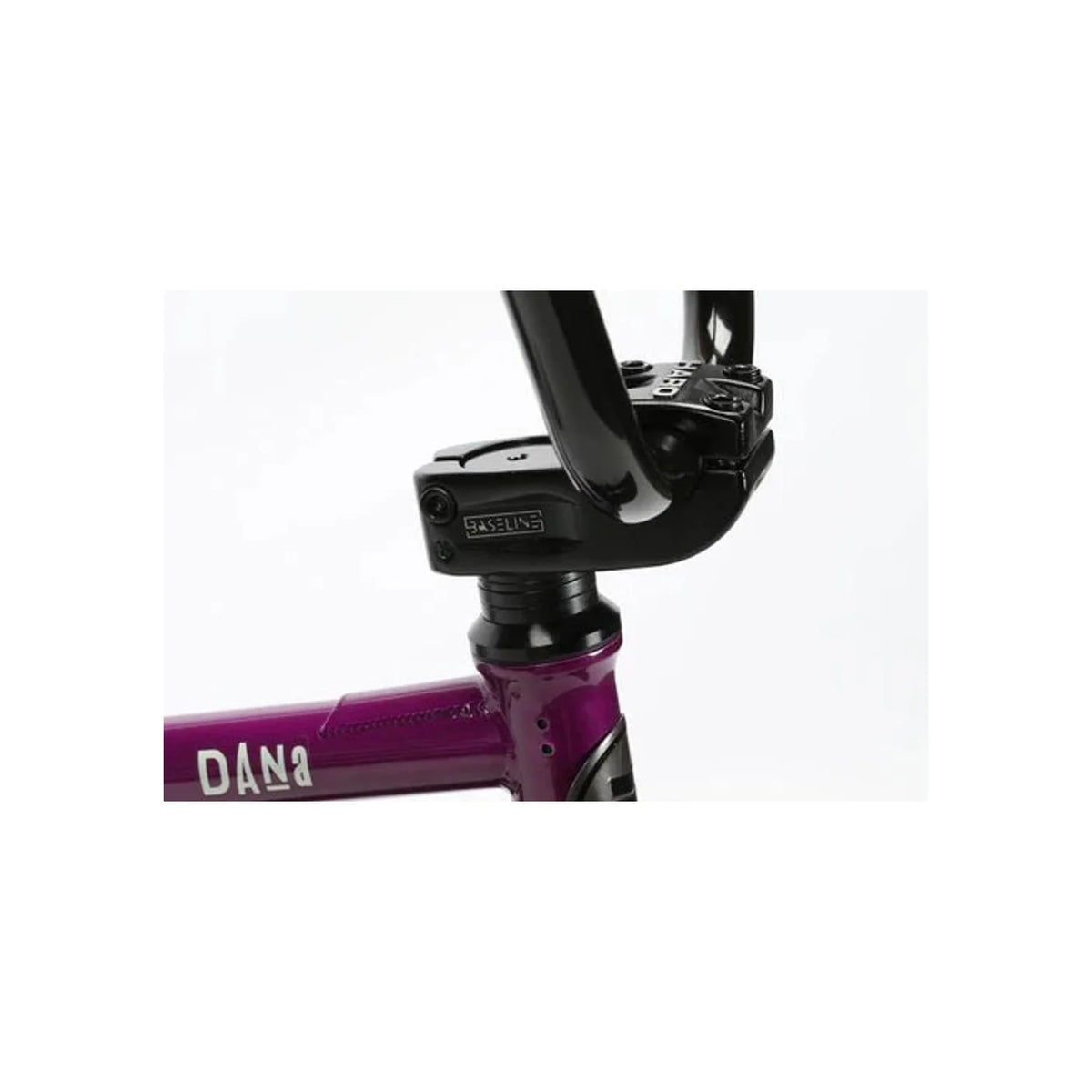

Stem: Haro Baseline, 48mm reach

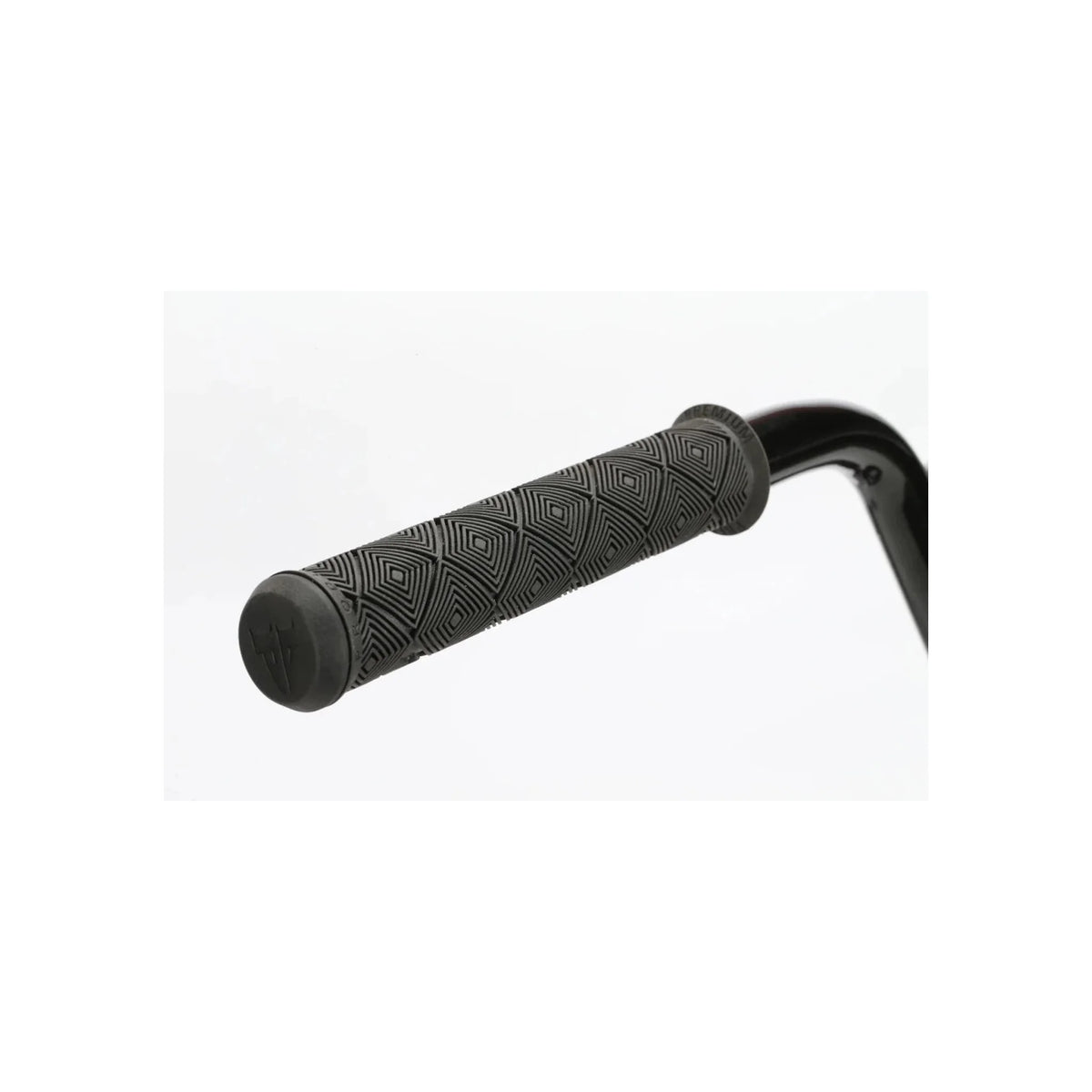

Grips: Haro Baseline, 163mm flangeless

Headset: Integrated 1-1/8" threadless, sealed bearing

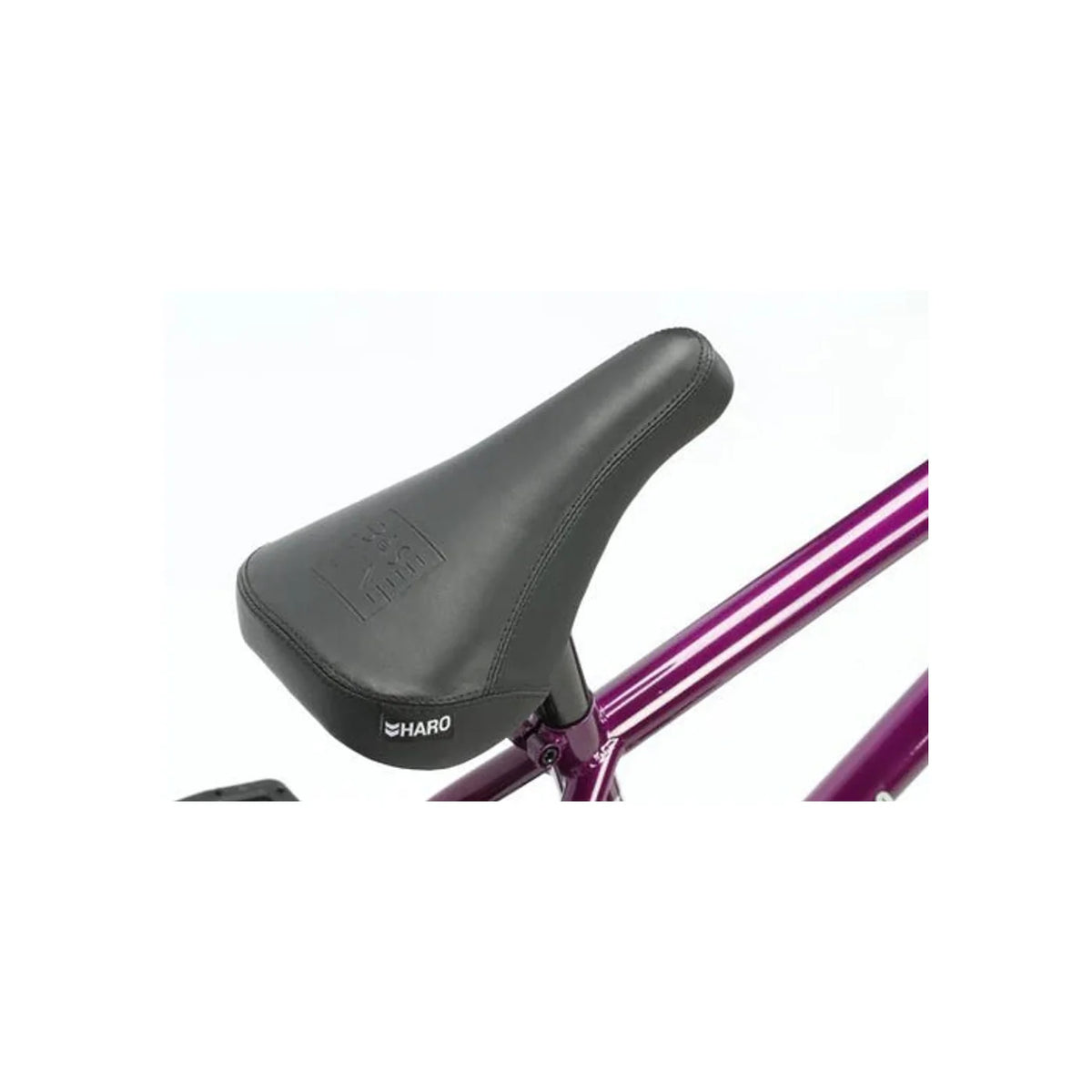

Saddle: Baseline 5° seat/post combo

Seatpost: Aluminum, 25.4mm

Seat Clamp: Integrated

Pegs: 2 included

Wheels

Front Hub: 36H alloy, sealed

Rear Hub: Alloy 9T sealed cassette

Rims: 20" alloy, 36H, double wall

Spokes: 14g

Tires: Haro La Mesa, 20x2.4"
