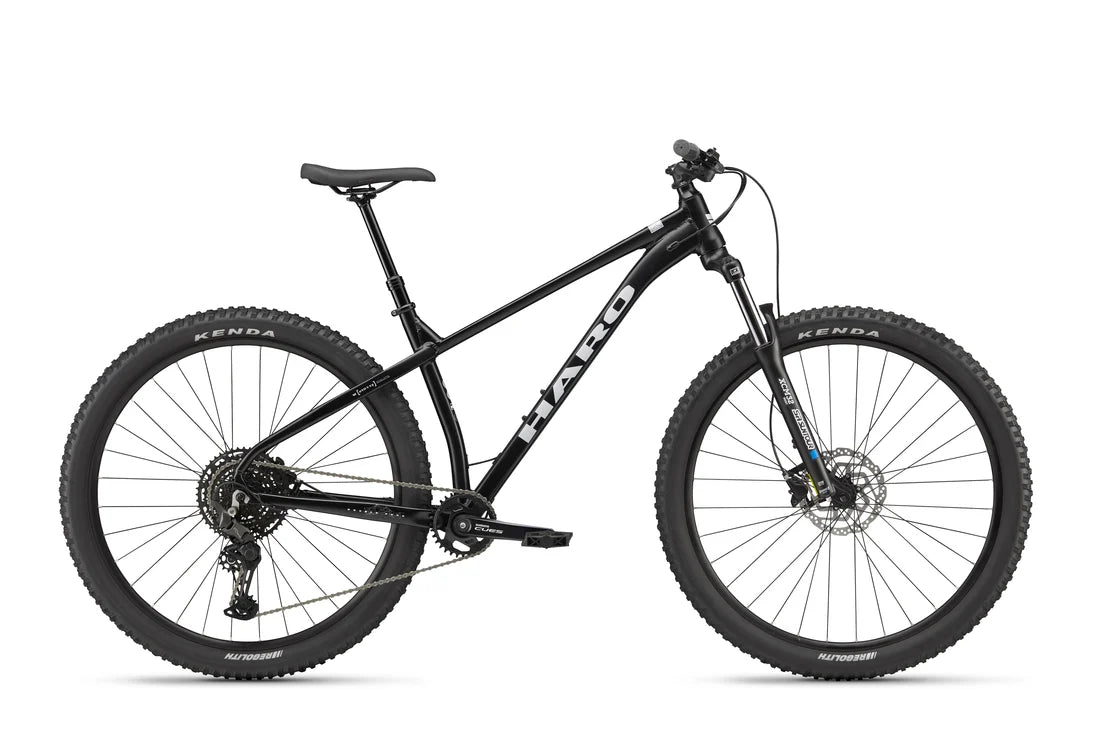

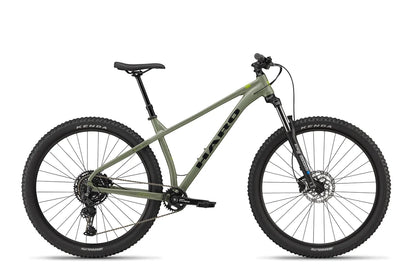

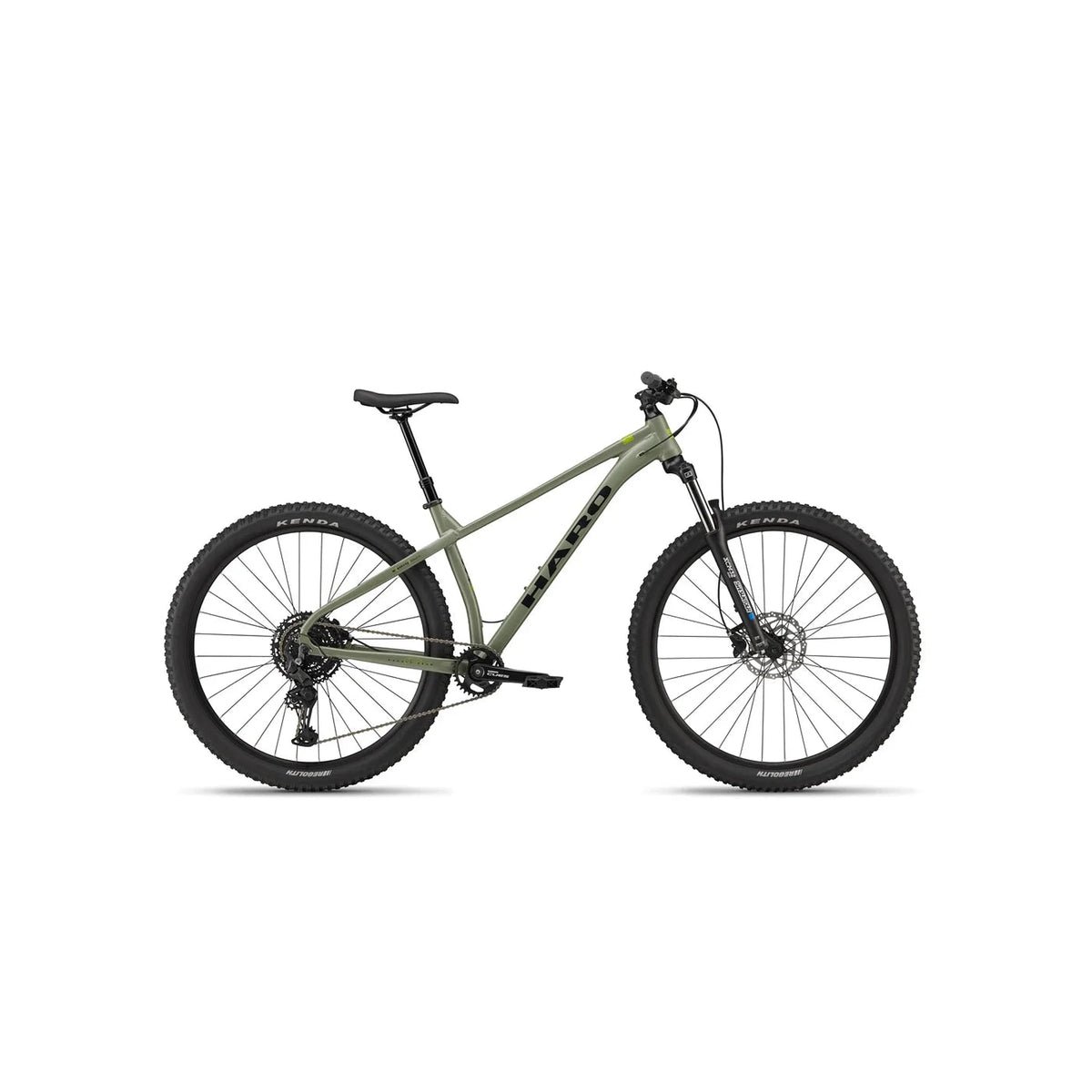

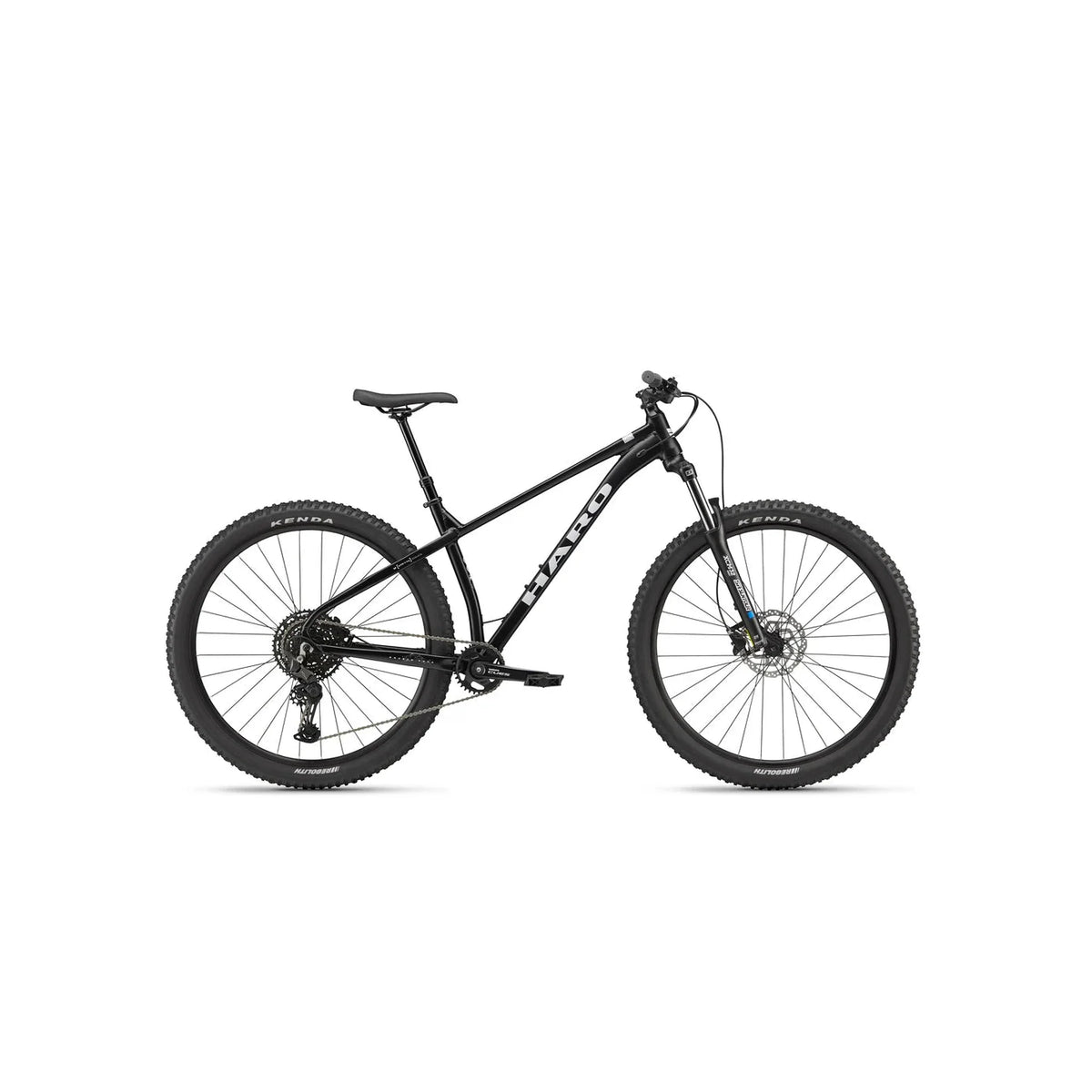

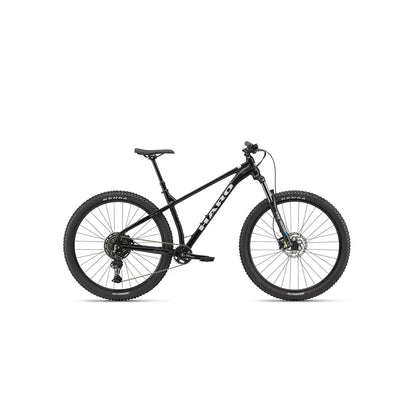

Haro Double Peak Hardtail Mountain Bike

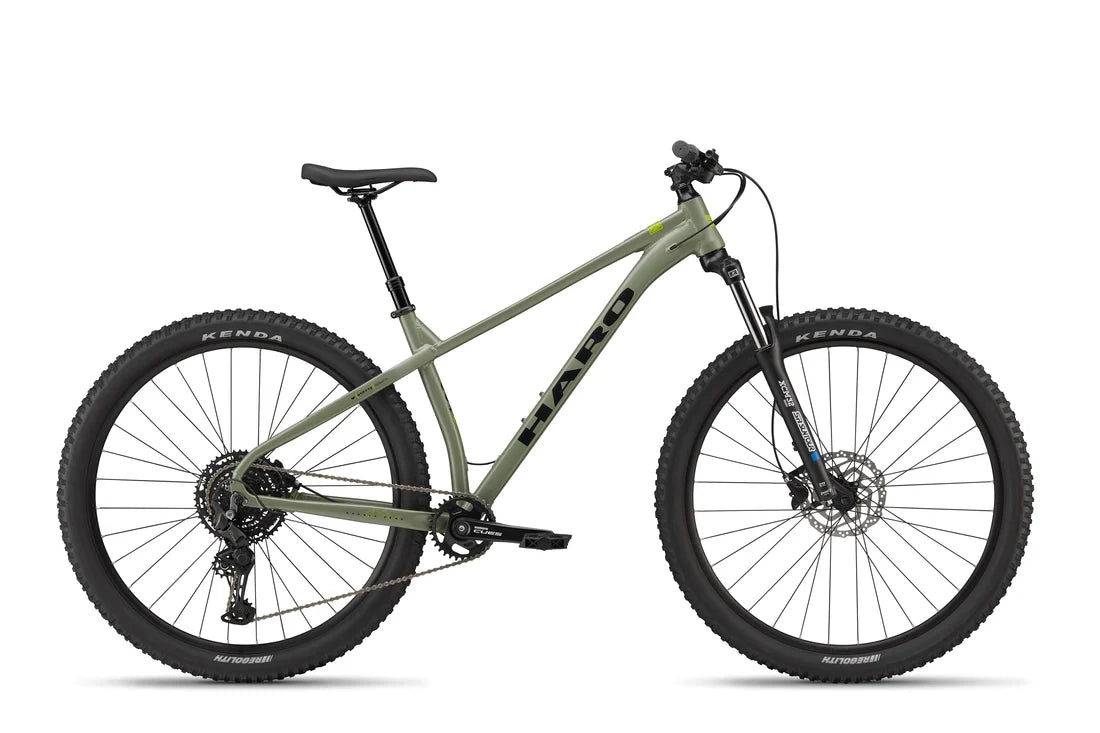

The Haro Double Peak is a modern 29" hardtail built for local trails, weekend adventures, and riders looking for a capable platform they can upgrade over time. A lightweight hydroformed aluminum frame, 100mm SR Suntour suspension fork, Shimano CUES 1x10 drivetrain, hydraulic disc brakes, and a factory-installed dropper post give it everything needed to start exploring the trails.

With Boost spacing, a tapered head tube, internal cable routing, and modern trail components, the Double Peak is a strong platform for future upgrades.

Features

• Hydroformed 6061-T6 aluminum hardtail frame

• SR Suntour XCM32 fork with 100mm travel

• Shimano CUES 1x10-speed drivetrain

• Wide-range 11–48T cassette

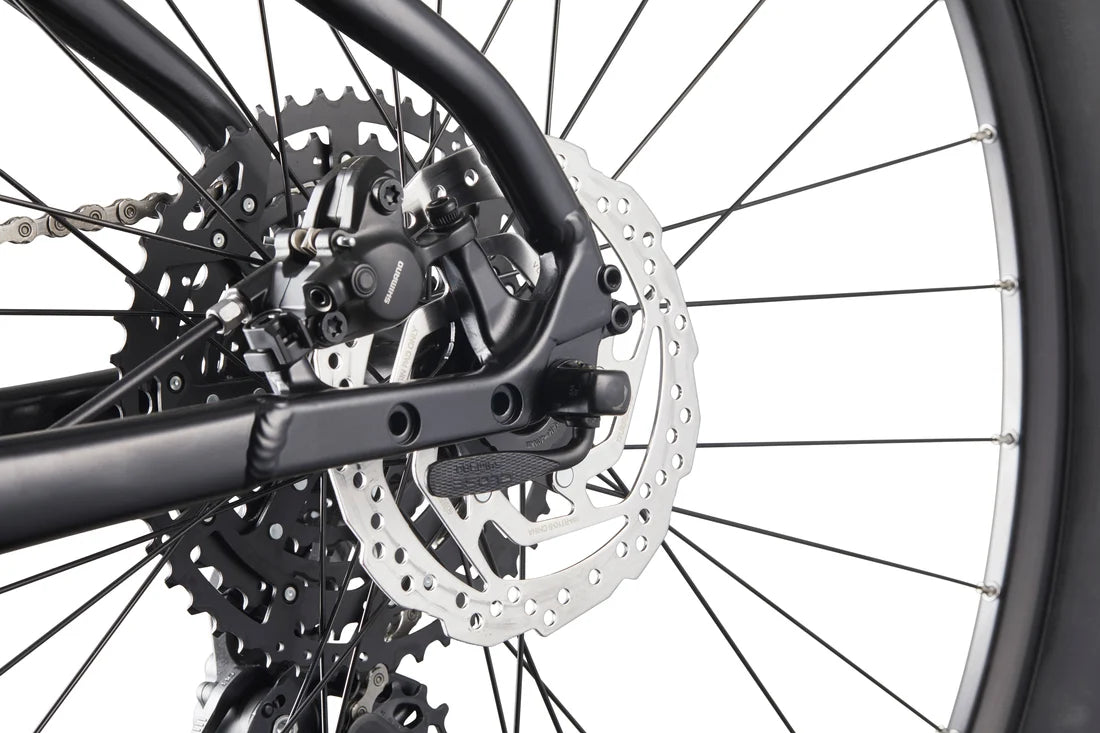

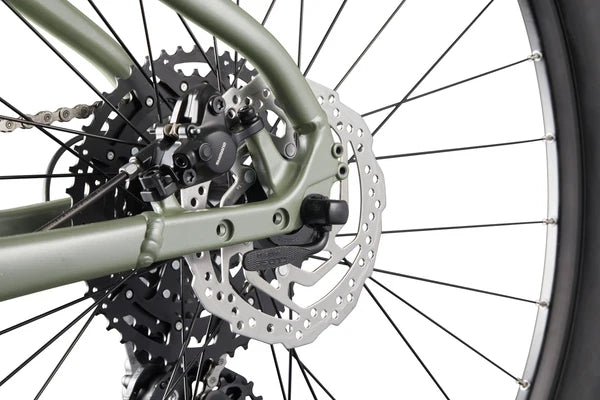

• Shimano MT200 hydraulic disc brakes

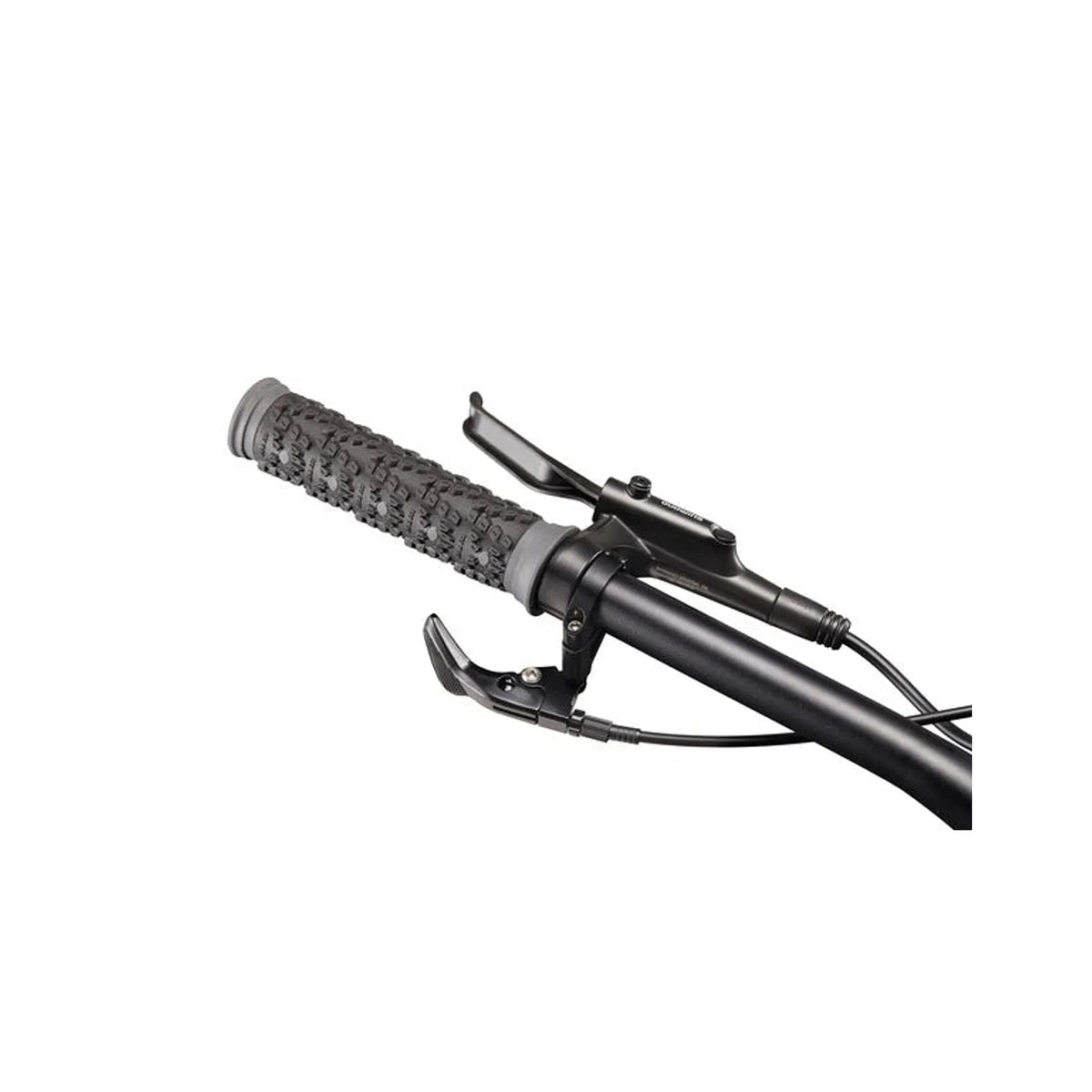

• Limotec A1 dropper post

• 29 x 2.4" Kenda Regolith tires

• Double-wall alloy rims

• 15x110mm Boost front / 148mm Boost rear spacing

• Tapered head tube

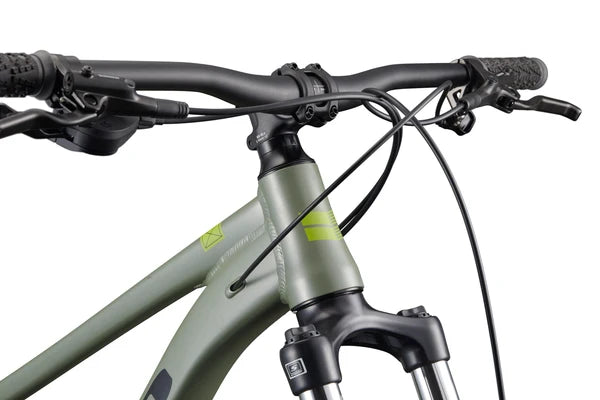

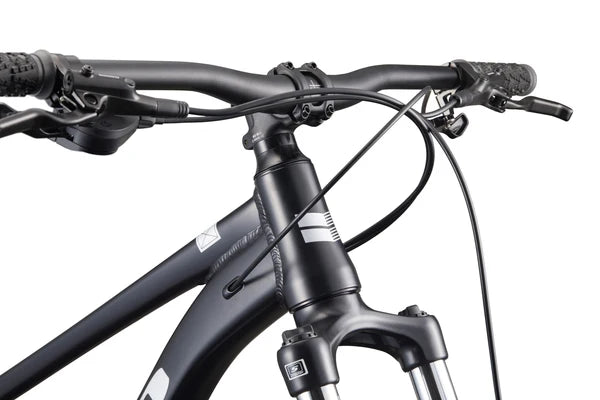

• Internal cable routing

• Wide 780mm handlebar

Frameset

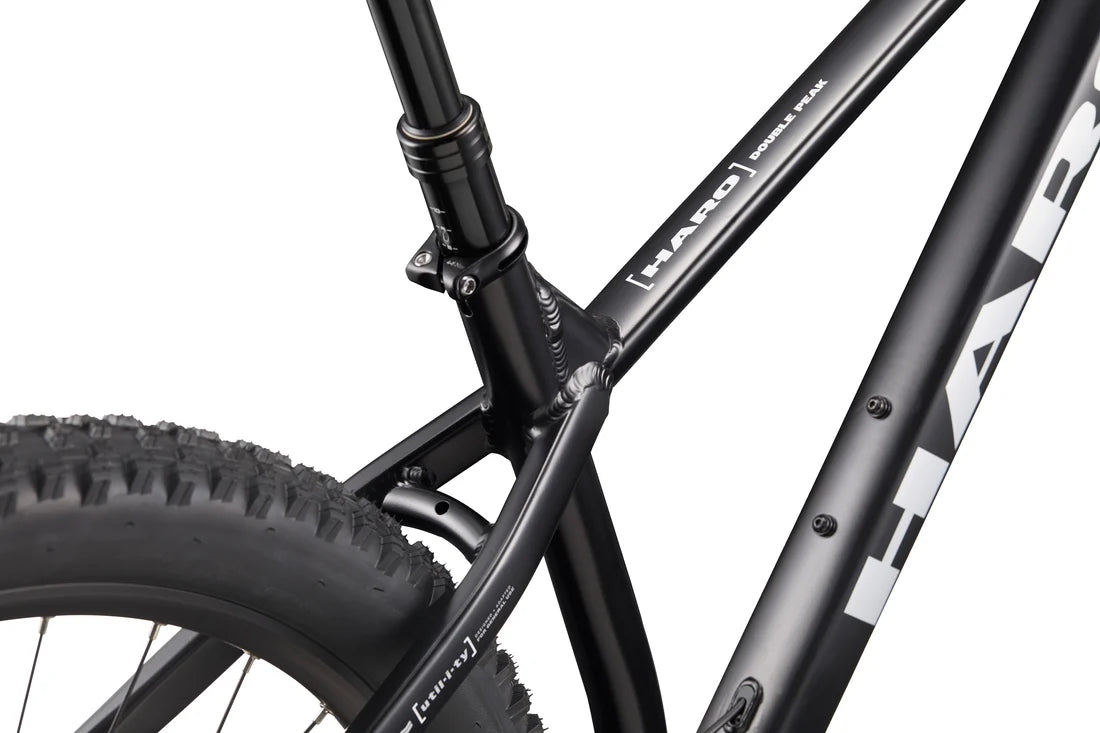

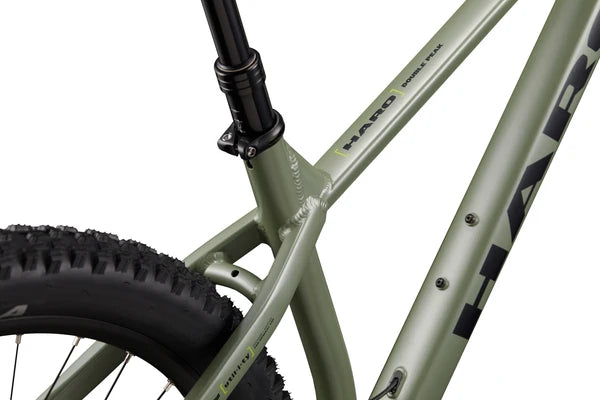

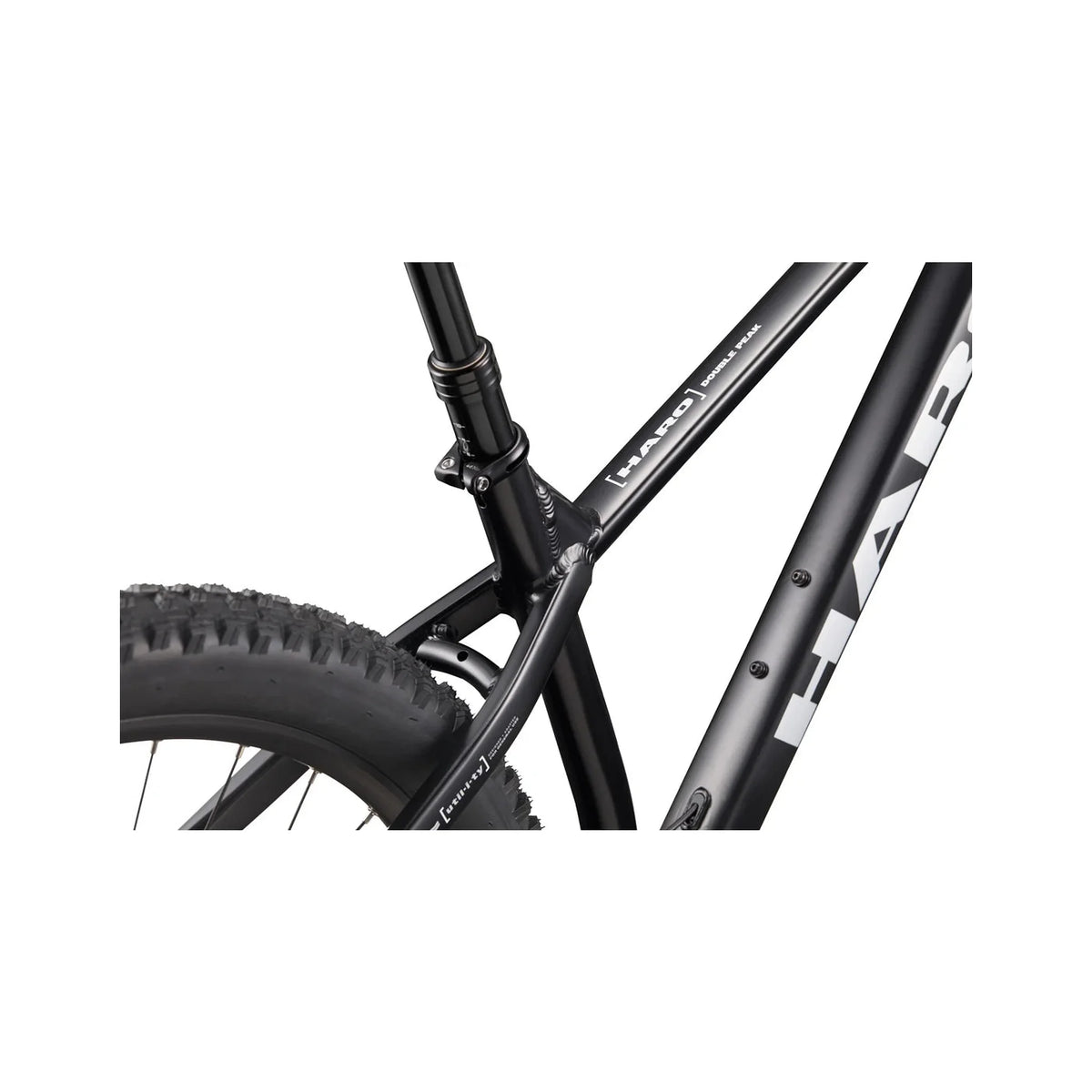

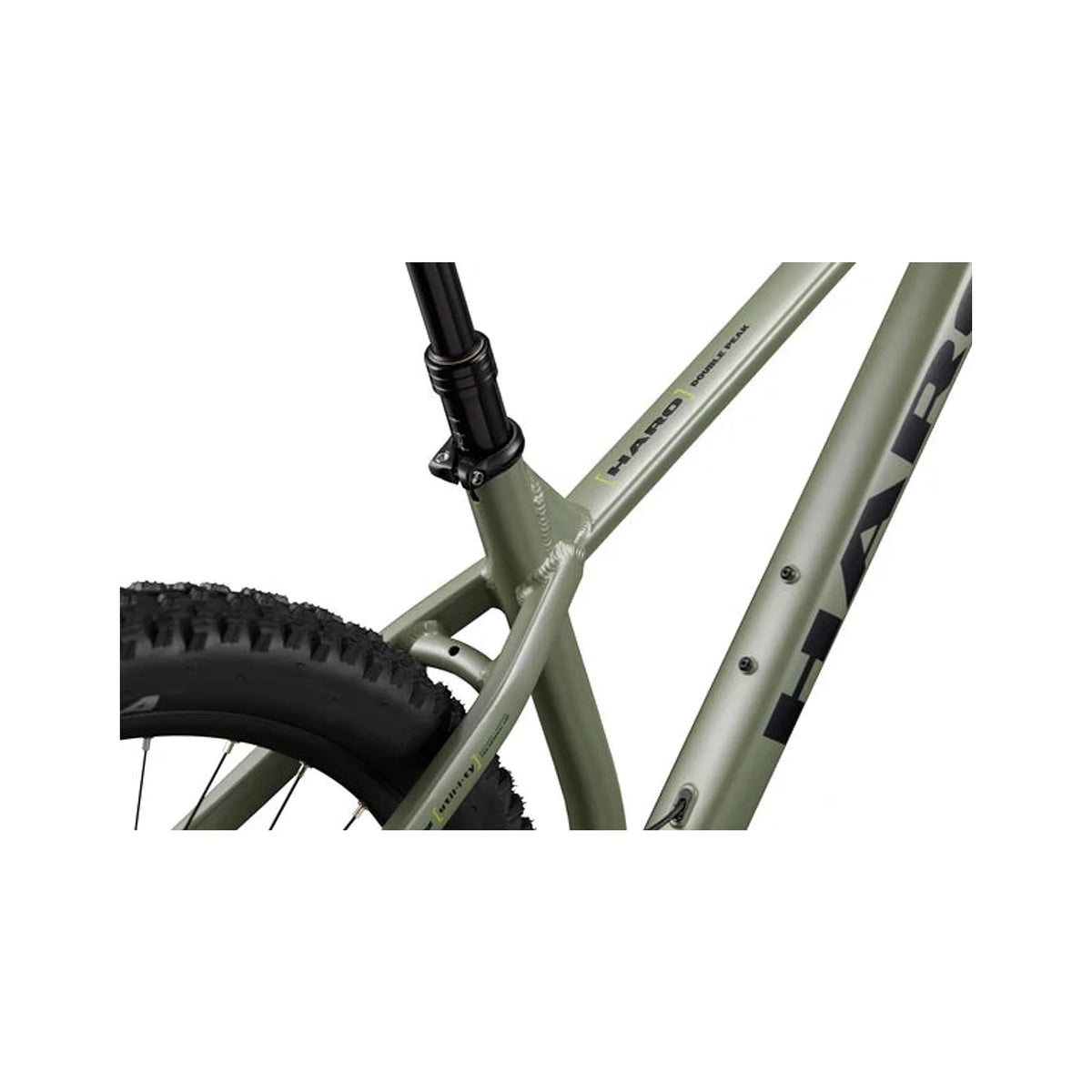

• Frame: Hydroformed, Heat-Treated 6061-T6 Aluminum

• Frame Design: Double-Butted Top and Down Tubes

• Rear Spacing: 148mm Boost

• Cable Routing: Internal

• Head Tube: Tapered

• Fork: SR Suntour XCM32

• Fork Travel: 100mm

• Front Axle: 15x110mm Boost

• Fork: Coil Spring with Preload Adjustment

• Headset: FSA NO.57B / NO.57E Sealed, 1-1/8"–1.5"

Drivetrain

• Drivetrain: Shimano CUES 1x10-Speed

• Shifter: Shimano CUES SL-U6000-10R

• Rear Derailleur: Shimano CUES RD-U6000 GS

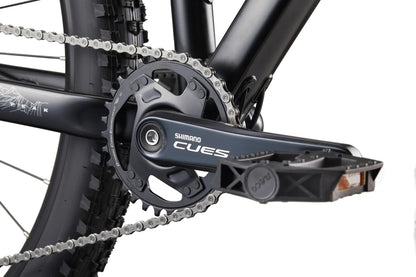

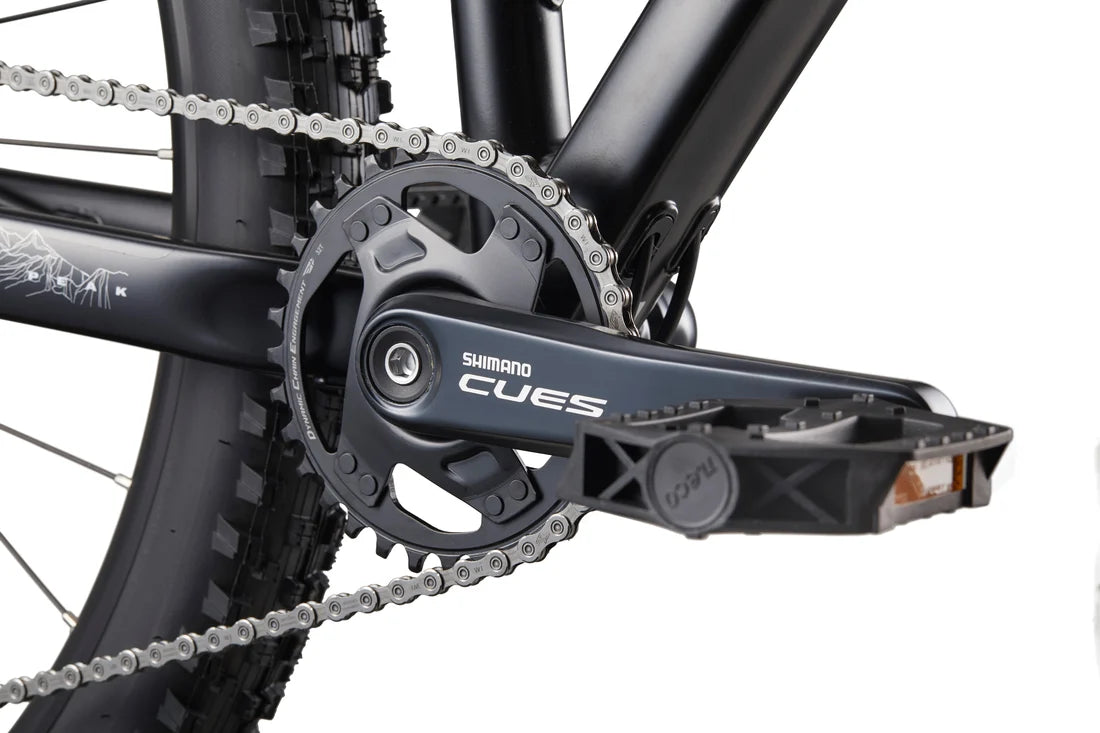

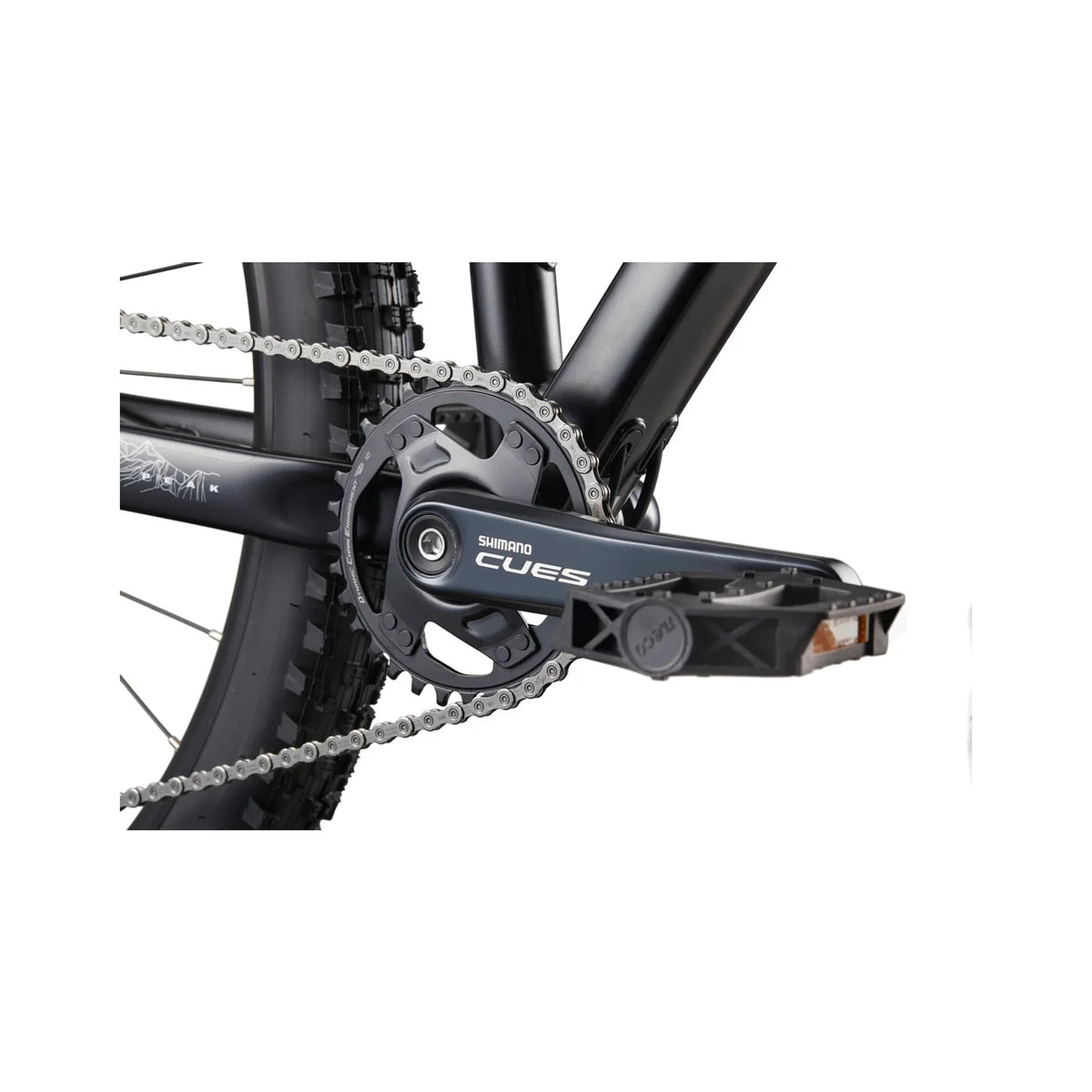

• Crankset: Shimano CUES FC-U4000-1, 170mm

• Chainring: 32T

• Cassette: Shimano CUES CS-LG300-10, 11–48T

• Chain: Shimano LinkGlide CN-LG500

• Bottom Bracket: Shimano BB-UN101

• Pedals: FPD PC

Brakes

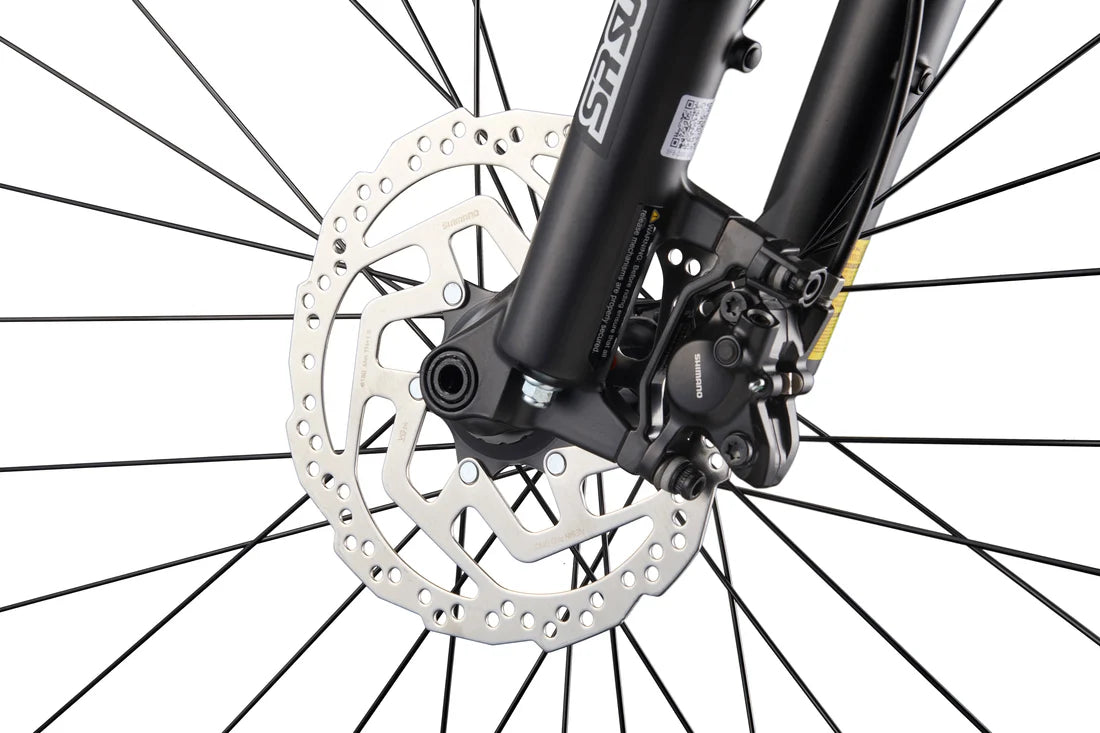

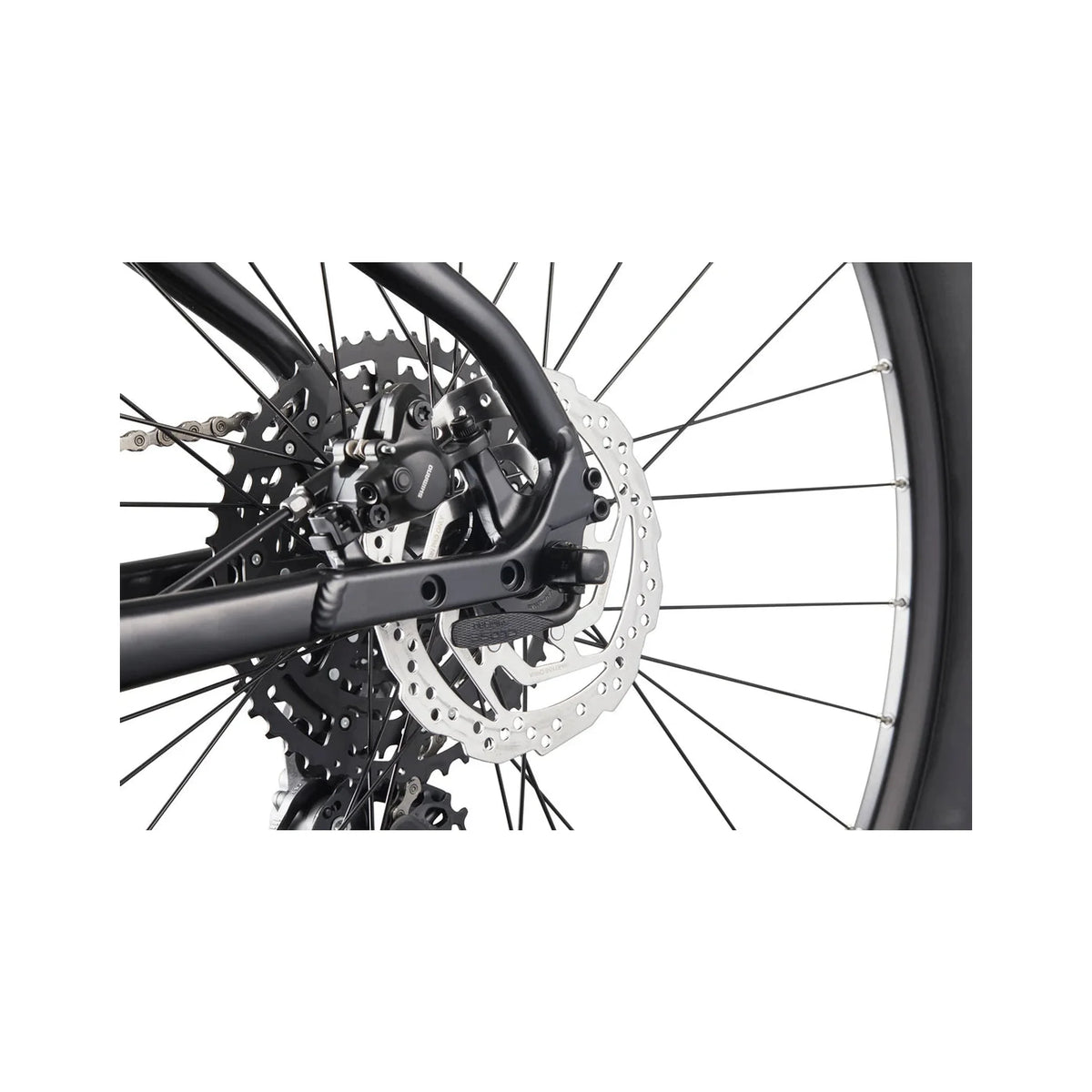

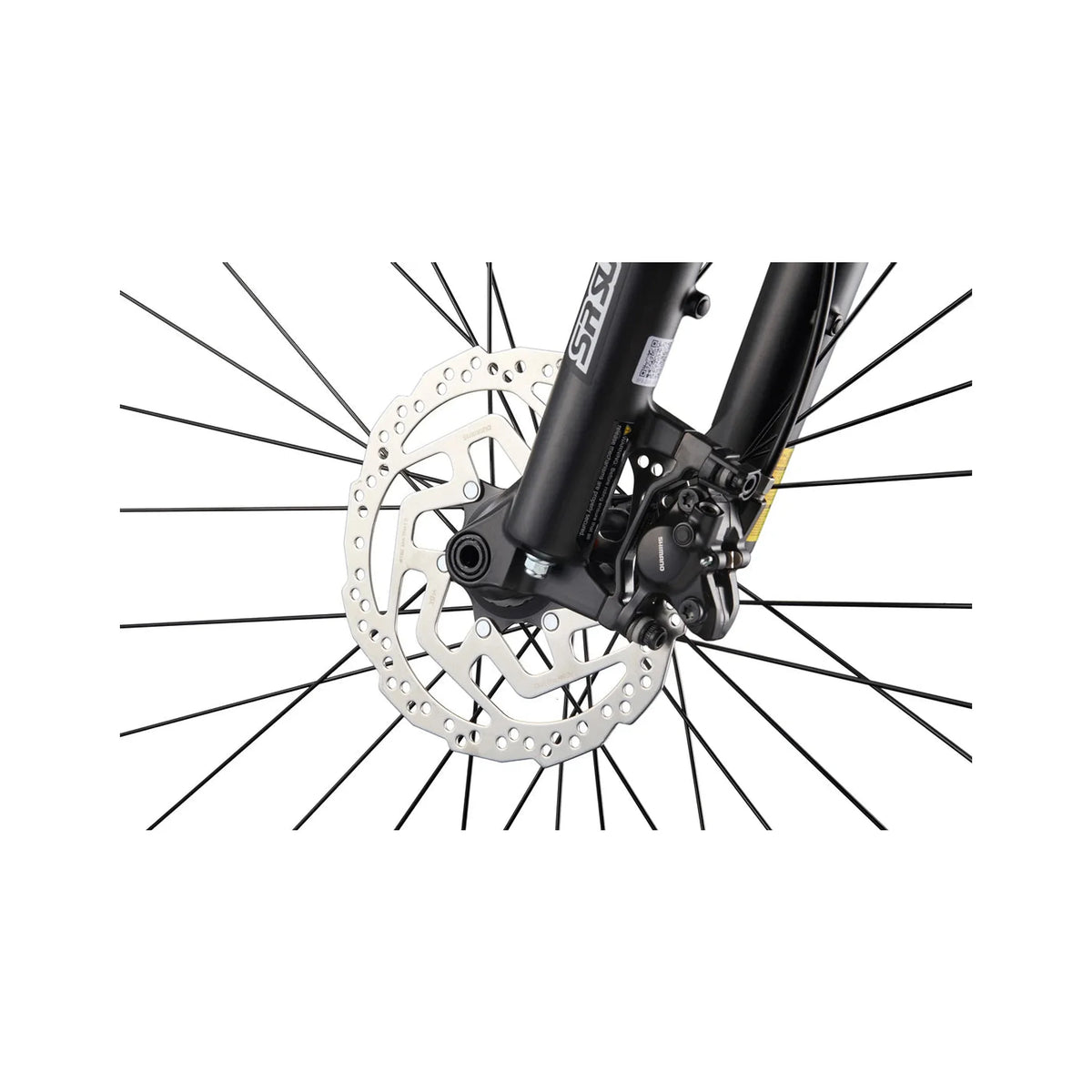

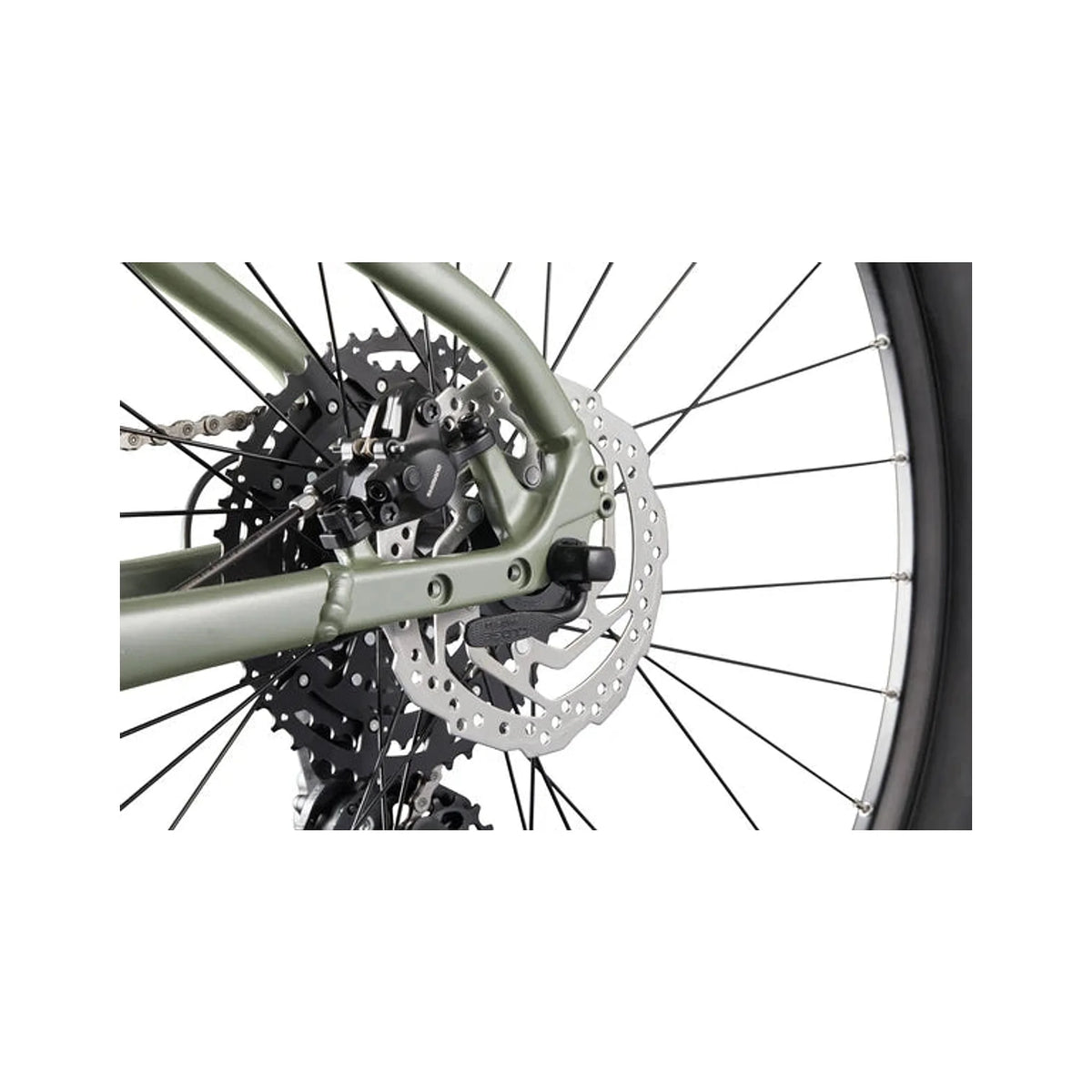

• Brakes: Shimano MT200 Hydraulic Disc

• Front Rotor: 180mm

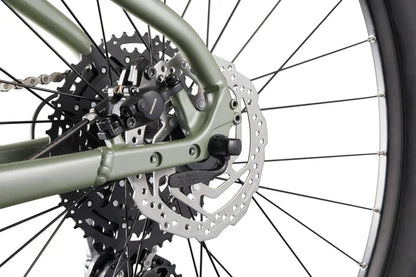

• Rear Rotor: 160mm

• Calipers: 2-Piston

Wheels & Tires

• Wheel Size: 29"

• Rims: Double-Wall Alloy, 32H with Eyelets

• Front Hub: Shimano HB-TC500-15-B, Center Lock, 15x110mm Boost Thru-Axle

• Rear Hub: Shimano, Center Lock, 148mm Boost

• Rear Spacing: 148mm Boost

• Front Tire: Kenda K1214 Regolith, 29 x 2.4"

• Rear Tire: Kenda K1214 Regolith, 29 x 2.4"

• Tire Bead: Wire

Components

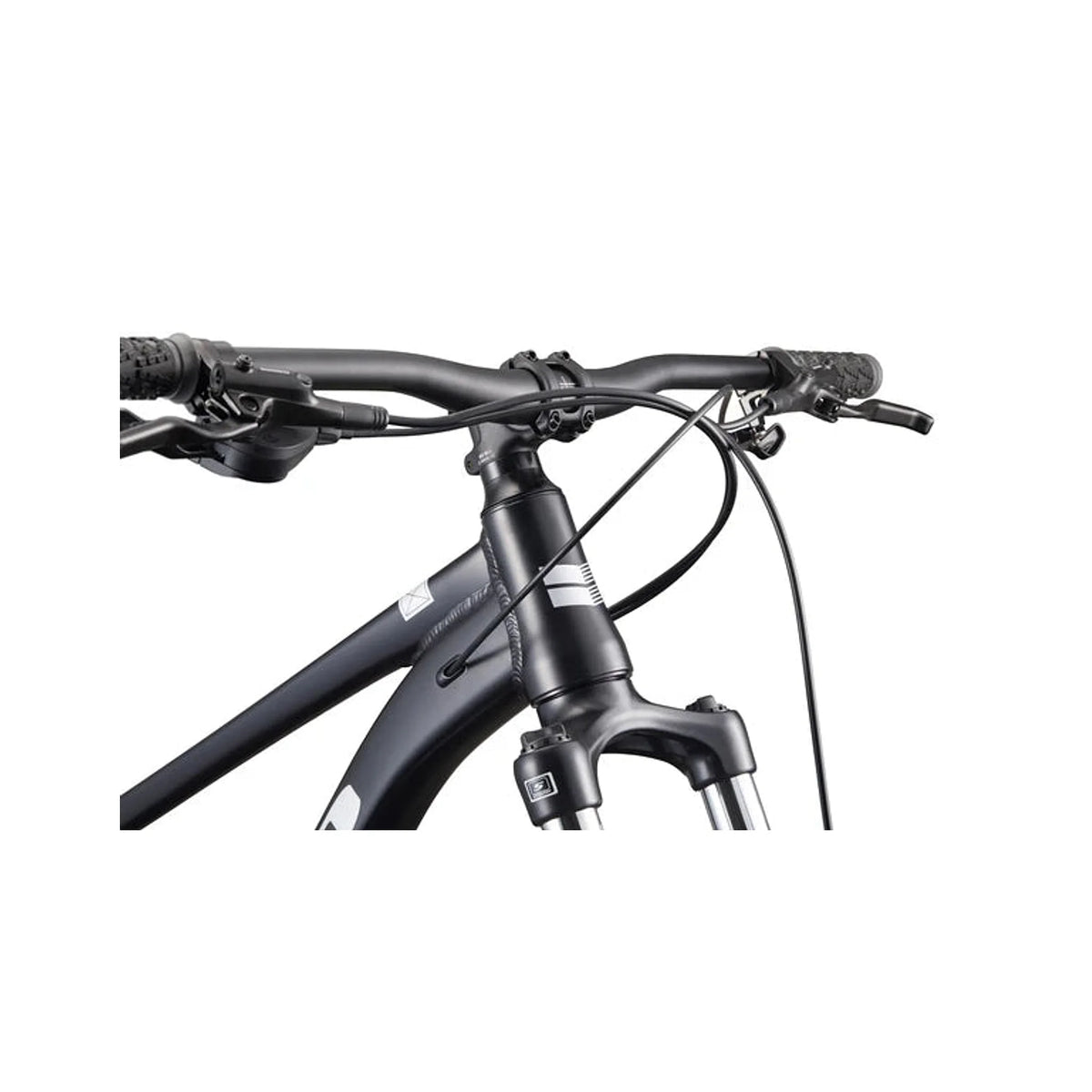

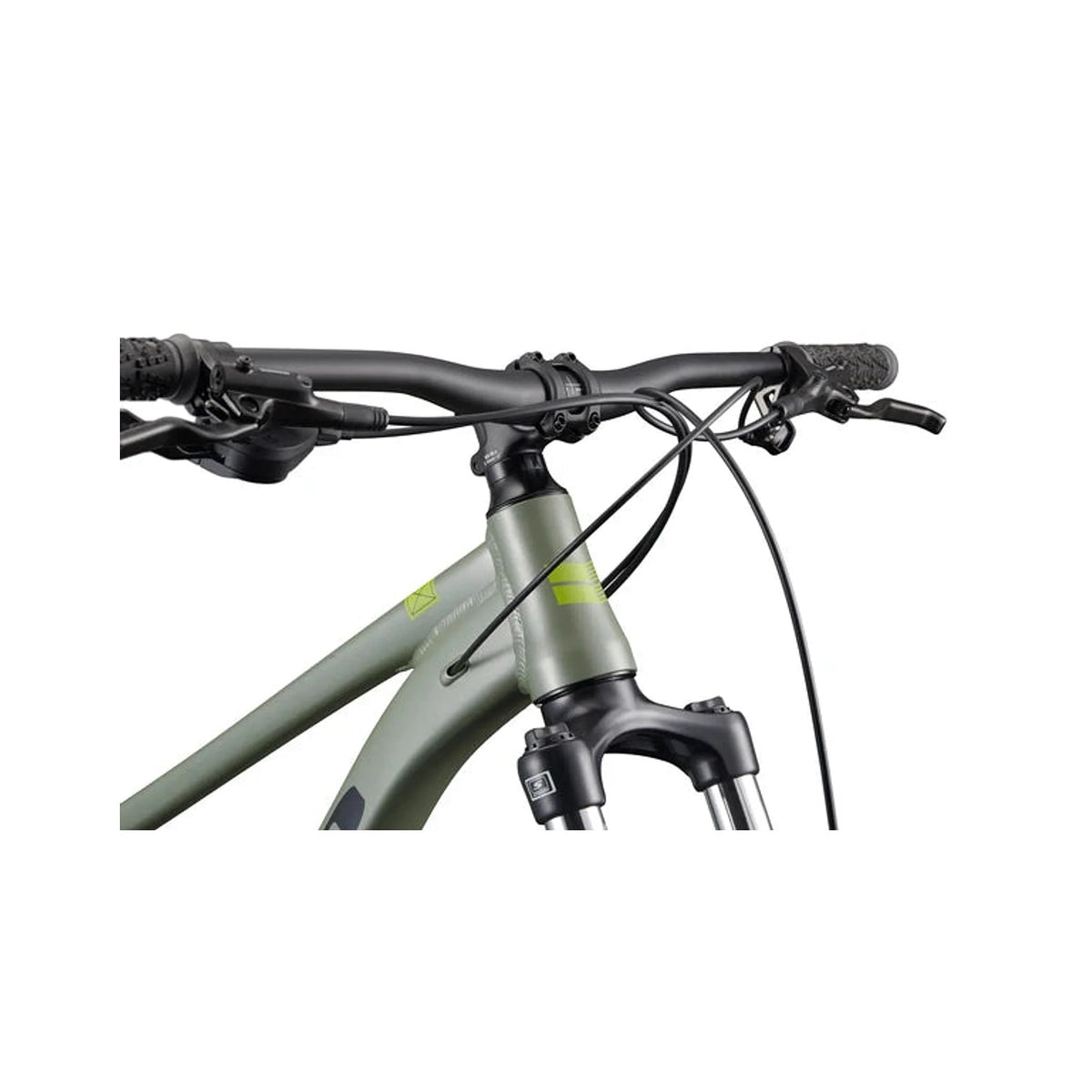

• Handlebar: Haro 6061 Alloy MTB Riser, 780mm Wide, 20mm Rise

• Stem: Haro 6061 Forged Alloy, 40mm

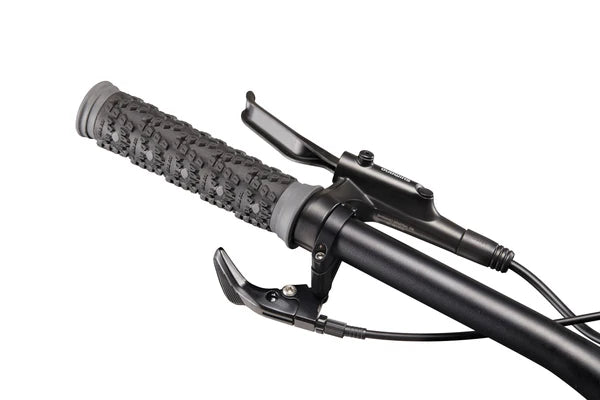

• Grips: WTB WeirWolf

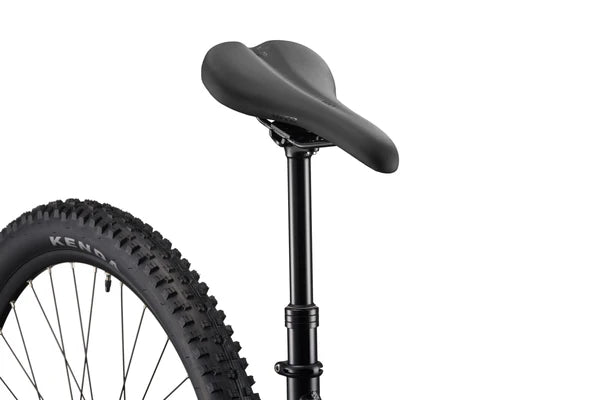

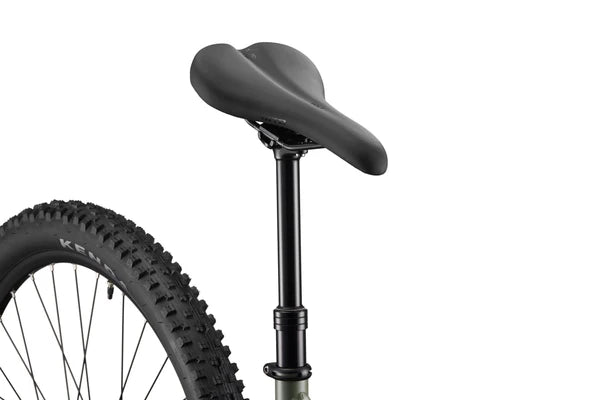

• Saddle: WTB Volt Wide Steel

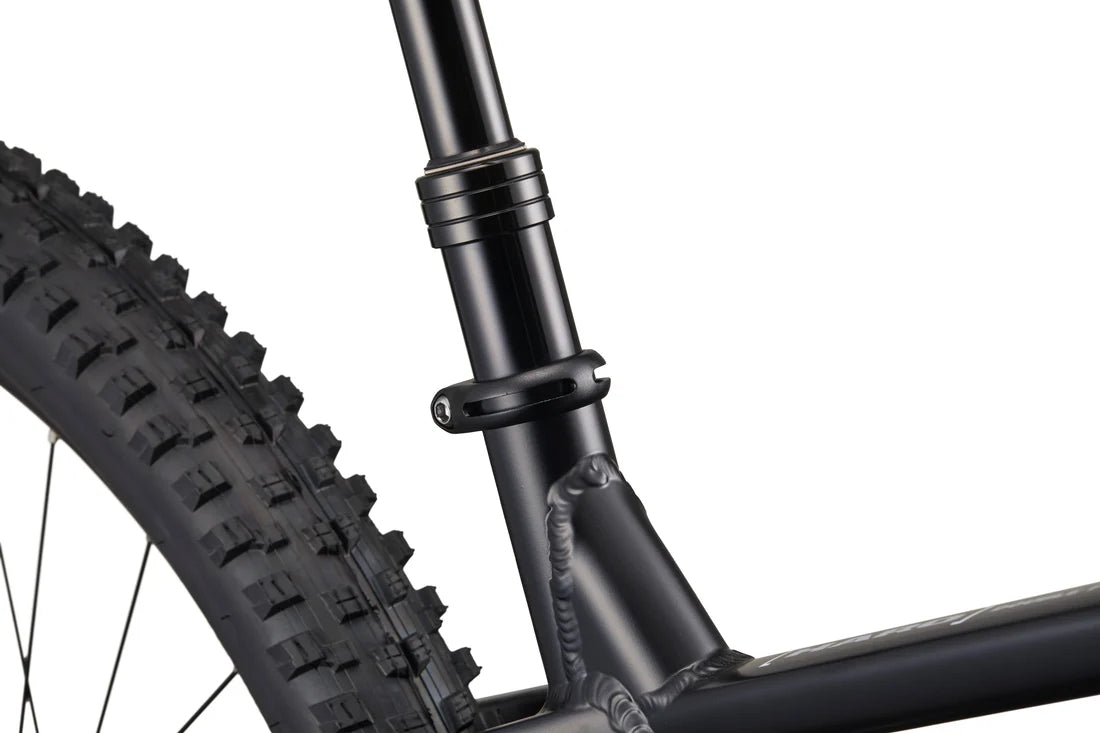

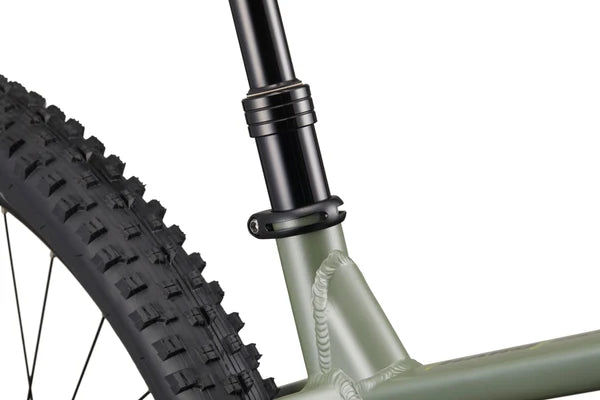

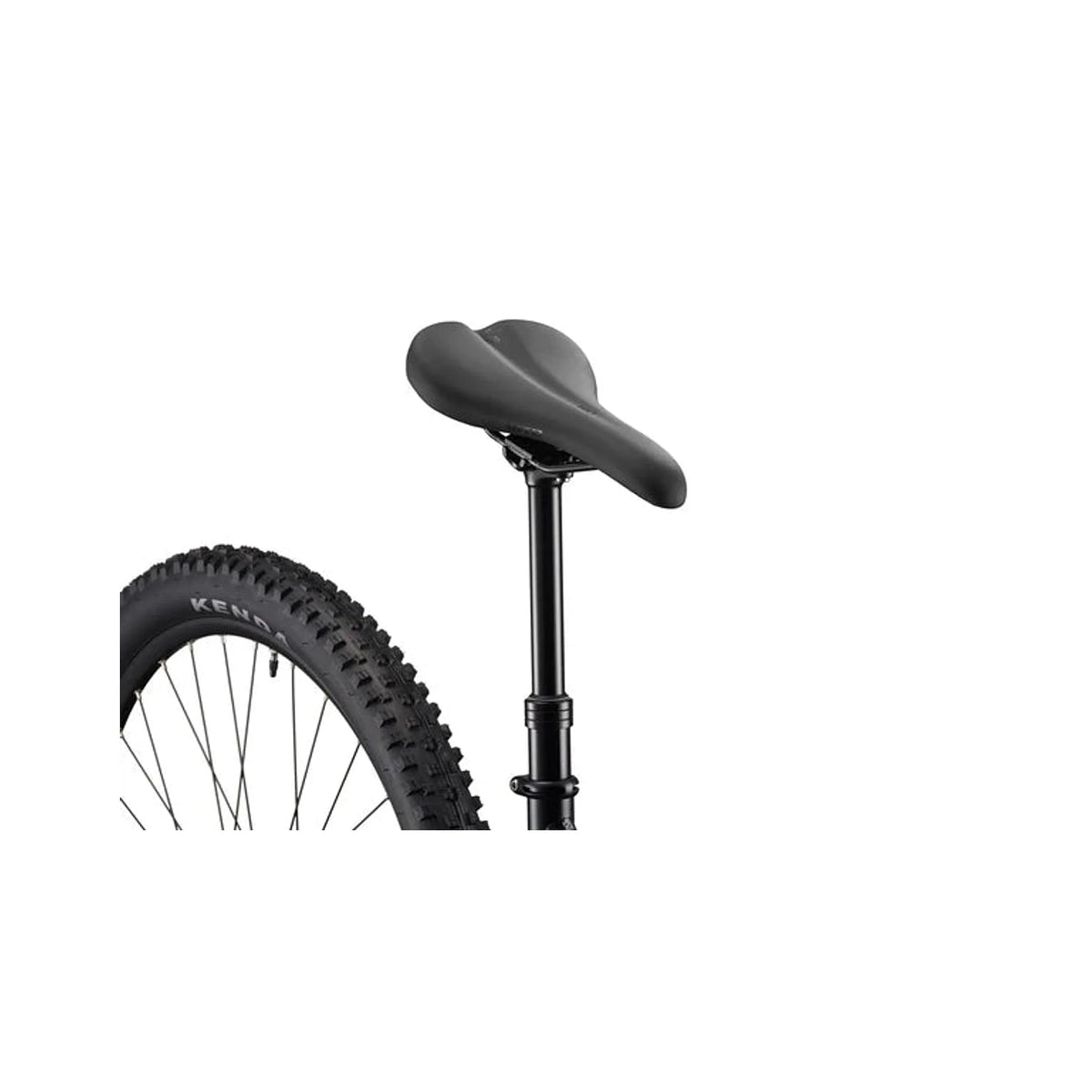

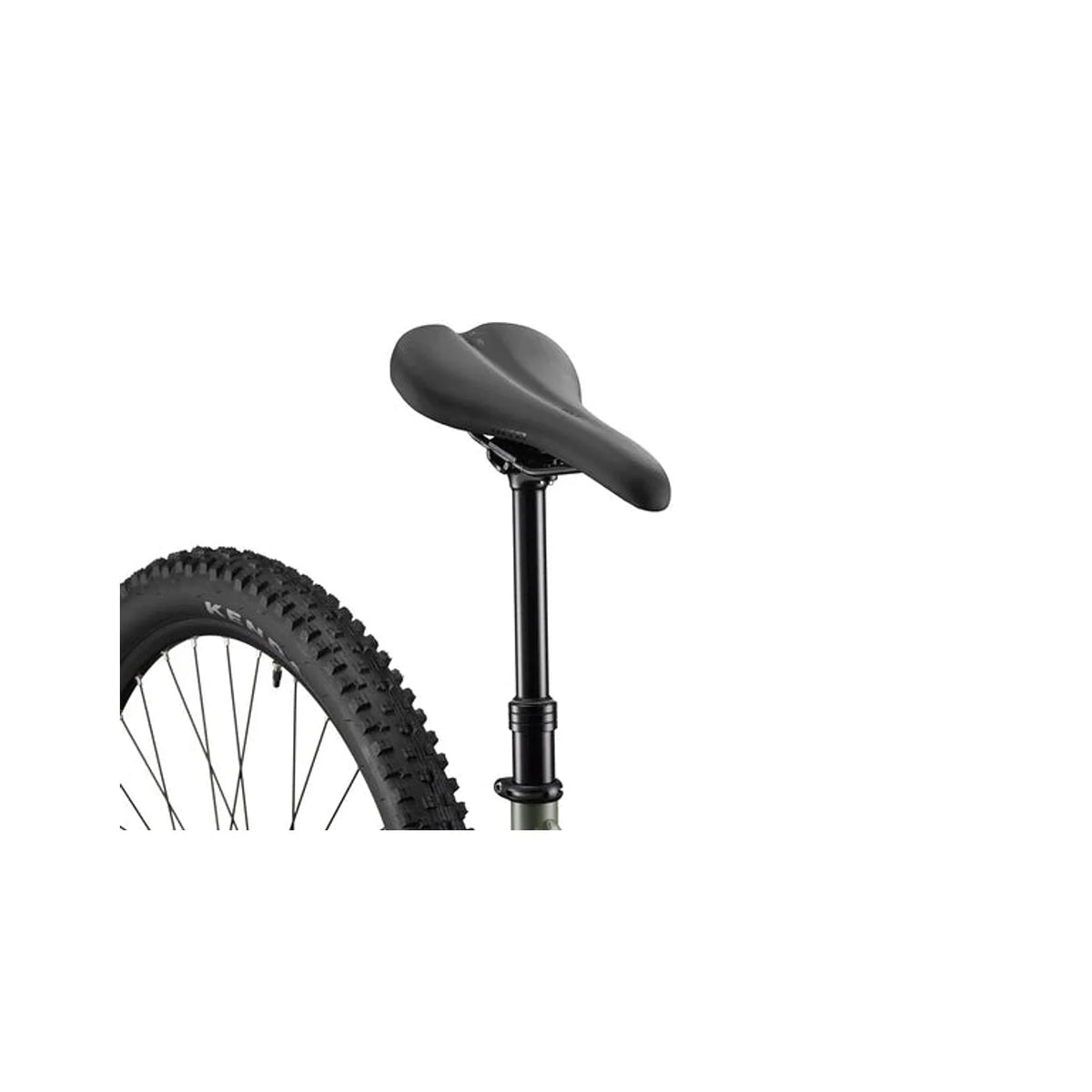

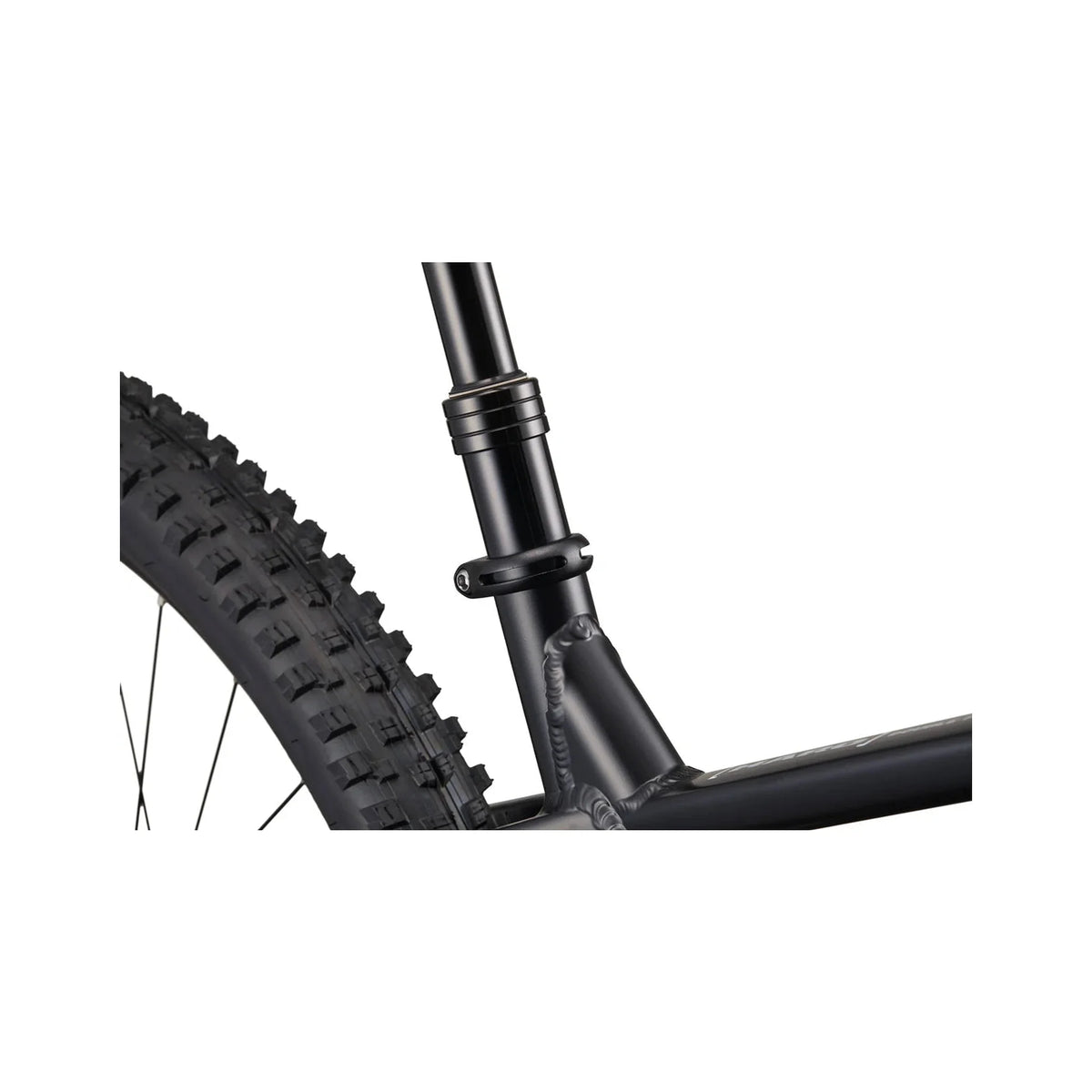

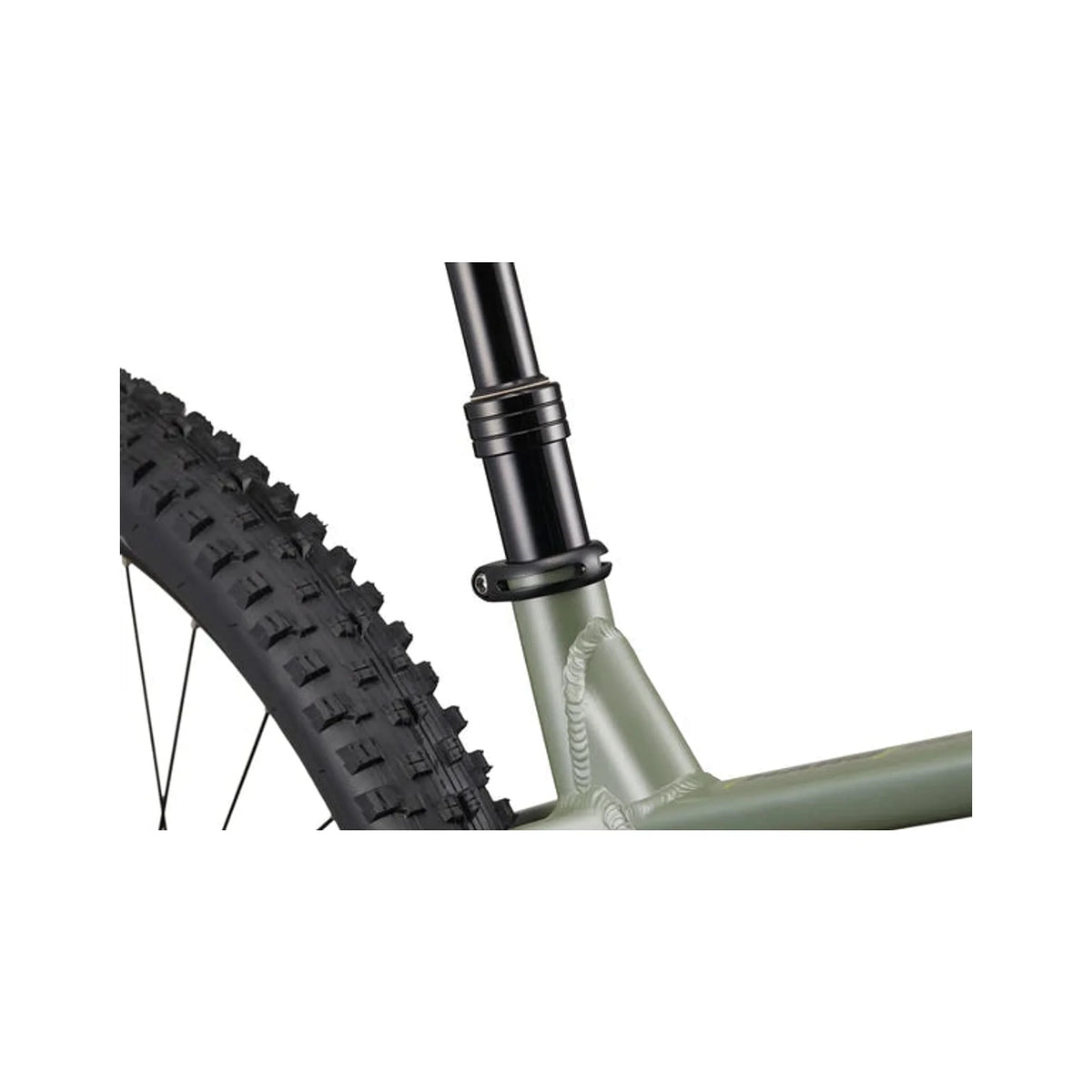

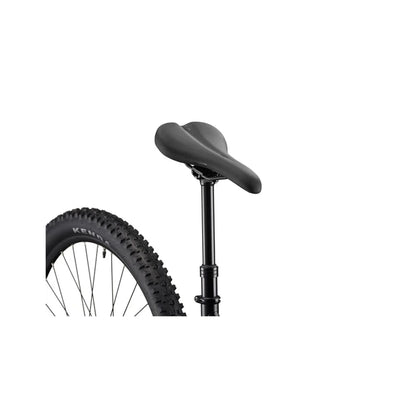

• Dropper Post: Limotec A1

• Dropper Travel: 100 / 125 / 150mm depending on size

• Seat Clamp: Forged 6061 Aluminum

Geometry

Please Note: The product image may show a 135mm quick-release rear wheel, but the actual Double Peak is equipped with 148mm Boost rear spacing.
