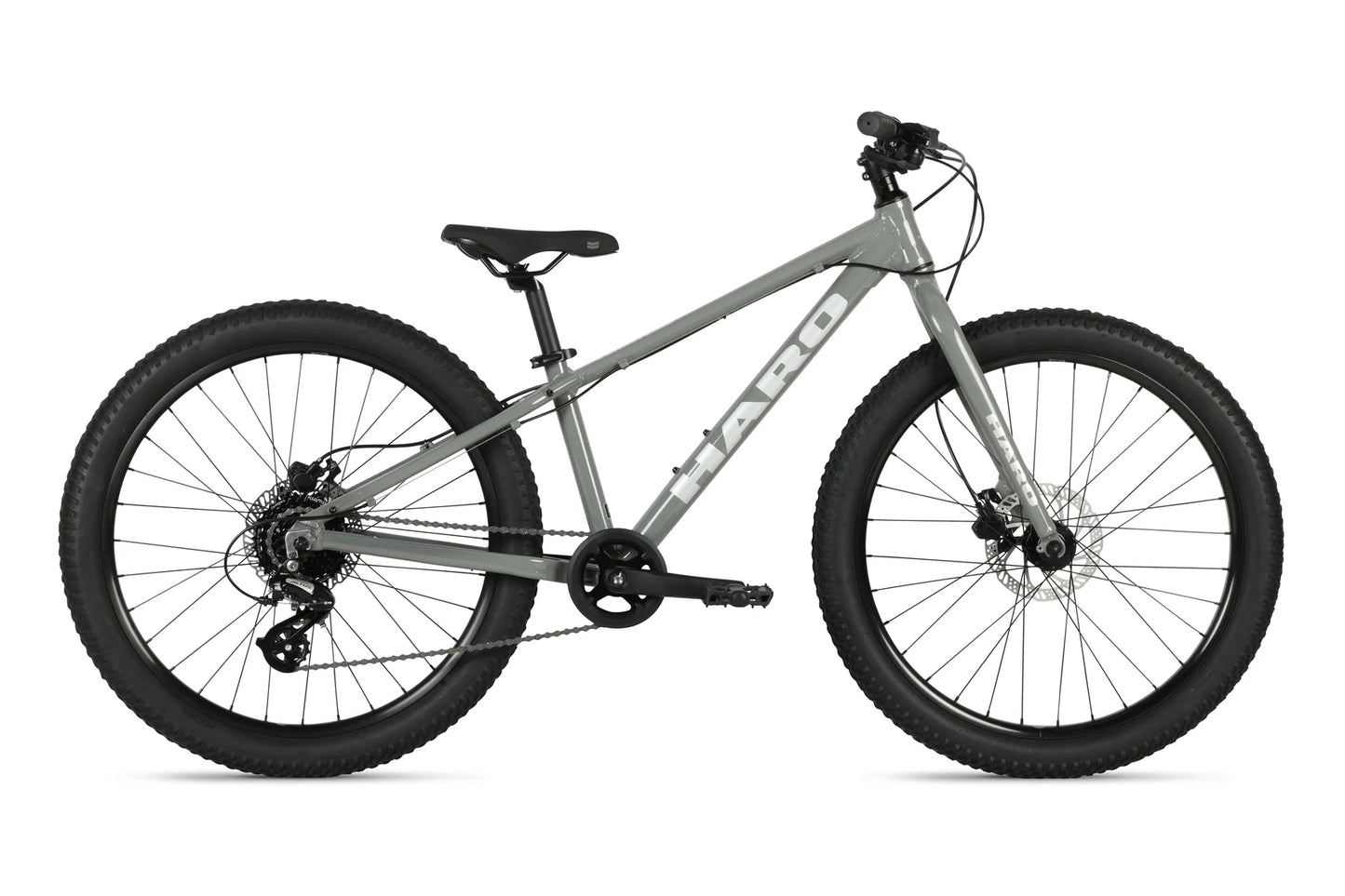

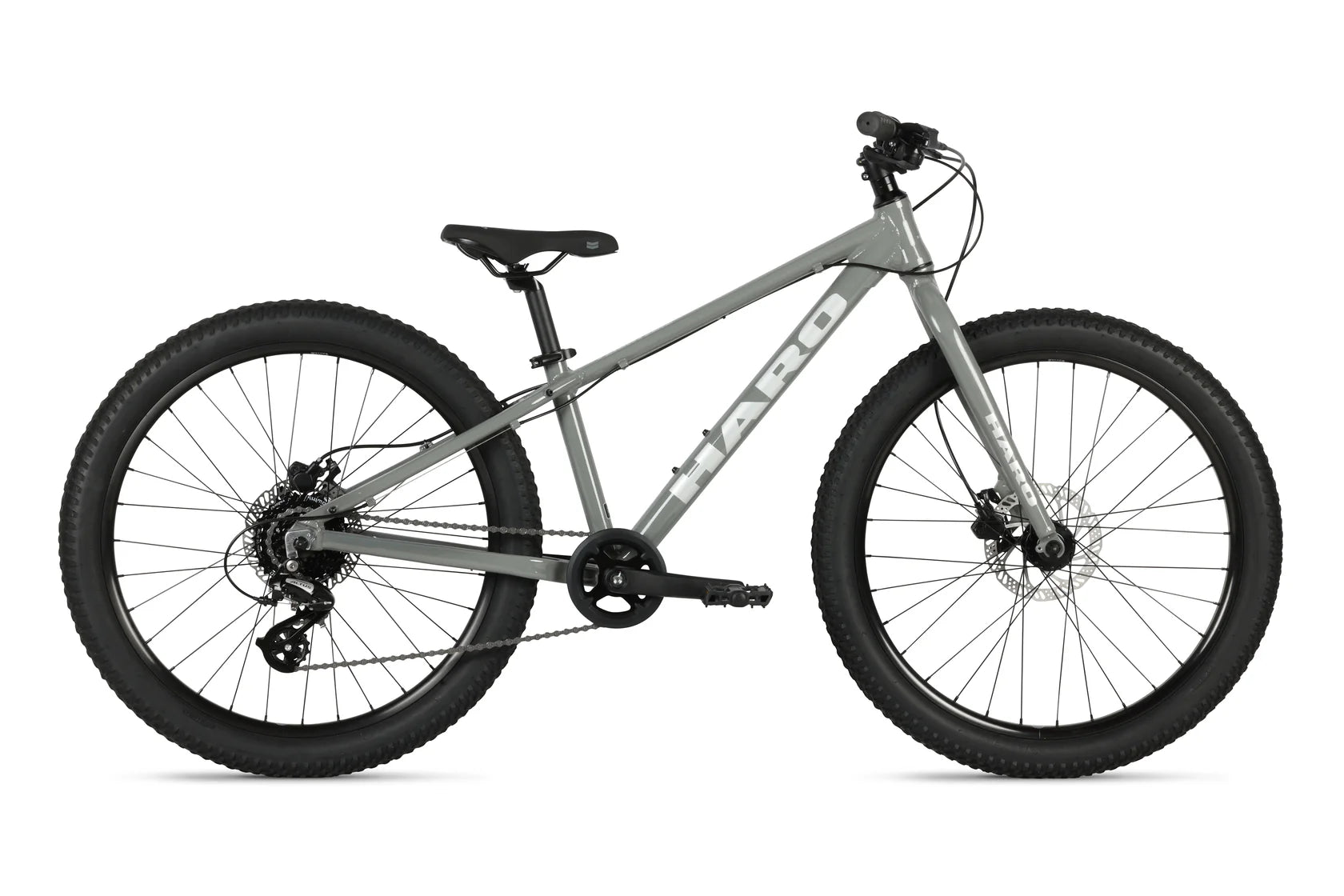

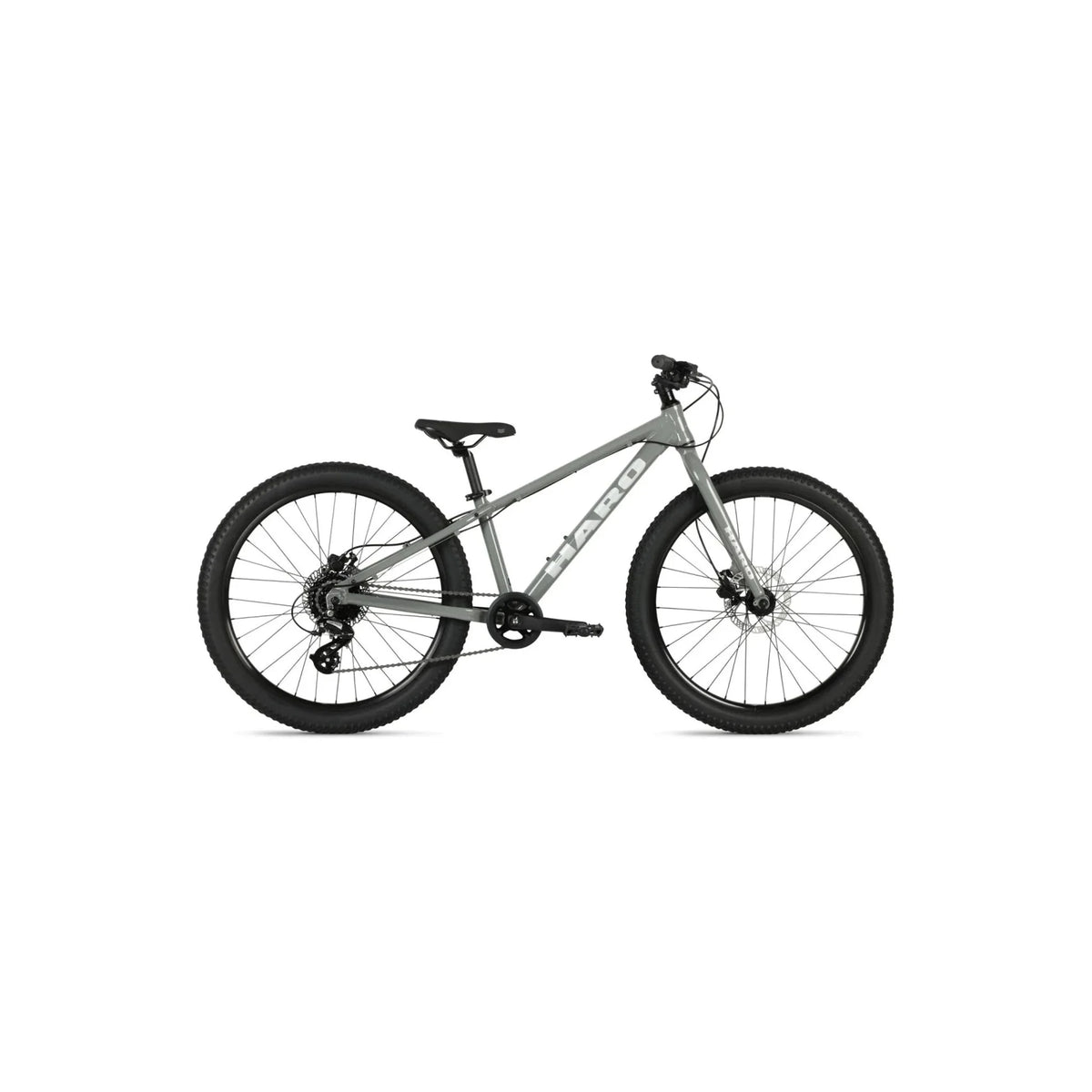

Haro Flightline 24+ DS Plus Youth Mountain Bicycle
Haro Flightline 24+ DS Plus Youth Mountain Bicycle
Regular price
$ 599.99
Regular price
Sale price
$ 599.99
Unit price
per
Shipping calculated at checkout.
4 in stock
Pickup available at Alaska Bicycle Center Storefront - 201 West Nelson Ave, Wasilla AK
Usually ready in 24 hours
SKU:14046
FEATURES
- FL 24" Plus X6 Series frame, new chainstays
- 6000 Series aluminum 1-1/8" fork
- Aluminum 3-pc 28T crankset w/ double chainguard
- Shimano Altus 8-SPD, Rear Derailleur
- Chao Yang H5183 24"x2.60"
- Tektro HD-J285 Hydraulic disc brakes with 160mm rotors and short reach levers
- Alloy Riser Bar, 620mmW, 9° back sweep, 25mm Rise, ø31.8
| FRAMESET | |
|---|---|
| Frame | FL 24" Plus X6 Series frame, new chainstays |
| Fork | 6000 Series aluminum 1-1/8" fork |
| Colors | Cool Grey |
| DRIVETRAIN | |

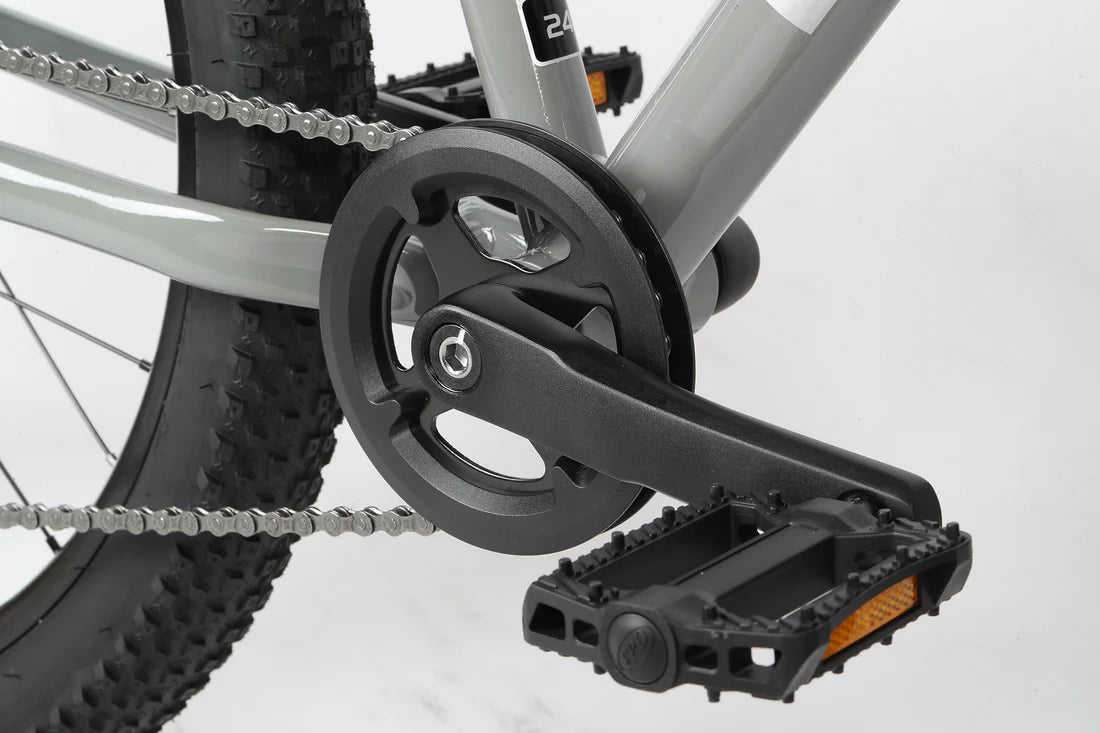

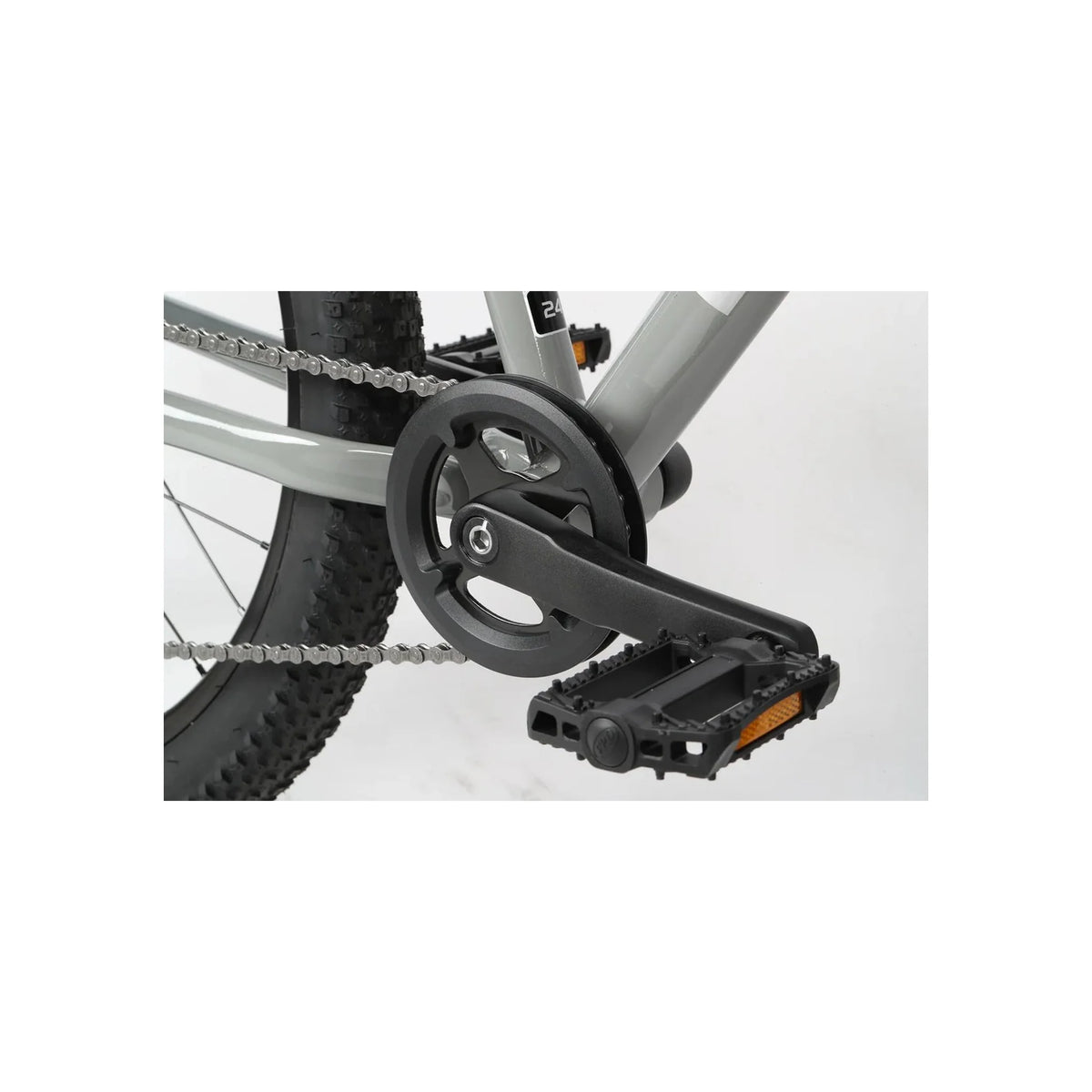

| Cranks | Aluminum 3-pc 32T crankset w/ double chainguard |
| Pedals | MTB nylon body 9/16" |
| Chain | KMC Z8 8.3, 1/2"x3/32", 92L, GYGY |
| Bottom Bracket | Cartridge Bearing 73mmX122.5mm |
| Front Derailleur | N/A |

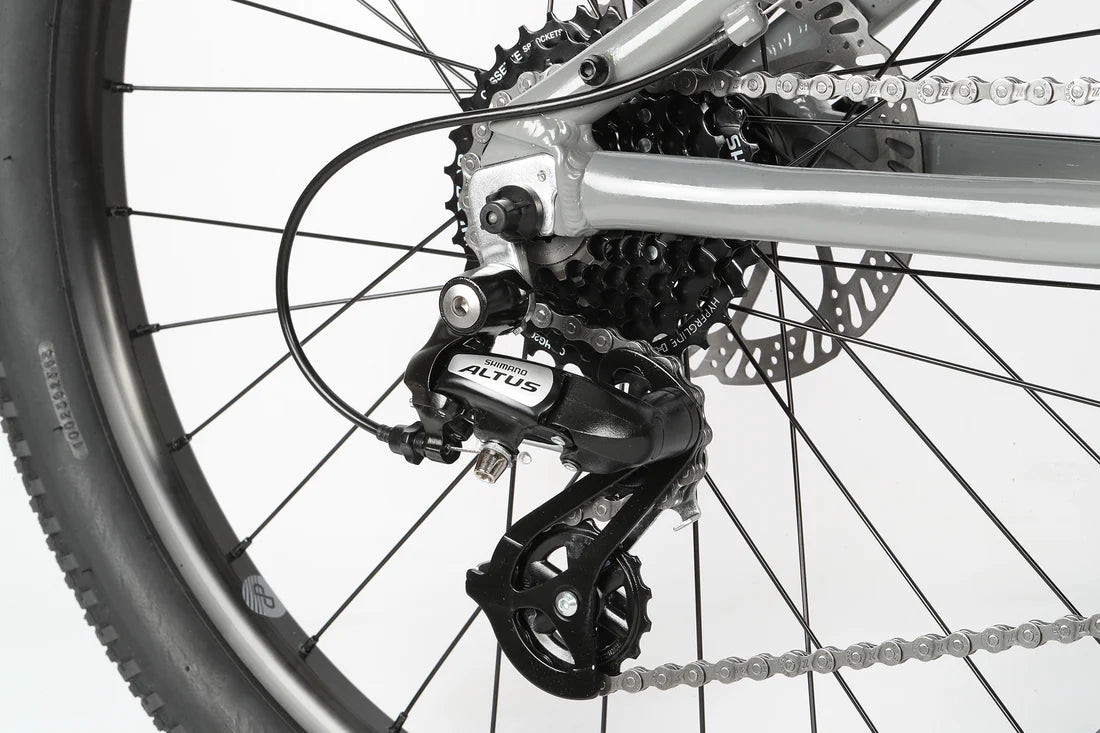

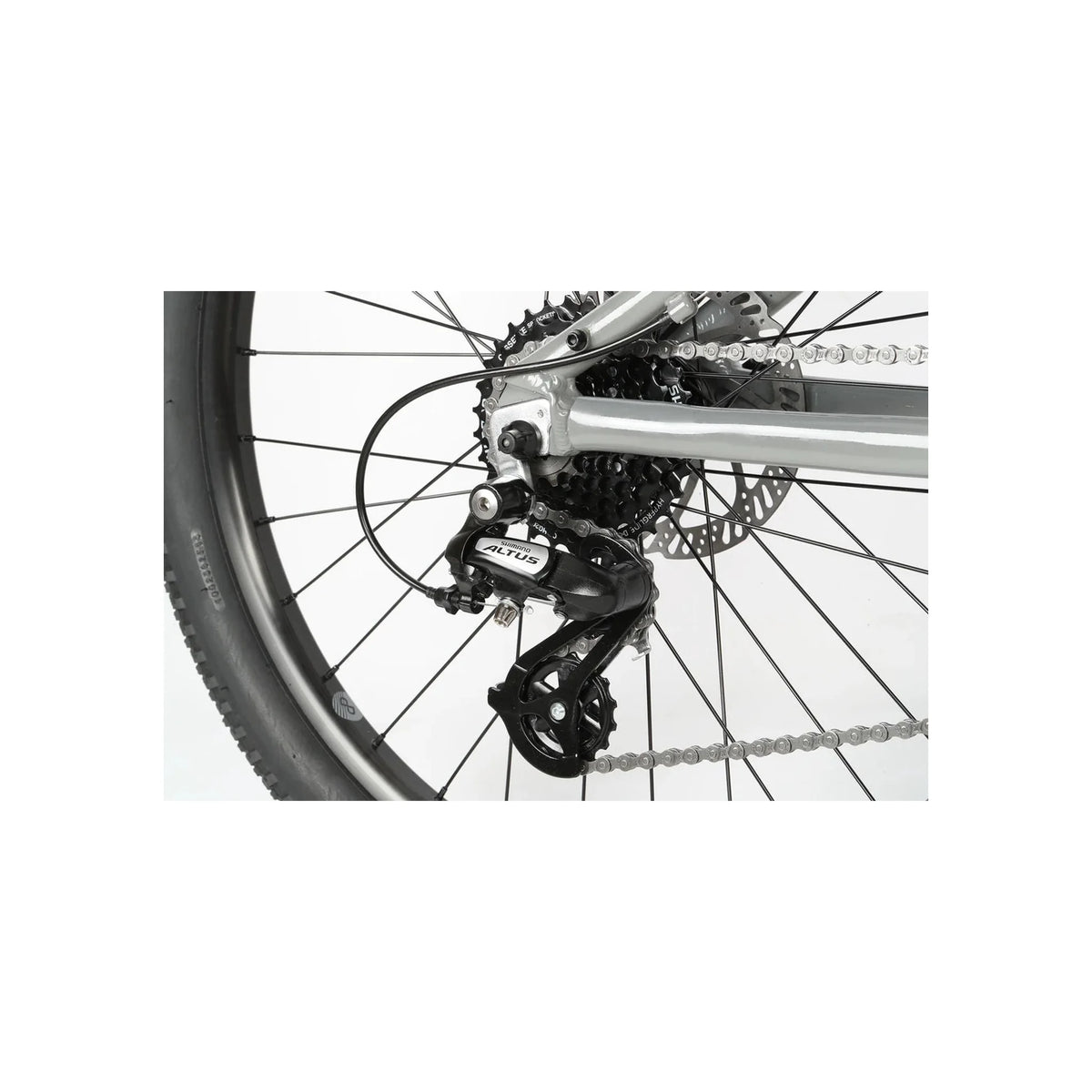

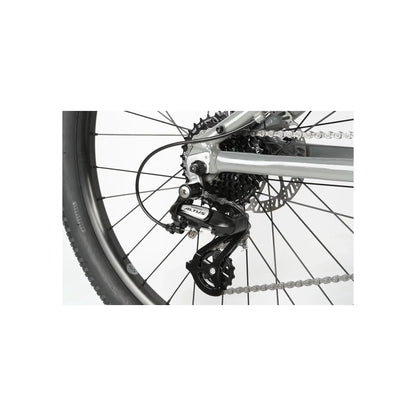

| Rear Derailleur | Shimano Altus 8-SPD, RD-M310-L |

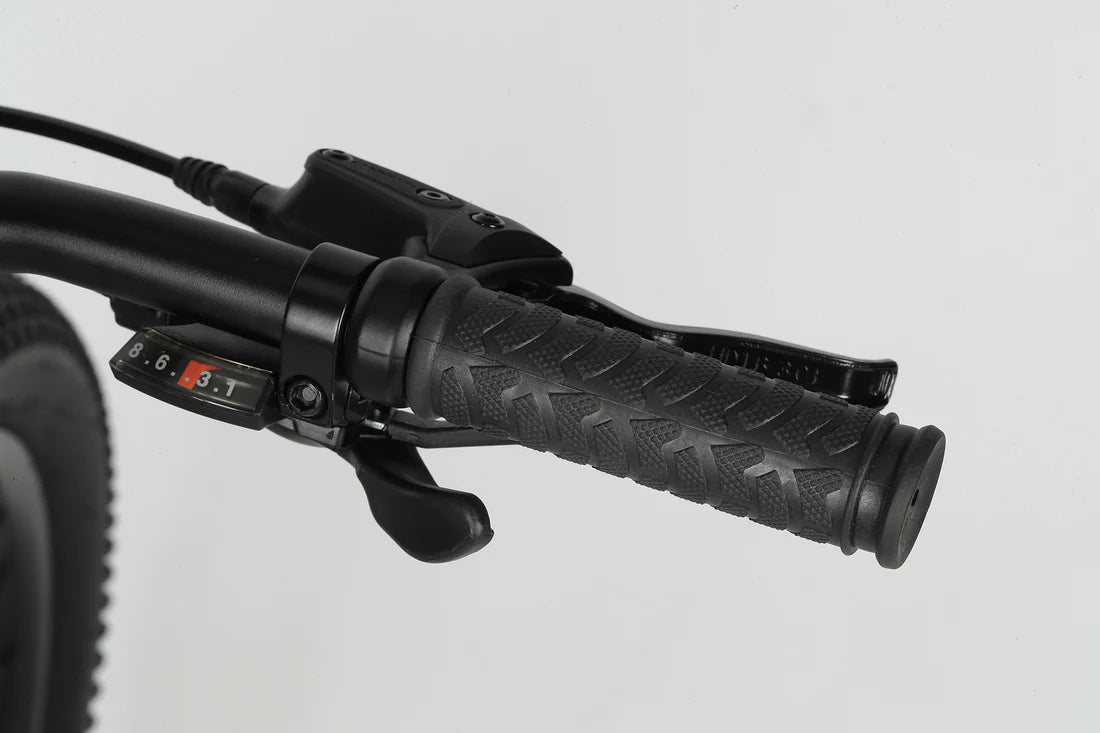

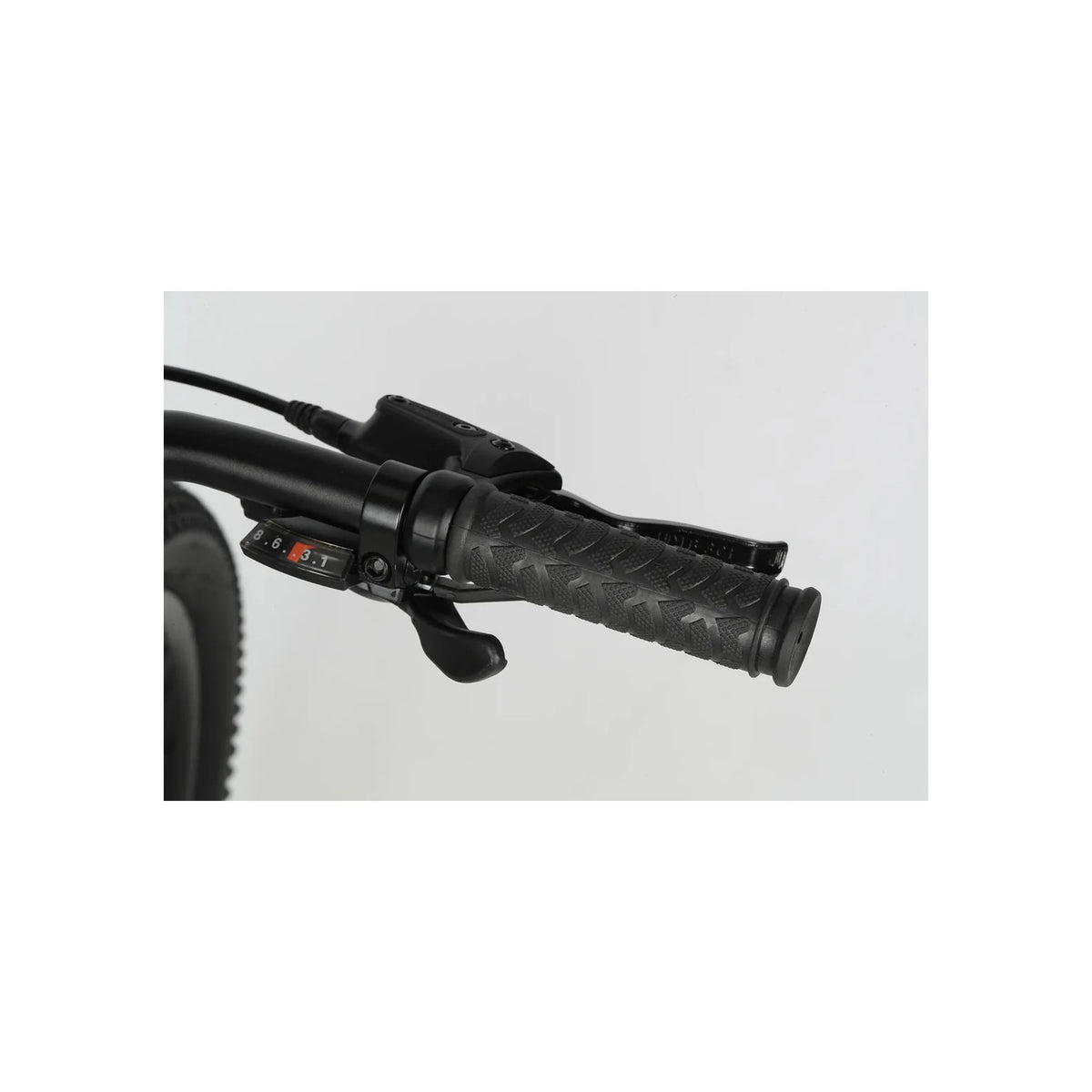

| Derailleur Shifter | Shimano SL-m315-r rapid fire 8spd |
| Freewheel/Cassette | Shimano cs-hg200-8 12-32T |
| WHEELS | |
| Tires | Chao Yang H5183 20"x2.60" |
| Wheels/Rims | Aluminum single wall 20" 31mm wide |
| Front Hub | Steel 6 bolt rotor compatible |
| Rear Hub | Steel 6 bolt rotor compatible |
| BRAKING SYSTEM | |

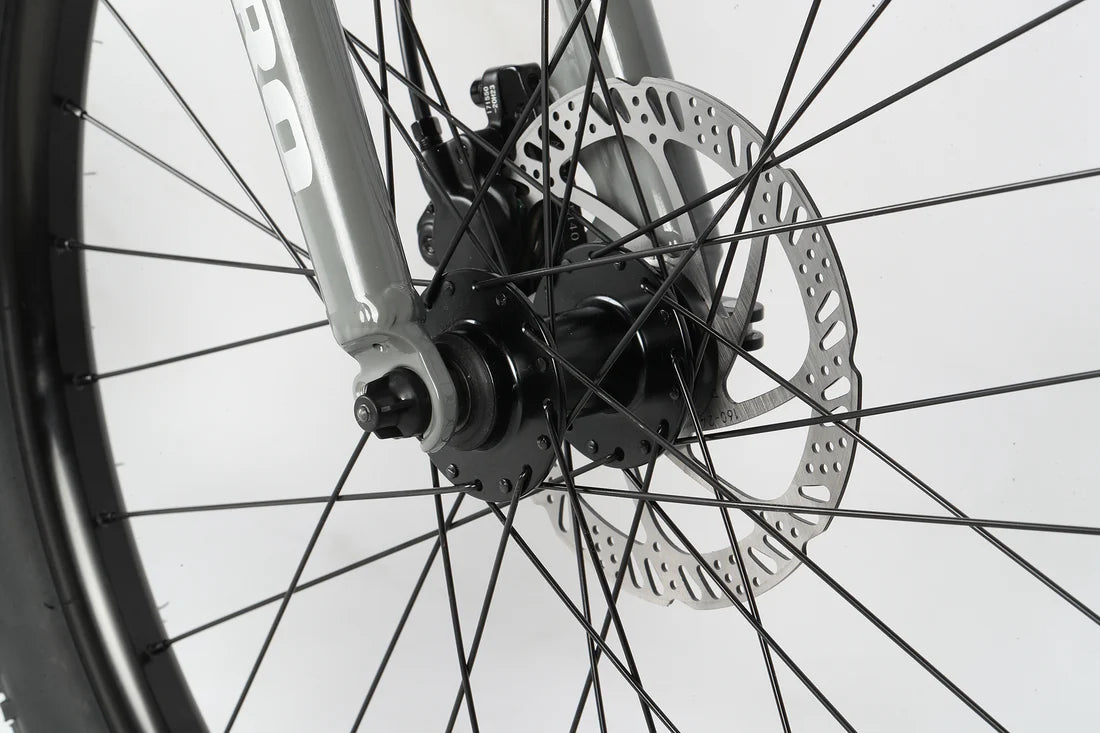

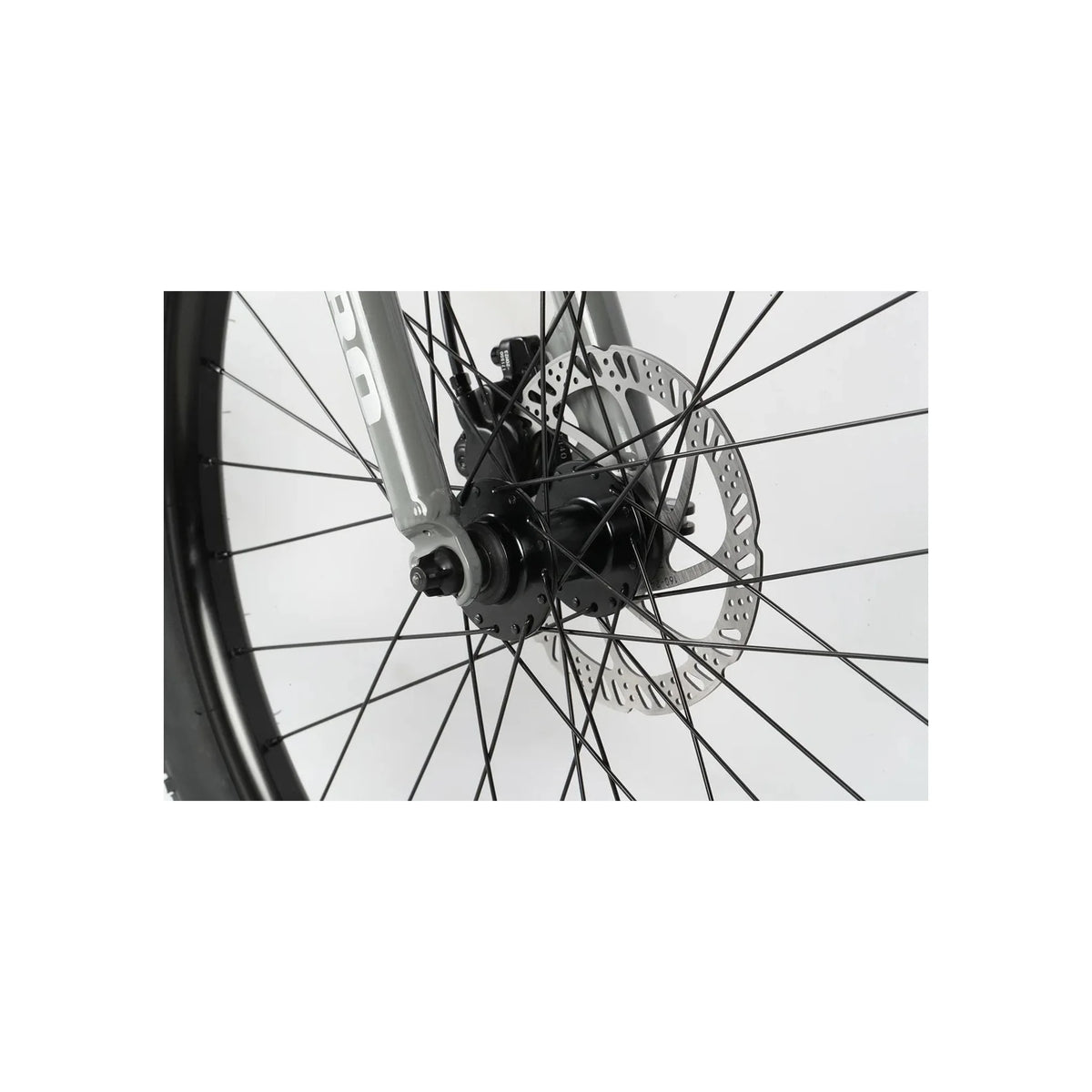

| Brakes | Tektro HD-J285 Hydraulic disc brakes with 160mm rotors |
| Brake Levers | Kids specific Tektro HD-J285 brake levers |
| OTHER COMPONENTS | |
| Grips/Tape | Krayton rubber 127mmL |

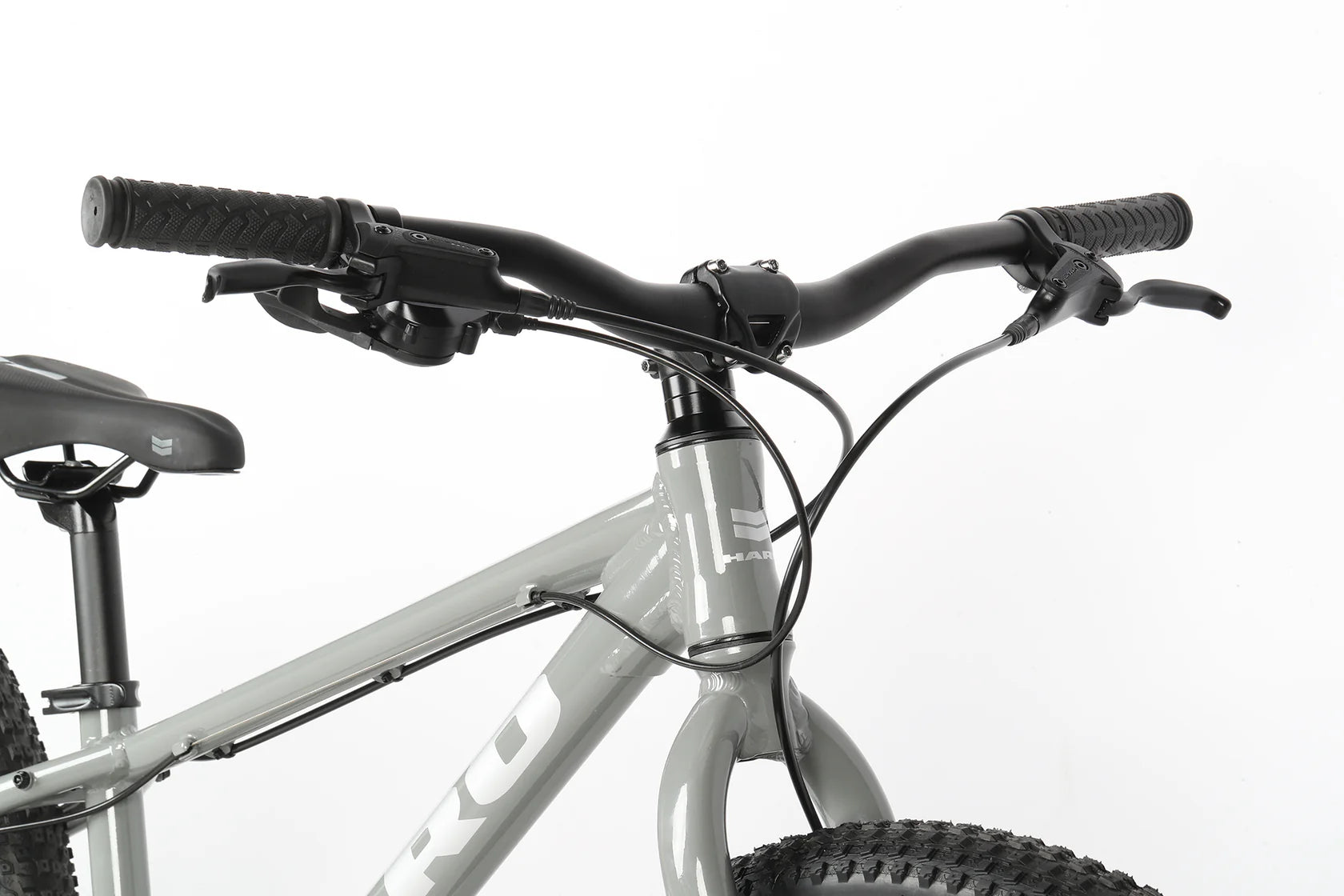

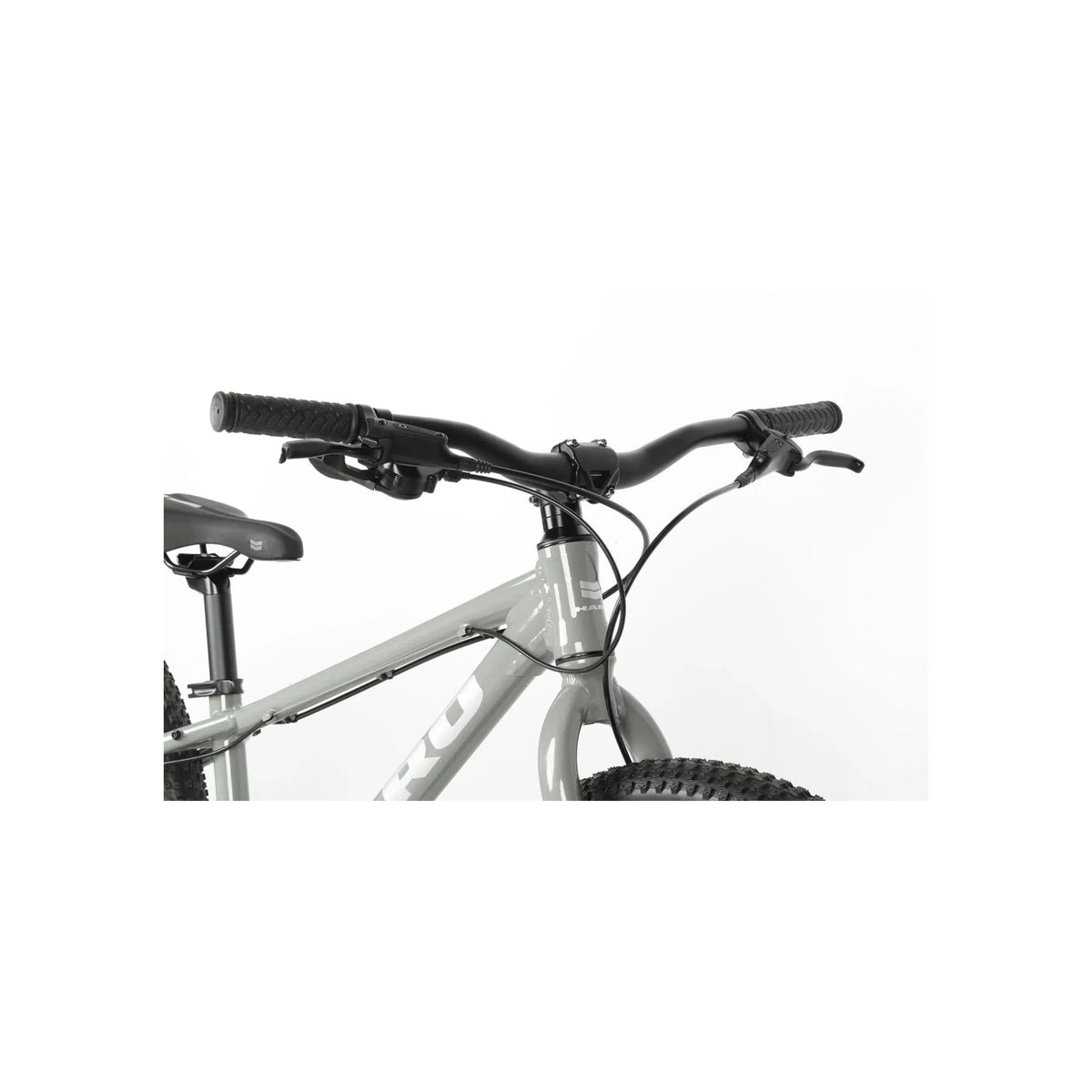

| Handlebar | Alloy Riser Bar, 620mmW, 9° back sweep, 25mm Rise, ø31.8 |
| Stem | Alloy 1-1/8", ø31.8 bar bore, 45mmL, 7° Rise |
| Headset | 1-1/8" Threadless |

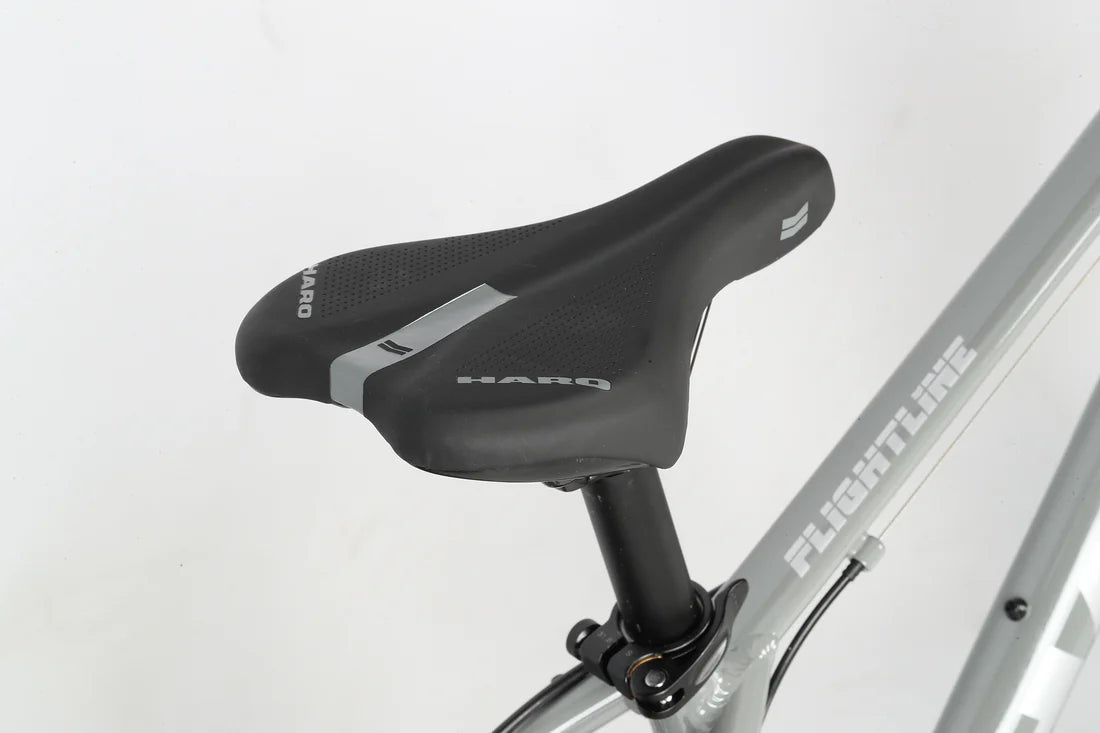

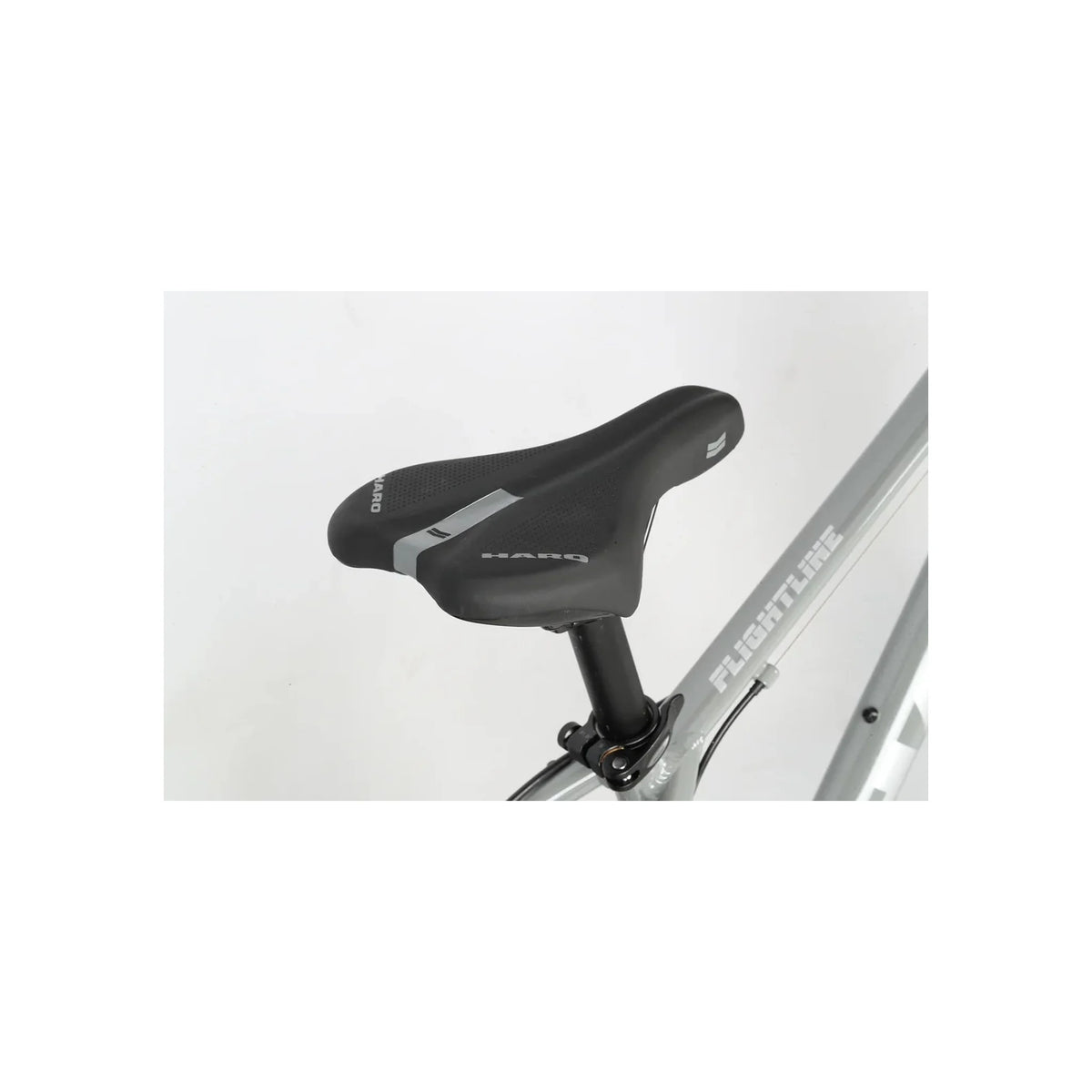

| Saddle | Haro Flightline Jr |
| Seat Post | Alloy micro adjust ø27.2 |
| Seat Clamp | Alloy ø31.8 quick release |
GEOMETRY
| SIZE | 24 |
|---|---|
| A. Seat Tube (C-T) | 305mm (12") |
| B. Top Tube (Effective) | 512mm (20.2") |
| C. Head Tube Angle | 69° |
| D. Seat Tube Angle | 73° |
| E. Chainstay Length | 415mm (16.3") |
| F. BB Drop | 45mm (1.8") |
| G. Wheelbase | 987mm (38.9") |
| H. Head Tube Length | 90mm (3.5") |
| I. Standover | 615mm (24.2") |
| J. Stack Height | 499mm (19.6") |
| K. Reach | 360mm (14.2") |
| L. Axle to Crown | 407mm (16") |
| M. Fork Offset | 35mm (1.4") |
| N. Stem Length | 45mm |
| O. Bar Width | 620mm |
| P. Crank Length | 152mm |
