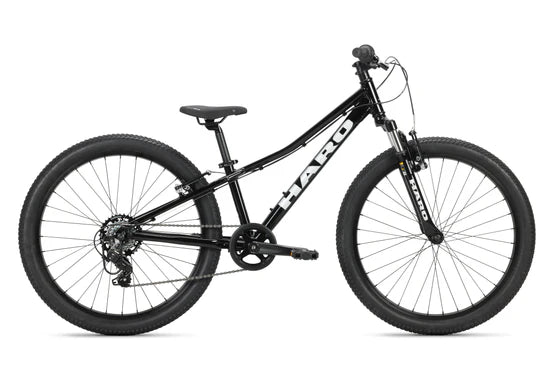

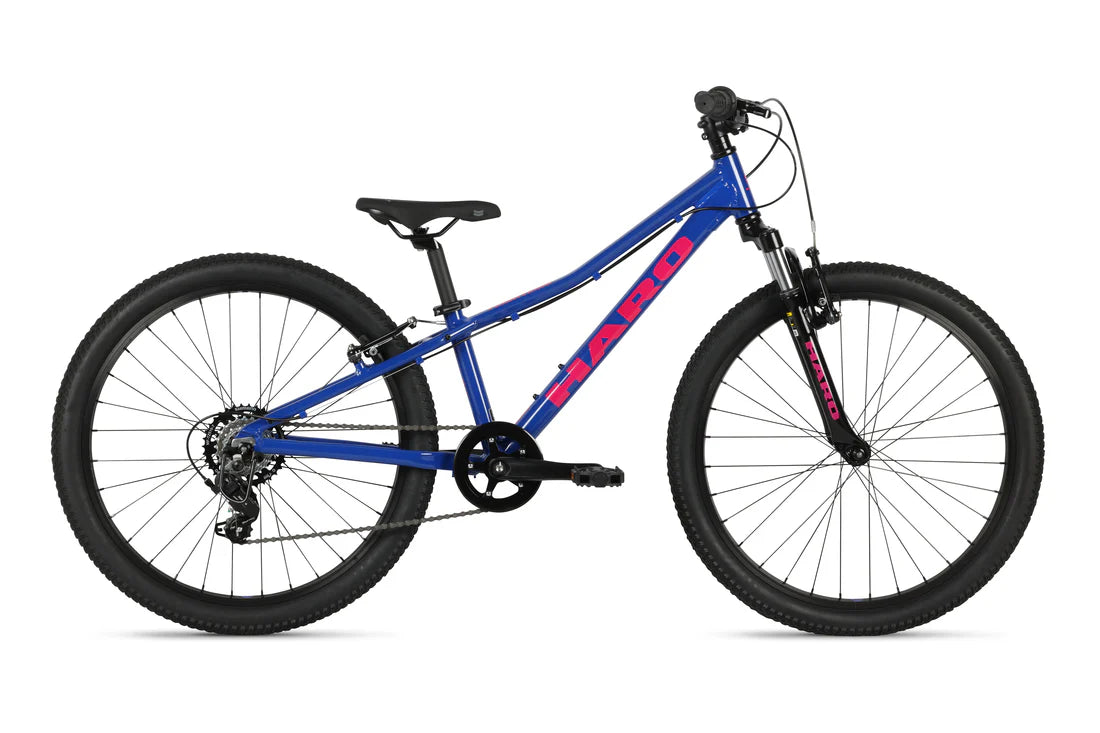

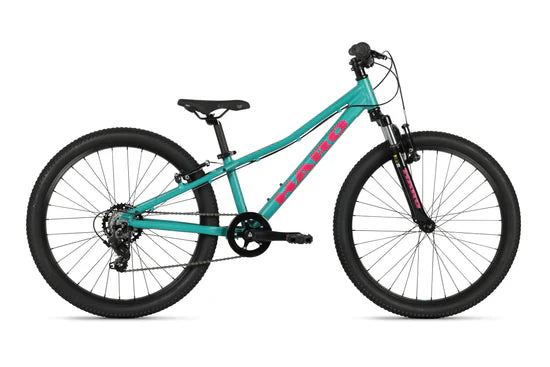

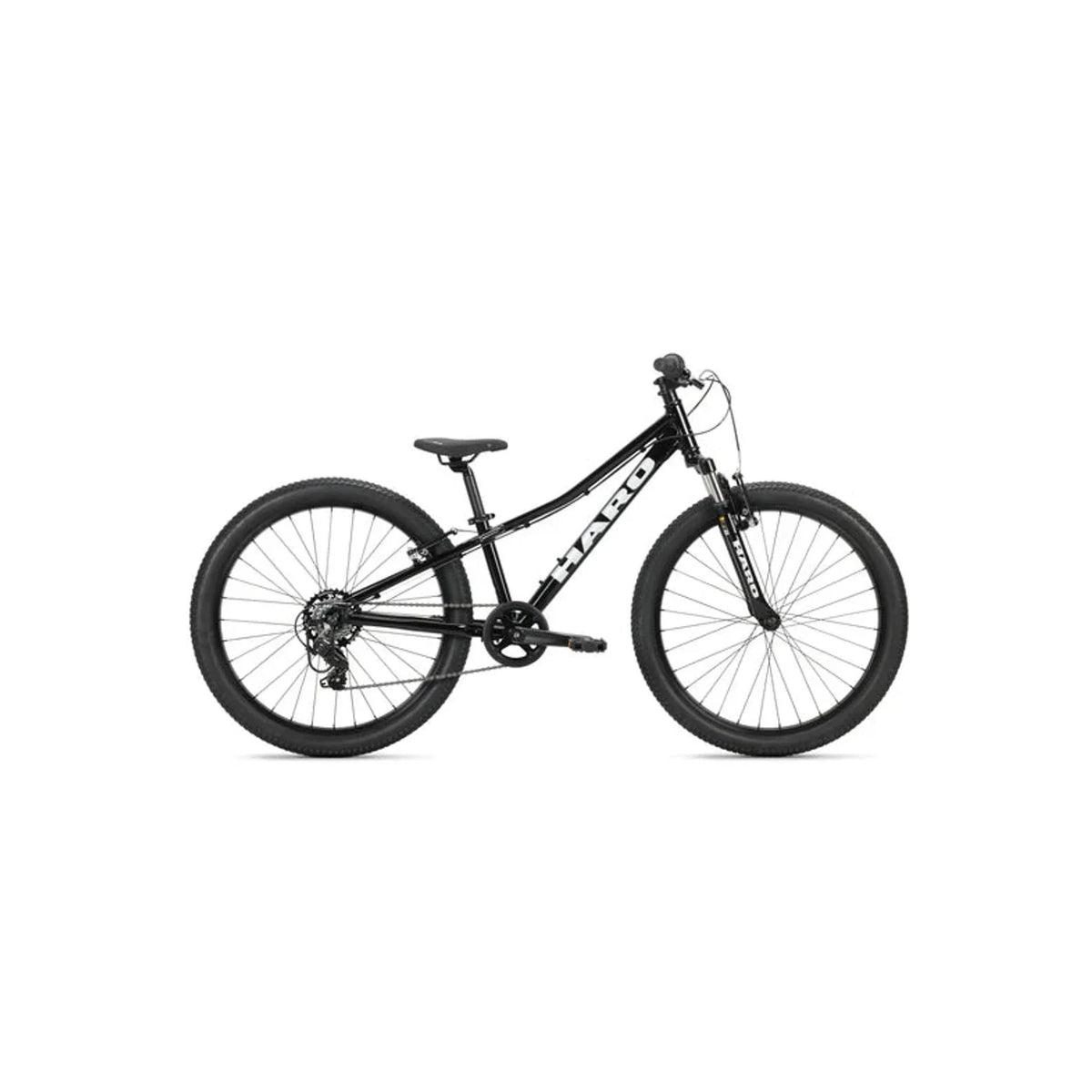

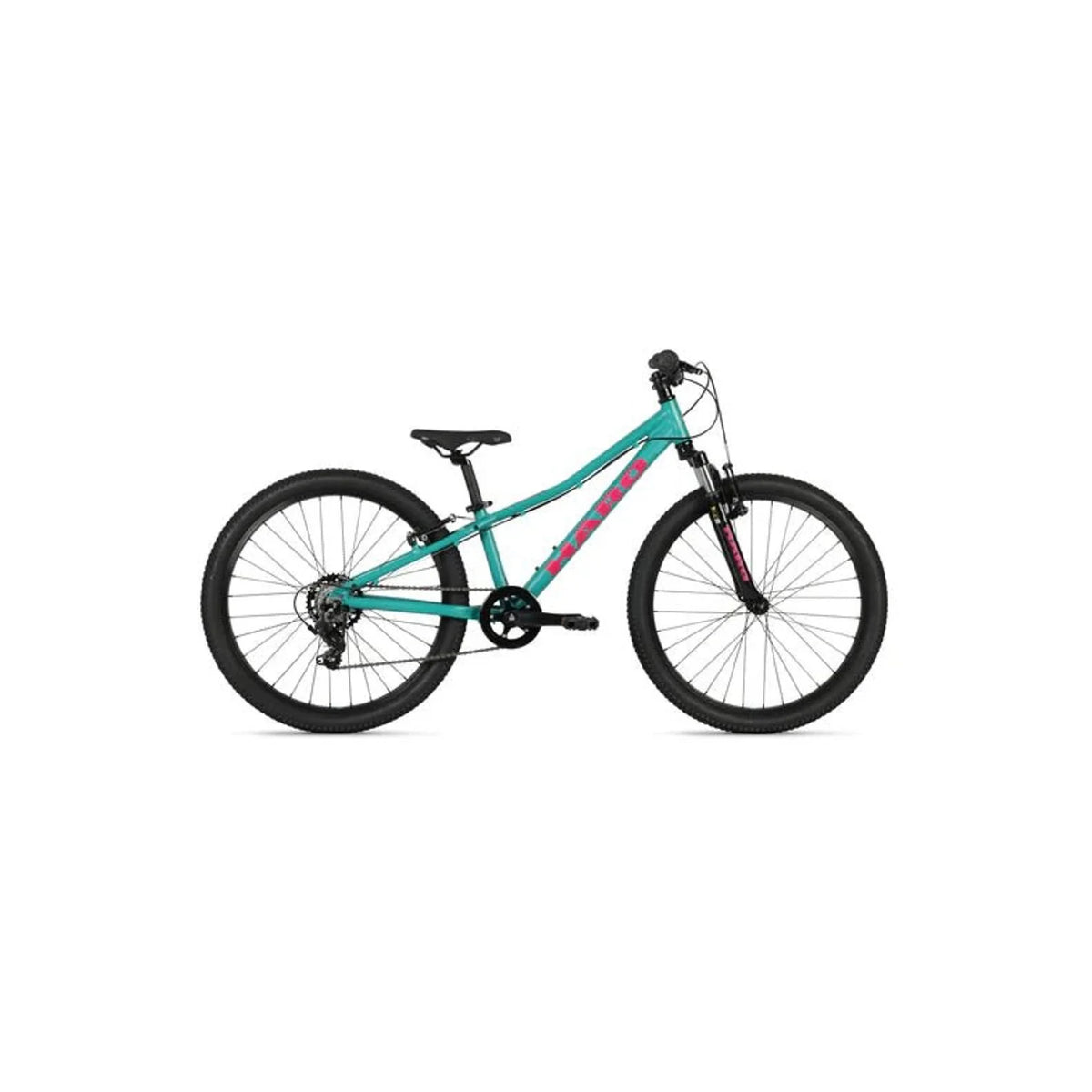

Haro Flightline 24 Youth Hardtail Mountain Bicycle

Thanks to its lower stand-over height frame and 24" wheelset, the Flightline 24 is perfect for adventurous kids who love to ride but aren't quite ready for the larger sizes yet. The FL 24 features Haro's FL3G low profile X6 alloy frame with a ton of stand-over clearance. Bumps don't stand a chance thanks to its suspension fork with 40mm of travel. The FL 24 features a new 1x7-speed drive-train with a single chainring to make it easier to switch gears.

FEATURES

• Flightline X6 Series aluminum frame

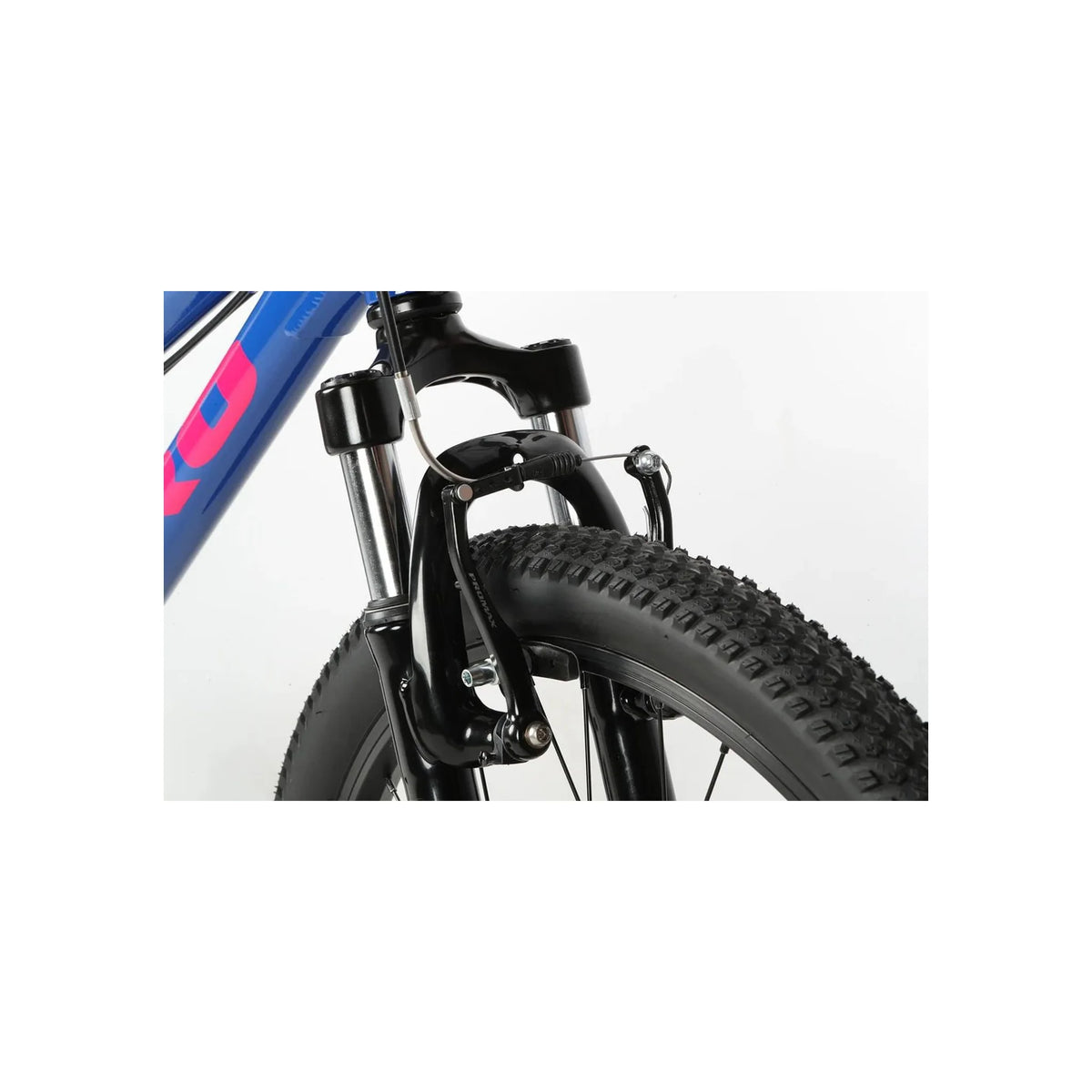

• HL 410E 1-1/8" threadless suspension fork w/ 40mm travel

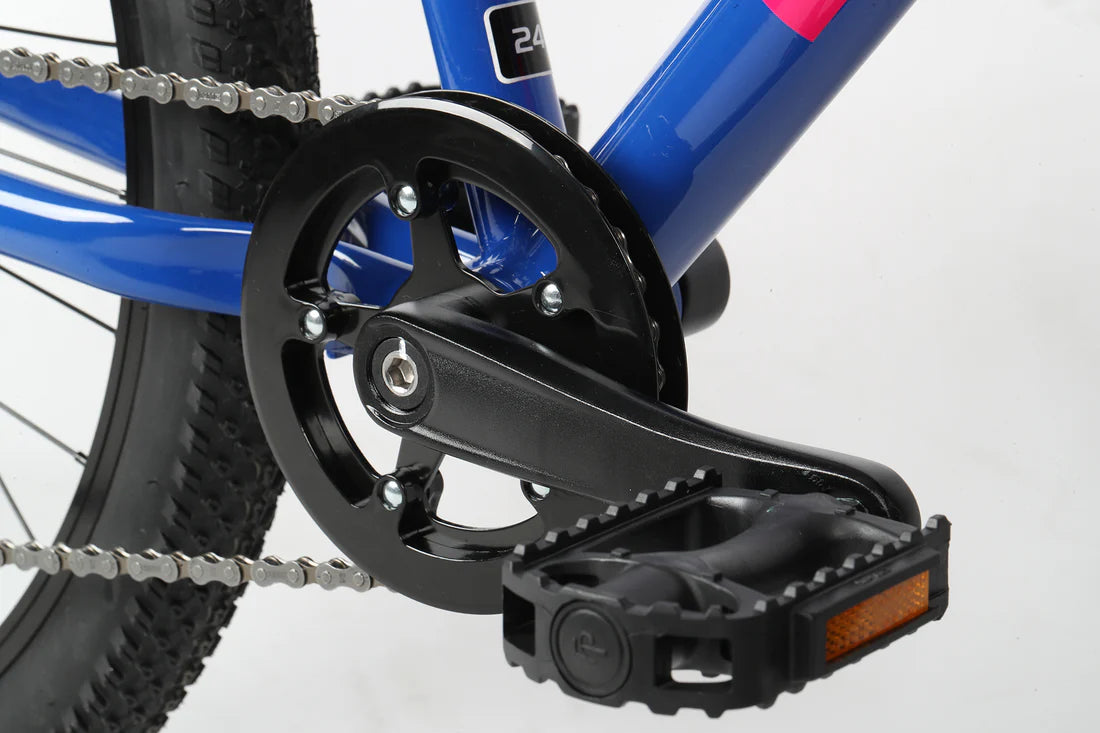

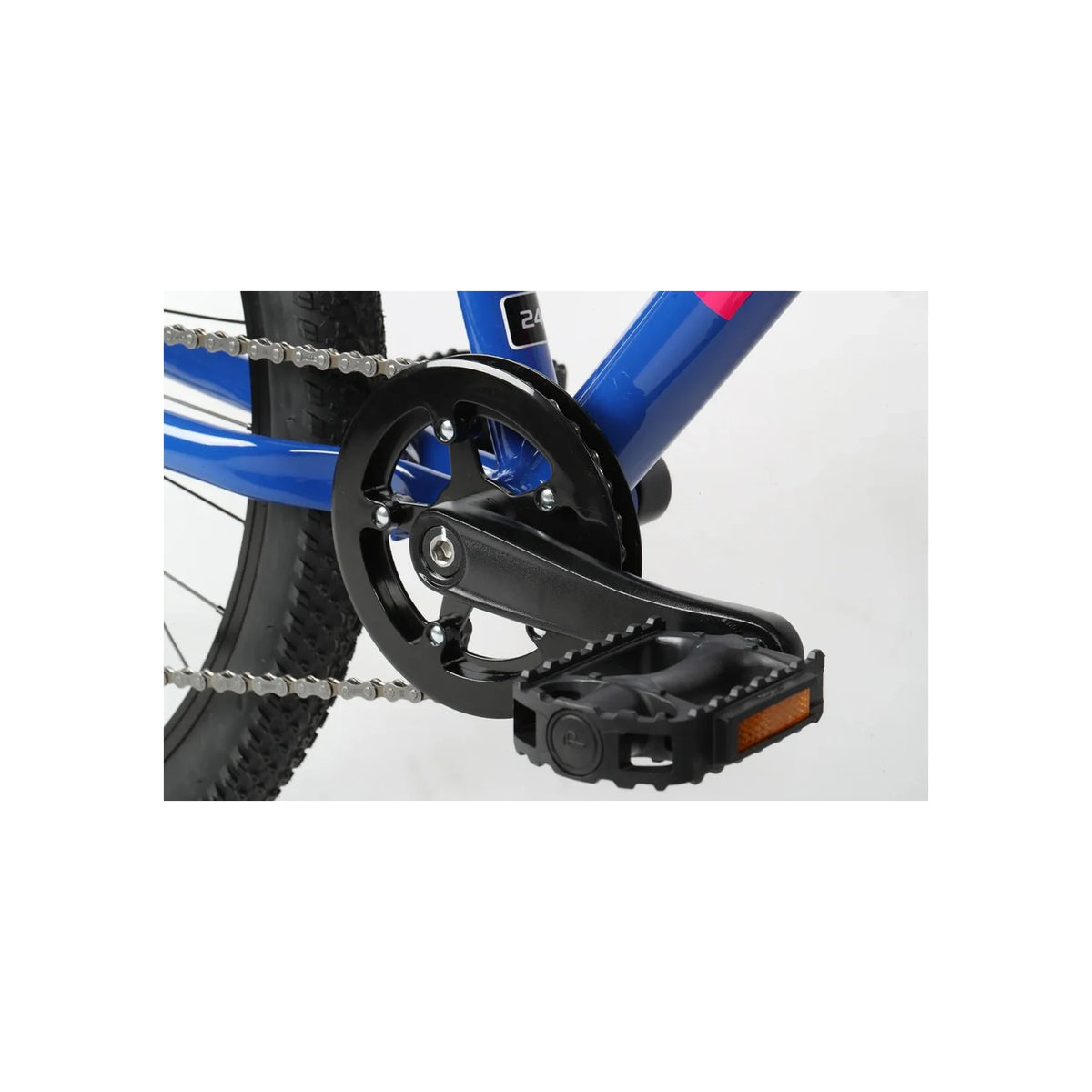

• Aluminum 3-pc 28T crankset w/ double chainguard

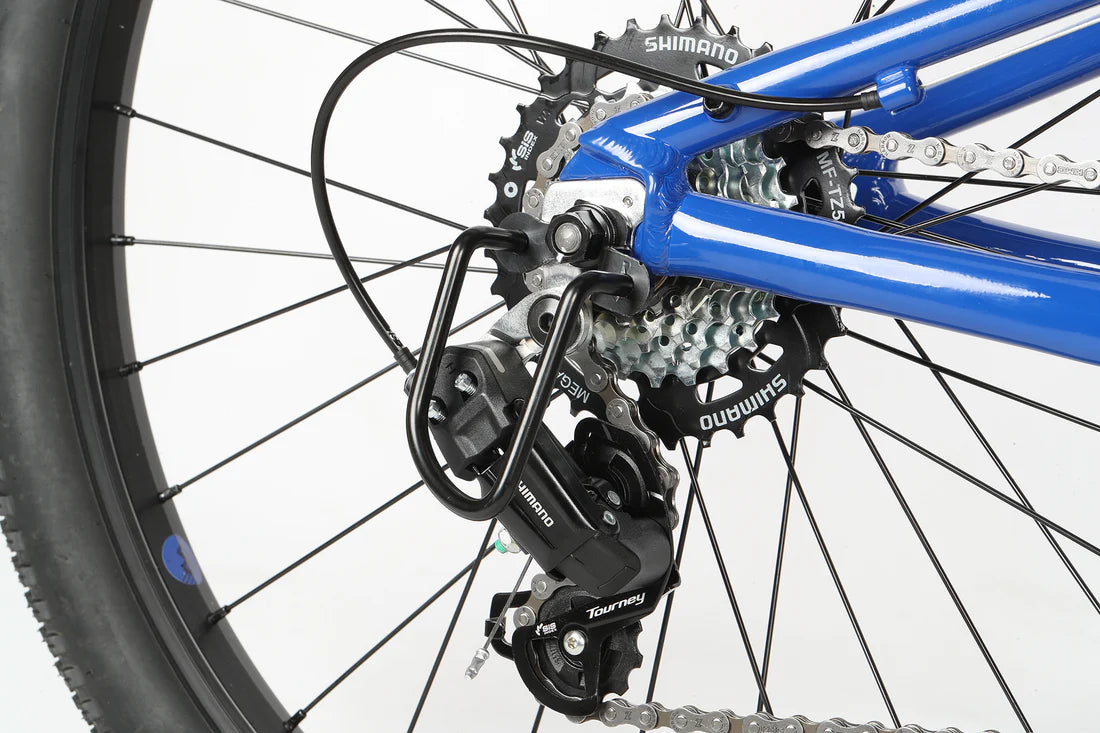

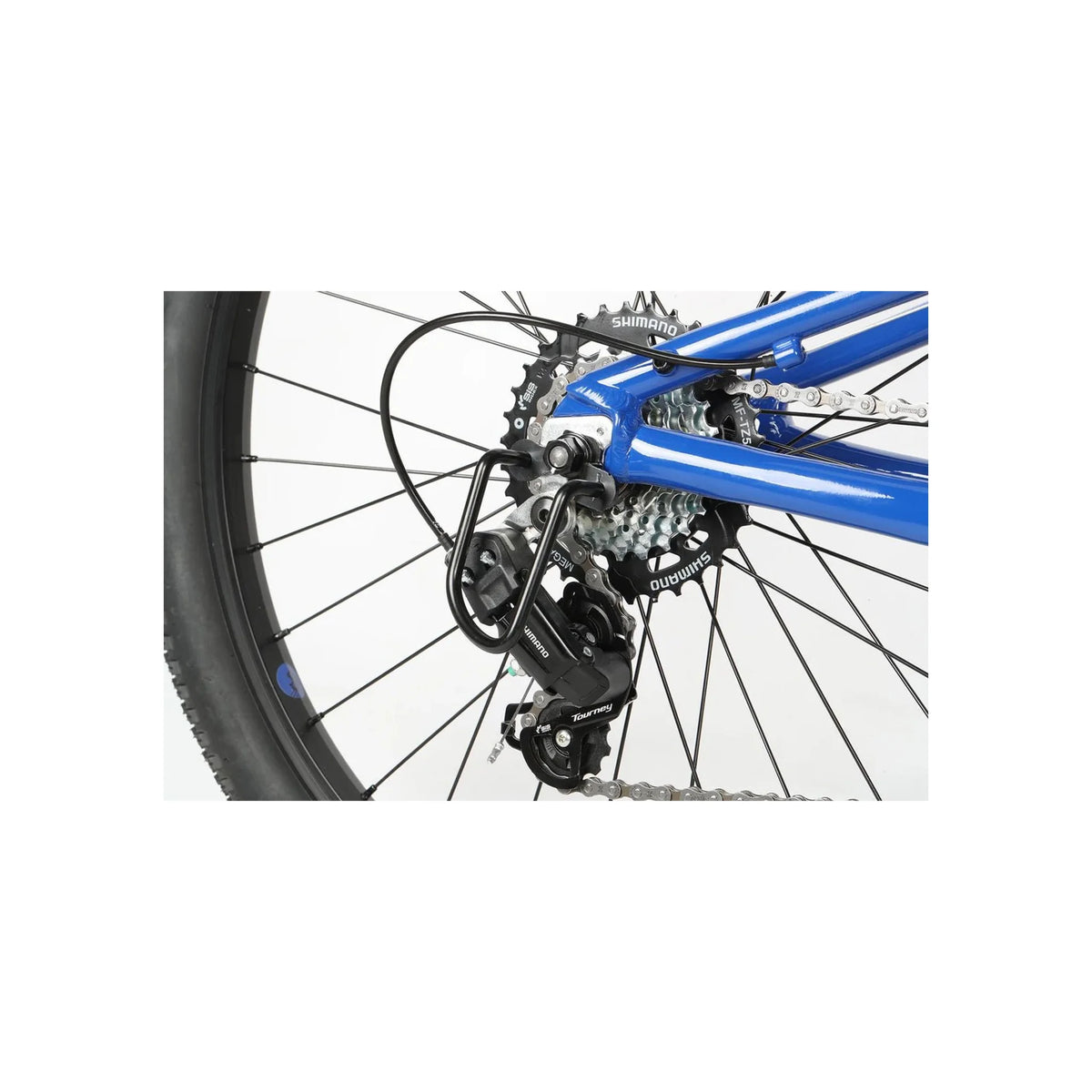

• Shimano Tourney 7spd Rear Derailleur

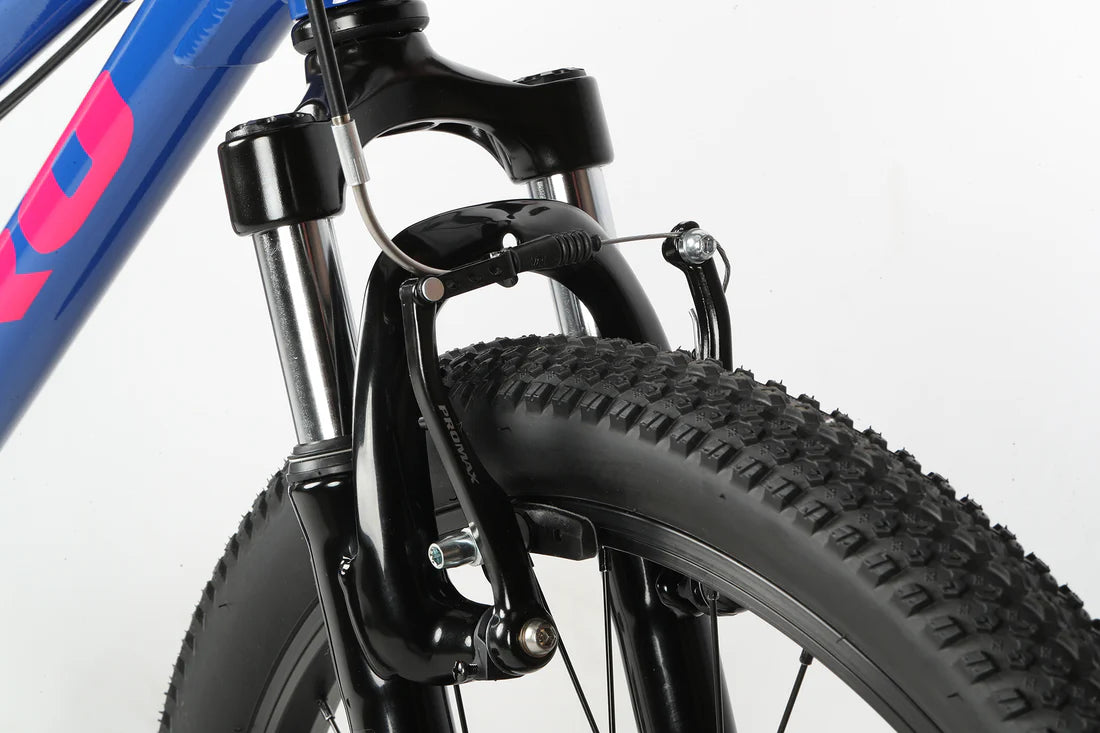

• Promax TX-121 V-Brakes W Short reach levers

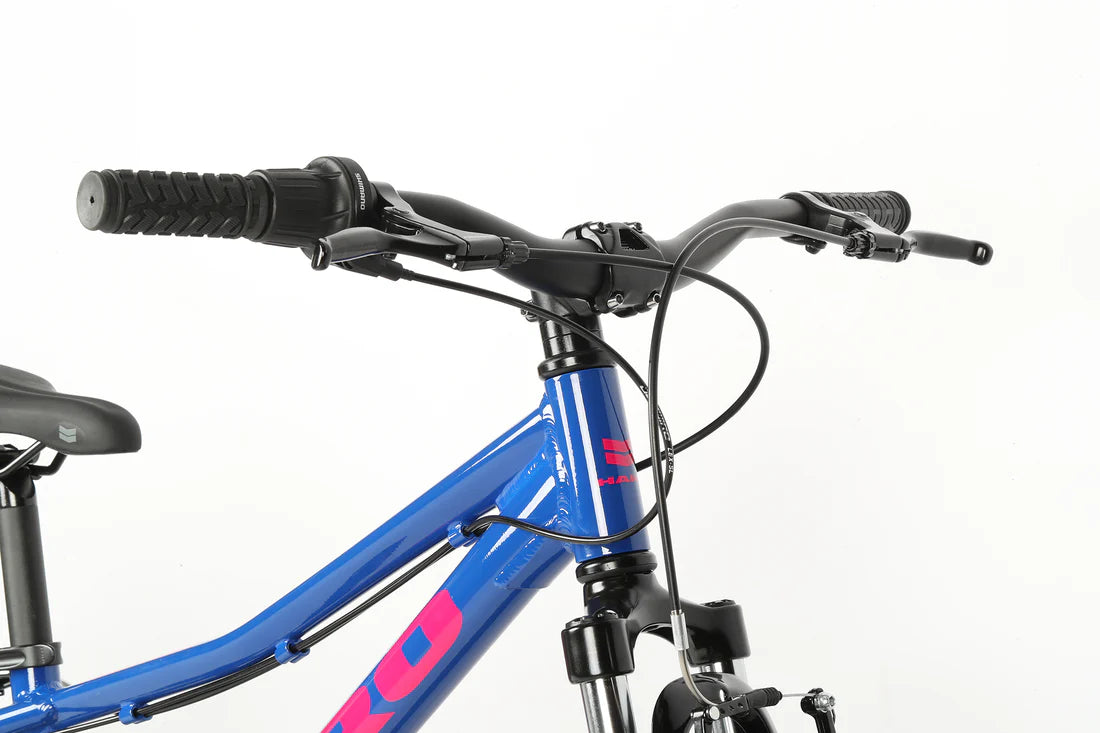

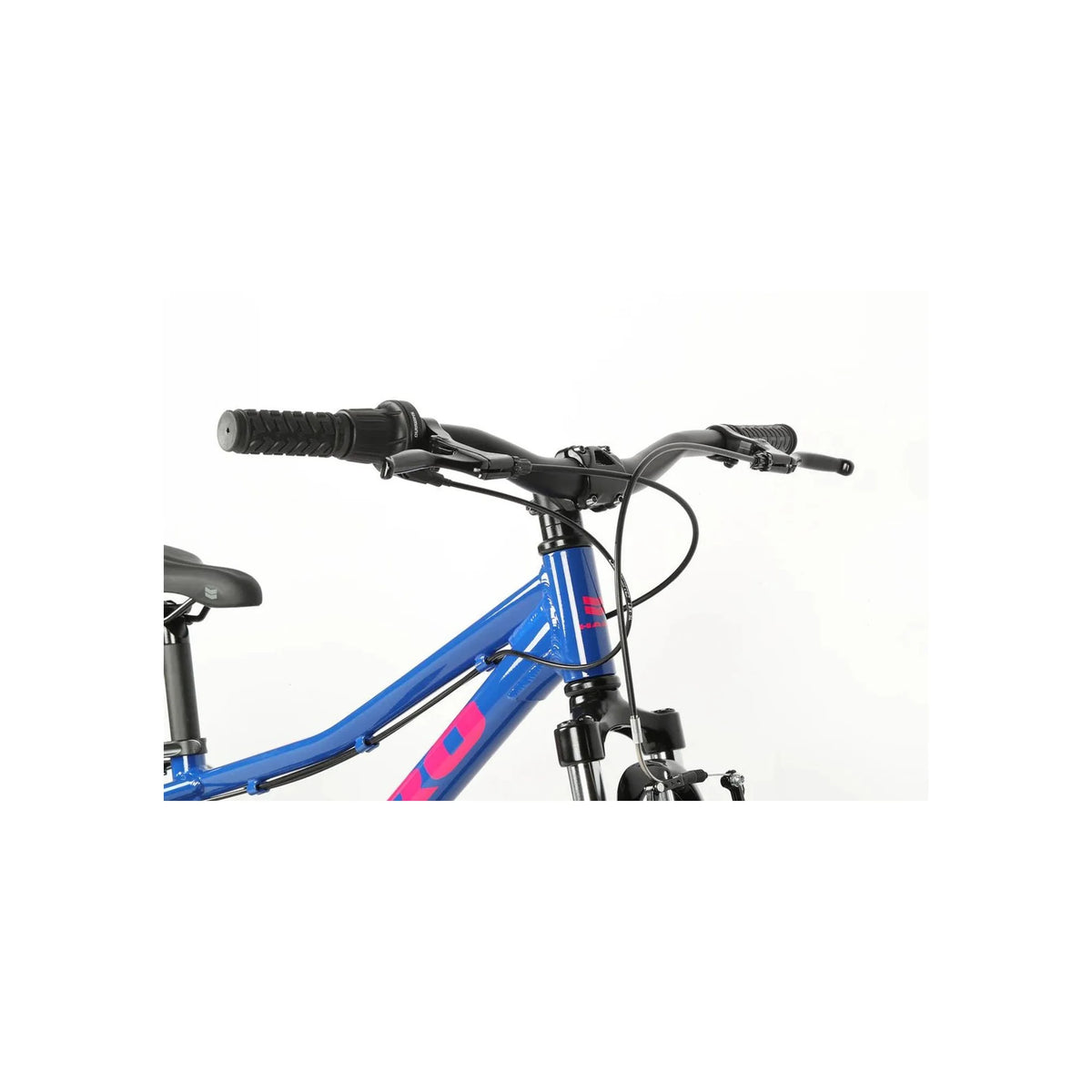

• Alloy riser, 620mmW, 9° back sweep, 25mm rise, ø31.8

GEOMETRY

Geometry & Sizing

SIZE	24
A. Seat Tube (C-T)	271mm (10.7")
B. Top Tube (Effective)	515mm (20.3")
C. Head Tube Angle	69°
D. Seat Tube Angle	73°
E. Chainstay Length	405mm (15.9")
F. BB Drop	30mm (1.2")
G. Wheelbase	984mm (38.7")
H. Head Tube Length	100mm (3.9")
I. Standover	584mm (23")
J. Stack Height	504mm (19.8")
K. Reach	361mm (14.2")
L. Axle to Crown	410mm (16.1")
M. Fork Offset	35mm (1.4")
N. Stem Length	45mm
O. Bar Width	620mm
P. Crank Length	152mm
