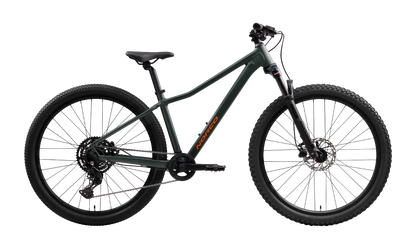

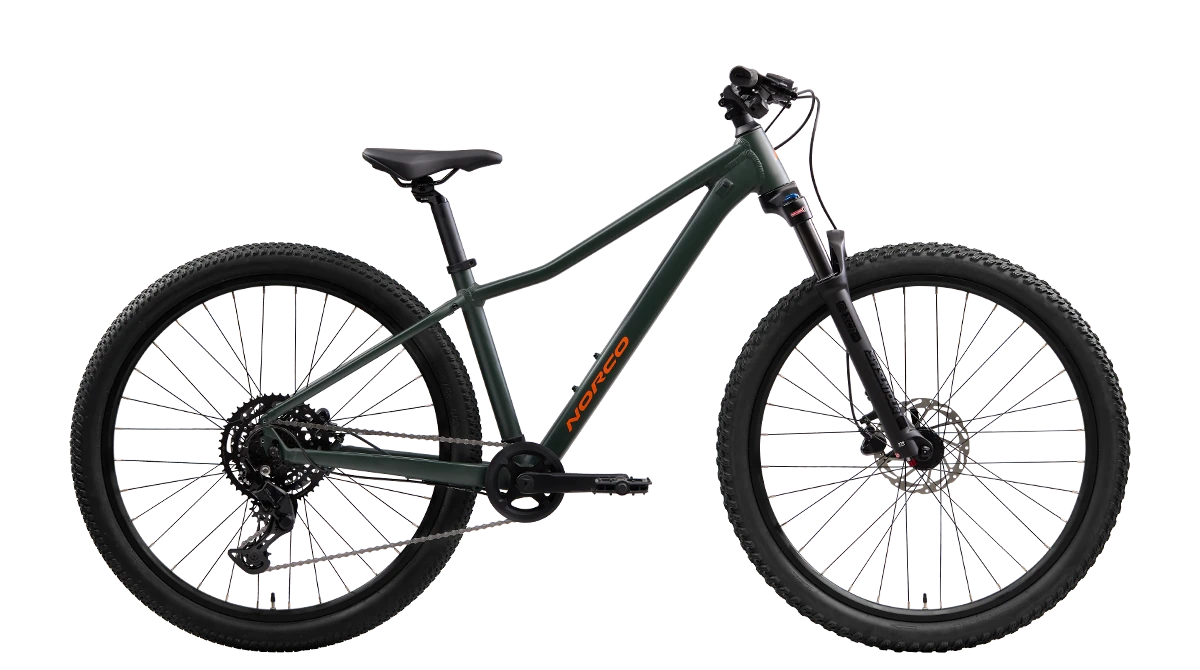

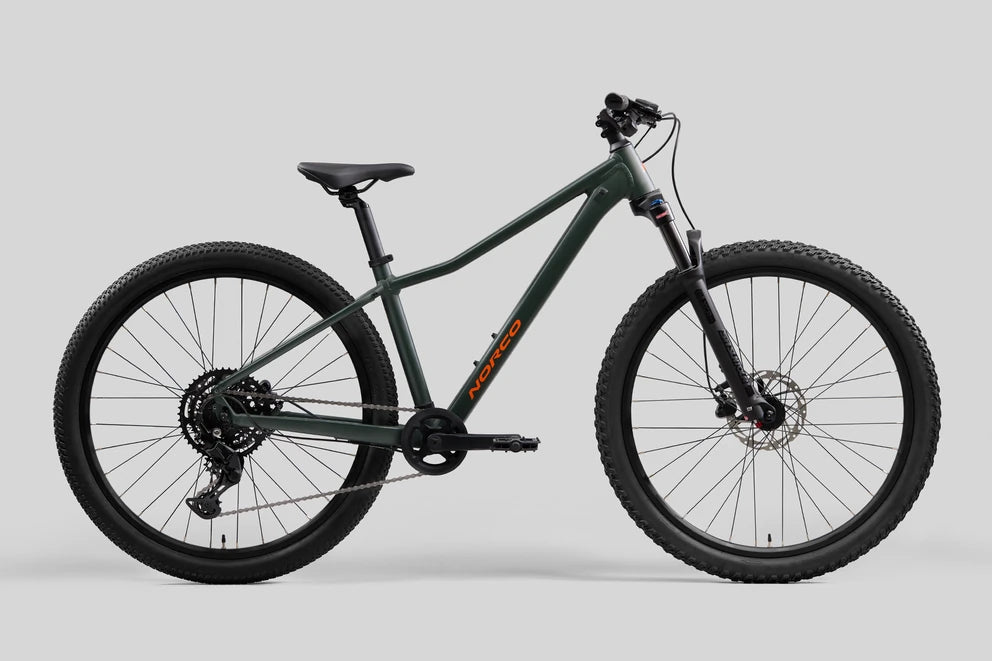

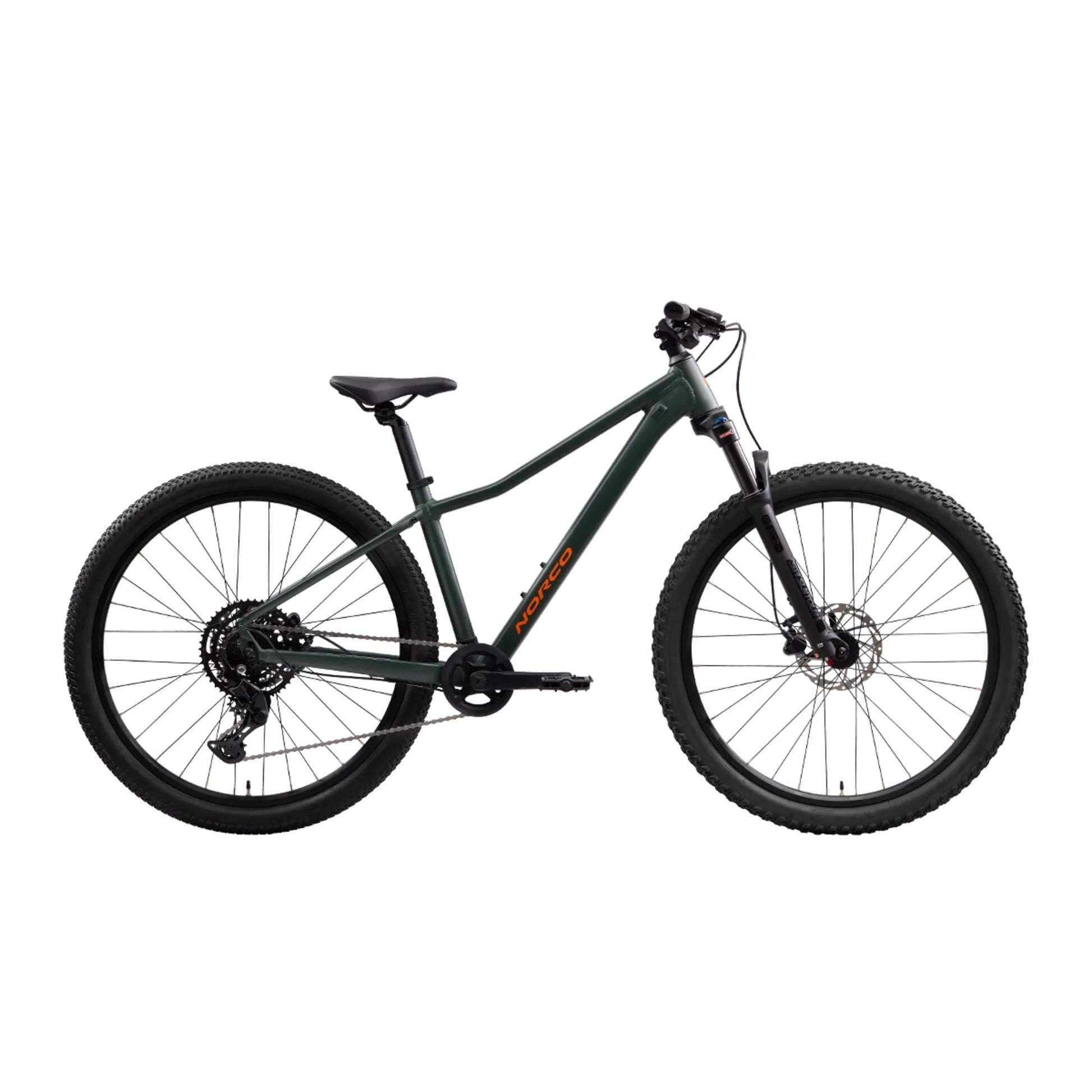

Norco Charger 26 Hardtail Mountain Bike

The Charger Youth features three sizes, 20", 24" and 26" wheels and tires, for options on a low stand over on a lightweight aluminum frame – modern features for the whole family. Head for local trails and urban pathways, cruise the campground, or commute to school in style.

Product Specifications

Frameset

• Frame: Aluminum, 9x135mm QR, 26"

• Fork: SR Suntour XCR 27.5" 32 Air, Lockout/Rebound/Light Tune, 80mm, 9x100mm QR

Drivetrain

• Rear Shifter: Shimano Cues SL-U4000, 9-speed

• Rear Derailleur: Shimano Cues RD-U4000, 9-speed, GS

• Crankset: Alloy 3-piece, 152mm, 28T Narrow Wide

• Bottom Bracket: Sealed bearing, ST 68mm

• Cassette: Shimano Cues CS-LG300-9, 11-46T, 9-speed

• Chain: KMC Z9

Brakes

• Front Brake: Tektro HD-M286, Resin Pads

• Front Brake Rotor: Tektro, 160mm, 6-bolt

• Rear Brake: Tektro HD-M286, Resin Pads

• Rear Brake Rotor: Tektro, 160mm, 6-bolt

• Brake Levers: Tektro HD-M286, Hydraulic, 2-Finger Jr. Levers

Components

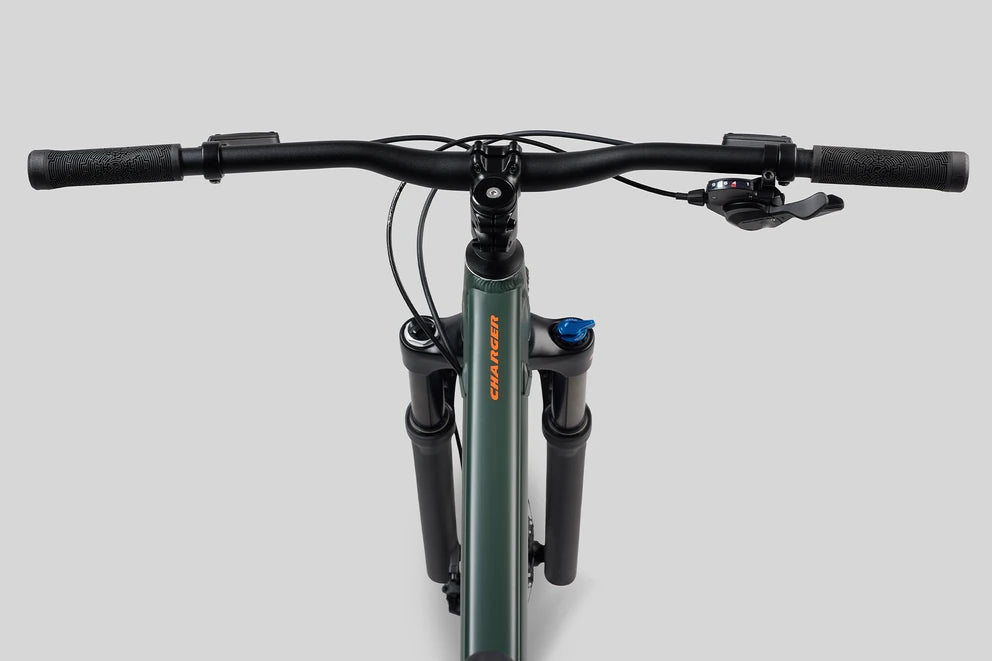

• Handlebar: 6061 Alloy Double Butted, 1.6mm, 720mm width, 20mm rise

• Stem: Alloy, 45mm length, 31.8mm clamp

• Seatpost: Norco Alloy, 31.6mm diameter, 250mm length

• Headset: External Cup Ball Bearing, 1-1/8" EC34

• Headset Spacers: 1 x 10mm, 2 x 5mm

• Saddle: Norco Jr XC, Steel Rail

• Grips: Norco Youth, 115mm length

• Pedals: Jr. MTB Flat, 9/16"

• Seatpost Clamp: Norco Alloy Bolted, 34.9mm ID

Wheels

• Front Hub: Formula DC-1420, 9x100mm QR, 28-hole, 6-bolt

• Rear Hub: Formula DC-1425, 10x135mm QR, HG, 28-hole, 6-bolt

• Rims: Aluminum Double Wall, 28-hole, 26" MTB

• Front Tire: CY Trail, 26x2.25", Wire bead

• Rear Tire: CY Trail, 26x2.25", Wire bead

• Spokes/Nipples: Stainless Steel with Brass Nipples

Weight

• Total Weight: 12.36 kg (27.2 lbs)
