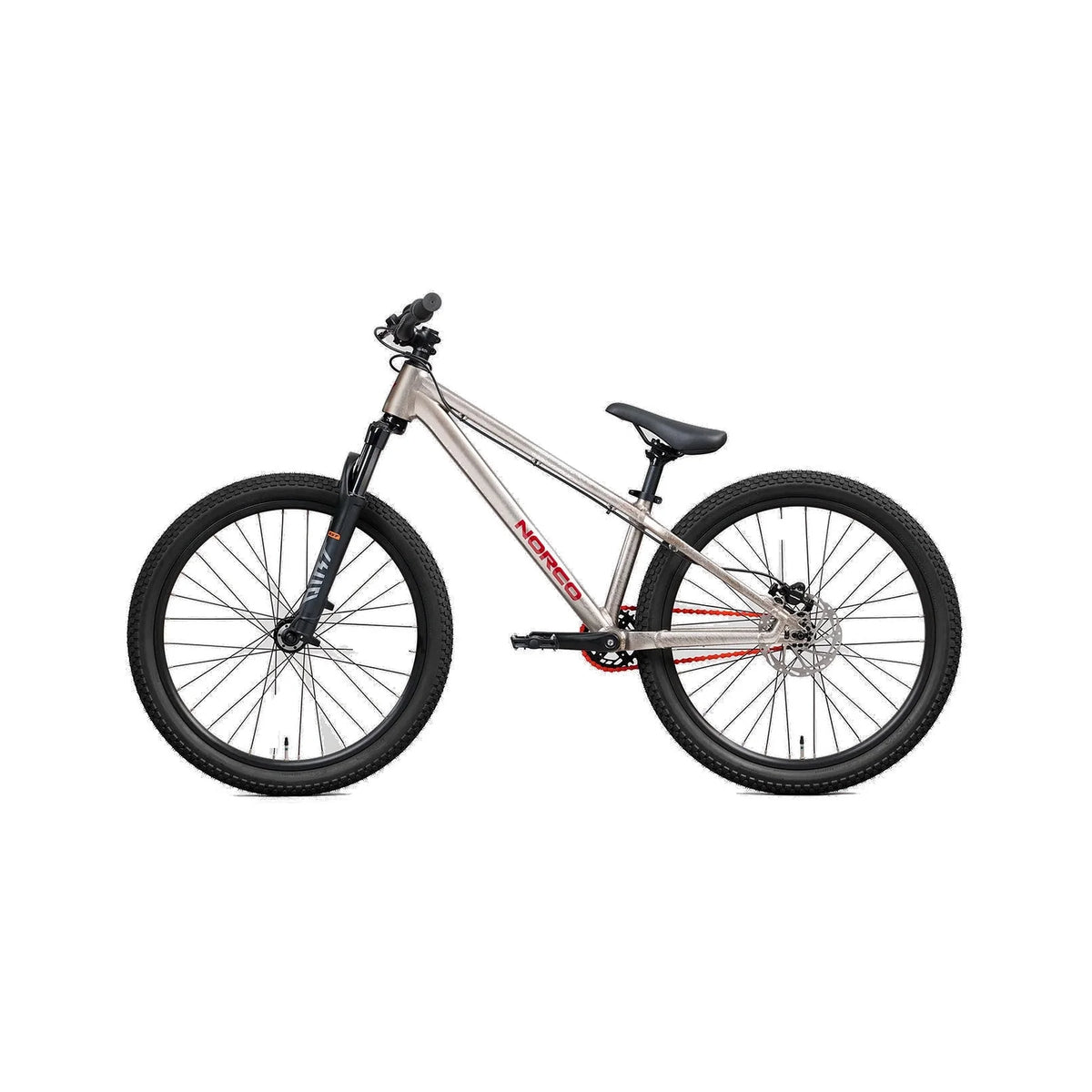

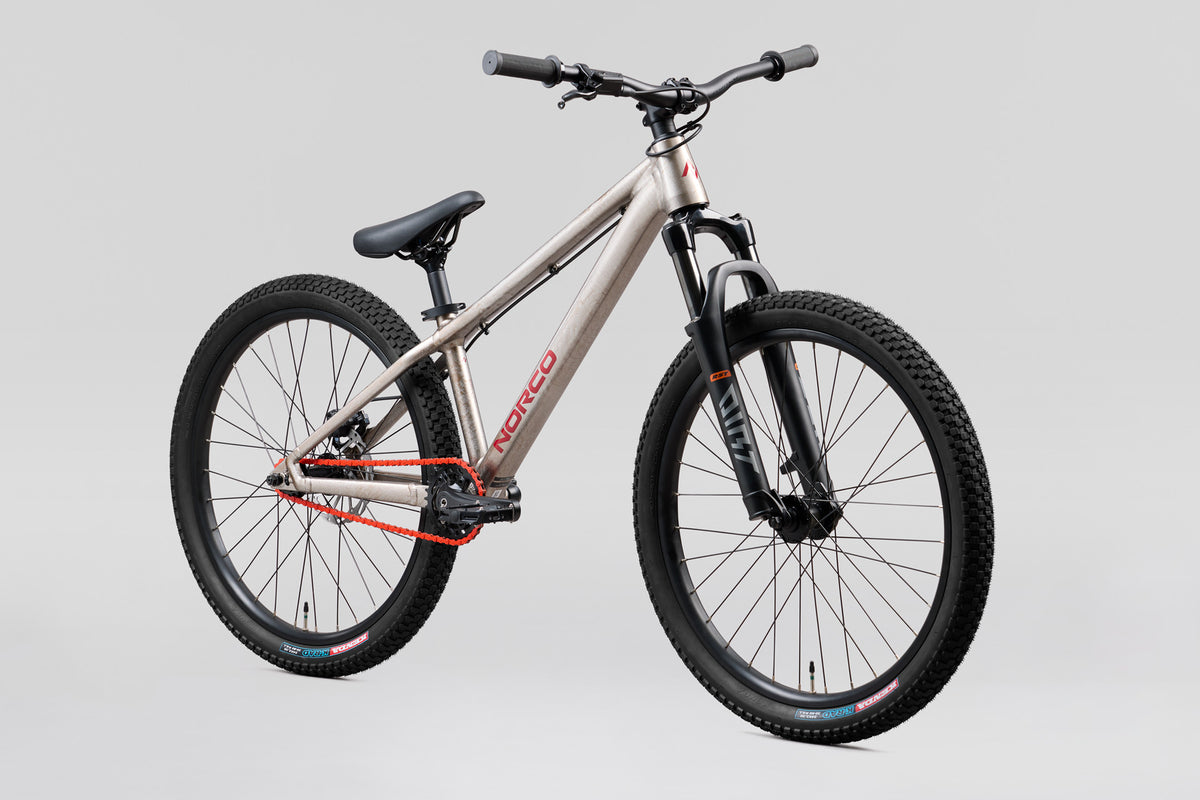

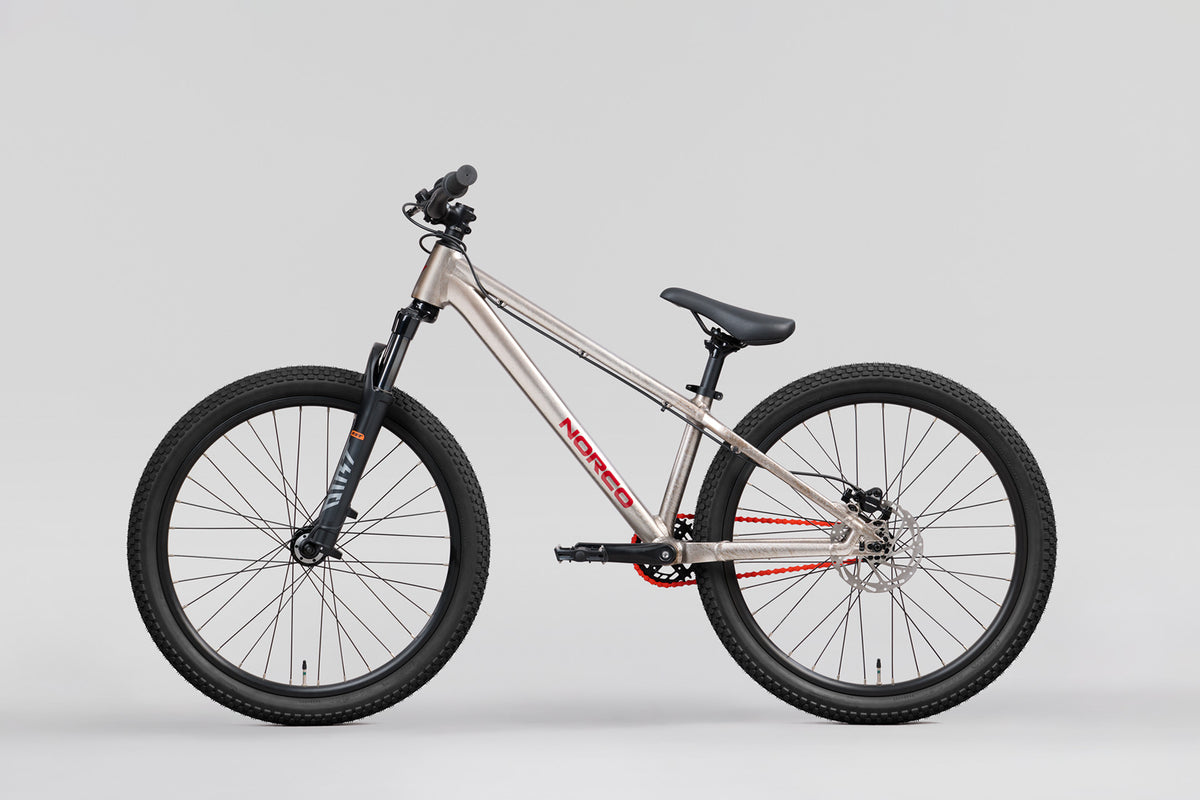

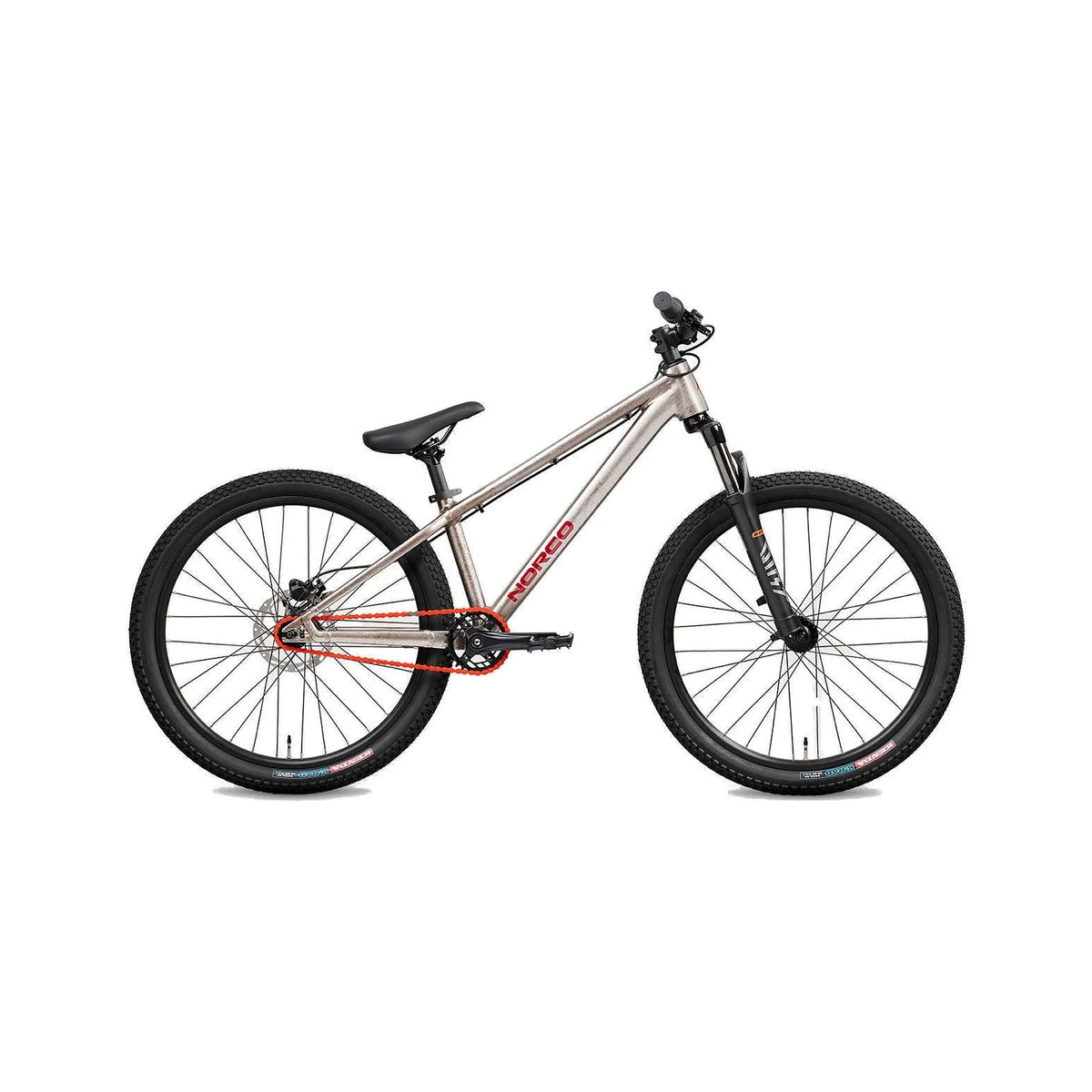

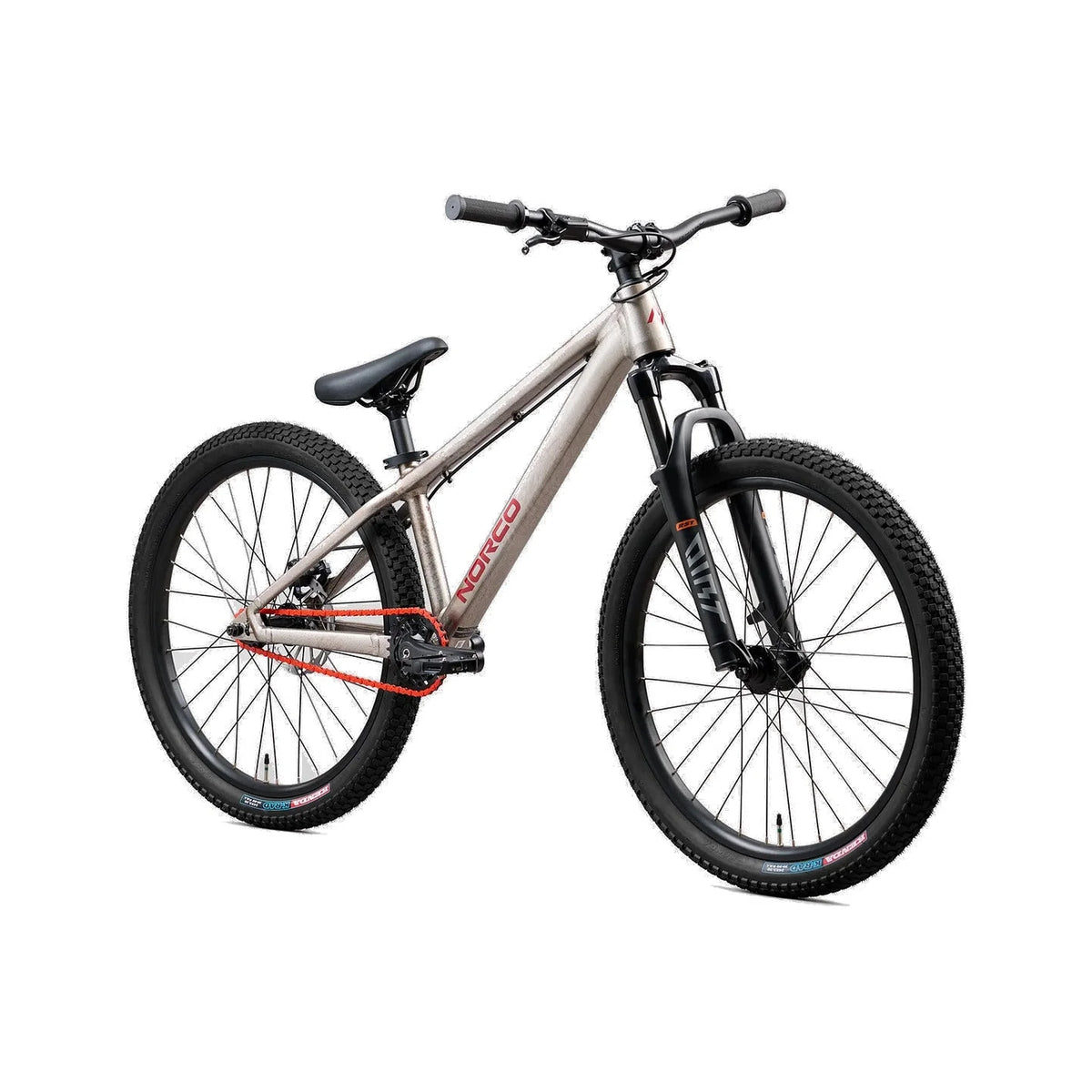

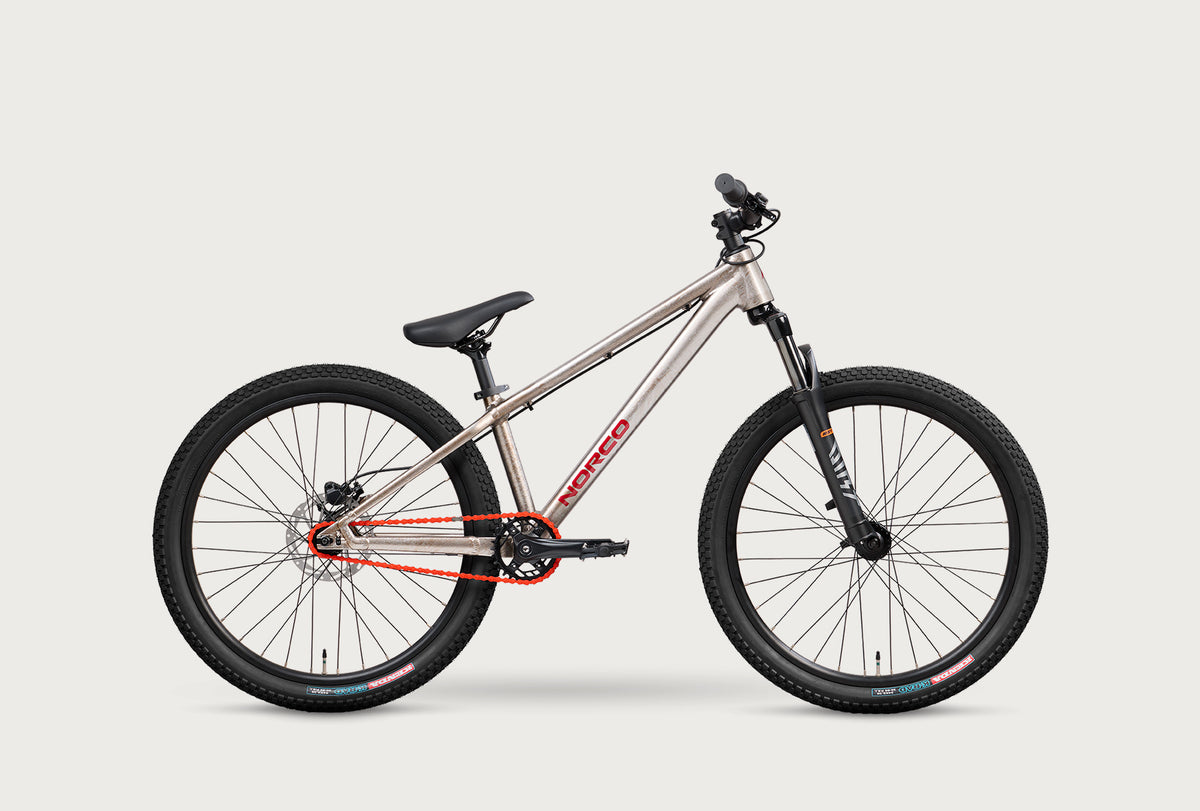

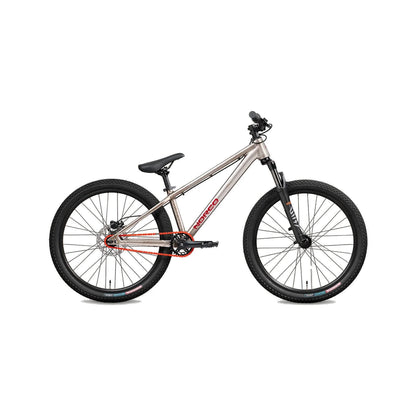

Norco Rampage Youth 24 Dirt Jump Bike

The Norco Rampage Youth 24 is a purpose-built dirt jump bike for young riders ready to progress on jumps, pump tracks, and bike parks. Its lightweight aluminum frame, 80mm suspension fork, single-speed drivetrain, and agile geometry deliver the control and durability needed for confident riding.

Specs

Frameset

• Frame: Aluminum Dirt Jump, 24", Smooth Welded

• Fork: RST Dirt

• Fork Travel: 80mm

• Front Axle: 9x100mm

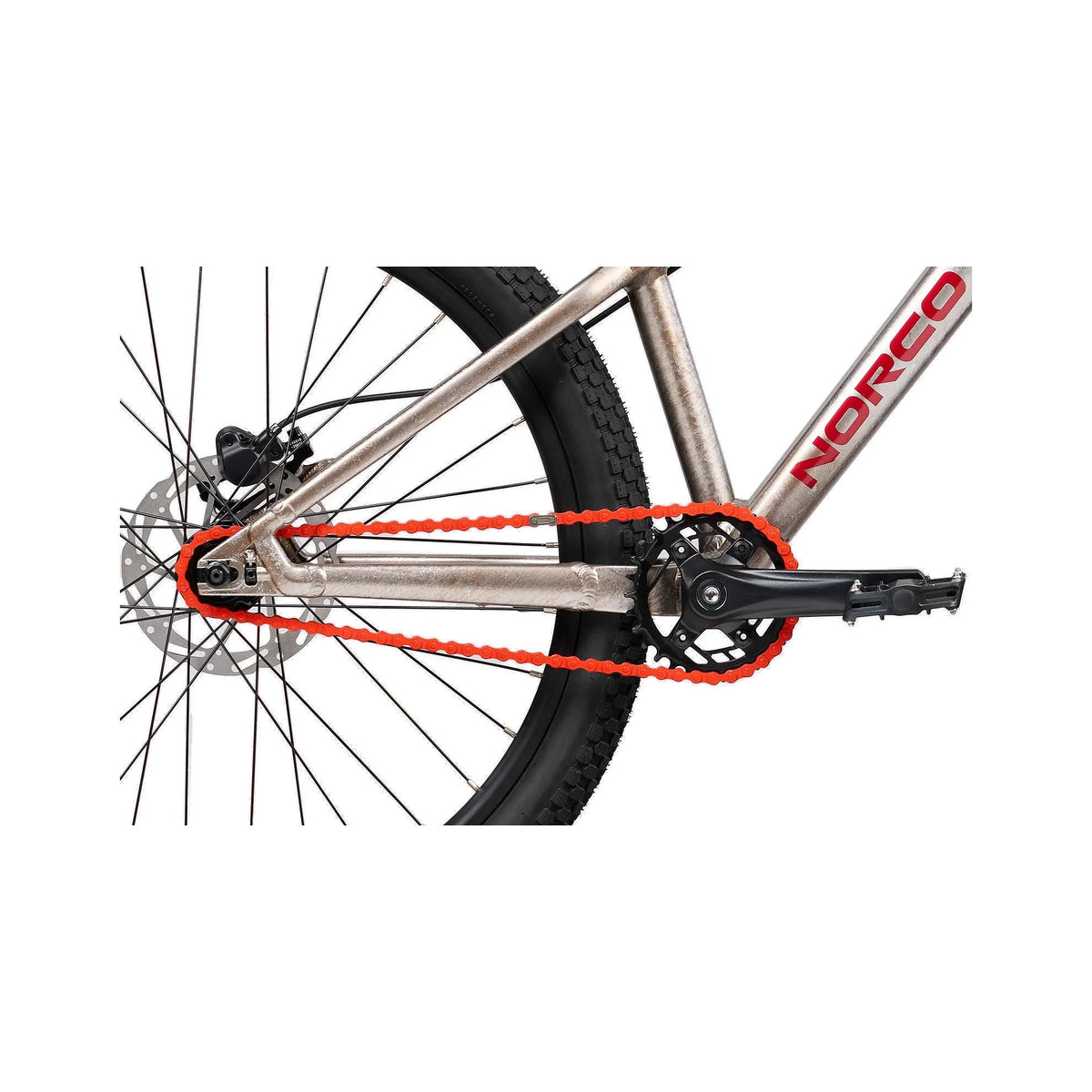

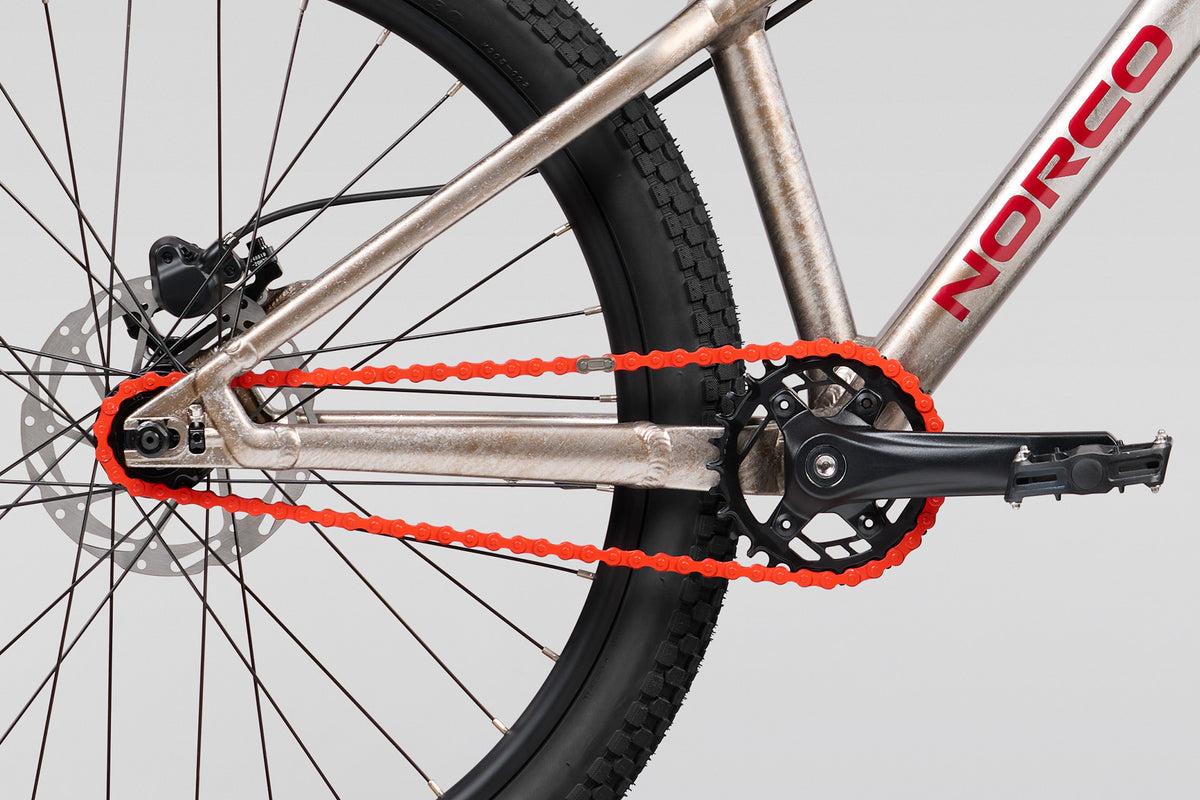

Drivetrain

• Drivetrain: Single Speed

• Crankset: Prowheel Junior Alloy, 140mm

• Chainring: 30T

• Rear Sprocket: 14T

• Bottom Bracket: Square Taper, 73mm

• Chain: KMC Z1, 1/2" x 3/32"

Brakes

• Front Brake: Tektro MD-M280 Mechanical Disc

• Rear Brake: Tektro HD-M3121

• Rotors: Tektro TR160-52, 160mm Front & Rear

• Rotor Mount: 6-Bolt

• Brake Levers: Tektro Alloy

• Brake Pads: Resin

Wheels & Tires

• Wheel Size: 24"

• Rims: XD-155 Double-Wall, 32H

• Internal Rim Width: 26.6mm

• Front Hub: KT Sealed Bearing, 3/8" Nutted Axle, 32H, 6-Bolt

• Rear Hub: KT Sealed Bearing, 3/8" Nutted Axle, 32H, 14T Sprocket, 6-Bolt

• Tires: Kenda K-Rad 24 x 2.30", Wire Bead

Components

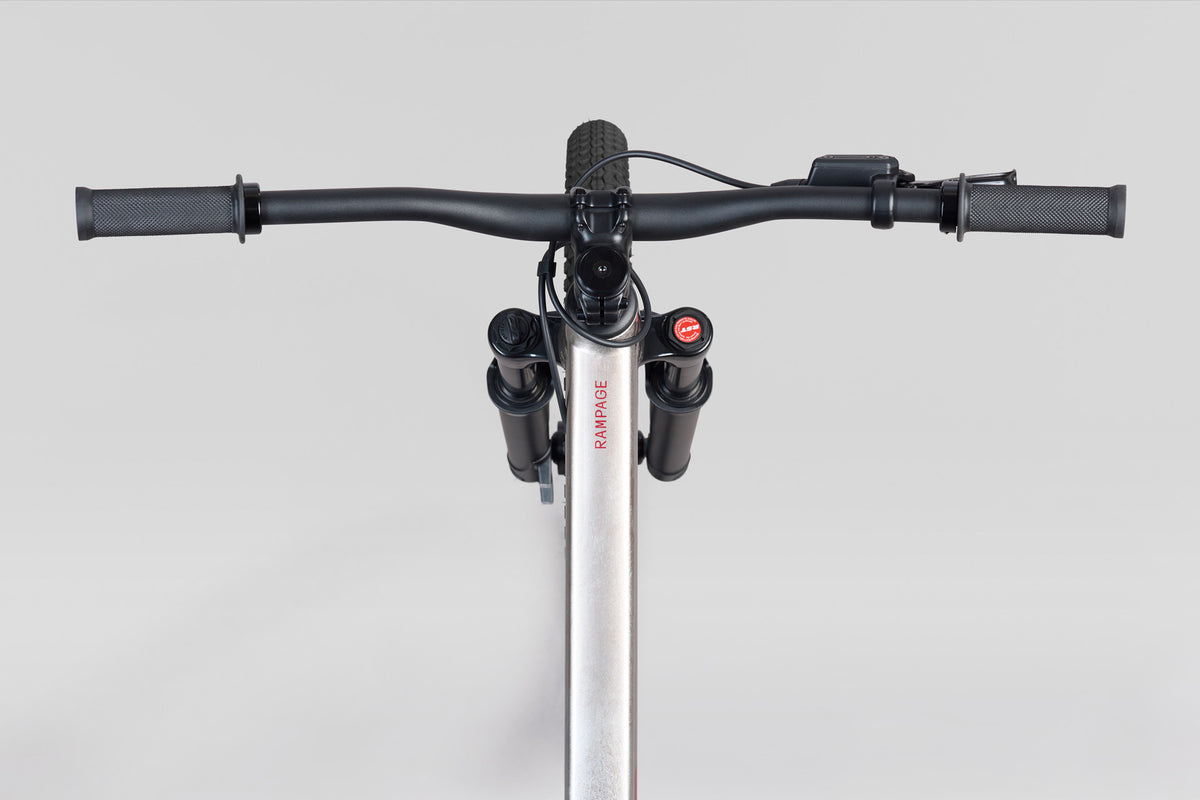

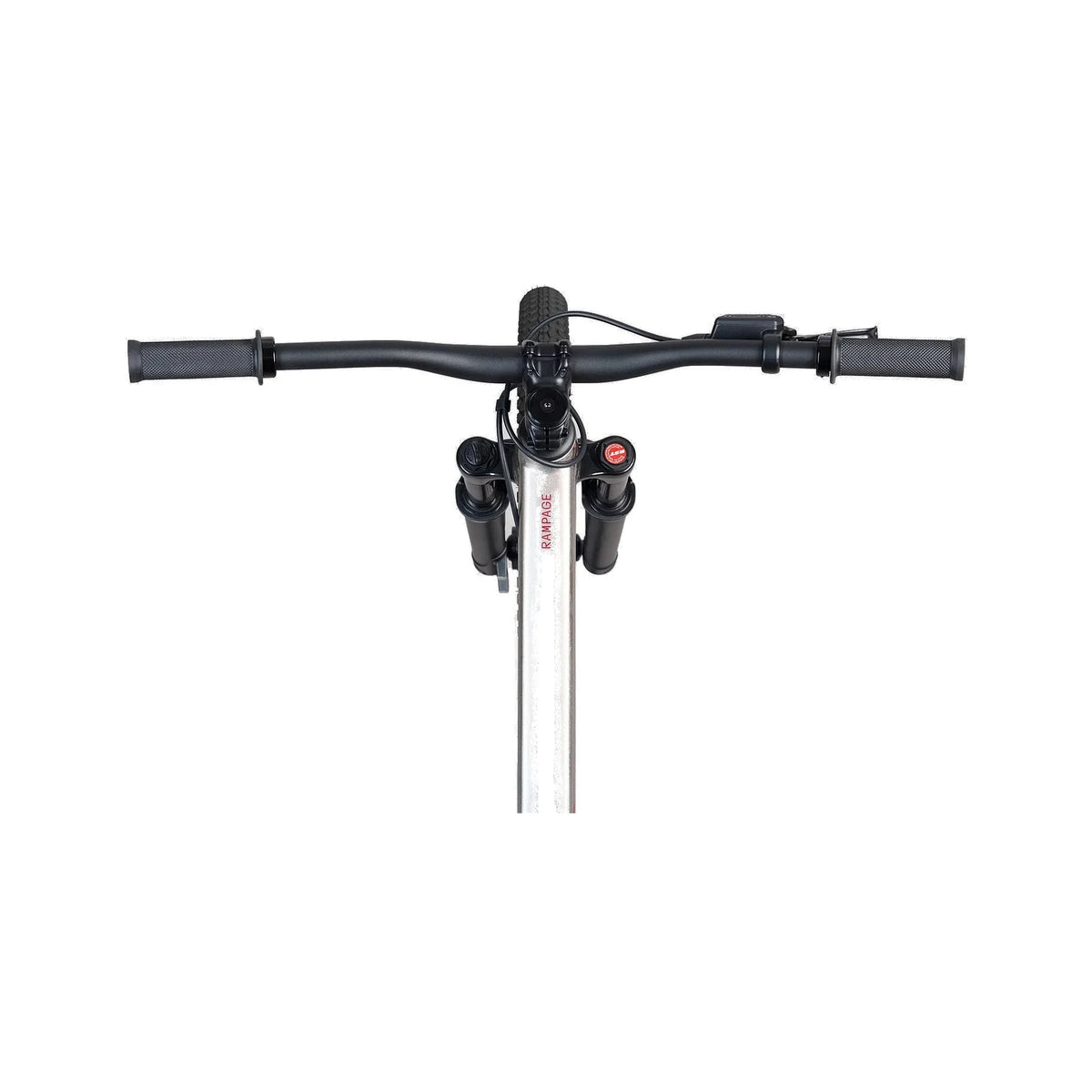

• Handlebar: Norco Aluminum, 680mm Wide, 30mm Rise

• Stem: Norco, 45mm, 31.8mm Clamp

• Seatpost: Alloy, 27.2 x 200mm

• Headset: Tapered 1-1/8"–1.5"

• Saddle: Norco DJ, 243 x 130mm

• Grips: Norco JR Single Lock-On, 115mm

• Pedals: FM 870ZP with Metal Pins

• Seat Clamp: Norco Alloy Quick Release, 31.8mm
