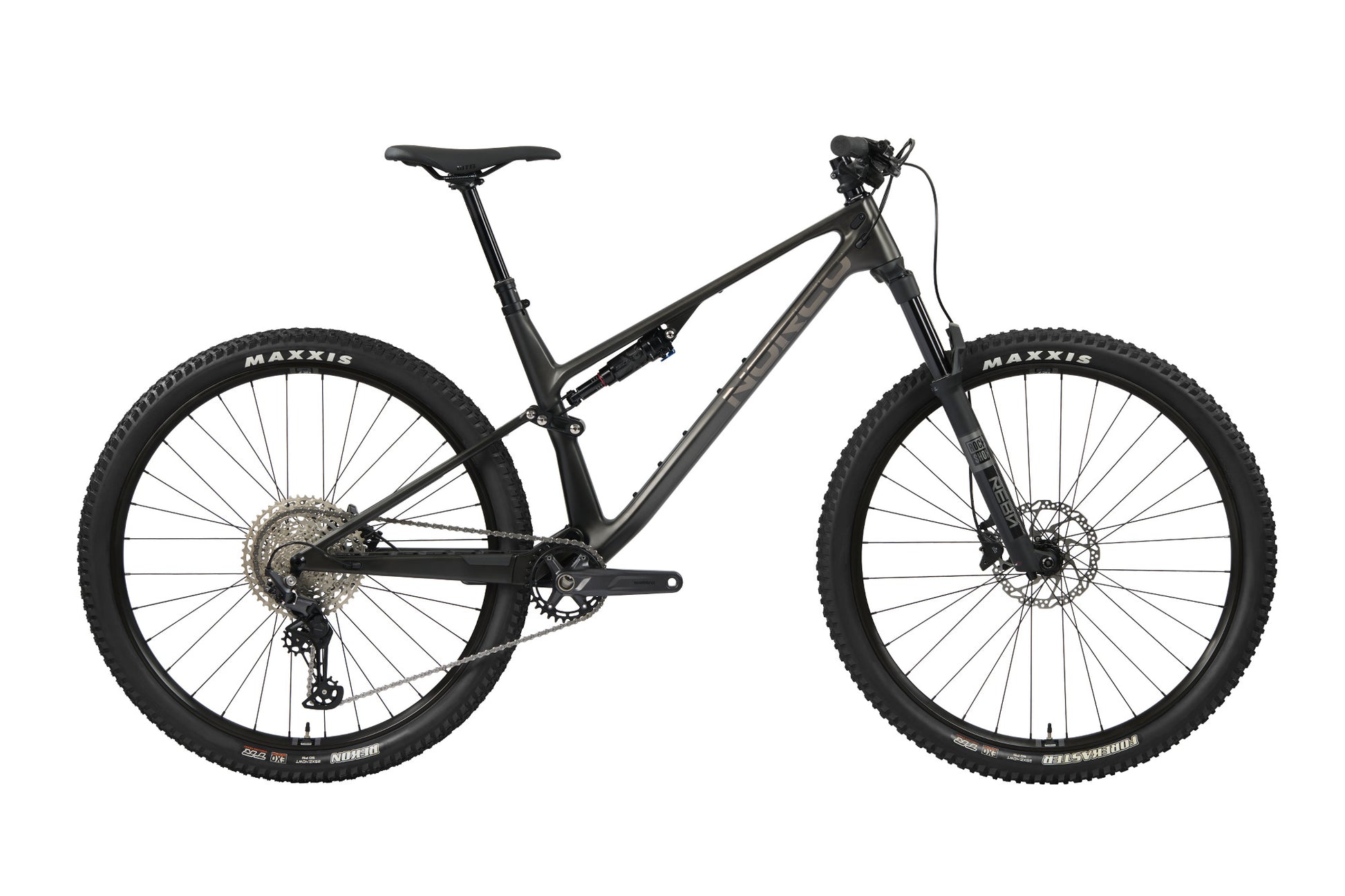

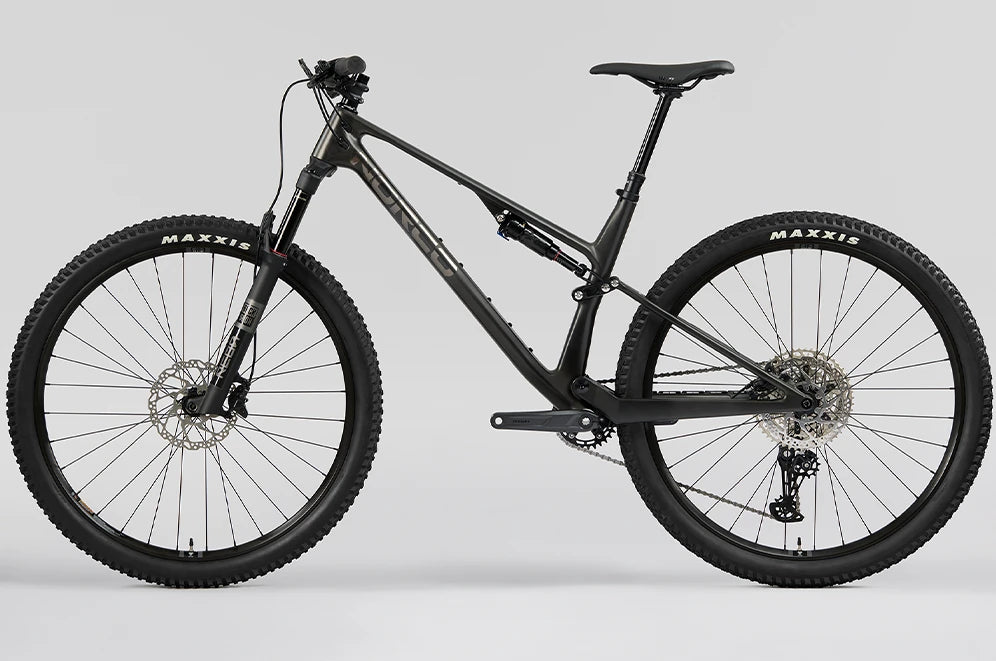

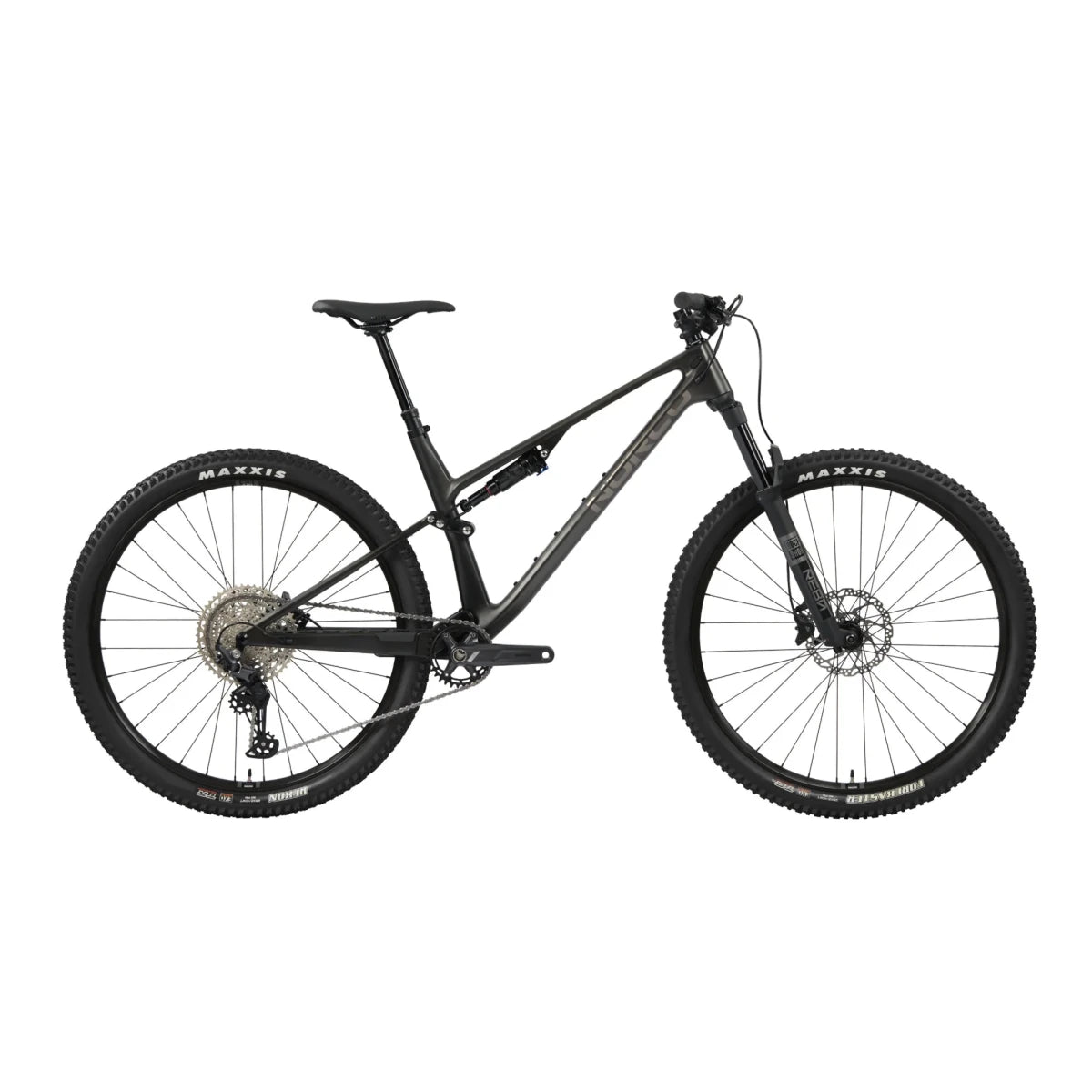

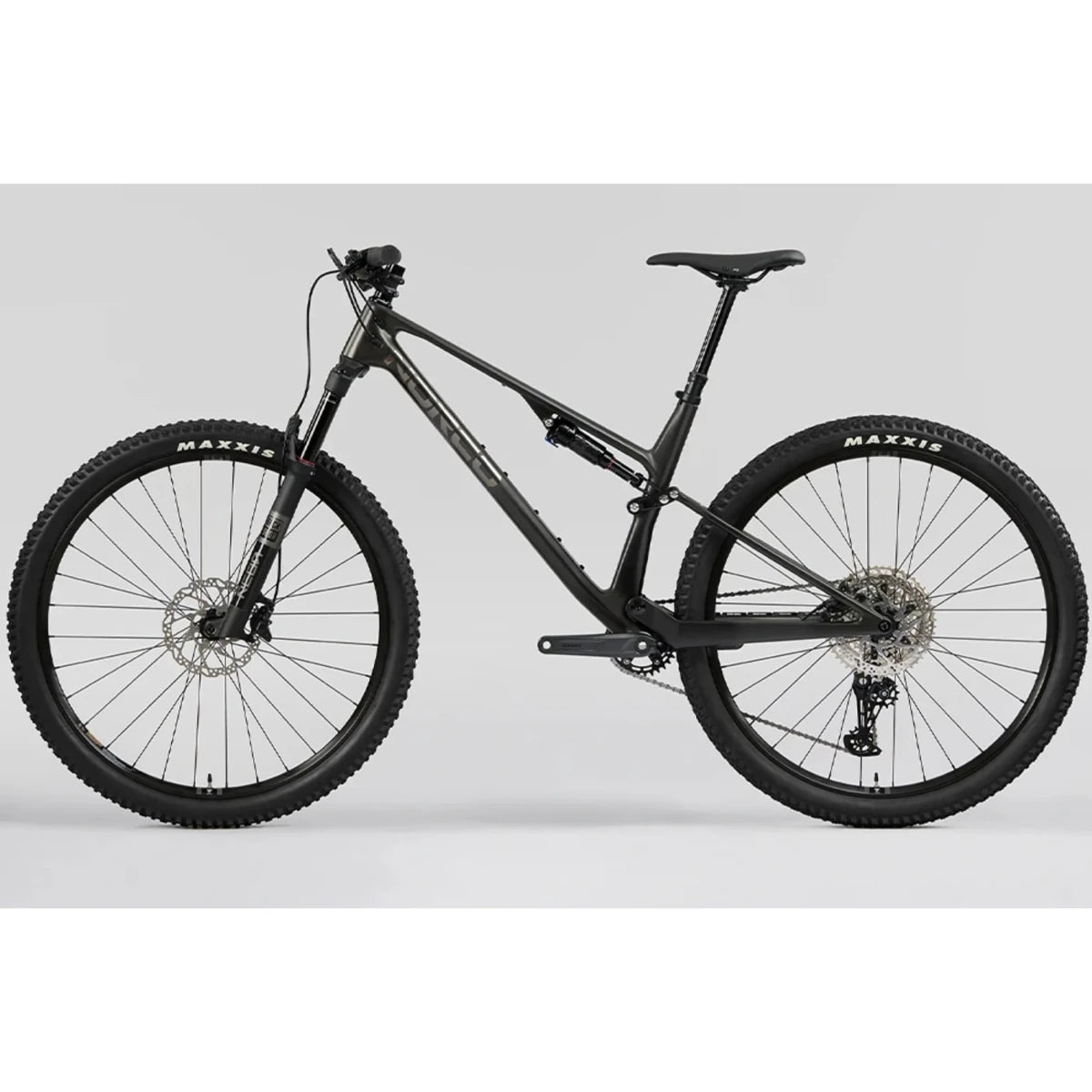

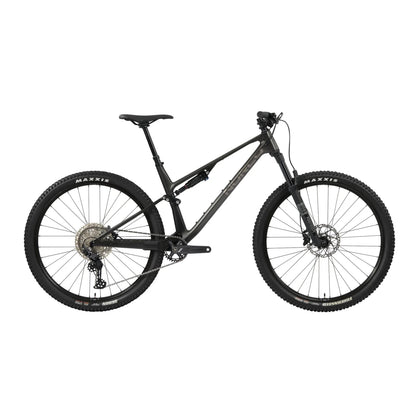

Norco Revolver FS C3 GEN4 130 Full Suspension XC Mountain Bike

The Revolver 130 blends cross-country efficiency with trail-ready aggression. With 130 mm of front travel and 120 mm in the rear, this bike strikes the perfect balance between speed, precision, and capability. A half-degree slacker head tube angle delivers added stability on descents while keeping the handling sharp for XC races and technical climbs.

Whether you’re lining up for race day or chasing all-day adventure miles, the Revolver 130 is built to handle both. Light, responsive, and confidence-inspiring, it’s proof that a 130/120 mm bike can climb like a rocket and descend like it means it.

Key Features

• Efficient Where It Counts, Aggressive Where It Matters: Lightweight, full-carbon frame optimized for both XC racing and trail play.

• Advanced Flex-Pivot Design: Maximizes efficiency with lightweight inline shocks—normally reserved for heavier, higher-volume systems.

• Ride Aligned™ Geometry: Consistent weight distribution and size-specific carbon layups deliver precision control across all frame sizes.

• Balanced Suspension: RockShox Reba RL and SID LUX Select+ work together to keep traction and speed over technical terrain.

• Race-Day Pedigree, Trail-Day Confidence: The perfect setup for riders who love going fast—uphill and down.

• Peace of Mind: Covered by the No Other Way Limited Lifetime Warranty.

Full Specifications

Frameset
Frame: Carbon Frame, 120 mm Rear Travel, UDH, Eagle Transmission Compatible, Ride Aligned™ Design

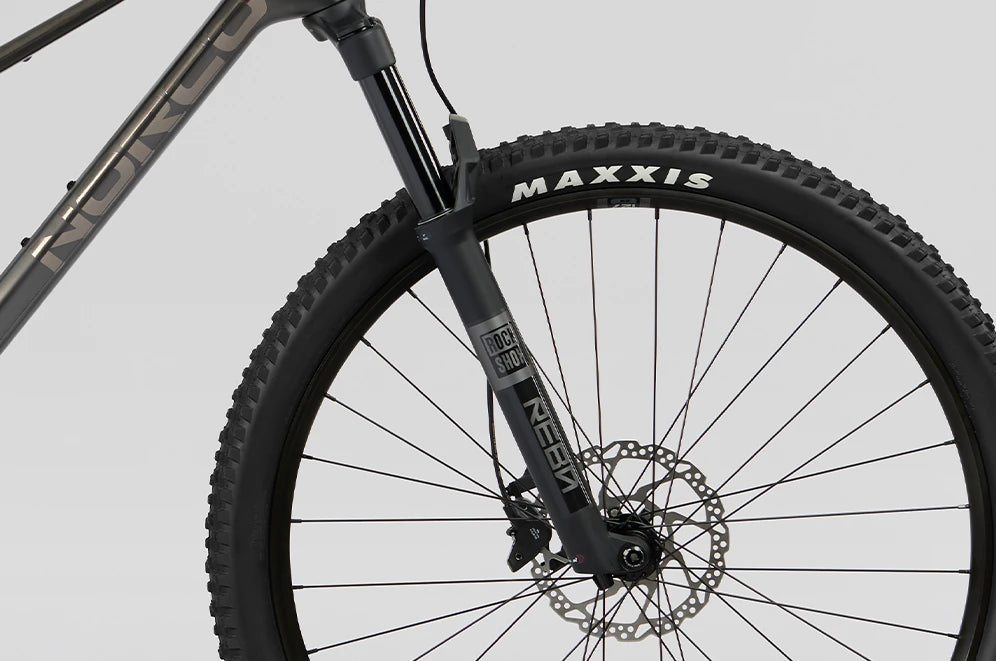

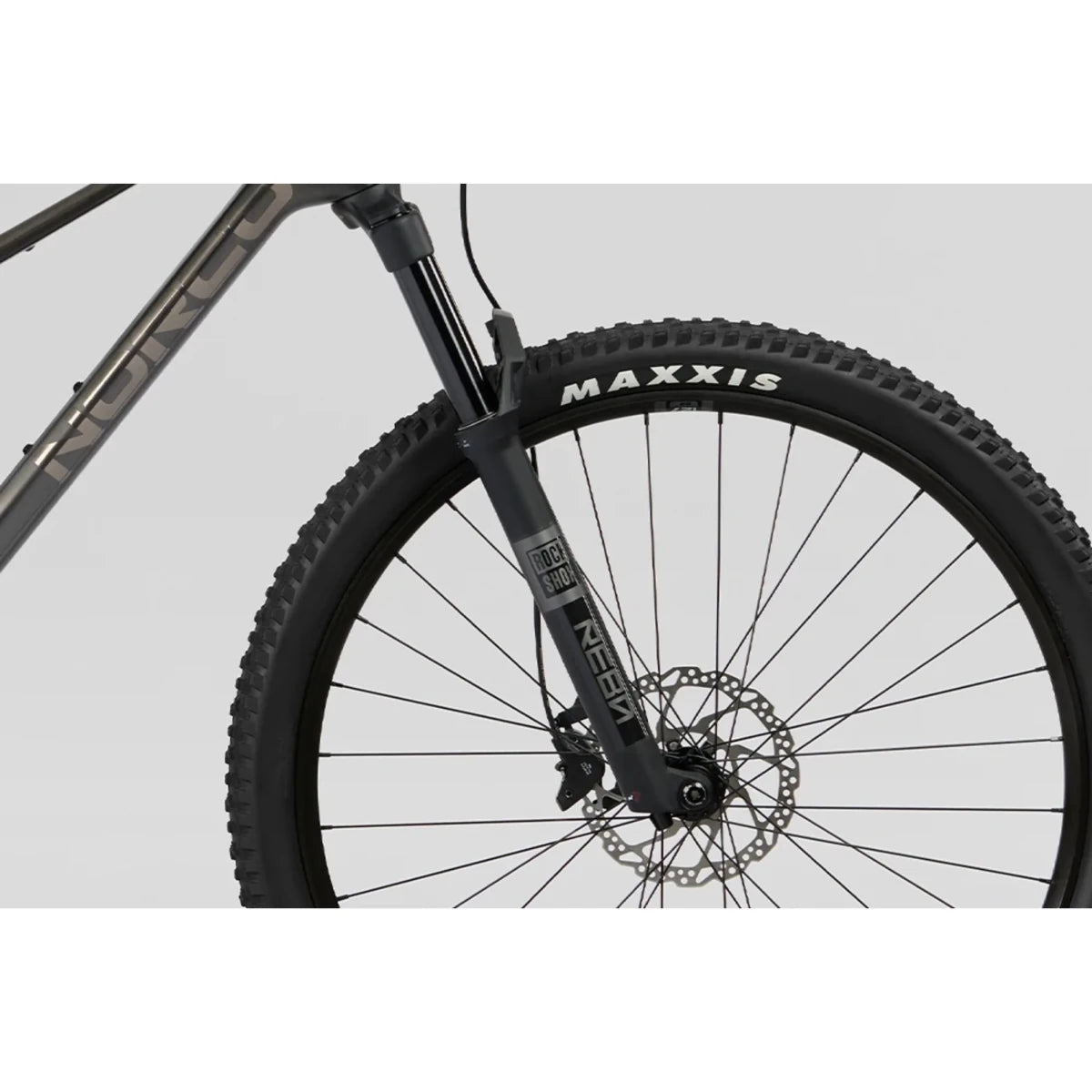

Fork: RockShox Reba RL, Motion Control, 130 mm Travel, 44 mm Offset

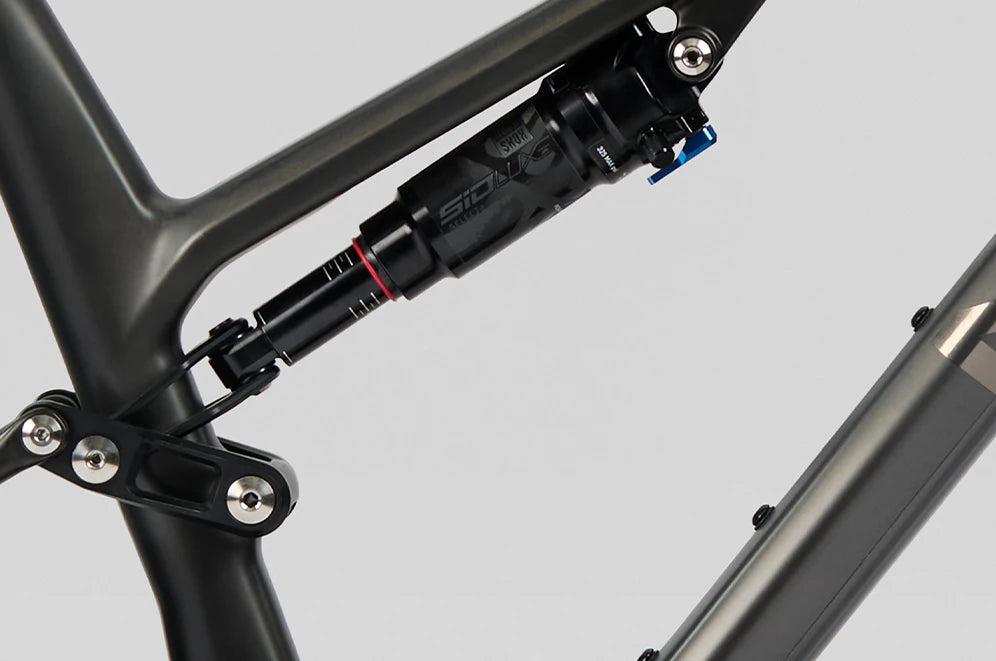

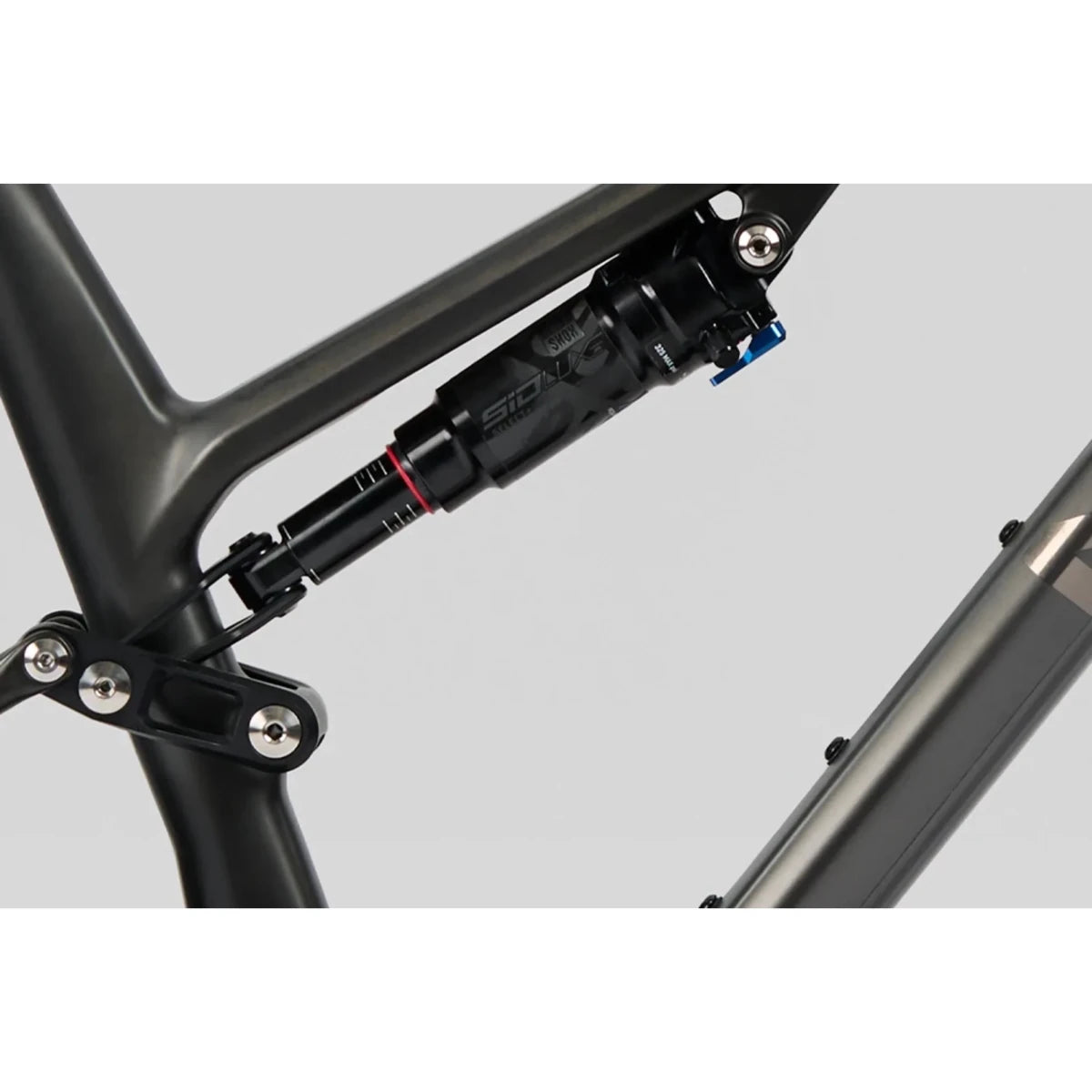

Rear Shock: RockShox SID LUX Select+, 190×45 mm

Drivetrain
Shifter: Shimano Deore SL-M6100, 12-Speed
Rear Derailleur: Shimano Deore RD-M6100, 12-Speed (SGS)
Crankset: Shimano Deore FC-MT512, 32 T | 165 mm (S1), 170 mm (S2–S3), 175 mm (S4–S5)
Bottom Bracket: Shimano BB-MT501, BSA 73 mm
Cassette: Shimano Deore CS-M6100-12, 10–51 T
Chain: Shimano Deore CN-M6100-12

Brakes
Front: Shimano Deore BR-MT410, 2-Piston, Resin Pads, 180 mm Rotor (SM-RT64, C-Lock)
Rear: Shimano Deore BR-MT410, 2-Piston, Resin Pads, 180 mm Rotor (SM-RT64, C-Lock)
Levers: Shimano Deore M4100

Components

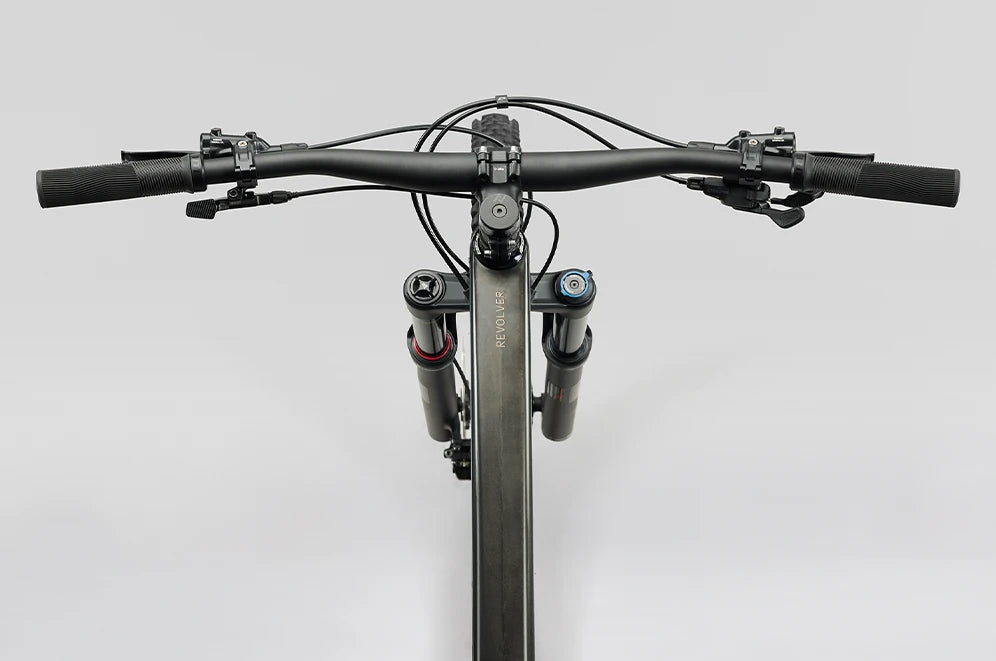

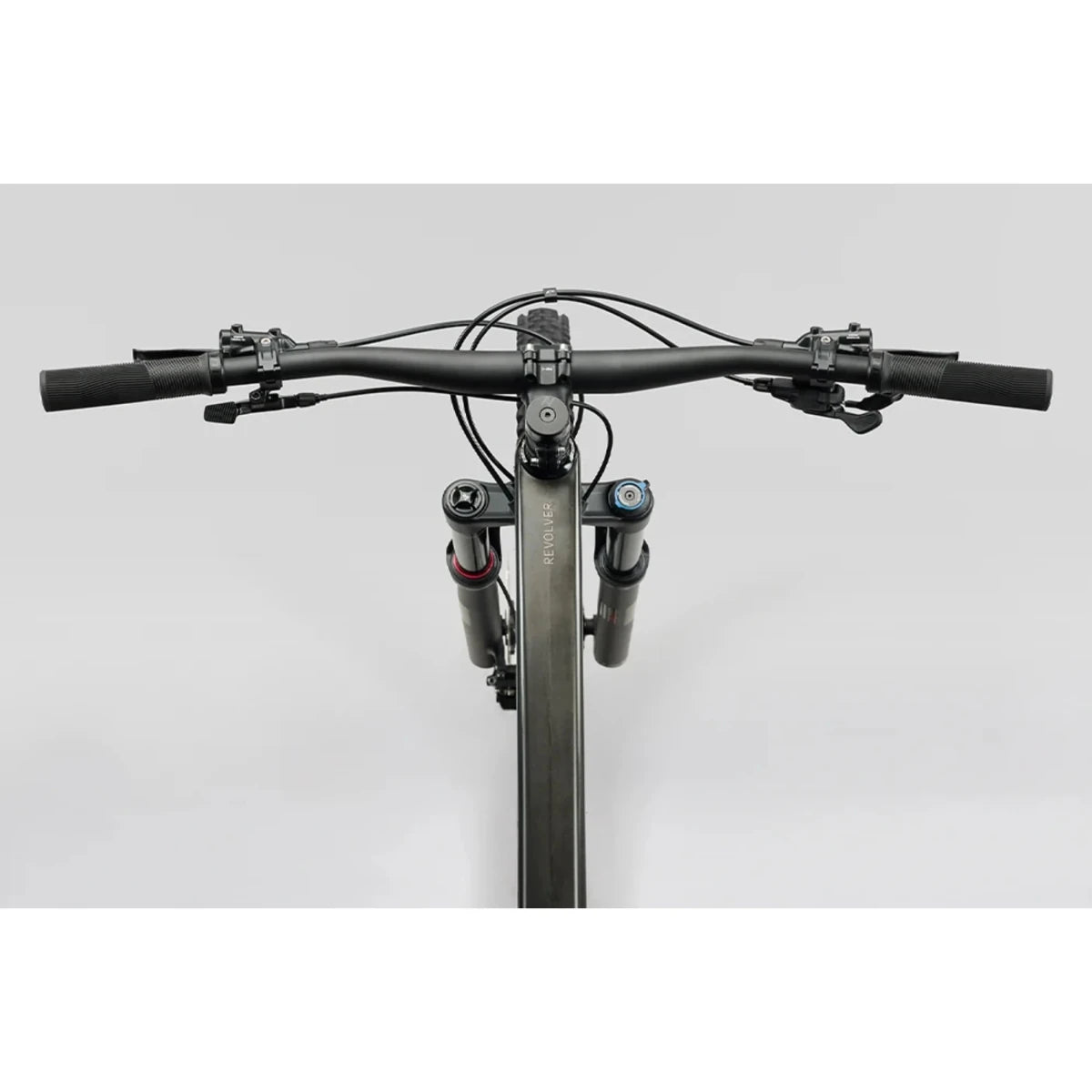

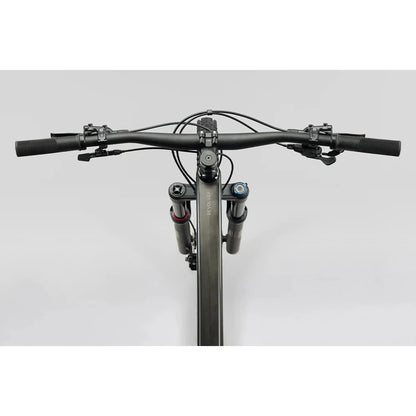

Handlebar: 6061 Alloy, 760 mm (S1–S3), 780 mm (S4–S5), 20 mm Rise
Stem: Alloy, 50 mm Length, 35 mm Clamp
Seatpost: TranzX YSI36 Dropper, 31.6 mm | 120 mm (S1–S2), 150 mm (S3), 170 mm (S4), 200 mm (S5)
Headset: FSA No.42/48ACB Integrated, 1⅛"–1.5" Tapered
Saddle: WTB Silverado Medium
Grips: WTB Wavelength
Seatpost Clamp: Alloy Bolted, 34.9 mm ID

Wheels
Front Hub: Shimano Deore HB-MT410, 15×110 mm Boost, 32 H, C-Lock
Rear Hub: Shimano Deore FH-MT510, 12×148 mm Boost, Microspline, 32 H, C-Lock
Rims: WTB ST i27 TCS, 27 mm ID, 32 H, 29″ Tubeless Ready
Tires: Front – Maxxis Forekaster EXO TR 29×2.40″ | Rear – Maxxis Rekon EXO TR 29×2.40″
Spokes/Nipples: Stainless Steel
Valves: WTB Tubeless
Sealant: Stan’s NoTubes, 250 mL

Weight
13.64 kg (30 lbs)

Geometry & Sizing

Recommended Sizing
