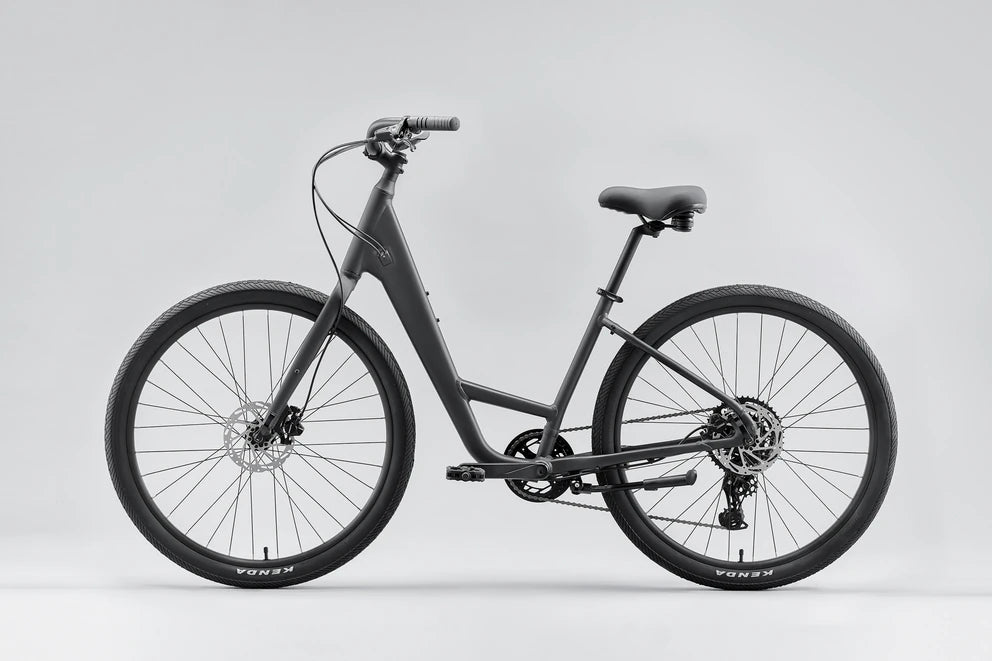

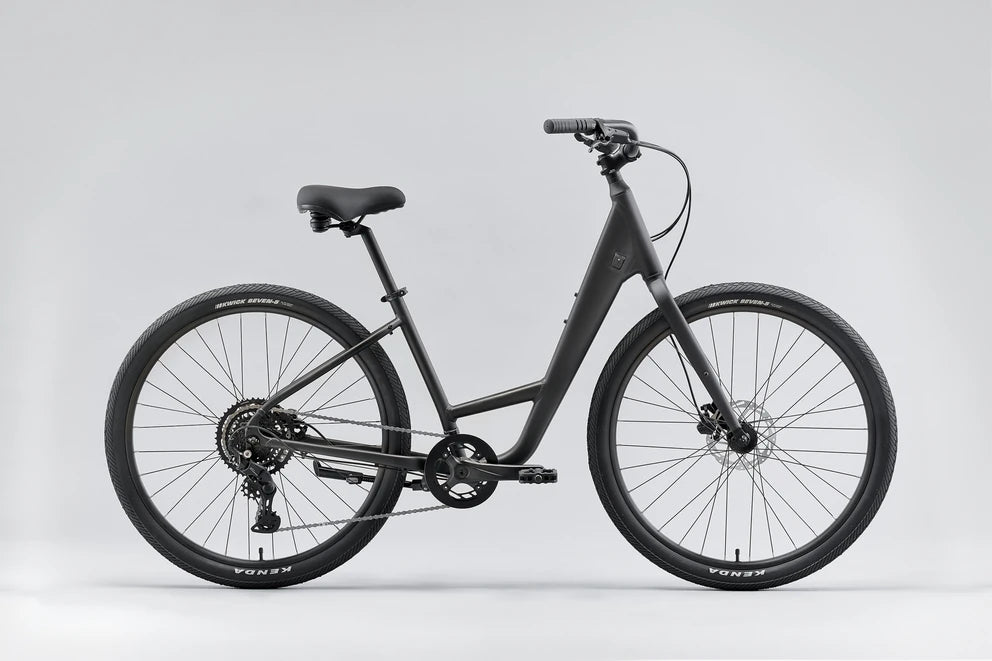

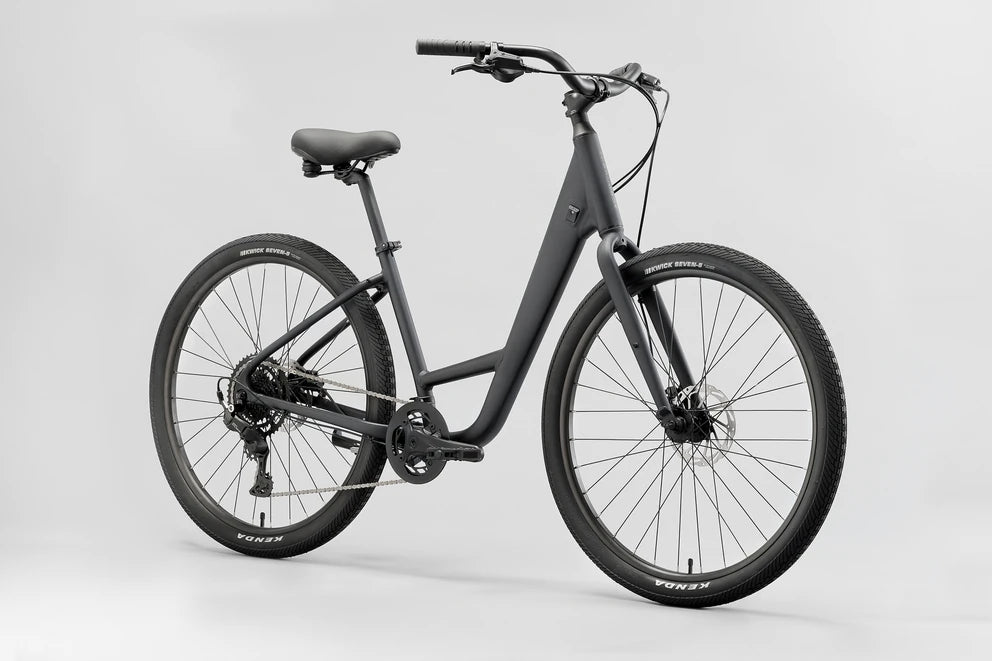

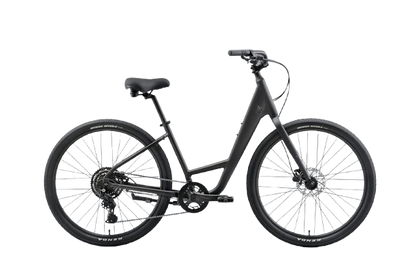

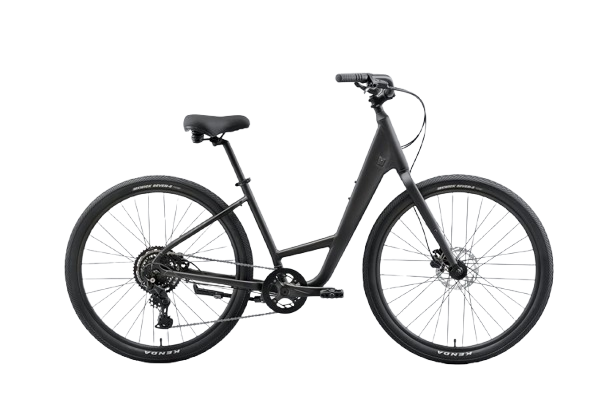

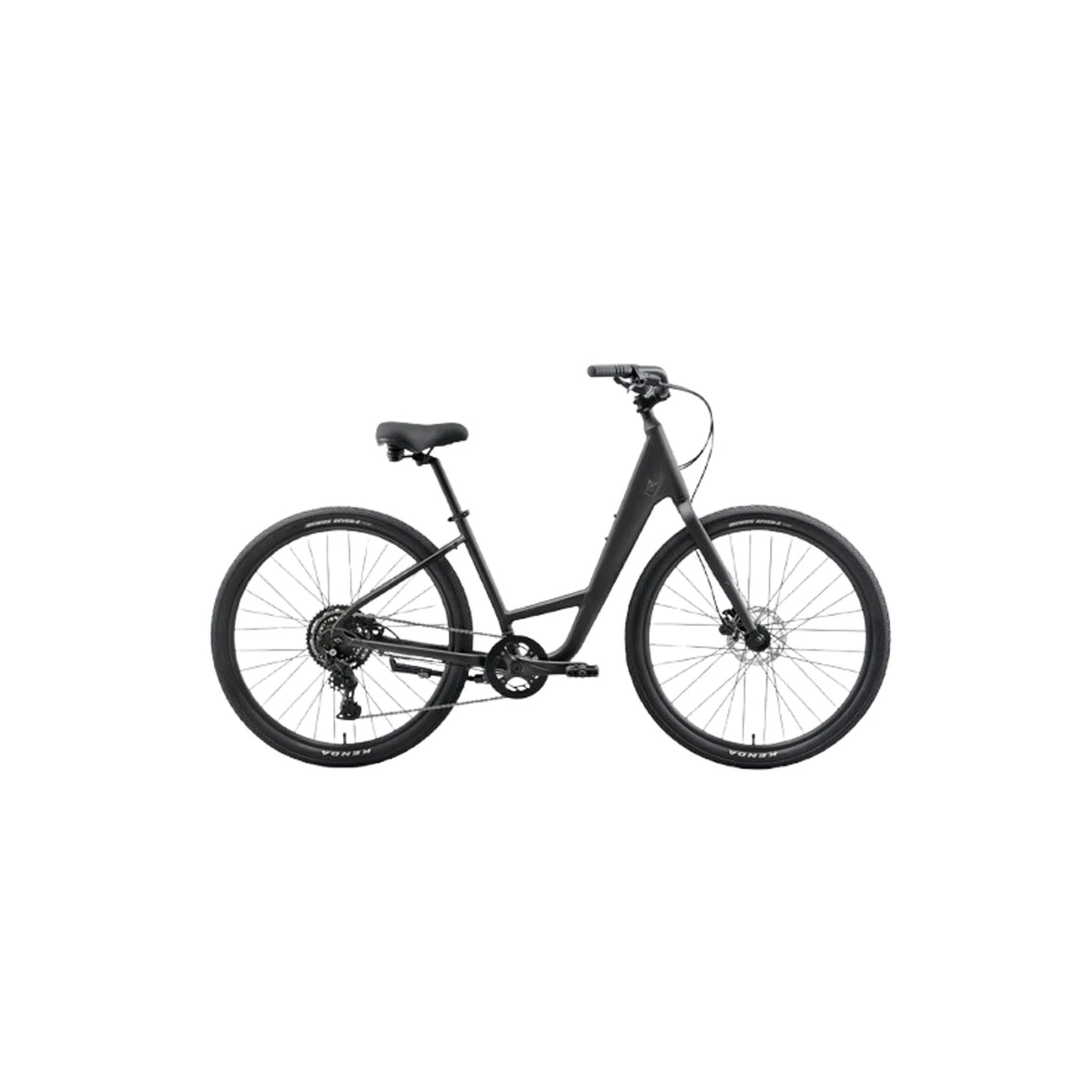

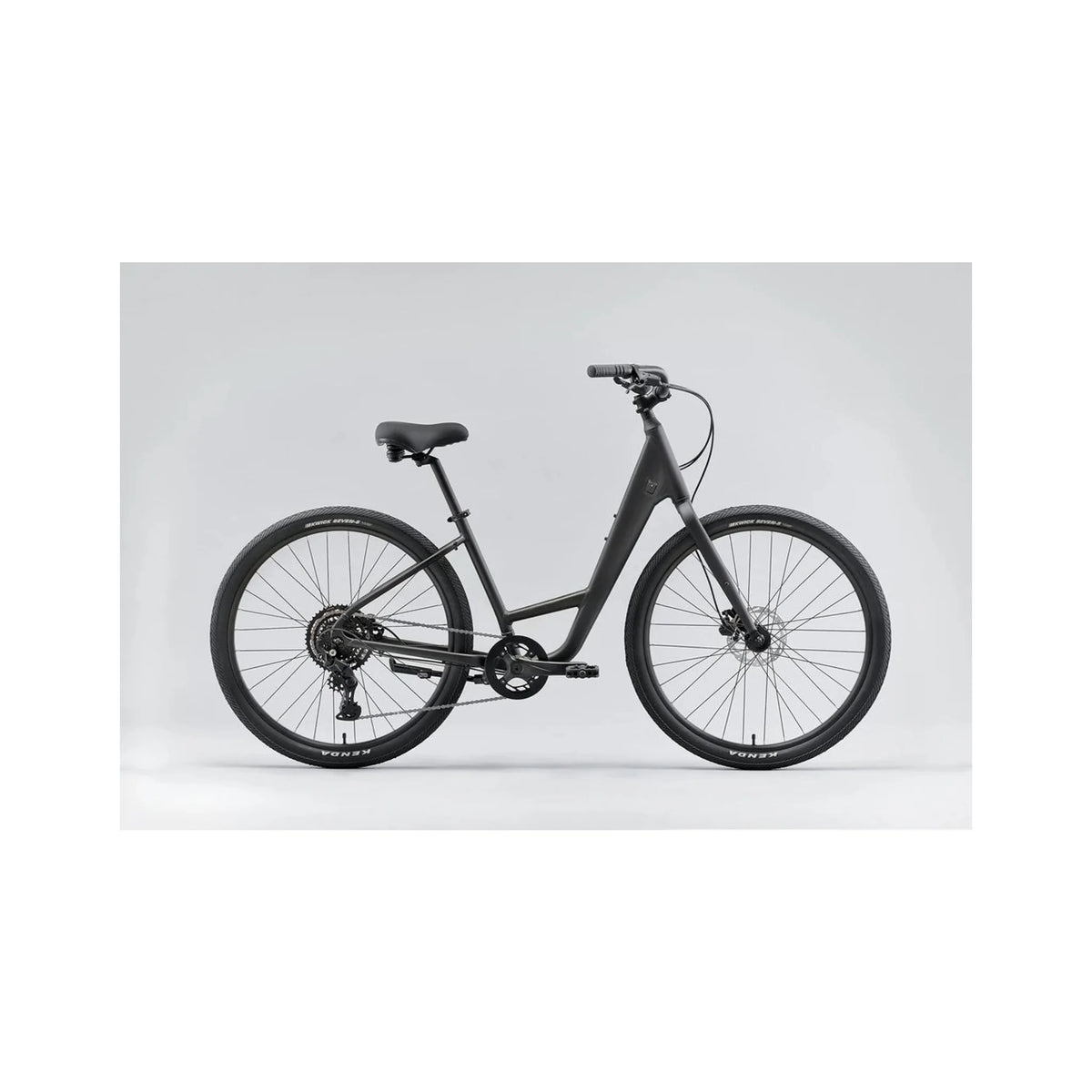

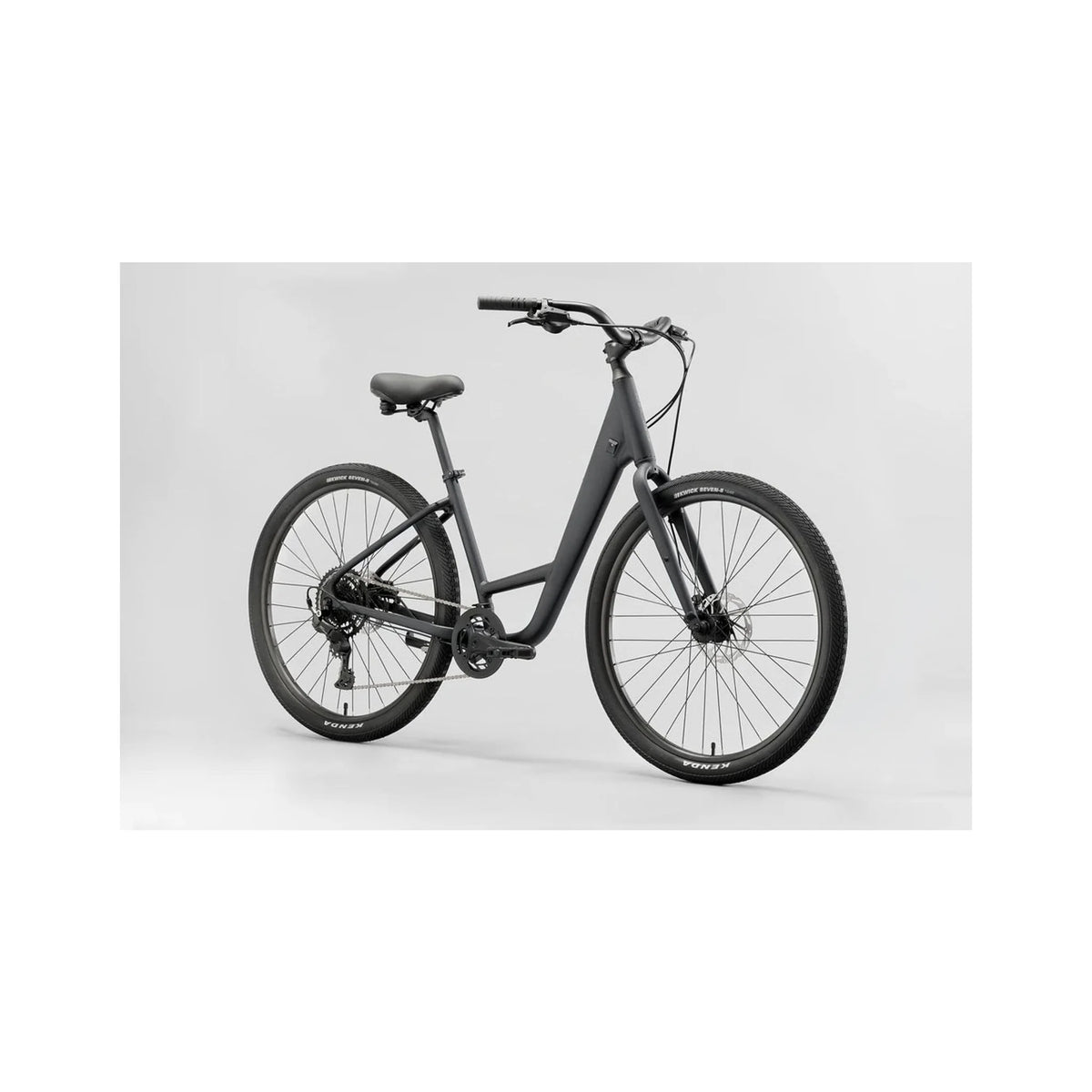

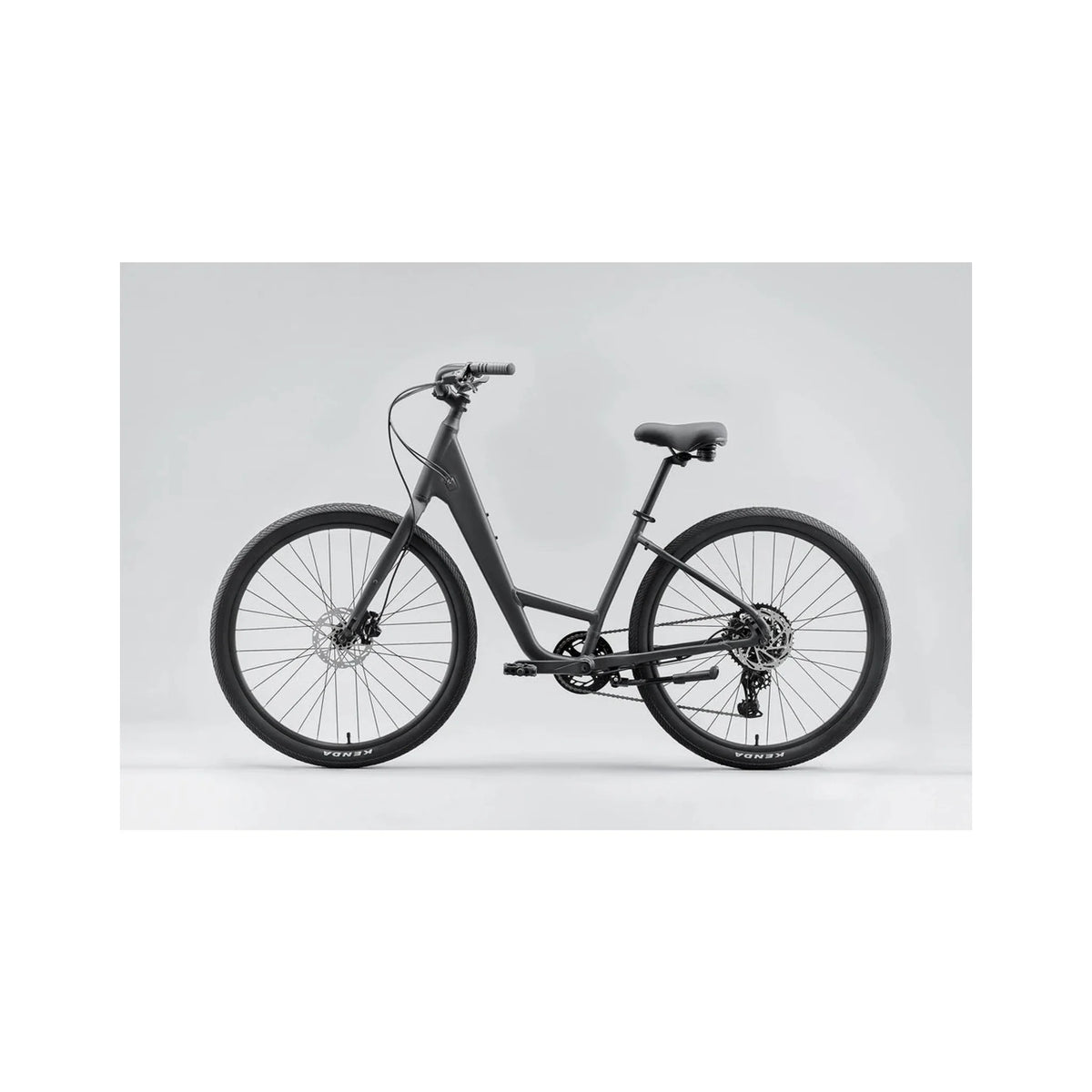

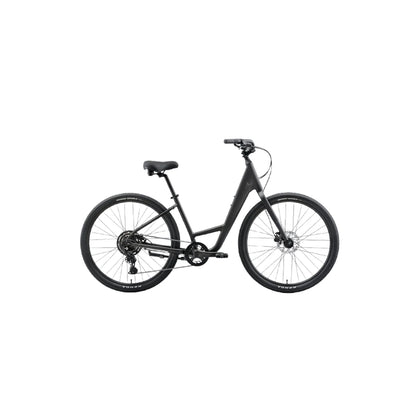

Norco Scene 1 27.5 Comfort Hybrid Bicycle

The Norco Scene 1 is a relaxed urban bike built for comfortable city cruising, everyday errands, and smooth, easy transportation without the need for a car.

Specifications

Frameset

Frame: Aluminum with smooth welds
Fork: Hi-tensile steel, 100mm QR, IS disc mount

Drivetrain

Rear Shifter: Shimano CUES SL-U4000, 9-speed, Rapidfire
Rear Derailleur: Shimano CUES RD-U4000, 9-speed, direct mount
Crankset: Aluminum, 36T
165mm (S)
170mm (M, L, XL)
Bottom Bracket: Cartridge bearing, square taper, 68mm
Cassette: Shimano CUES CS-LG300, 11–46T, 9-speed
Chain: KMC X11

Brakes

Front Brake: Tektro HD-M275 hydraulic disc, resin pads
Front Rotor: Tektro 160mm, 6-bolt
Rear Brake: Tektro HD-M275 hydraulic disc, resin pads
Rear Rotor: Tektro 160mm, 6-bolt
Brake Levers: Tektro HD-M275

Components

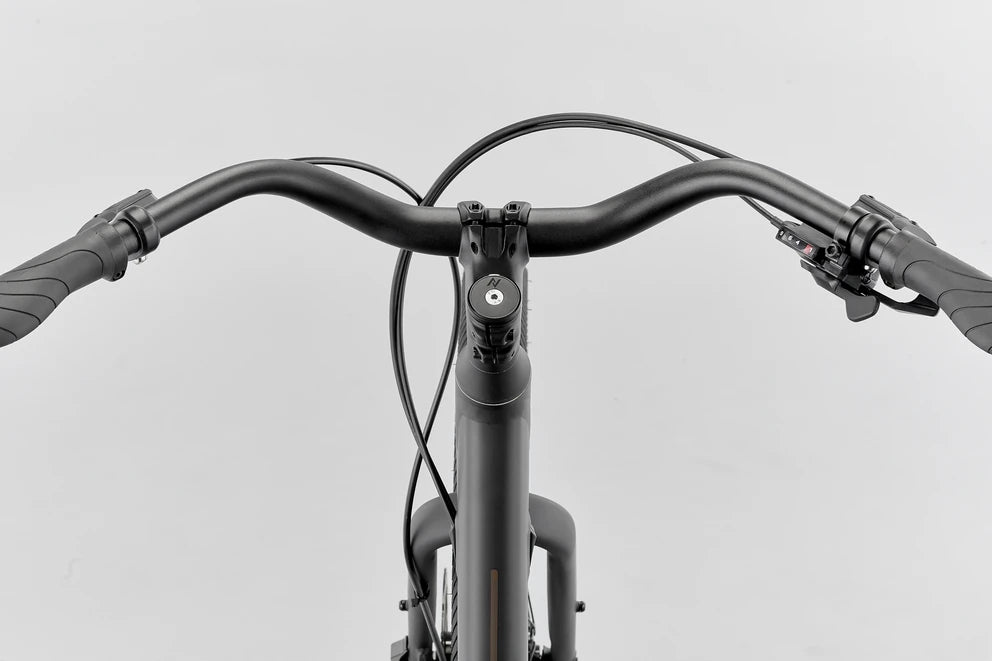

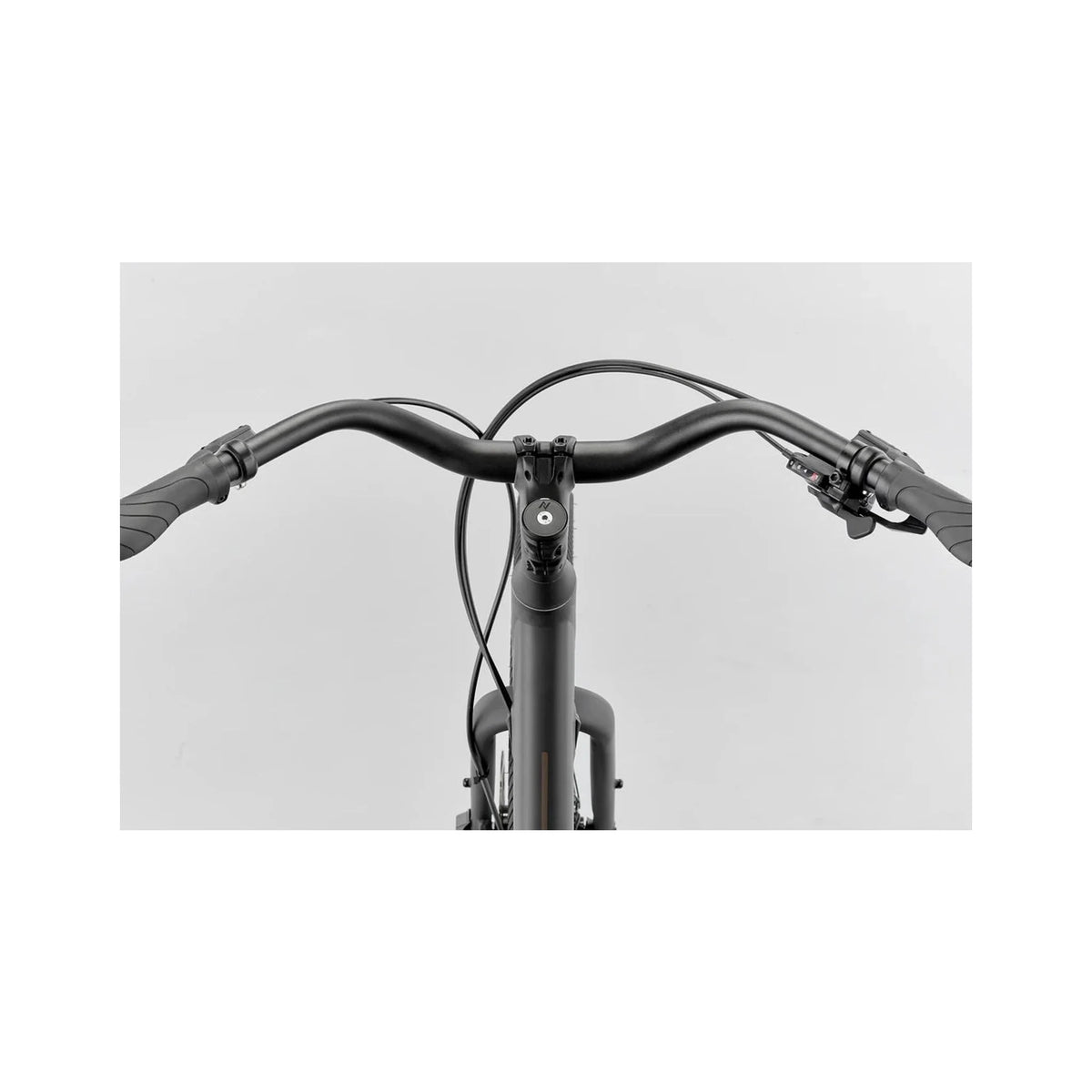

Handlebar: Norco Scene aluminum, 660mm width, 60mm rise, 30° backsweep
Stem: Aluminum, 17° rise, 31.8mm clamp
70mm (S, M)
80mm (L, XL)
Seatpost: Aluminum, 27.2mm, 350mm length
Headset: Semi-integrated, 1-1/8"
Saddle: Scene comfort saddle with elastomer suspension
Grips: Dual-density ergonomic, single lock-on
Pedals: VP City, 9/16"
Seatpost Clamp: Aluminum quick release, 31.8mm

Wheels

Front Hub: Formula DC-1420, 9x100mm QR, 32H, 6-bolt
Rear Hub: Formula DC-27A, 10x135mm QR, HG freehub, 32H, 6-bolt
Rims: Double wall aluminum, 27.5", 32H
Tires: Kenda Kwick Seven5, 27.5x2.2", wire bead
Front Skewer: Alloy QR, 9x109mm
Rear Skewer: Alloy QR, 9x151mm
Spokes: Stainless steel, 2.0mm with brass nipples
