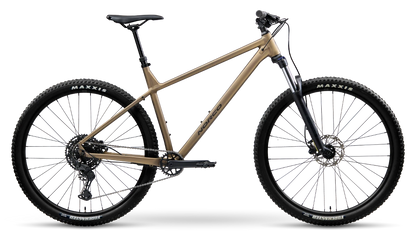

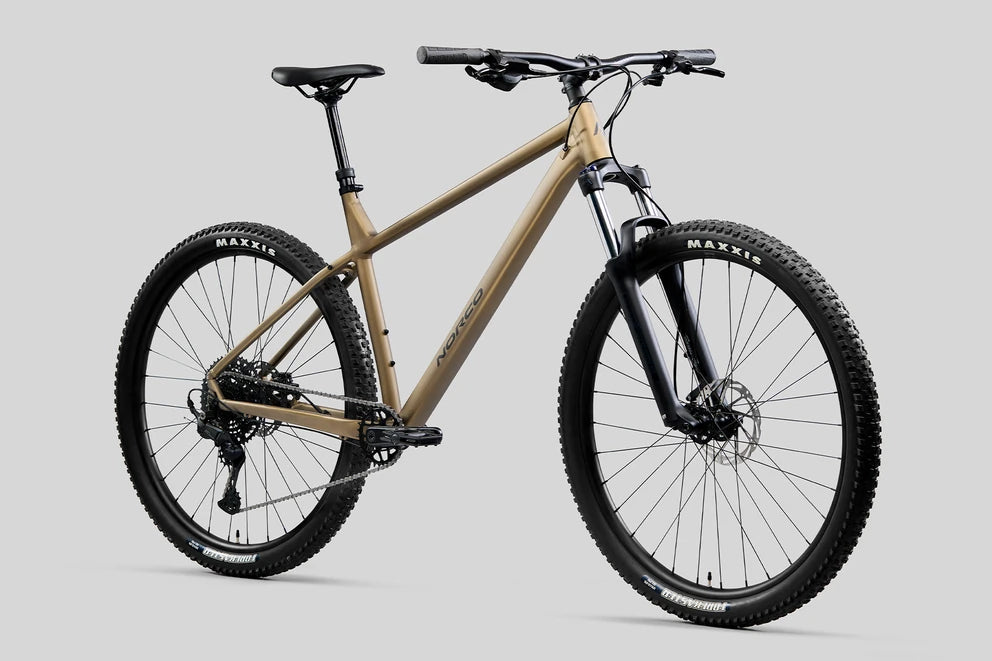

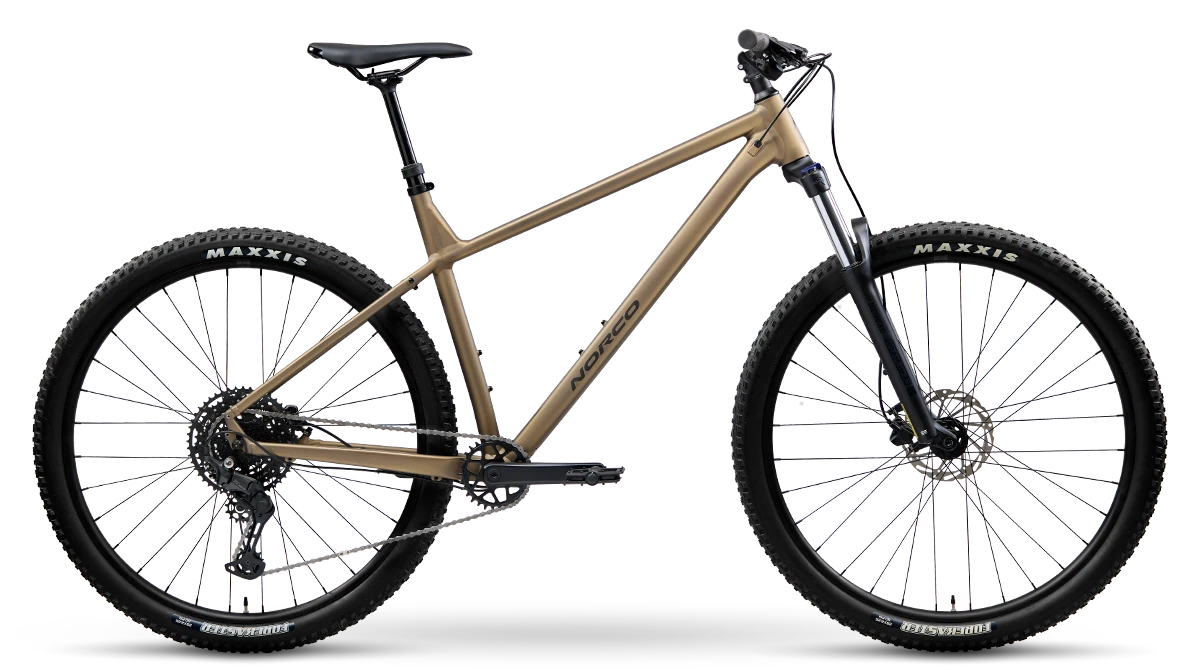

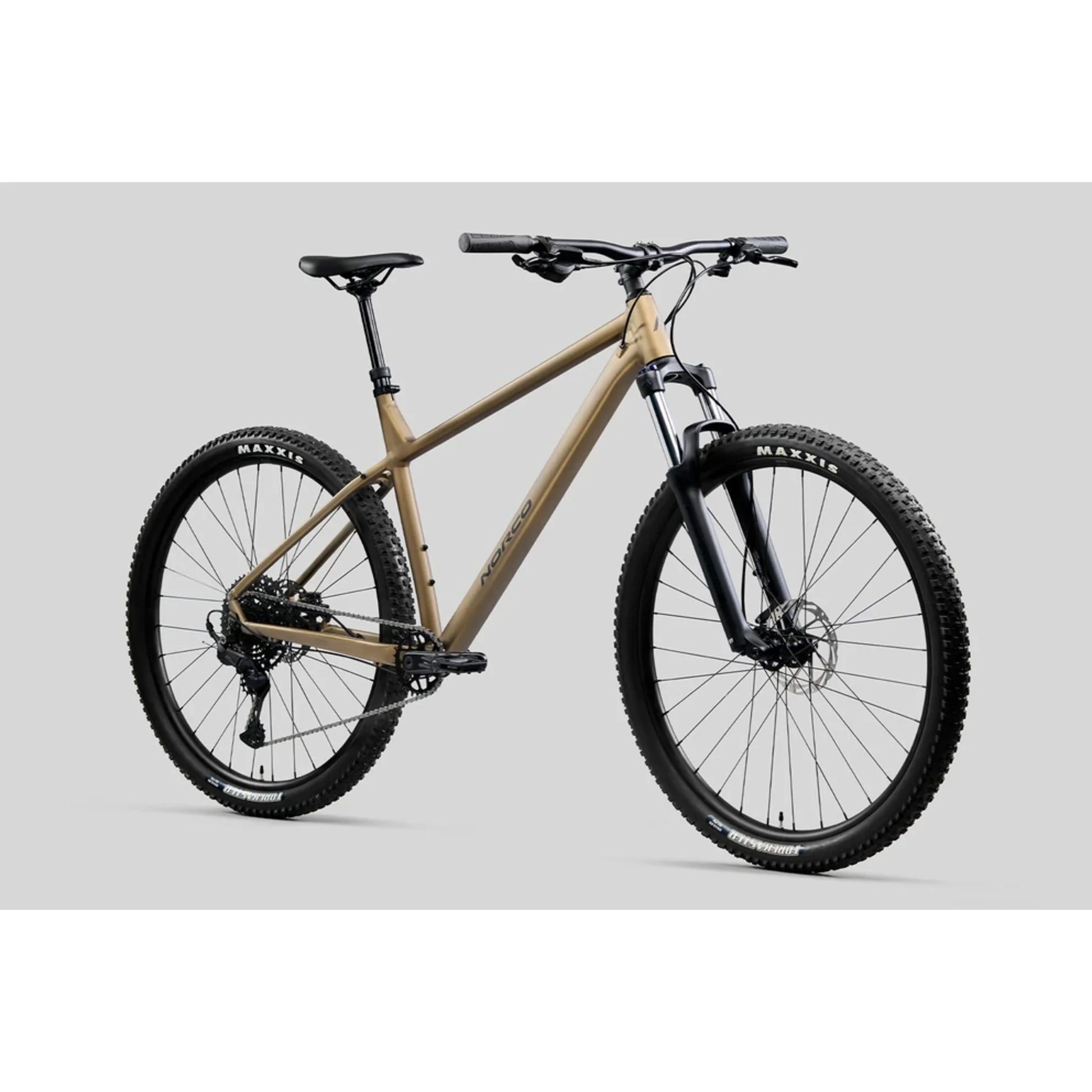

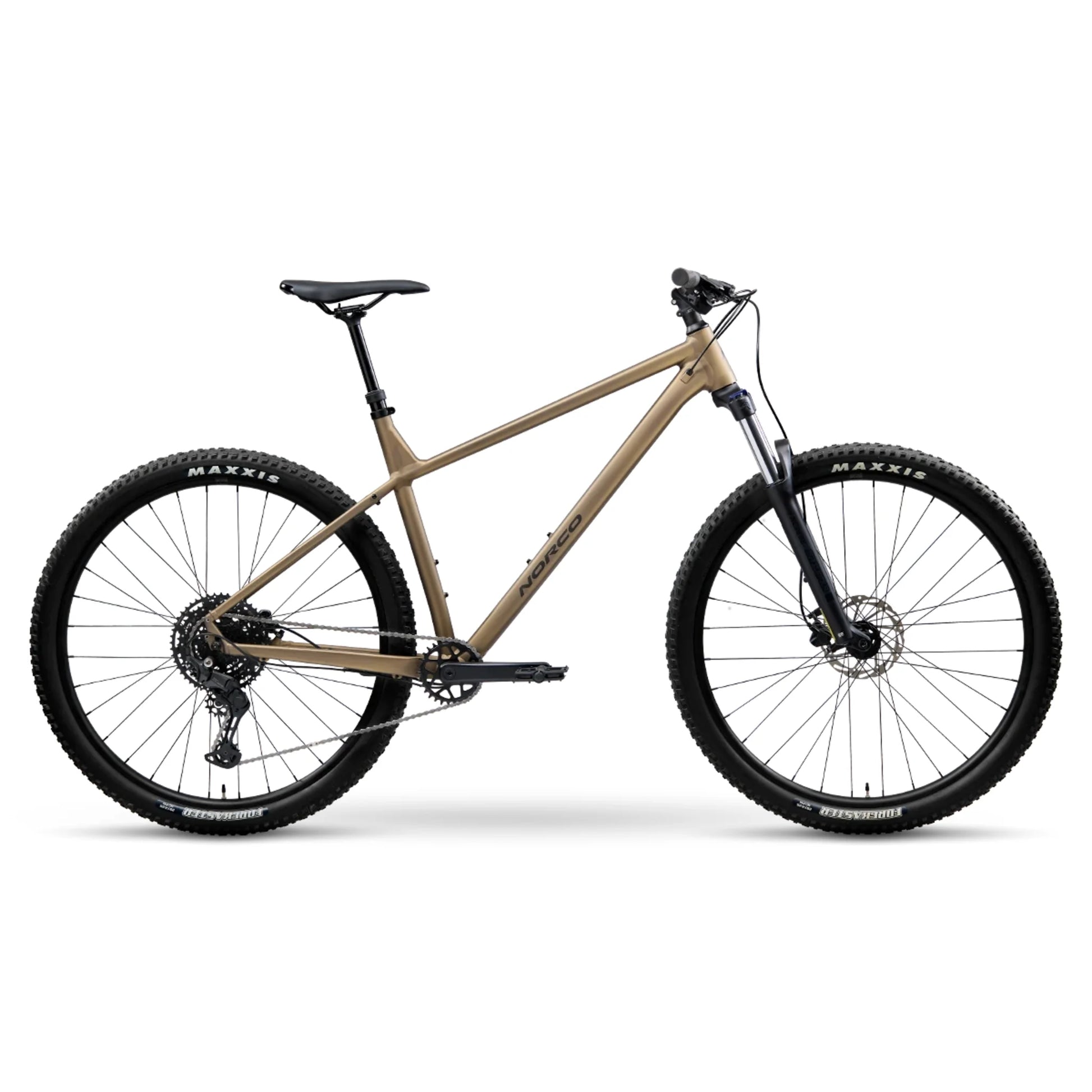

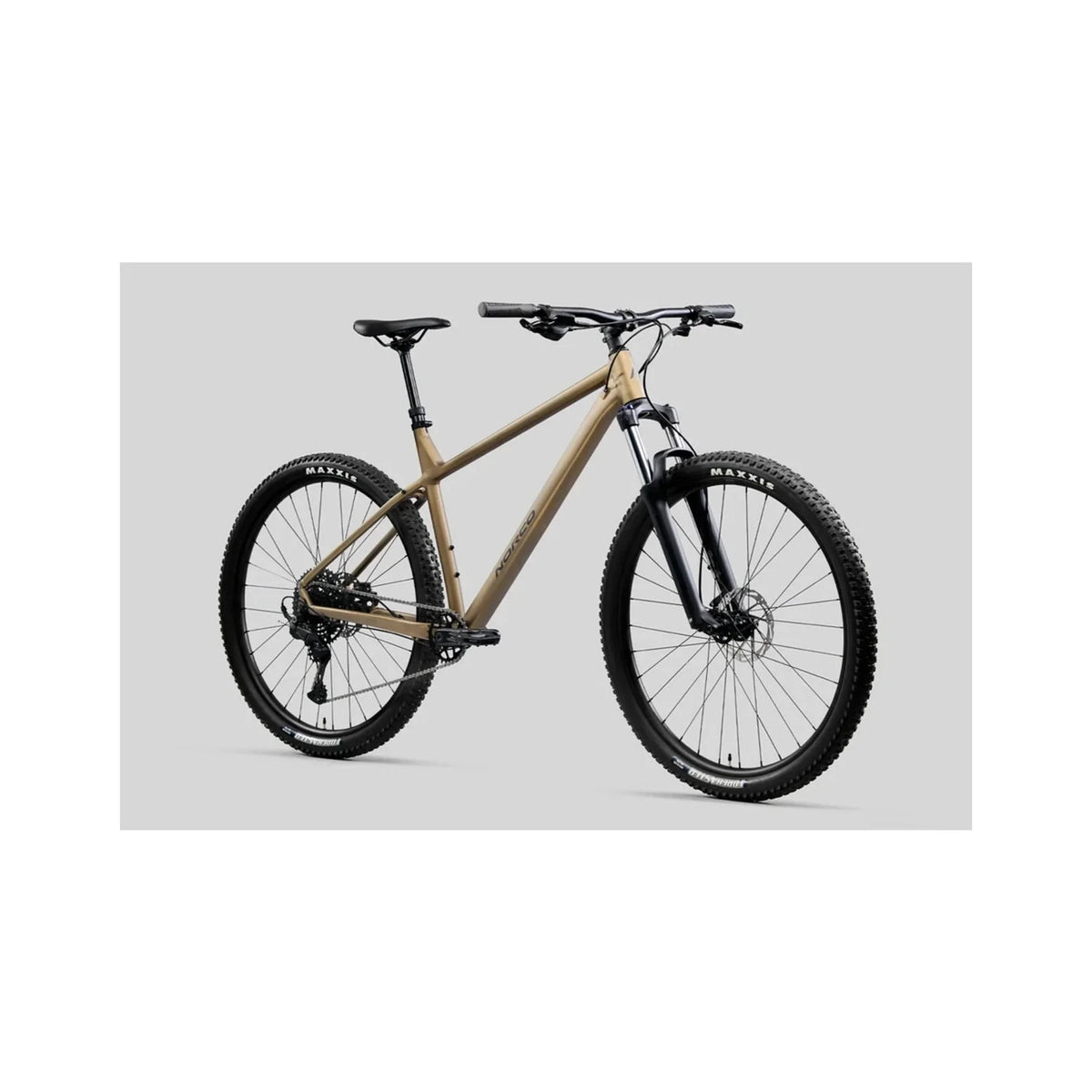

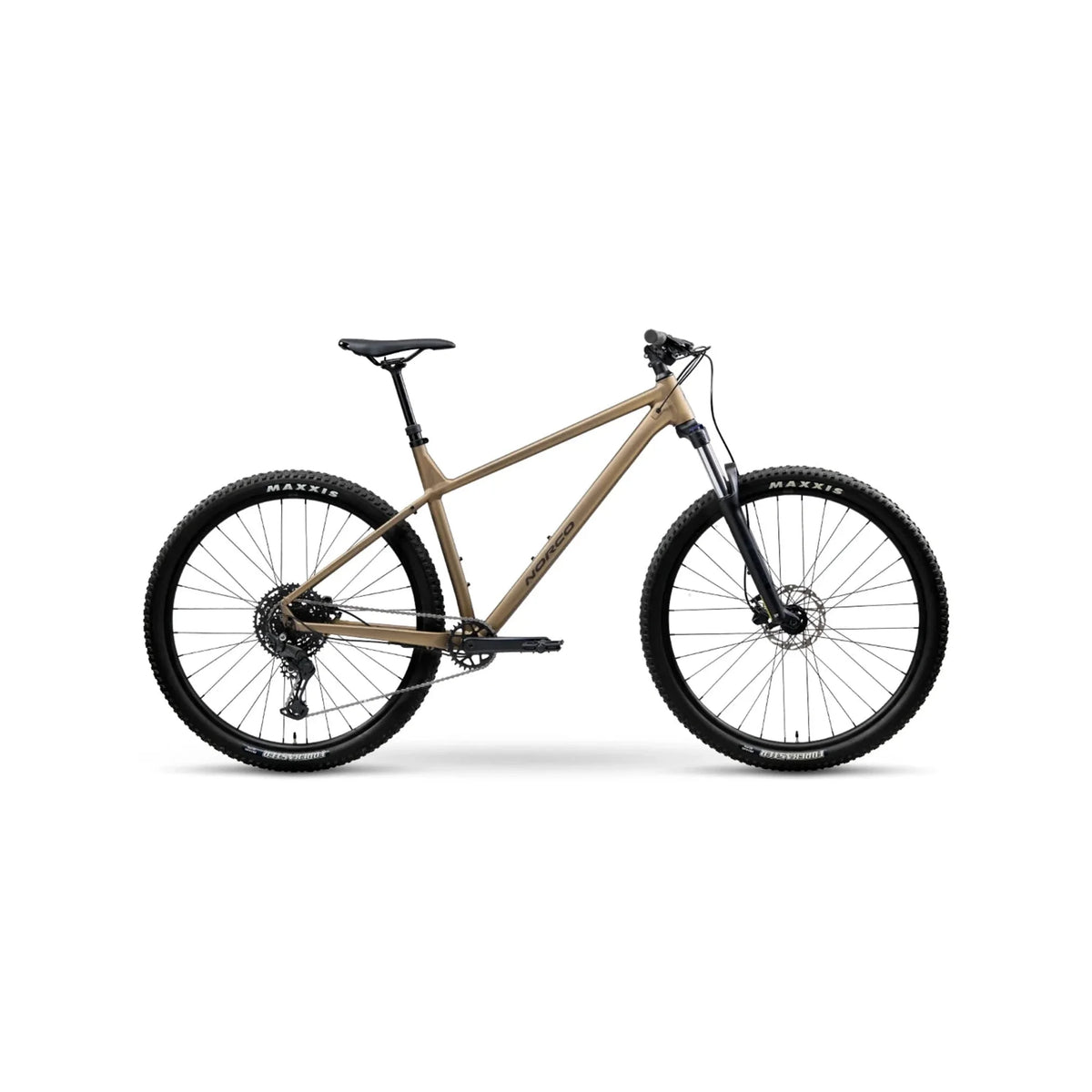

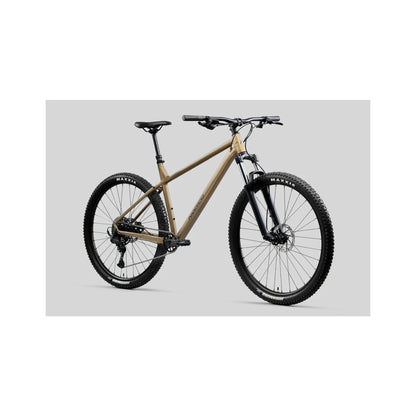

Norco Storm 120 XC Hardtail Mountain Bike

Norco Storm 120 XC Hardtail Mountain Bike

$ 899.99
$ 899.99
Sale Sold out
Shipping calculated at checkout.
Size
Color: Nanaimo Bar Grey

4 in stock

06 720 157 54

The Storm 120 brings trail-ready confidence to every ride with a progressive frame design, controlled suspension, and durable components that keep you focused on the fun. Whether you’re discovering your favorite local loops or exploring new singletrack, this hardtail gives you the control, comfort, and capability to ride with confidence.

Key Features

  • Progressive Design: Engineered for stable yet nimble trail performance with balanced geometry and responsive handling.

  • Controlled Suspension: The SR Suntour XCM32LO fork delivers 120 mm of smooth, tunable travel with an easy lockout for climbing efficiency.

  • Protected Systems: Weather-resistant cable routing and durable alloy construction safeguard key components from the elements.

  • Powerful Braking: Tektro hydraulic disc brakes deliver dependable stopping power and modulation in all conditions.

  • Optimized Ride: Size-specific wheel design — 27.5" for Small, 29" for Medium through XXL — ensures the perfect fit and performance for every rider.

  • Versatile Frame: Built with modern standards and adaptable features, ready for upgrades or all-day trail adventures.

  • Peace of Mind: Backed by a Limited Lifetime Warranty for long-lasting confidence.

Full Specifications

Frameset
Frame: Aluminum, Smooth Welding, 10×135 mm QR, Tapered Head Tube

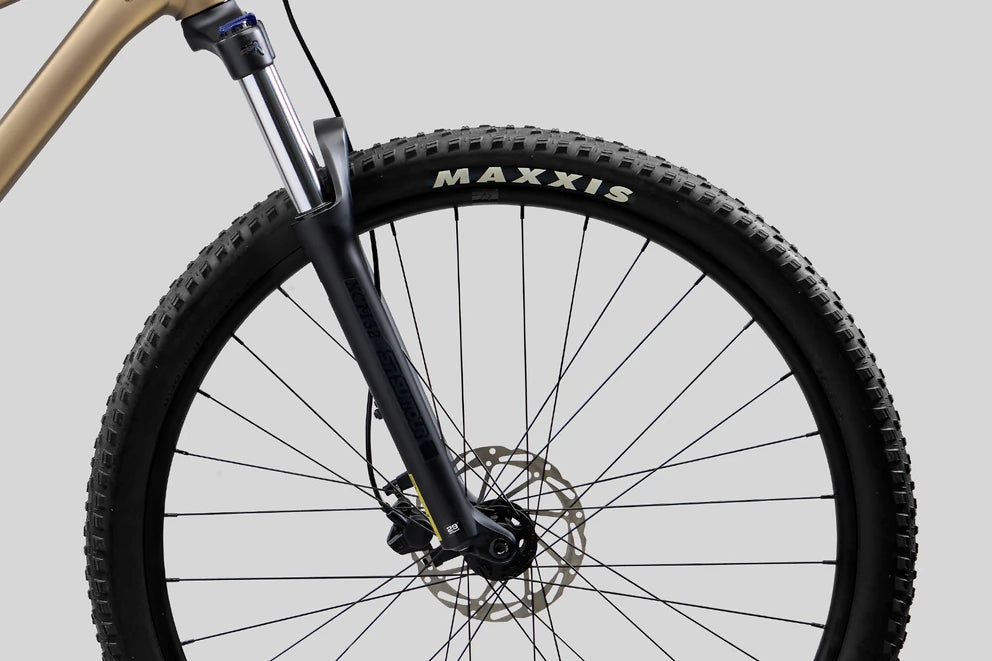

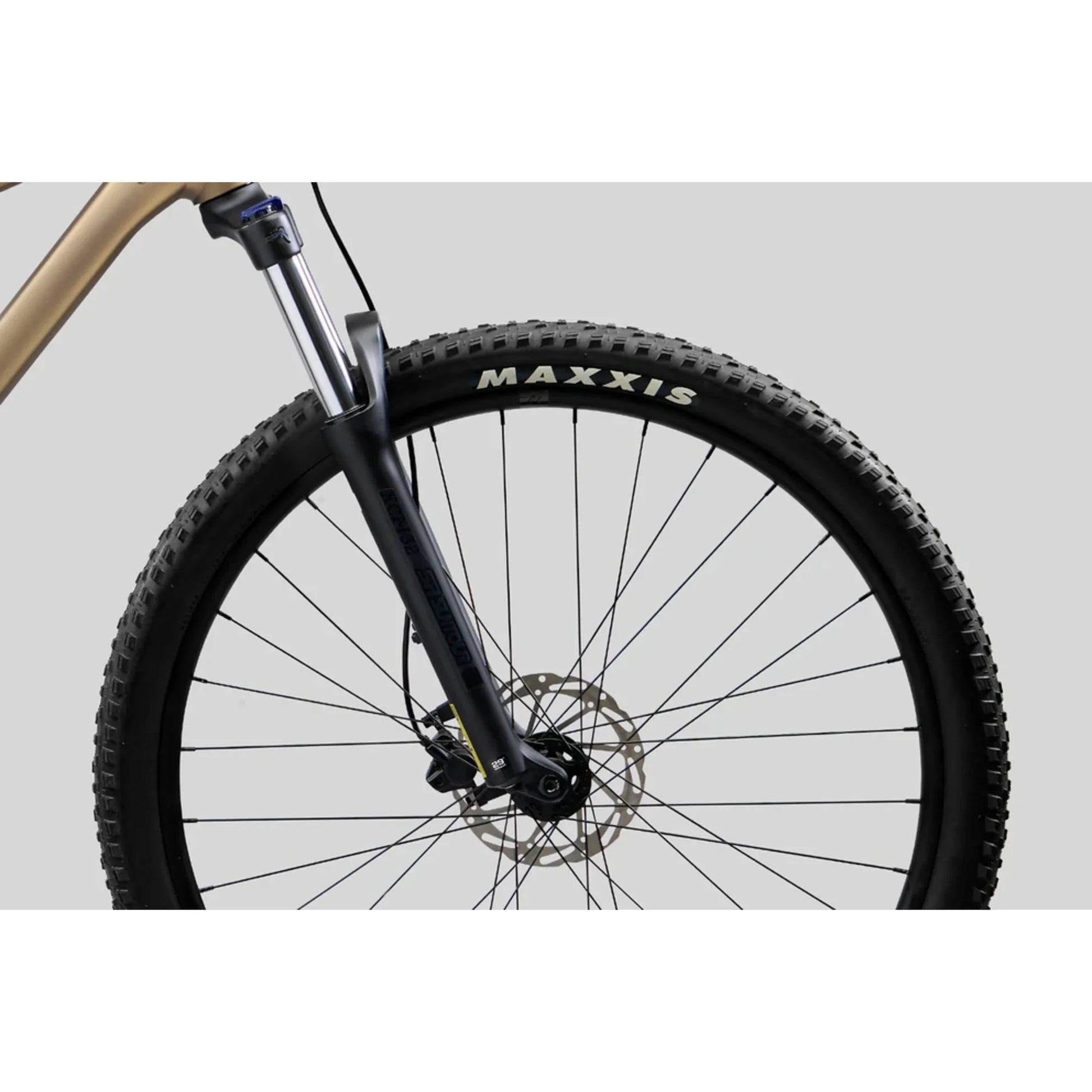

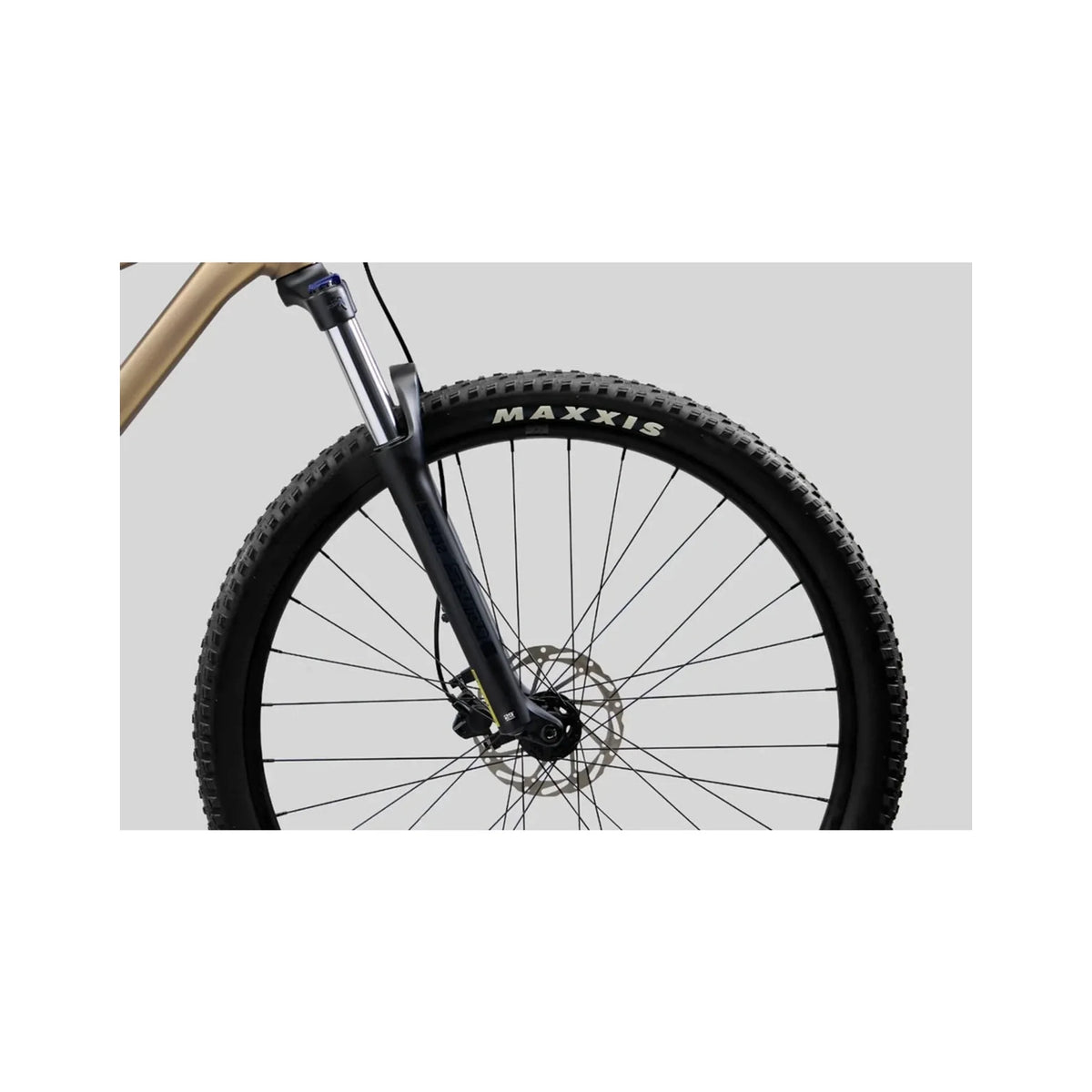

Fork: SR Suntour XCM32LO with Lockout, 120 mm Travel, 46 mm Offset, 15×100 mm Axle

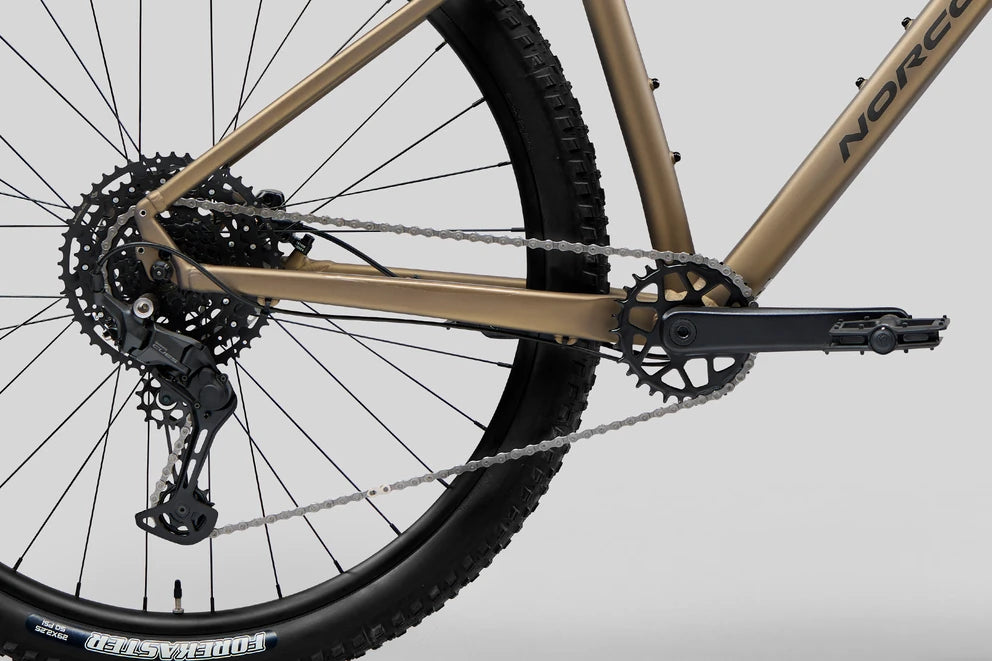

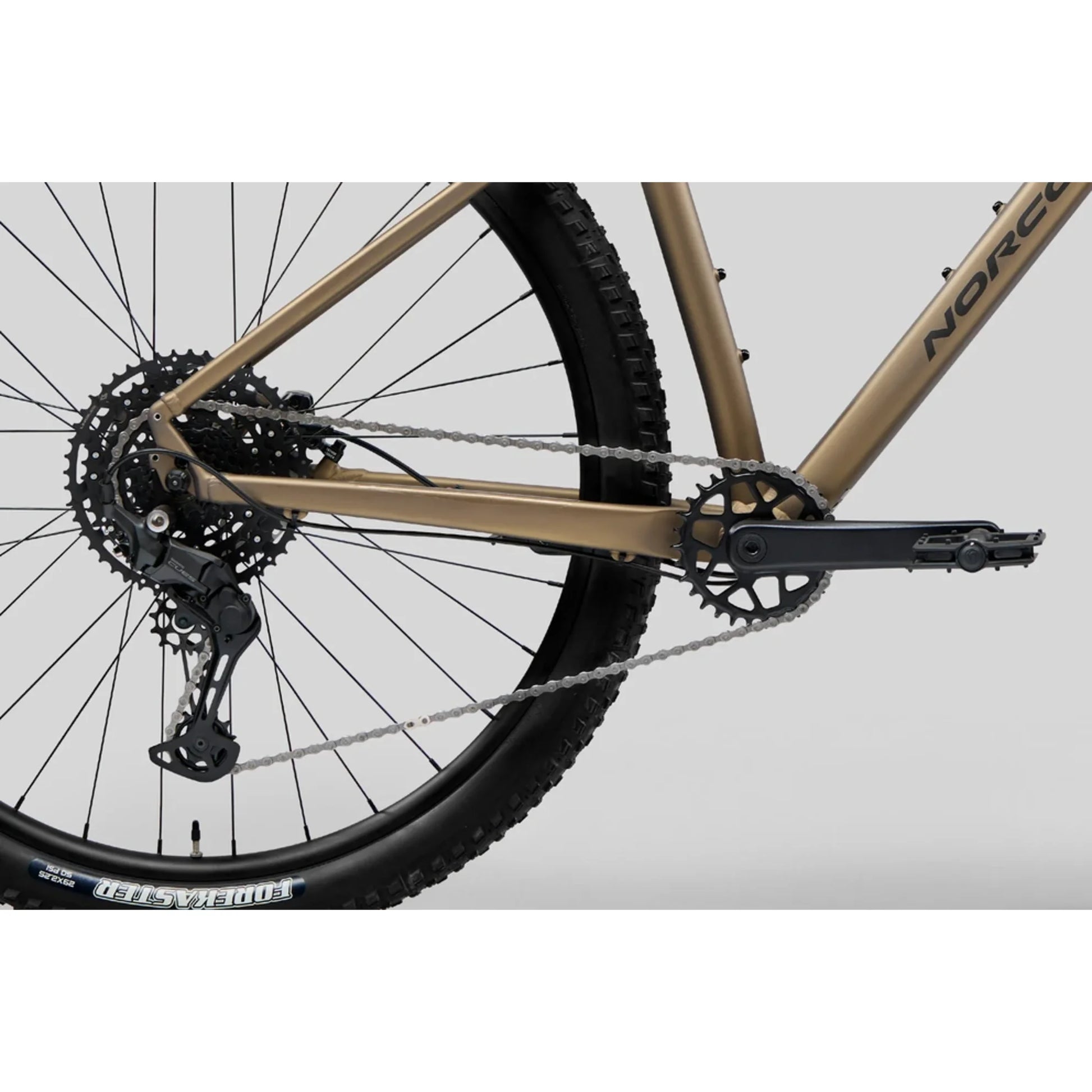

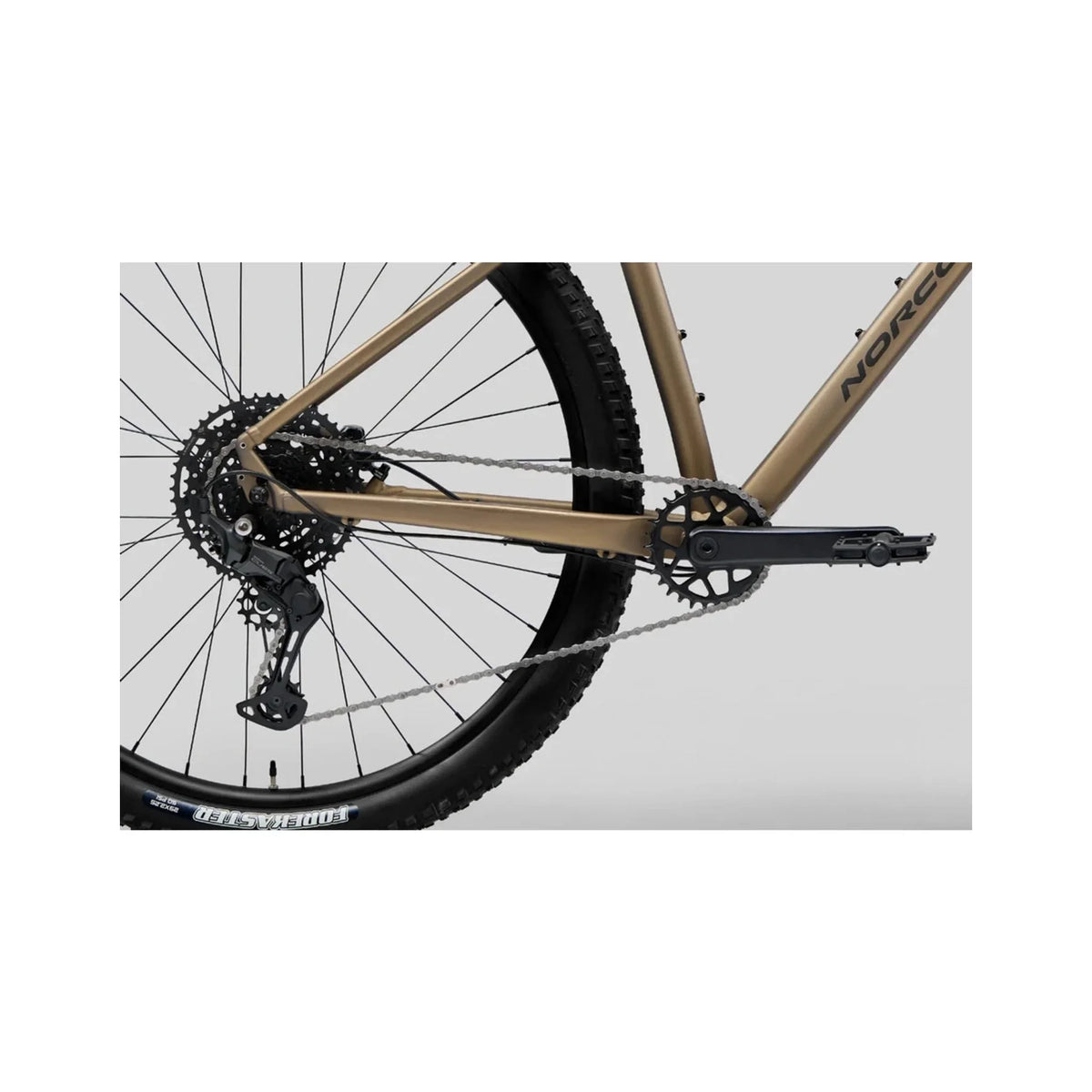

Drivetrain
Shifter: Shimano Cues SL-U6000-10R, 10-Speed
Rear Derailleur: Shimano Cues RD-U6000, 10-Speed (GS)
Crankset: Prowheel Alloy, 30 T | 170 mm (S–M), 175 mm (L–XXL)
Bottom Bracket: Cartridge, Square Taper, 73 mm
Cassette: Shimano Cues CS-LG300-10, 11–48 T, 10-Speed
Chain: KMC Cues XGlide (9/10/11-Speed Compatible)

Brakes
Front: Tektro HD-M275 Hydraulic Disc, Resin Pads, 160 mm Rotor
Rear: Tektro HD-M275 Hydraulic Disc, Resin Pads, 160 mm Rotor
Levers: Tektro HD-M275

Components
Handlebar: 6061 Alloy Double-Butted, 30 mm Rise | 750 mm (S), 780 mm (M–XXL)
Stem: Alloy, 50 mm Length, 31.8 mm Clamp
Seatpost: X-Fusion Manic LC Dropper, 31.6 mm | 100 mm (S), 125 mm (M–XXL)
Headset: Sealed Cartridge Bearings, Tapered (IS42/28.6 | IS52/40)
Saddle: XC Comfort, Steel Rail
Grips: DDK Lock-On, 139 mm Length
Pedals: Nylon Flat Pedals
Seatpost Clamp: Alloy Bolted, 34.9 mm ID

Wheels
Front Hub: Formula DC51, 15×100 mm, 32 H, 6-Bolt
Rear Hub: Formula DC-1422, 10×135 mm QR, HG Freehub, 32 H, 6-Bolt
Rims: DP 27, 27 mm Inner Width, 32 H
Tires: Maxxis Forekaster, Wire Bead | 27.5×2.35" (S), 29×2.35" (M–XXL)
Spokes: Stainless Steel, 14 g

Weight
Large: 14.59 kg (32.1 lbs)

Geometry & Sizing

Measurement 27.5" 29" M 29" L 29" XL 29" XXL
Travel (mm, front) 120 120 120 120 120
Reach (mm) 410 440 470 500 530
Stack (mm) 608 628 637 646 655
Head Tube Angle (°) 67 67 67 67 67
Fork Offset (mm) 42 46 46 46 46
Seat Tube Length (mm) 430 470 510 550 590
Effective Seat Tube Angle (°) 74.5 74.75 75 75.25 75.5
Rear Centre Length (mm) 430 440 440 440 440
Bottom Bracket Drop (mm) 32 52 52 52 52
Bottom Bracket Height (mm) 321 321 321 321 321
Top Tube (mm, horiz.) 579 611 641 670 699
Wheelbase (mm) 1129 1171 1205 1239 1273
Standover (mm) 646 671 718 738 769
Head Tube Length (mm) 125 105 115 125 135
Trail (mm) 104 108 108 108 108
Recommended Seatpost Drop (mm) 100 100 100 100 100
Max Post Insertion (mm) 300 265 300 340 380
Stem Length (mm) 50 50 50 50 50
Crank Length (mm) 170 170 175 175 175
Tire Size 2.2"–2.4" 2.2"–2.4" 2.2"–2.4" 2.2"–2.4" 2.2"–2.4"
Water Bottle Compatibility 1× 620 mL 1× 620 mL + 1× 750 mL 2× 750 mL 2× 750 mL 2× 750 mL

Recommended Sizing

Rider Height Suggested Frame Size
5’1” – 5’5” (155–165 cm) Small (27.5")
5’6” – 5’9” (168–175 cm) Medium (29")
5’10” – 6’0” (178–183 cm) Large (29")
6’1” – 6’3” (185–191 cm) X-Large (29")
6’4” – 6’7” (193–200 cm +) XX-Large (29")
