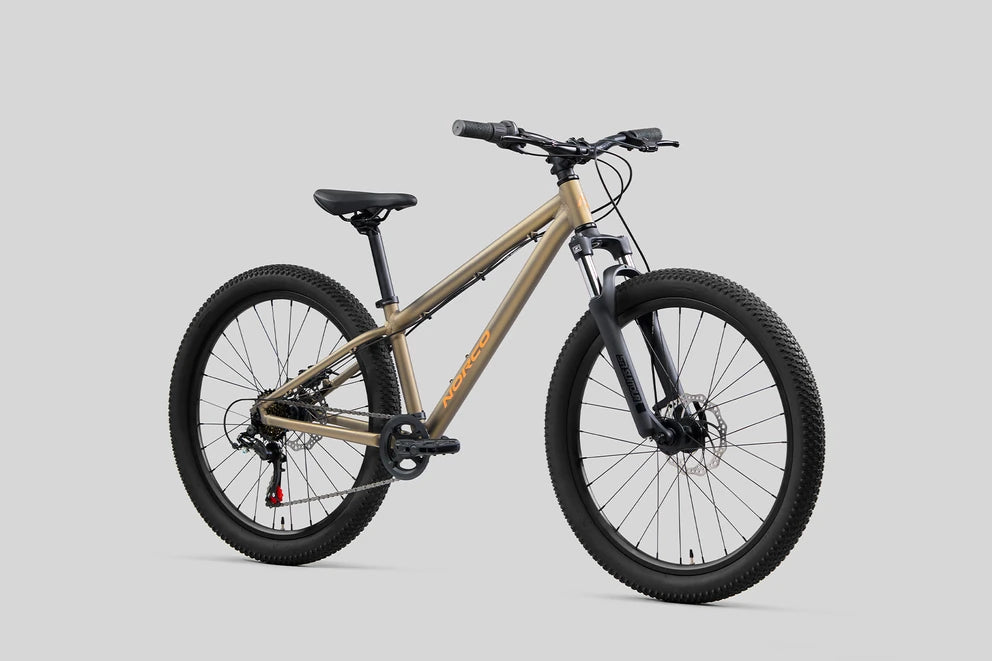

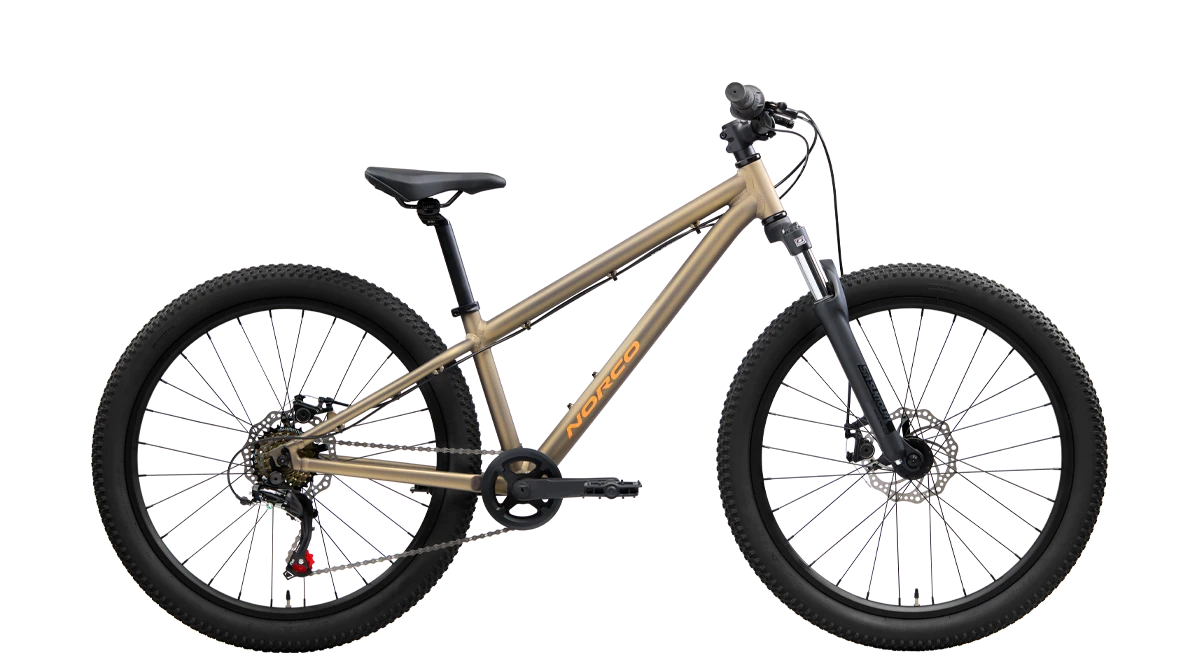

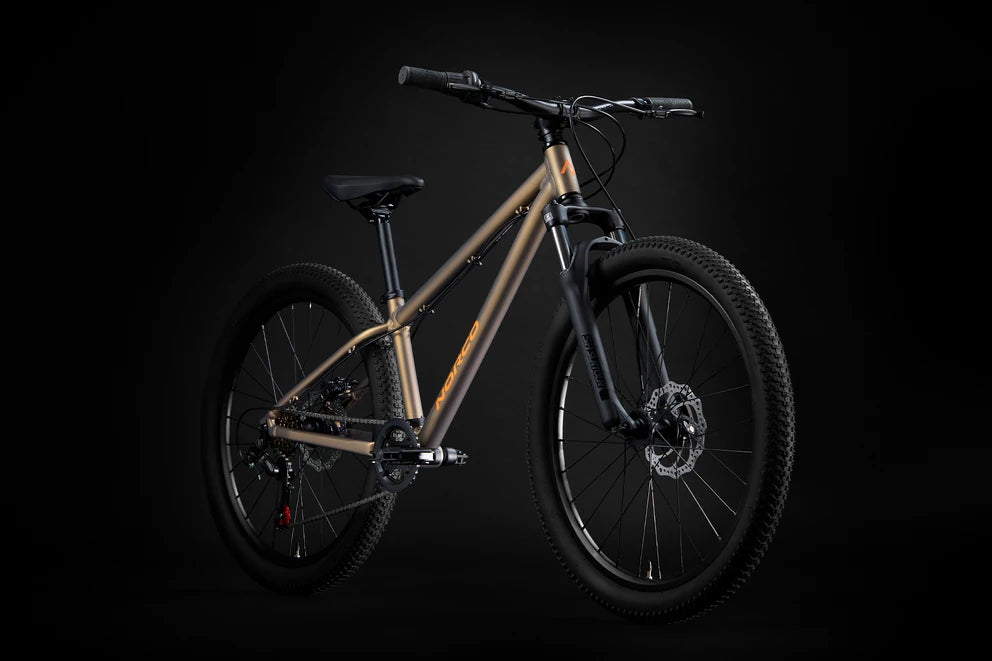

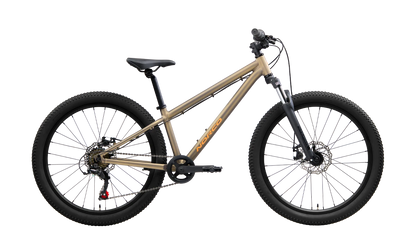

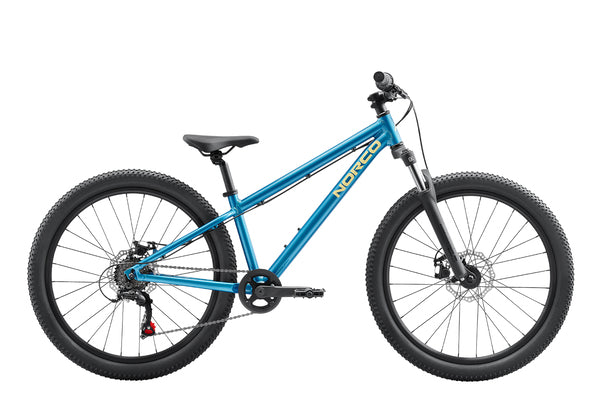

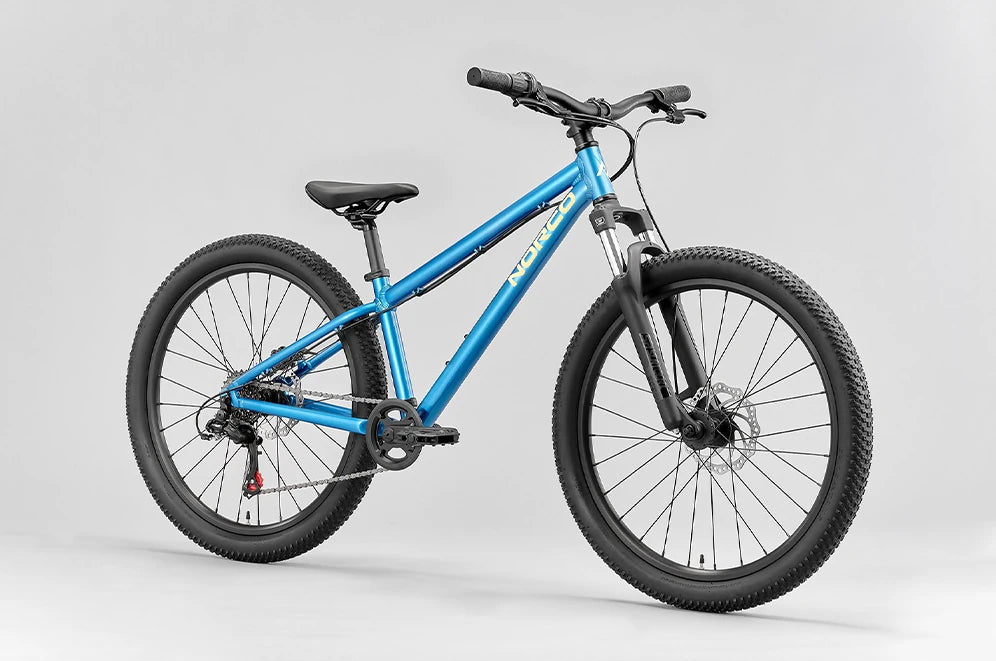

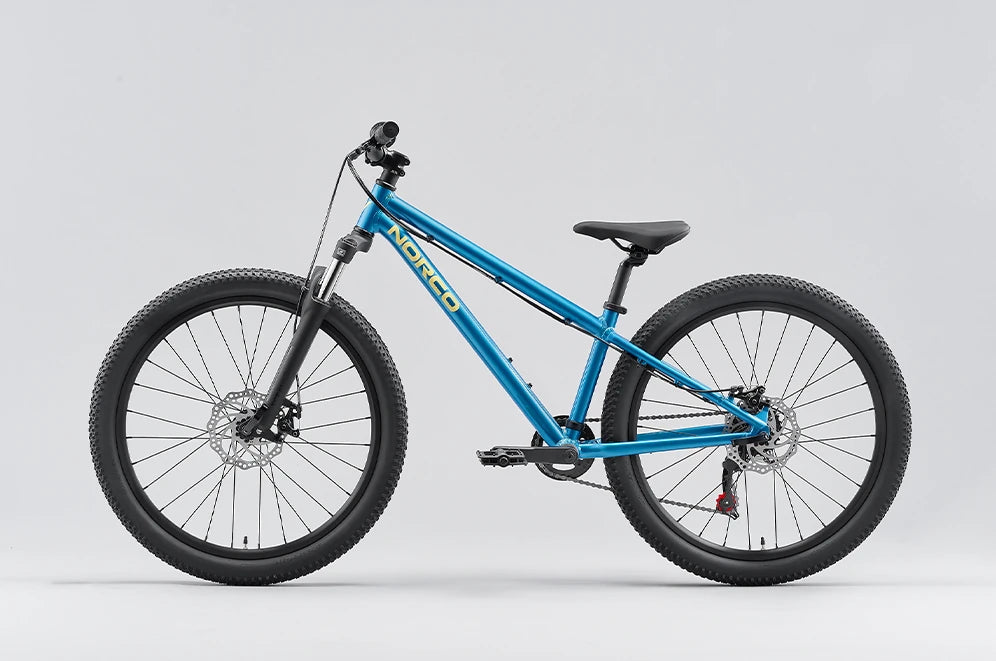

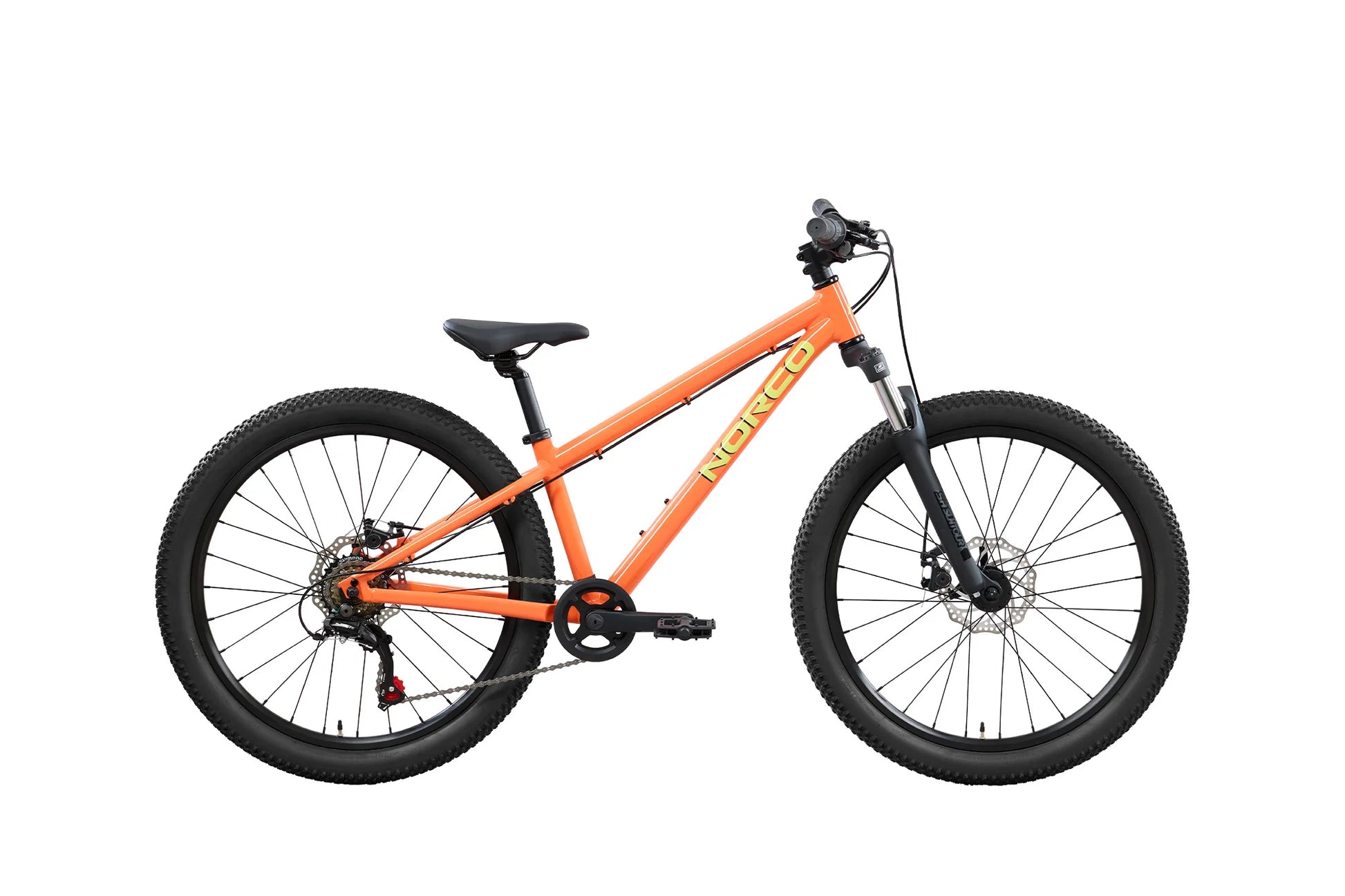

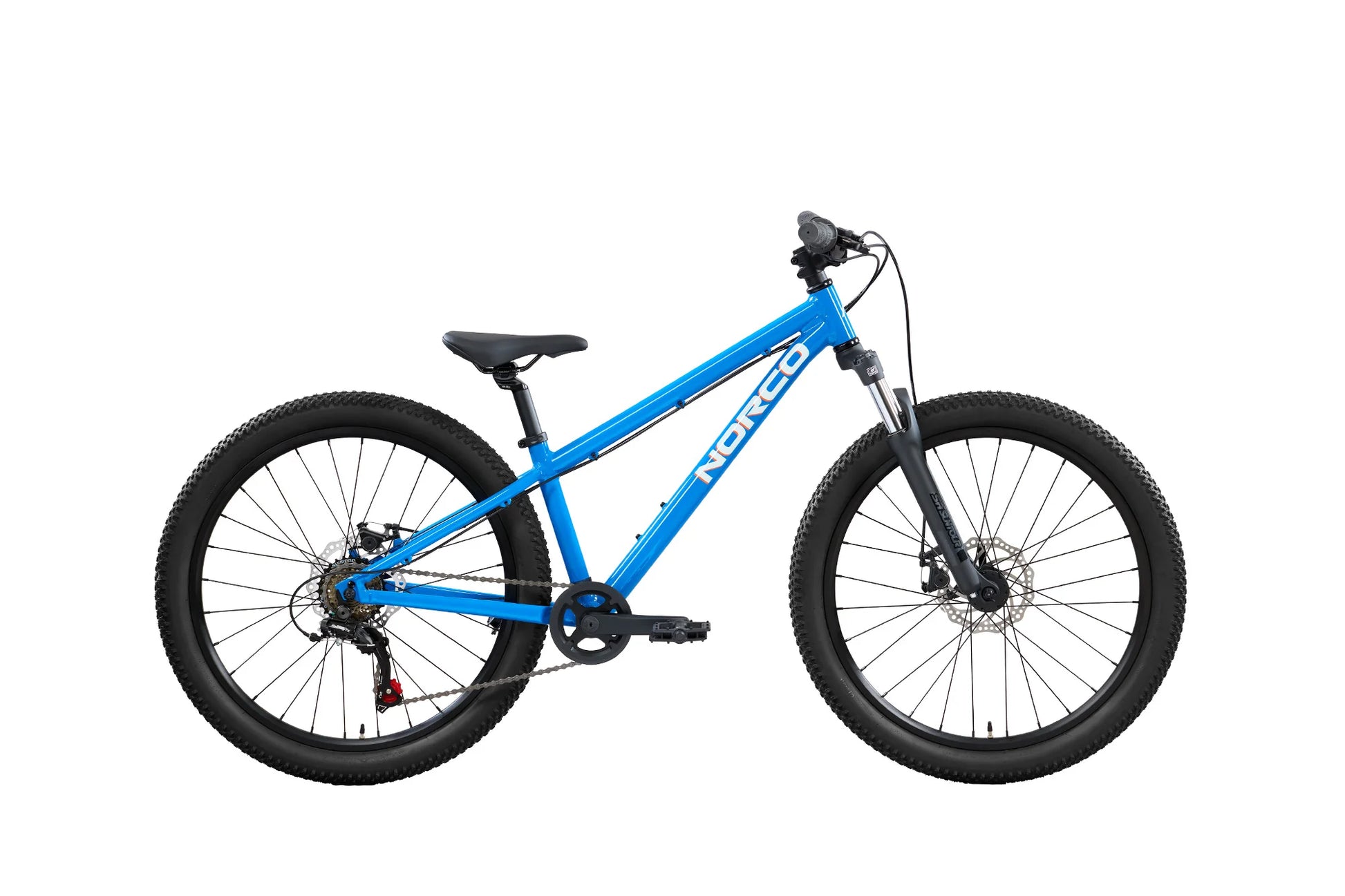

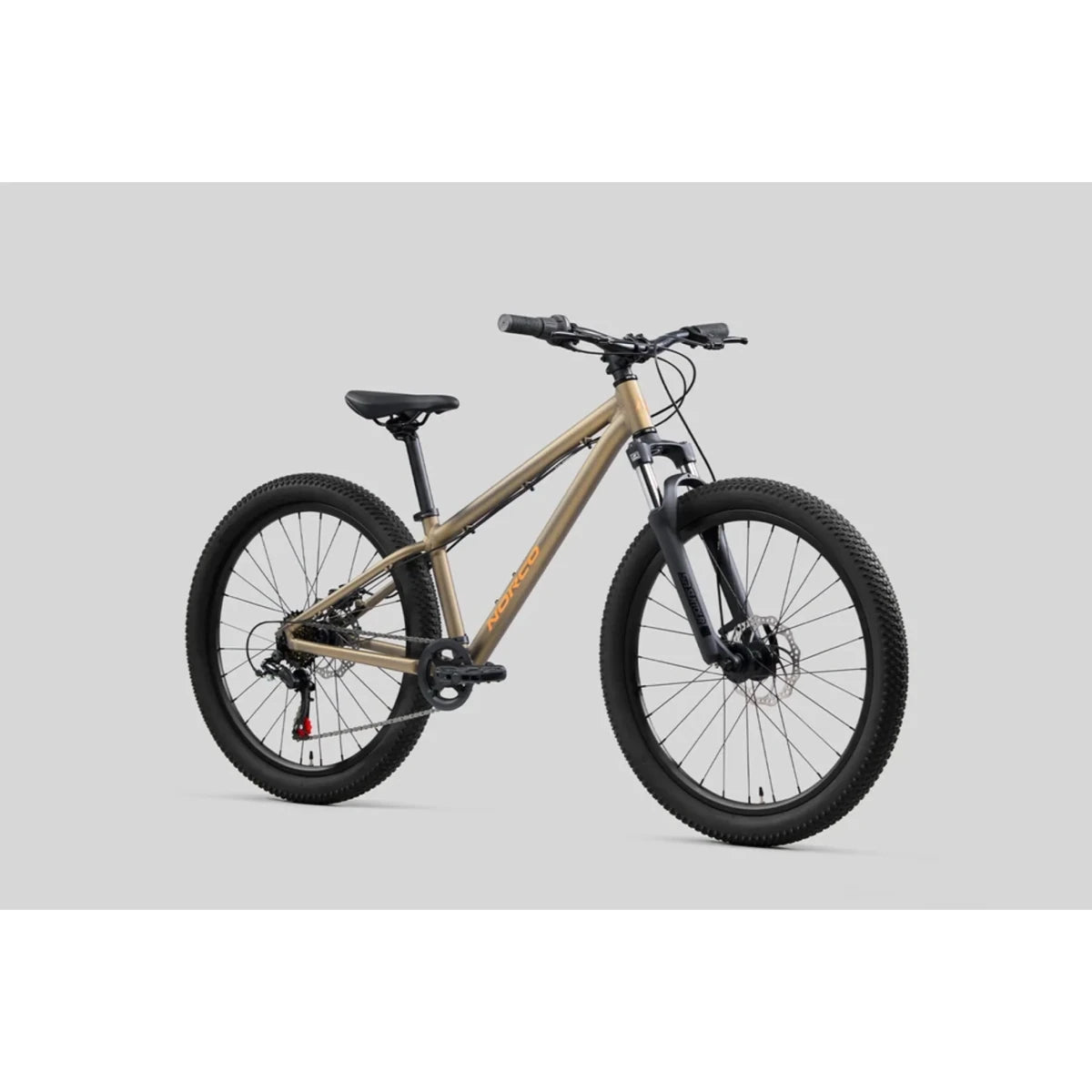

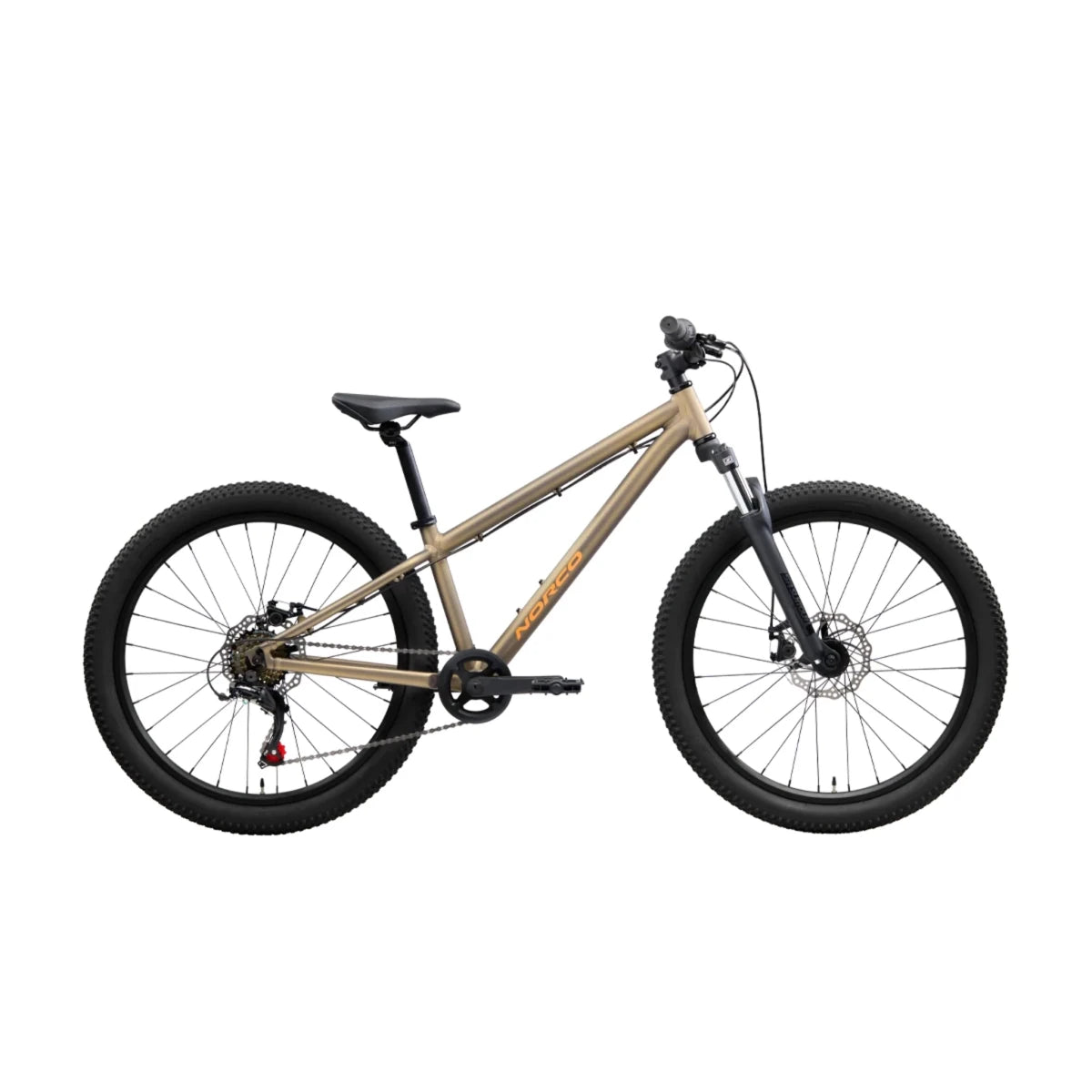

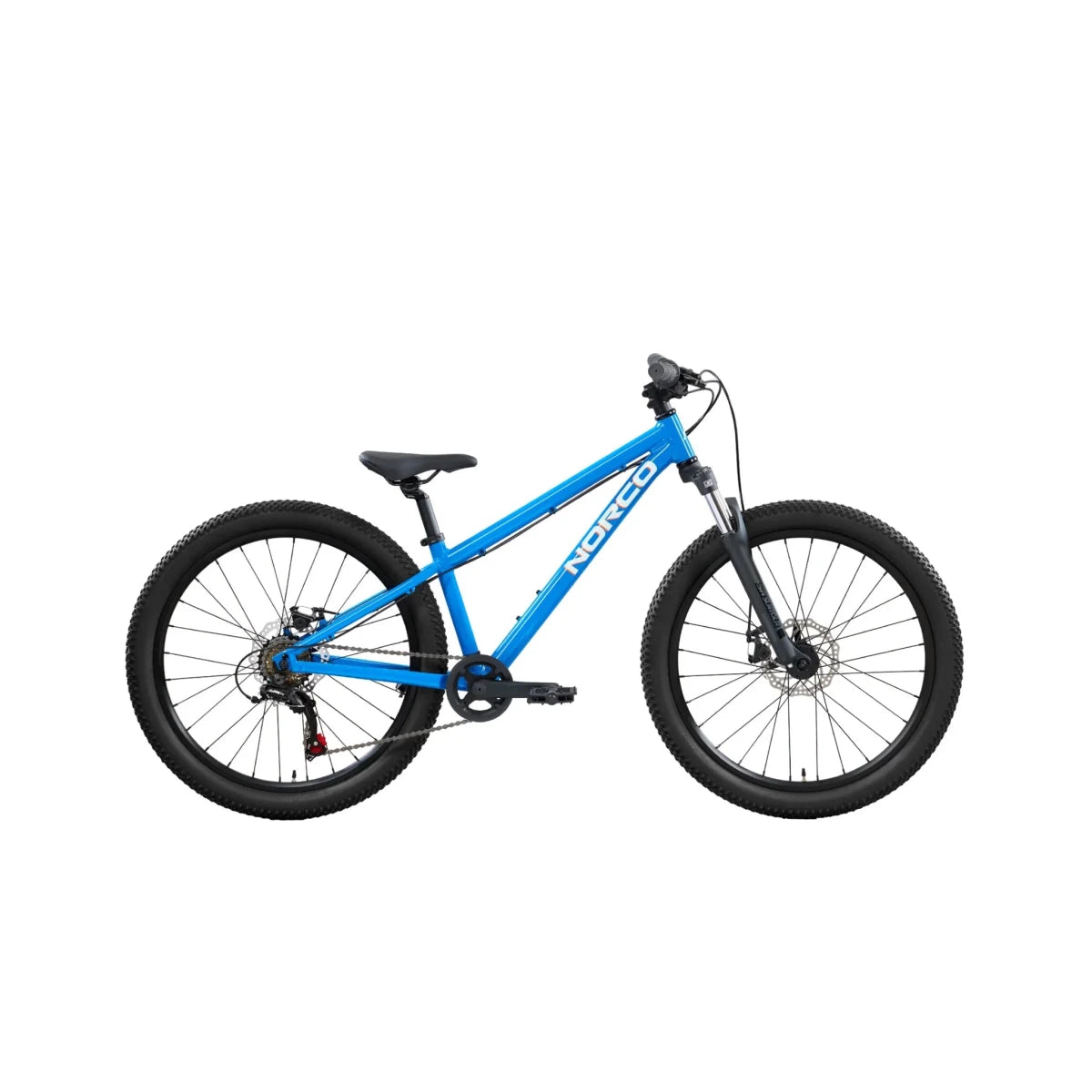

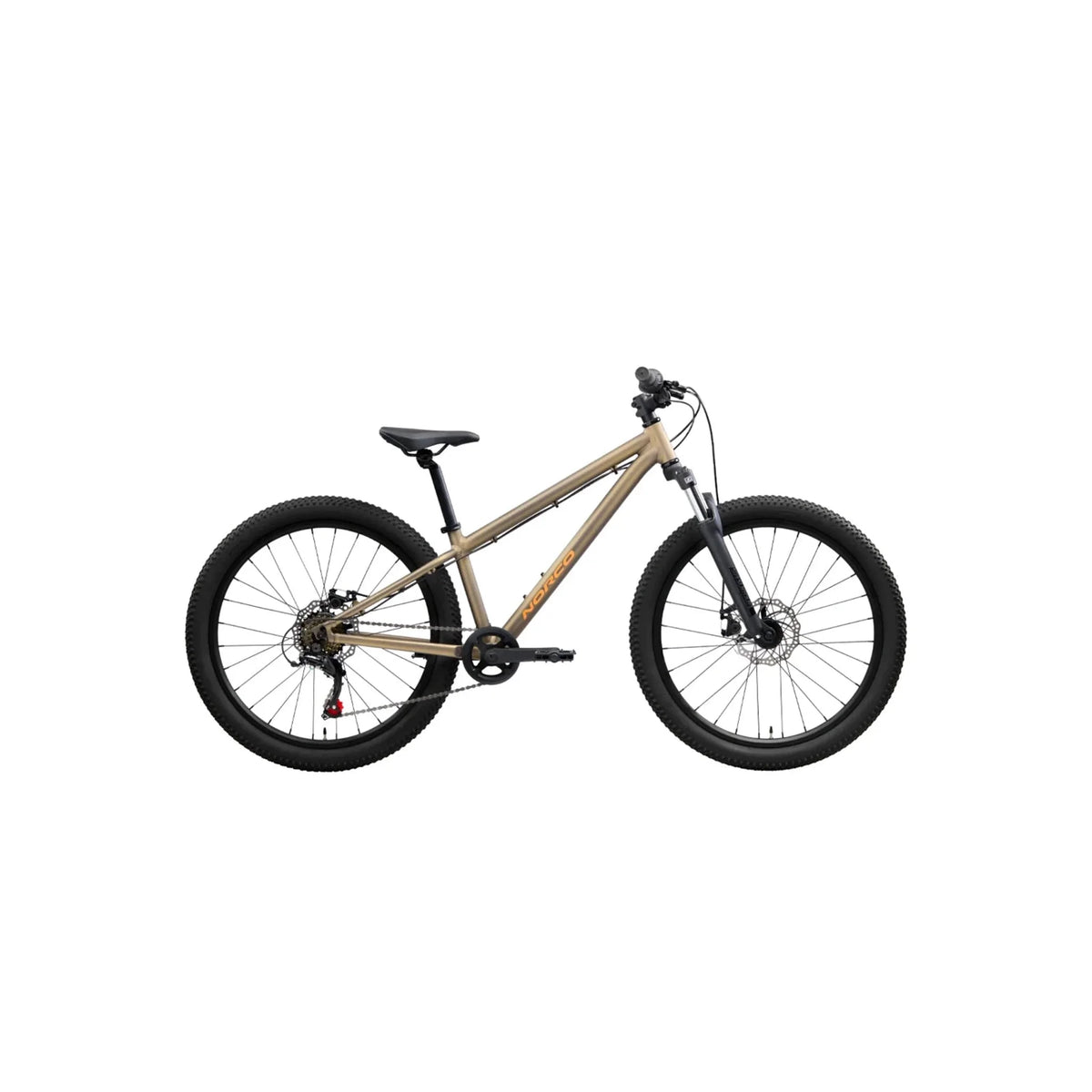

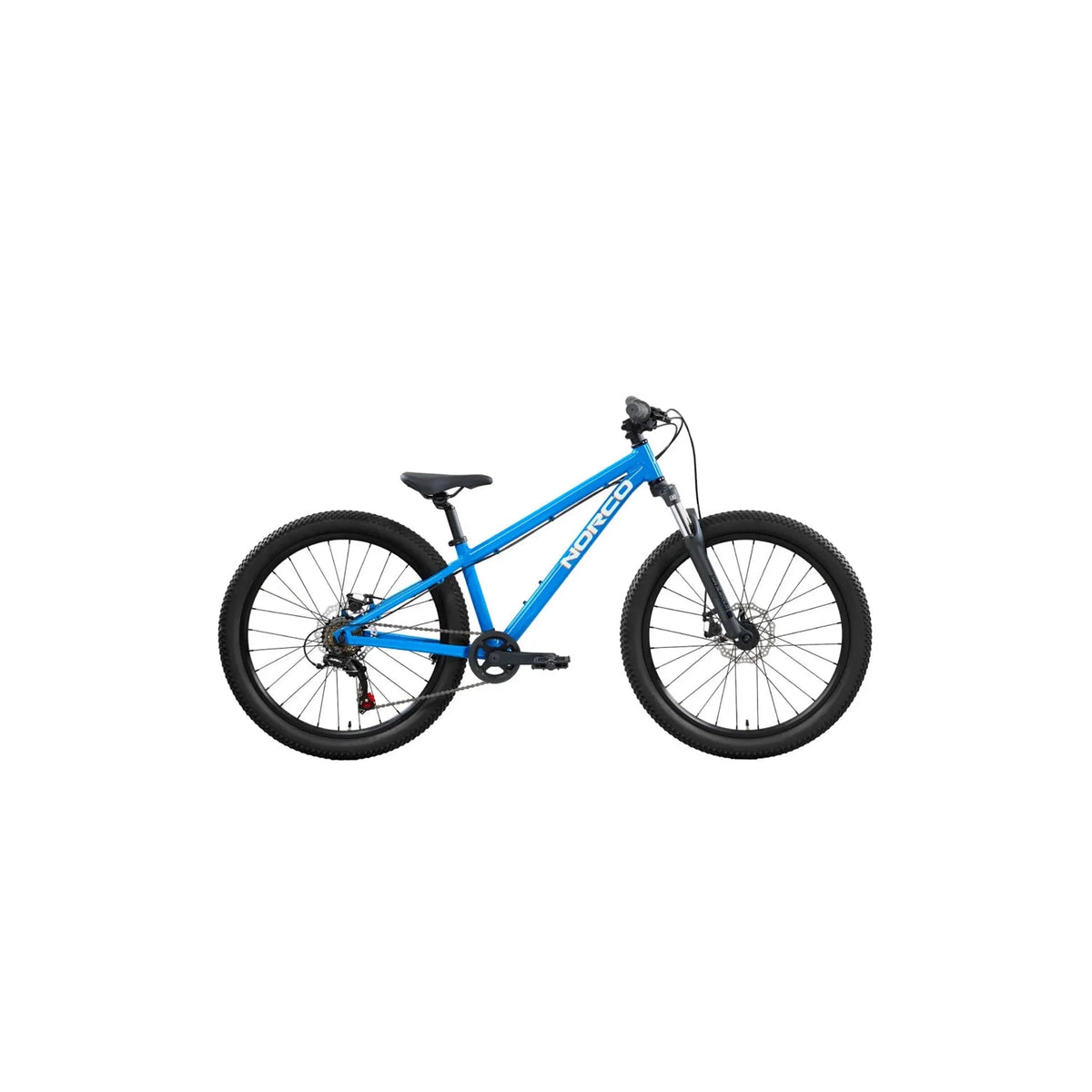

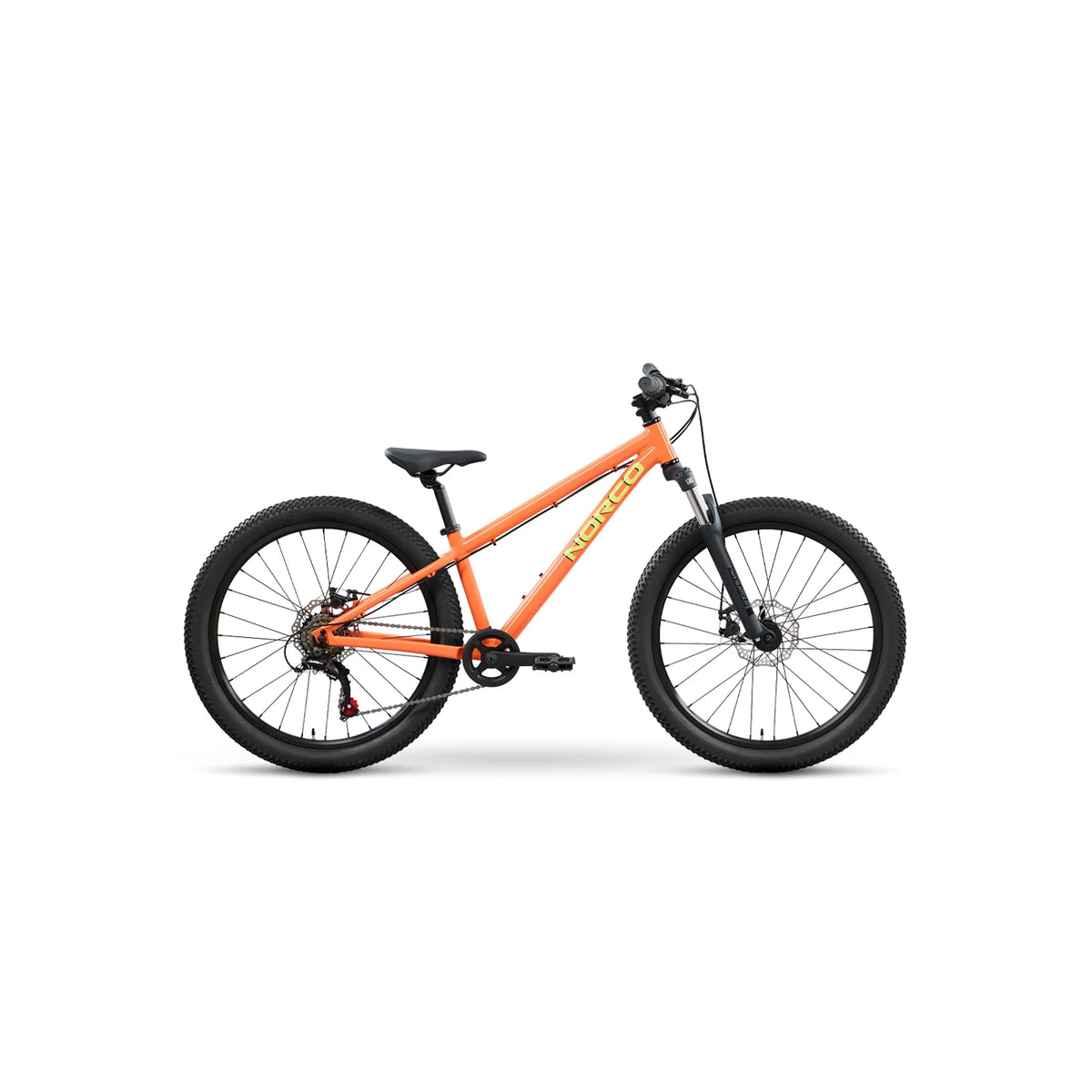

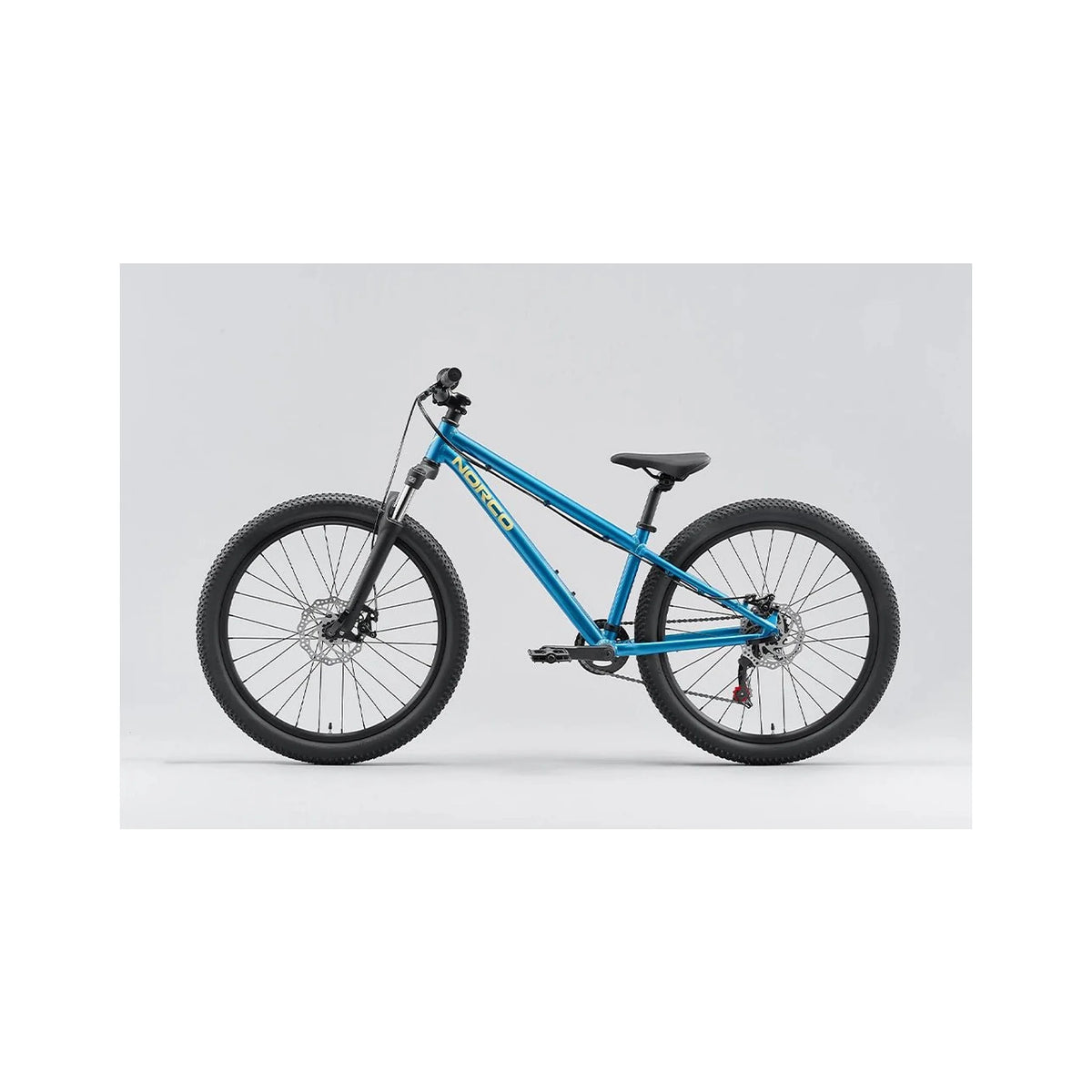

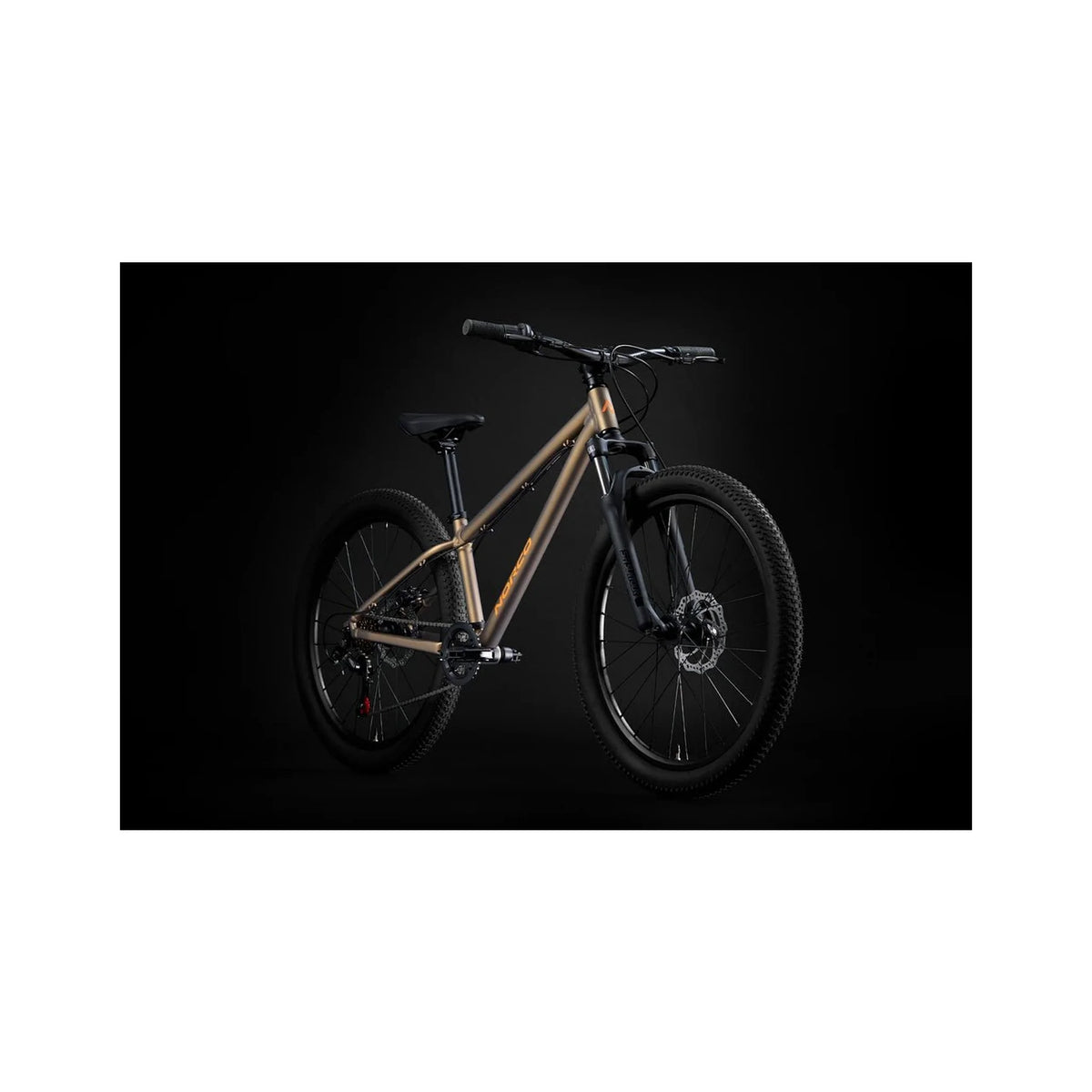

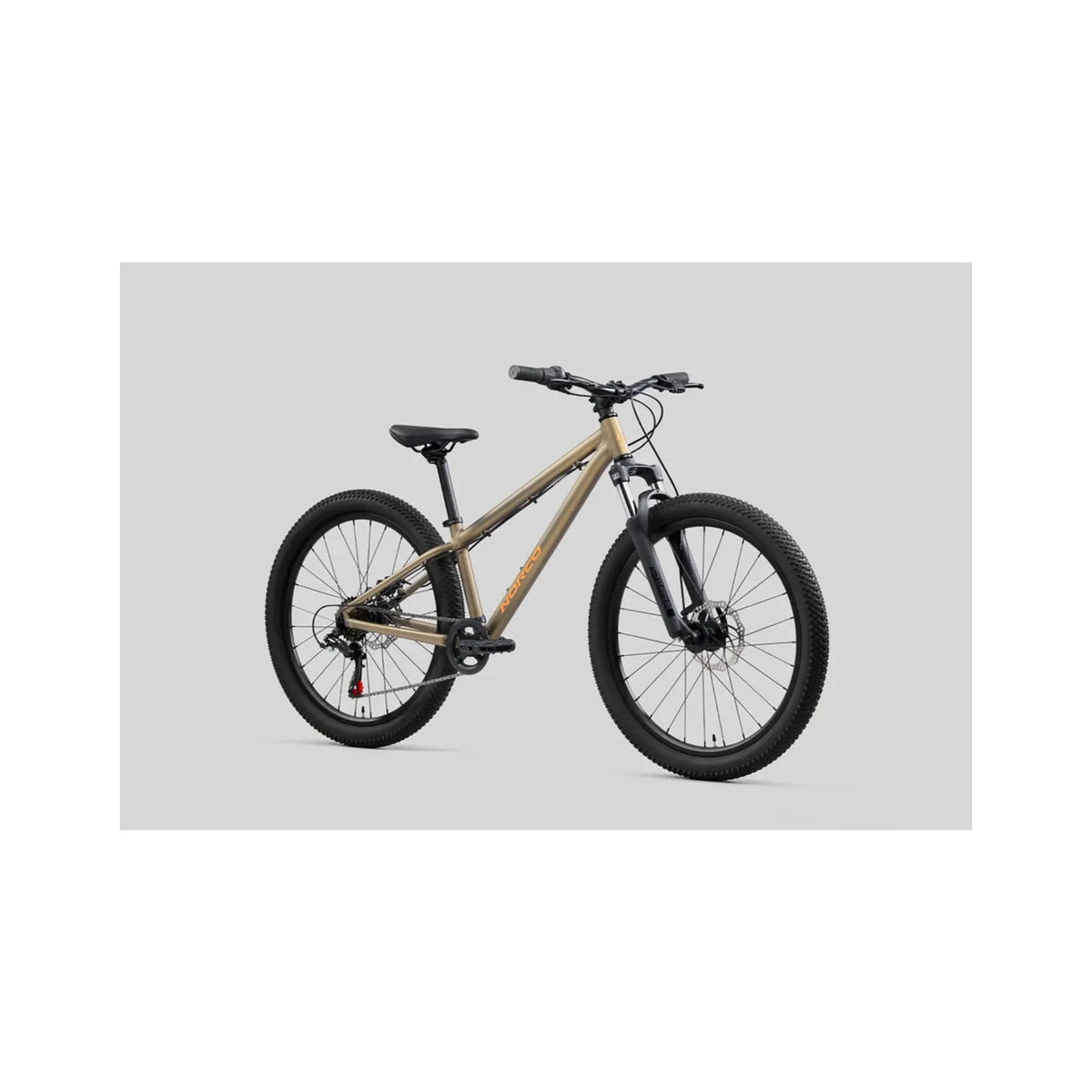

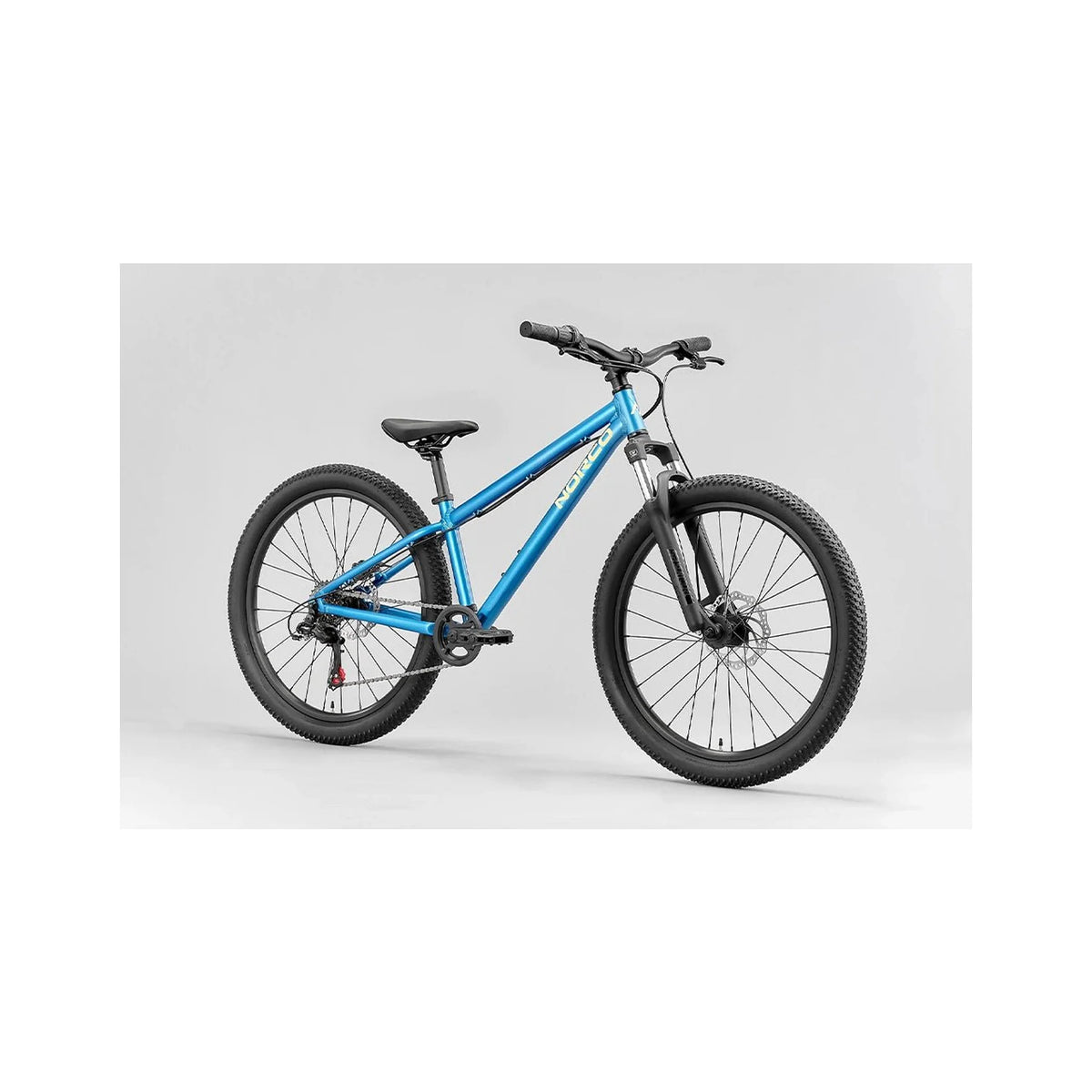

Norco Storm 24 Youth Hardtail Mountain Bike

The durable and lightweight Storm 24 provides simple upkeep and operation to help young riders find the best line and stop on a dime.

Key Features

• Optimized Fork Travel: Just enough suspension (80mm) to build skills without adding unnecessary weight.

• Lightweight and Efficient: Quicker starts and easy climbs make every ride more enjoyable for young riders.

• Reliable Braking: Mechanical disc brakes with reach-adjust levers provide safe and confident stopping power.

• Youth-Specific Design: Built with components and geometry tailored to meet the needs of every young rider.

• Warranty: Includes the No Other Way Limited Lifetime Warranty.

Specifications

Frameset

• Frame: Aluminum, 9x135mm QR, 24"

• Fork: SR Suntour XCT Coil with Soft Spring and Preload, 80mm Travel, 9x100mm QR

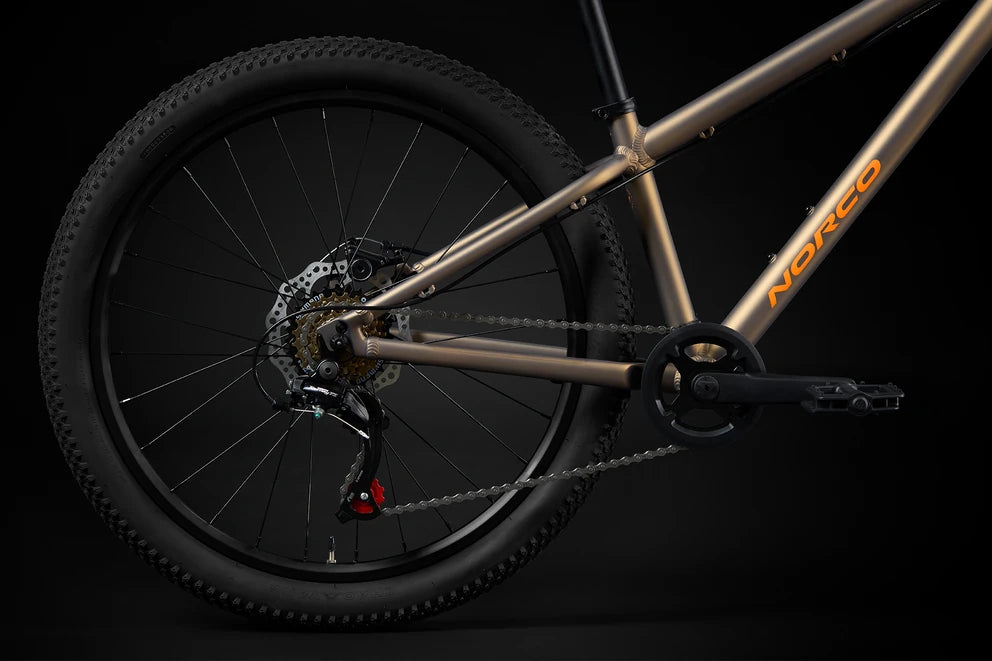

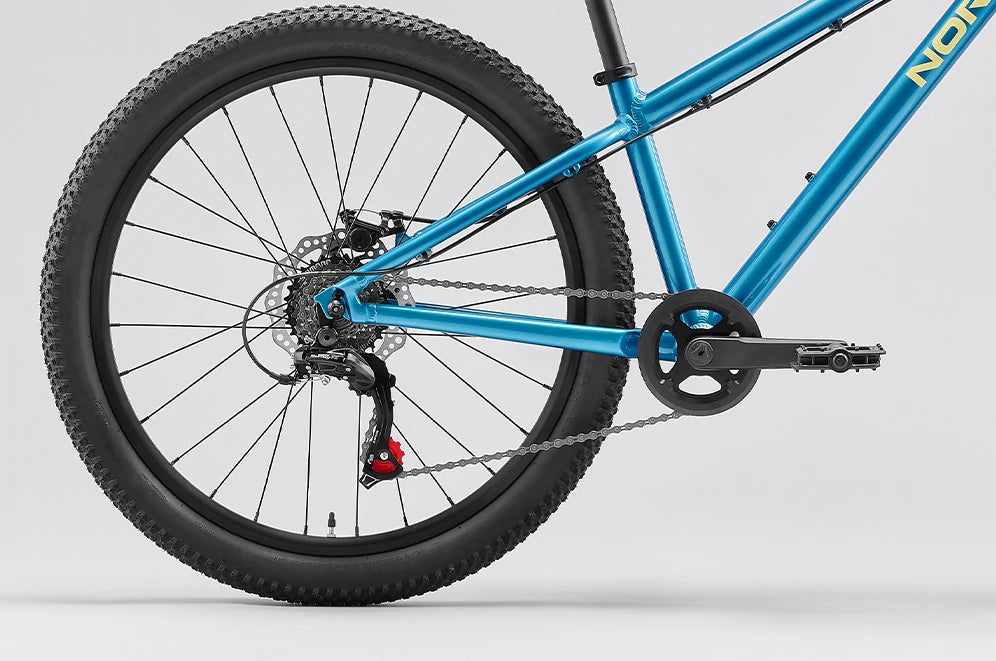

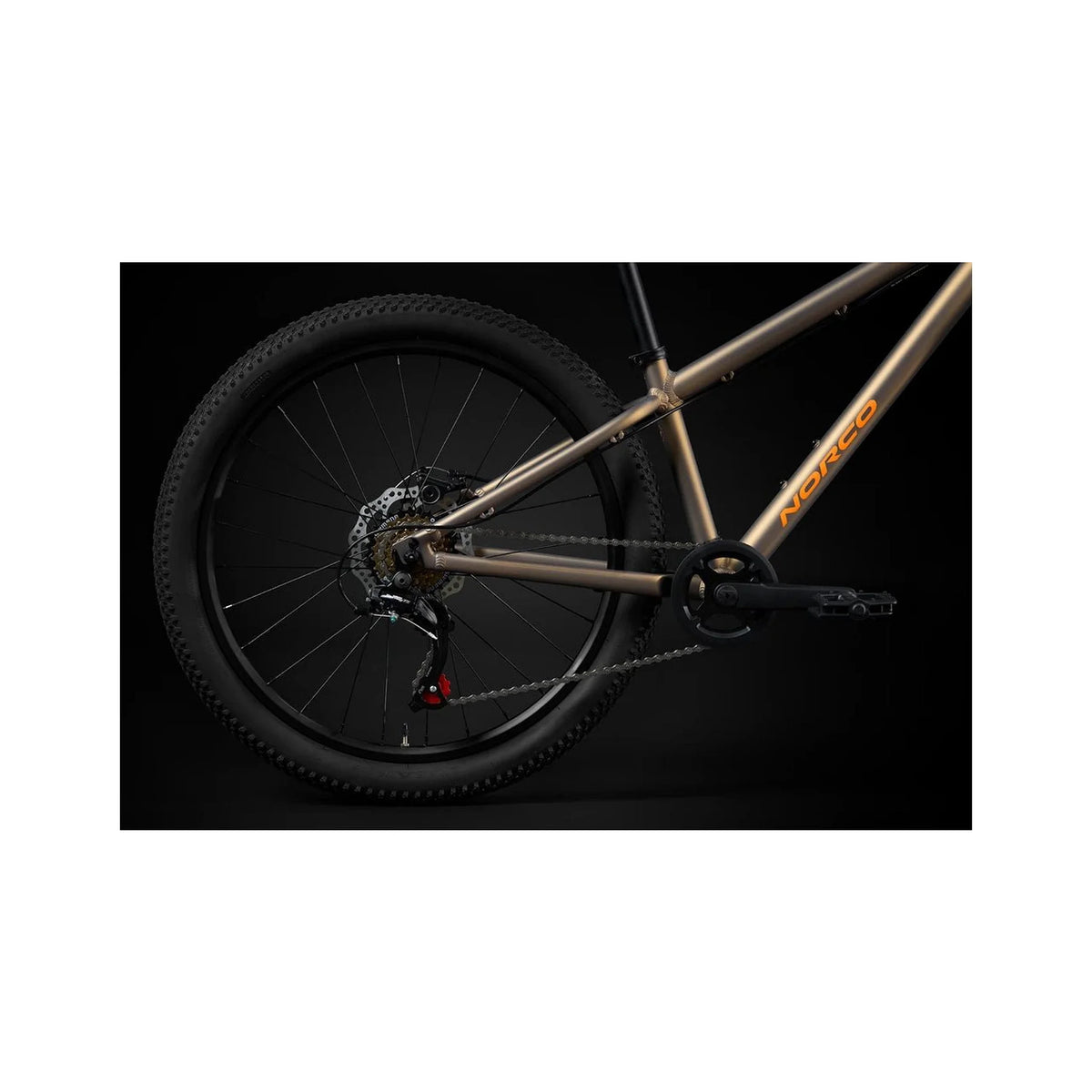

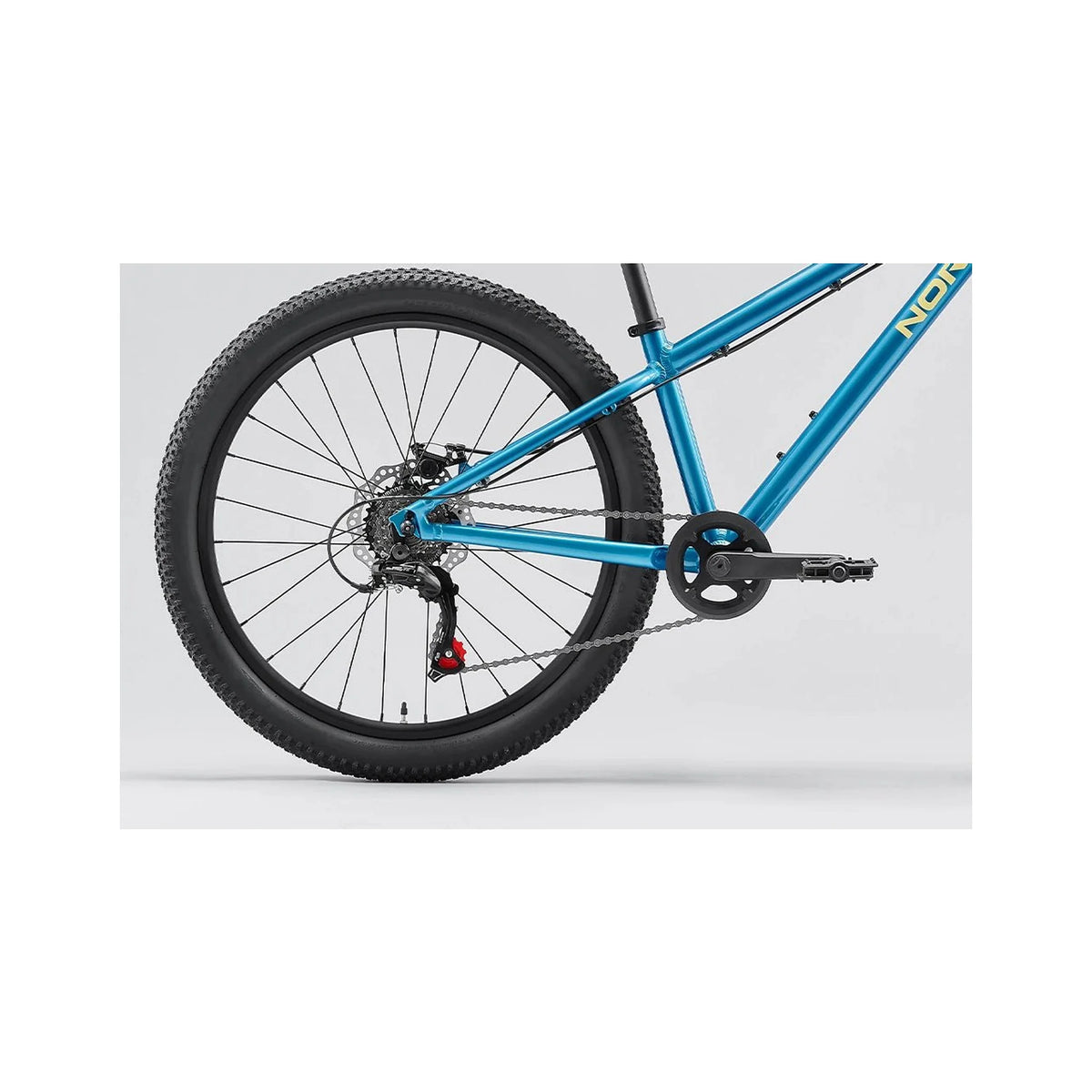

Drivetrain

• Rear Shifter: Shimano SL-RV200-6R, 6-Speed, Gripshift

• Rear Derailleur: Shimano TZ-500, 6-Speed, Direct Mount

• Crankset: Alloy 3-piece, 140mm, 28T Narrow Wide Chainring

• Bottom Bracket: Sealed Bearing, Square Taper, 68mm

• Cassette: Shimano MF-TZ500-6, 14-28T, 6-Speed, Freewheel

• Chain: KMC Z6

Brakes

• Front Brake: Tektro Aries Mechanical Disc, Resin Pads

• Front Rotor: 160mm, 6-Bolt

• Rear Brake: Tektro Aries Mechanical Disc, Resin Pads

• Rear Rotor: 160mm, 6-Bolt

• Brake Levers: Tektro Aries Alloy Jr. Levers with Reach Adjust

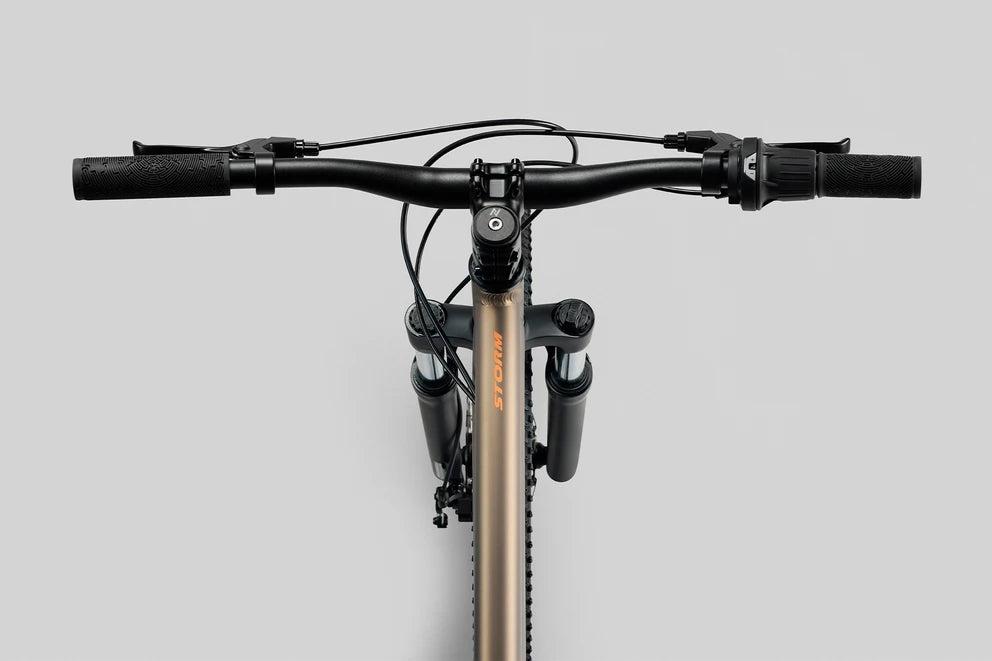

Components

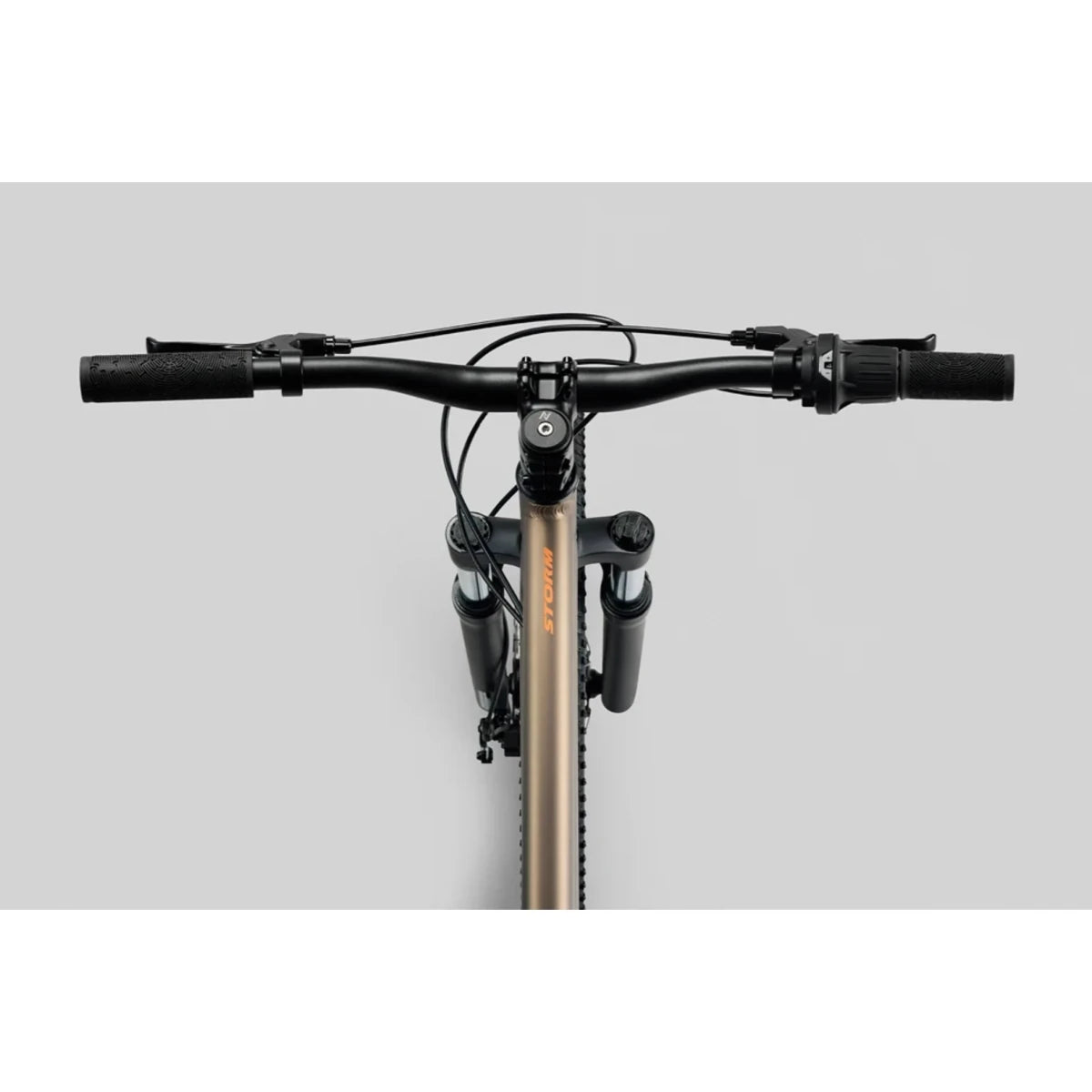

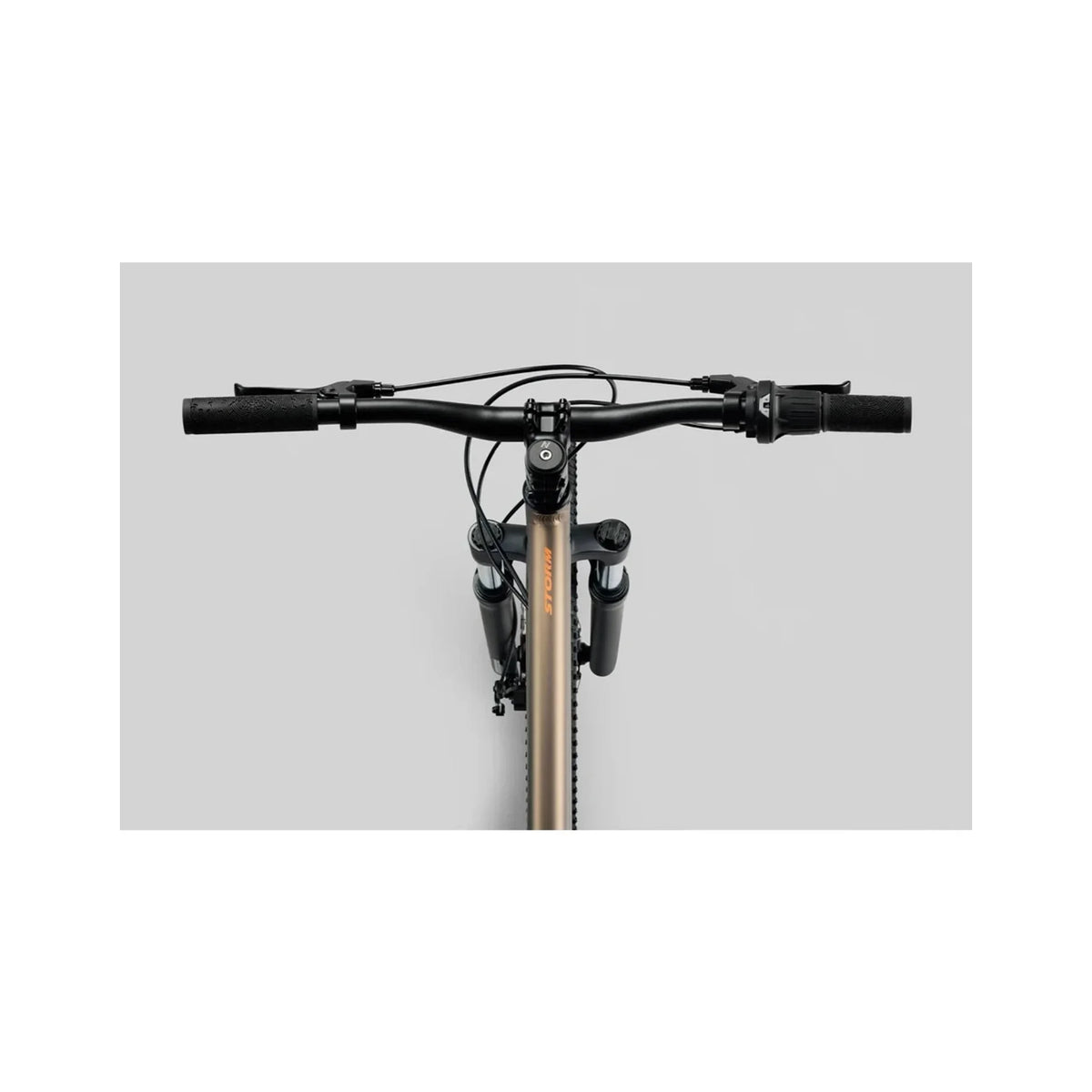

• Handlebar: Alloy Jr. Riser, 600mm, 30mm Rise

• Stem: Alloy, 40mm Length, 31.8mm Clamp

• Seatpost: Norco Alloy, 27.2mm, 250mm Length

• Headset: External Cup Ball Bearing, 1-1/8"

• Saddle: Norco Jr XC, Steel Rail

• Grips: Norco Youth, 115mm Length

• Pedals: Jr. MTB Flat, 9/16"

• Seatpost Clamp: Norco Alloy Bolted, 31.8mm ID

Wheels

• Front Hub: Formula DC-1420, 9x100mm QR, 28h, 6-Bolt

• Rear Hub: Formula DC-31R-7S, 9x135mm QR, Freewheel, 28h, 6-Bolt

• Rims: Aluminum Double Wall, 28h, 24"

• Tires: CY Trail, 24x2.25", Wire Bead

• Spokes: Stainless Steel with Brass Nipples, Black

Weight

• Weight: 12.04 kg (26.5 lbs)

Geometry

• Front Travel: 80mm

• Reach: 365mm

• Stack: 523mm

• Head Tube Angle: 66°

• Fork Offset: 40mm

• Seat Tube Length: 305mm

• Effective Seat Tube Angle: 73°

• Rear Centre Length: 380mm

• Bottom Bracket Drop: 43mm

• Bottom Bracket Height: 267mm

• Horizontal Top Tube: 525mm

• Wheelbase: 1000mm

• Standover: 532mm

• Head Tube Length: 90mm

• Trail: 94mm

• Recommended Seatpost Drop: 0mm

• Maximum Post Insertion: 283mm

• Stem Length: 45mm

• Crank Length: 152mm

• Recommended Tire Size: 2.2" – 2.4"

• Water Bottle Compatible: Yes (1 x 620mL)
