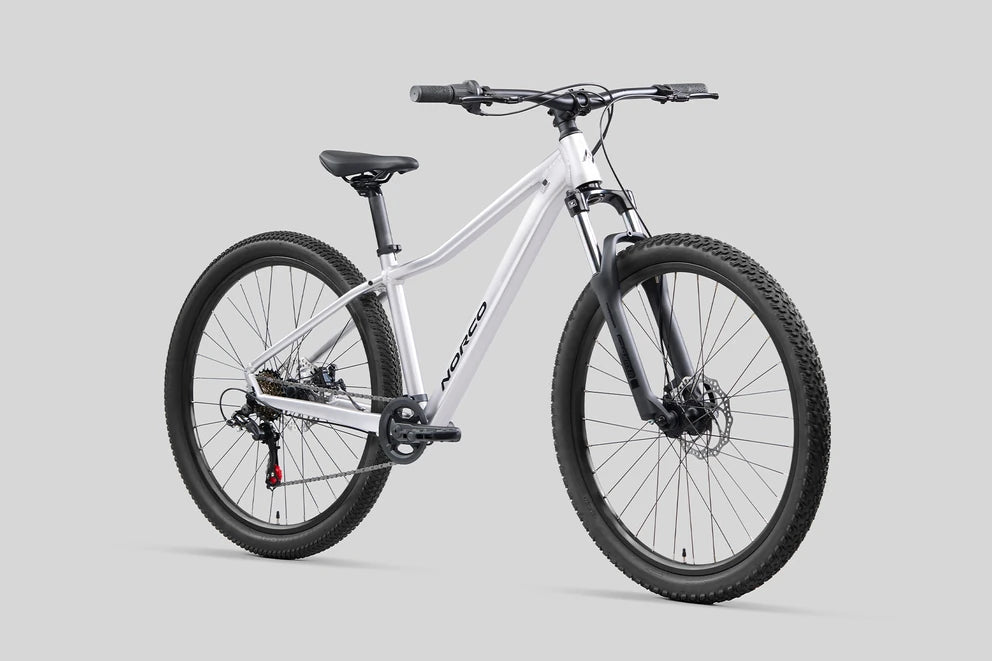

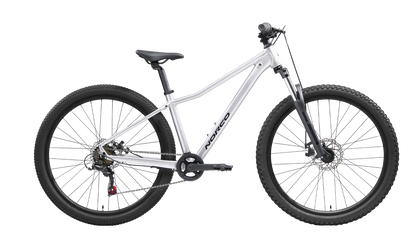

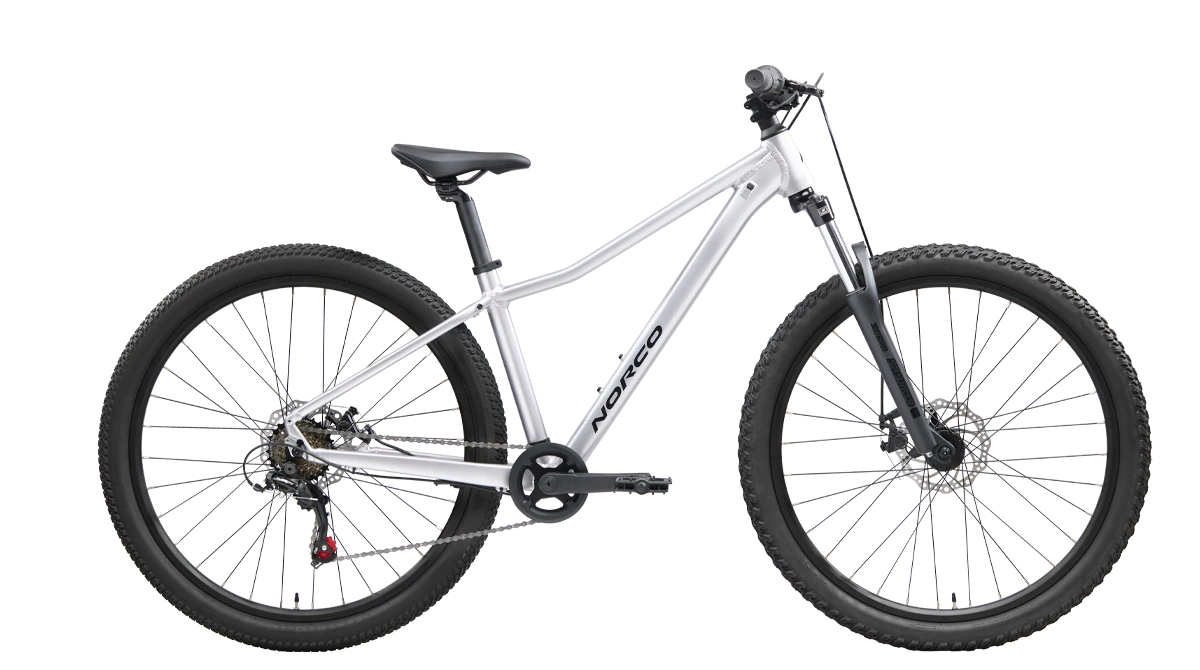

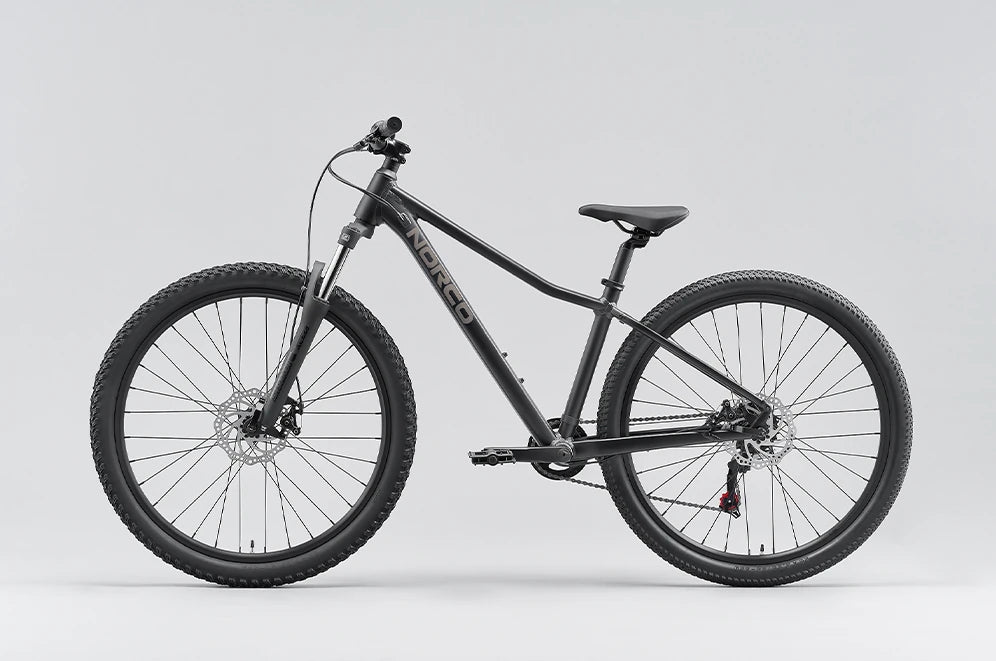

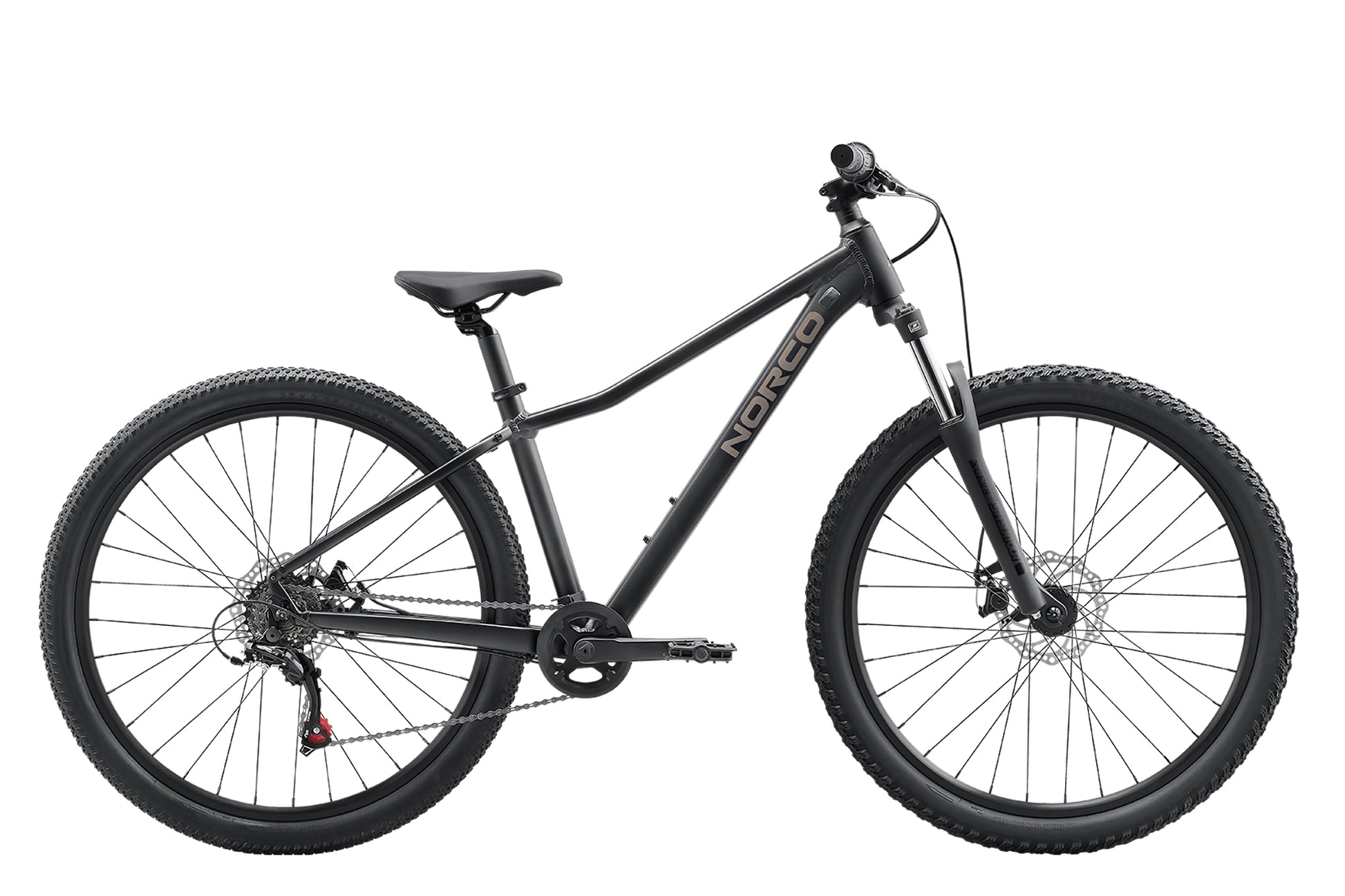

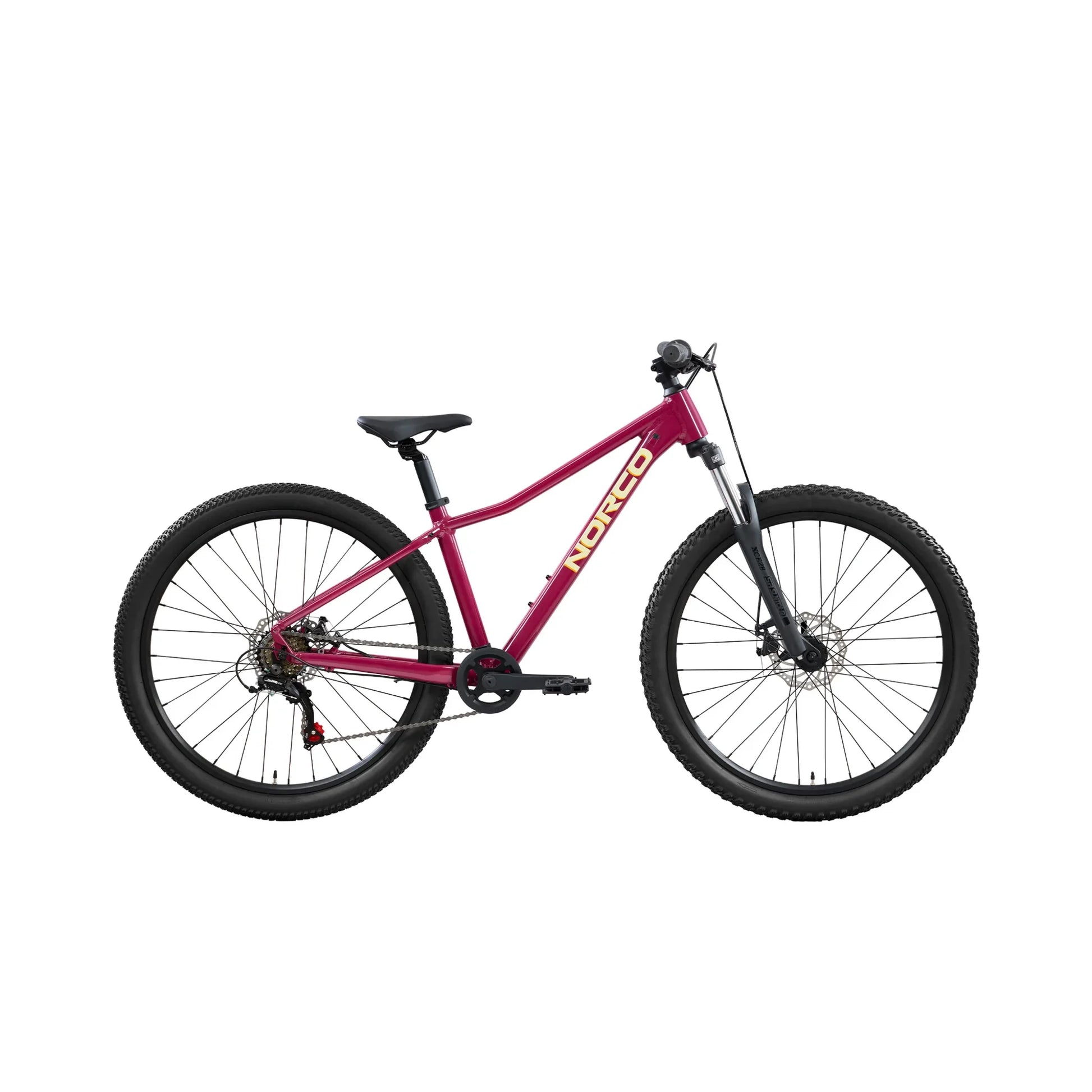

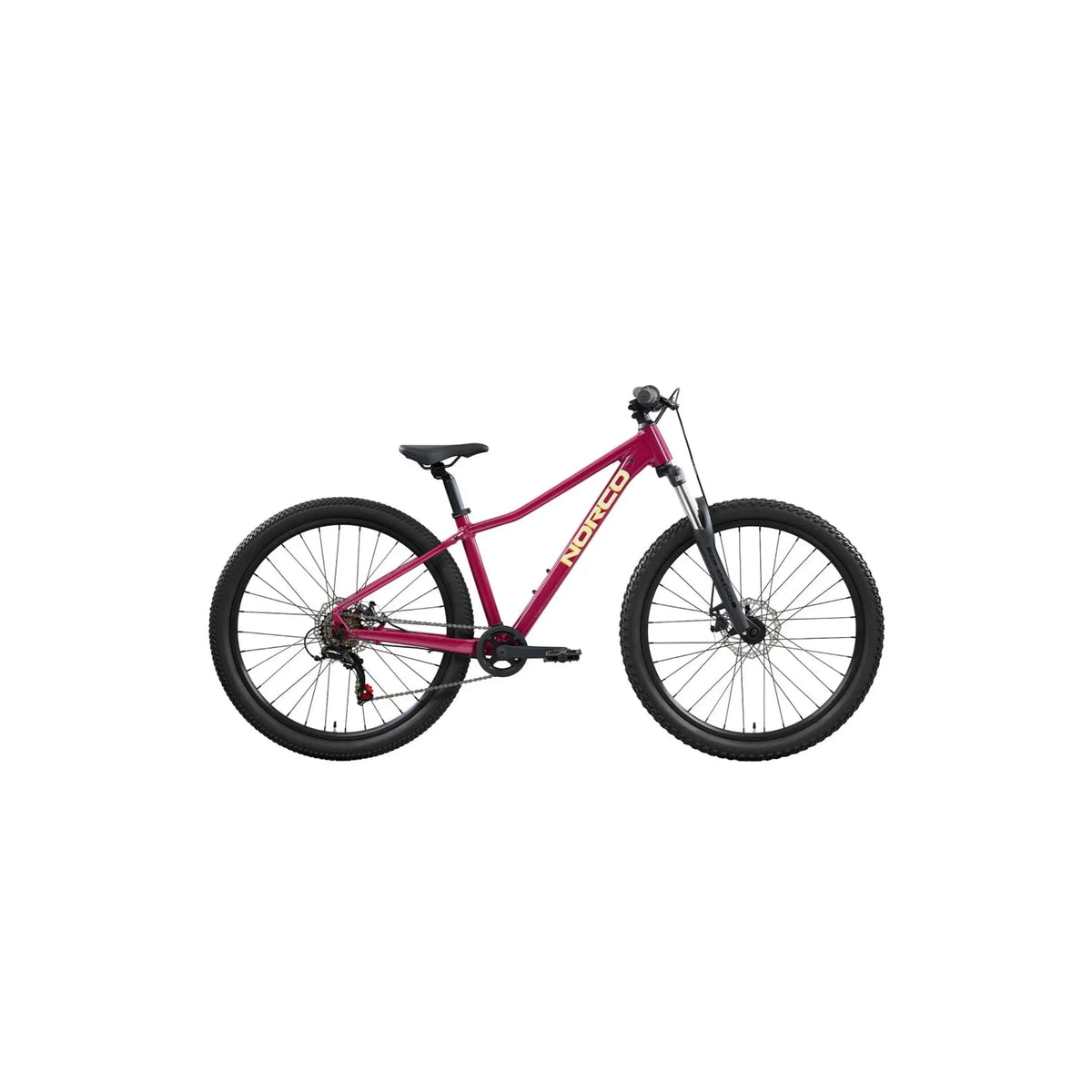

Norco Storm 26 Hardtail Youth Mountain Bike

The durable and lightweight Storm 26 provides simple upkeep and operation to help young riders find the best line and stop on a dime.

Key Features

• Optimized Fork Travel: Just enough suspension (100mm) to build skills without adding unnecessary weight.

• Lightweight and Efficient: Quicker starts and easy climbs make every ride more enjoyable for young riders.

• Reliable Braking: Mechanical disc brakes with reach-adjust levers provide safe and confident stopping power.

• Youth-Specific Design: Built with components and geometry tailored to meet the needs of every young rider.

• Warranty: Includes the No Other Way Limited Lifetime Warranty.

Specifications

Frameset

• Frame: Aluminum, 9x135mm QR, 26"

• Fork: RST First Coil with Soft Spring and Preload, 100mm Travel, 9x100mm QR

Drivetrain

• Rear Shifter: Shimano SL-RV200-6R, 6-Speed, Gripshift

• Rear Derailleur: Shimano TZ-500, 6-Speed, Direct Mount

• Crankset: Alloy 3-piece, 140mm, 28T Narrow Wide Chainring

• Bottom Bracket: Sealed Bearing, Square Taper, 68mm

• Cassette: Shimano MF-TZ500-6, 14-28T, 6-Speed, Freewheel

• Chain: KMC Z6

Brakes

• Front Brake: C-Star Mechanical Disc, Resin Pads

• Front Rotor: 160mm, 6-Bolt

• Rear Brake: C-Star Mechanical Disc, Resin Pads

• Rear Rotor: 160mm, 6-Bolt

• Brake Levers: C-Star Alloy Jr. Levers with Reach Adjust

Components

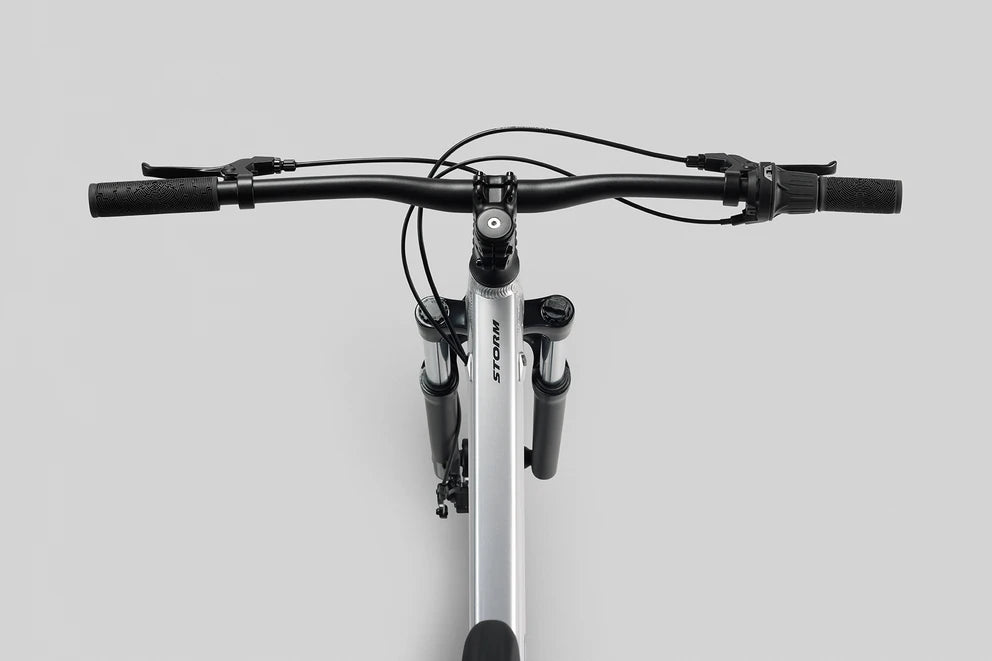

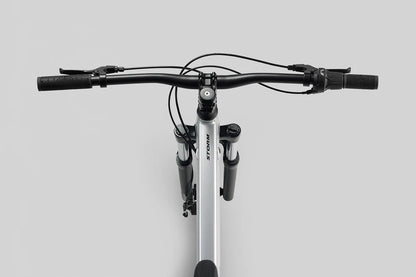

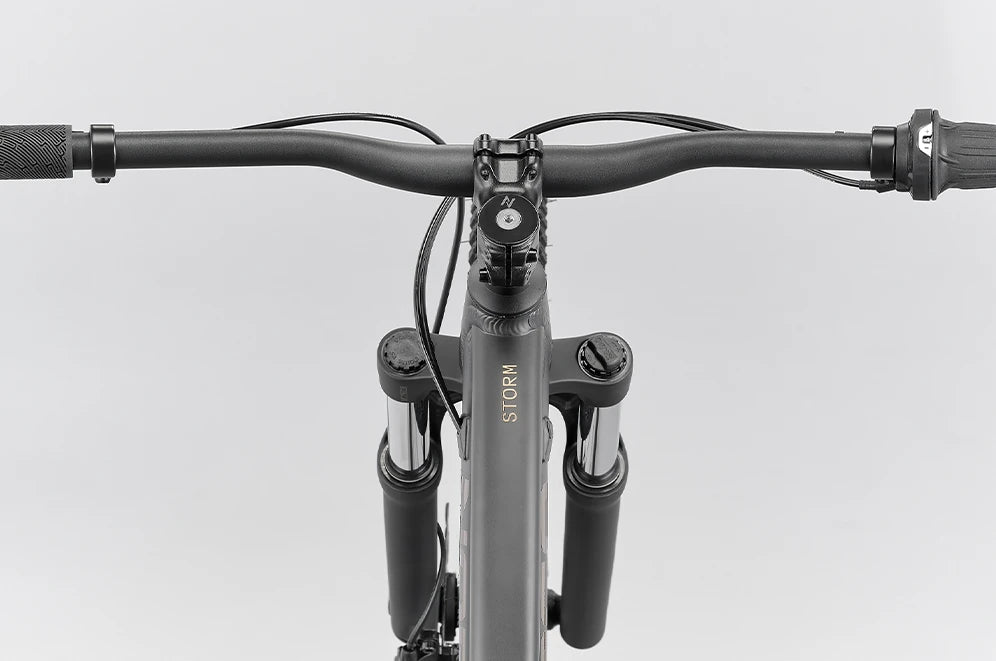

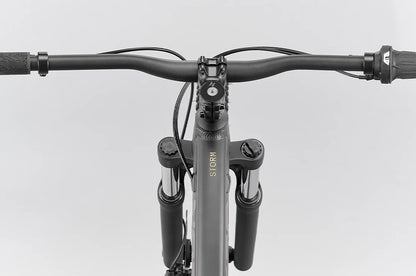

• Handlebar: Alloy Jr. Riser, 720mm, 30mm Rise

• Stem: Alloy, 40mm Length, 31.8mm Clamp

• Seatpost: Norco Alloy, 27.2mm, 250mm Length

• Headset: External Cup Ball Bearing, 1-1/8"

• Saddle: Norco Jr XC, Steel Rail

• Grips: Norco Youth, 115mm Length

• Pedals: Jr. MTB Flat, 9/16"

• Seatpost Clamp: Norco Alloy Bolted, 31.8mm ID

Wheels

• Front Hub: Formula DC-1420, 9x100mm QR, 28h, 6-Bolt

• Rear Hub: Formula DC-31R-7S, 9x135mm QR, Freewheel, 28h, 6-Bolt

• Rims: Aluminum Double Wall, 28h, 26"

• Tires: CY Trail, 26x2.25", Wire Bead

• Spokes: Stainless Steel with Brass Nipples, Black

Weight

• Weight: 12.95 kg (28.5 lbs)

Geometry

• Front Travel: 100mm

• Reach: 370mm

• Stack: 578mm

• Head Tube Angle: 66.5°

• Fork Offset: 42mm

• Seat Tube Length: 370mm

• Effective Seat Tube Angle: 73°

• Rear Centre Length: 410mm

• Bottom Bracket Drop: 50mm

• Bottom Bracket Height: 290mm

• Horizontal Top Tube: 547mm

• Wheelbase: 1052mm

• Standover: 609mm

• Head Tube Length: 100mm

• Trail: 102mm

• Stem Length: 45mm

• Crank Length: 152mm

• Recommended Tire Size: 2.2" – 2.4"

• Water Bottle Compatible: Yes (1 x 620mL)
